User Manual for TP-Link RE450 1750 Wi-Fi Range Extender Click to enlarge the picture
Contents of the user manual for the TP-Link RE450 1750 Wi-Fi Range Extender
- Product category: Wireless Range Extenders TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Wireless Range Extenders
 |
User manual for the TP-Link RE450 1750 Wi-Fi Range Extender contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|
Product description - How to Set Up a Wireless AC Wall-Plug Wi-Fi Range Extender

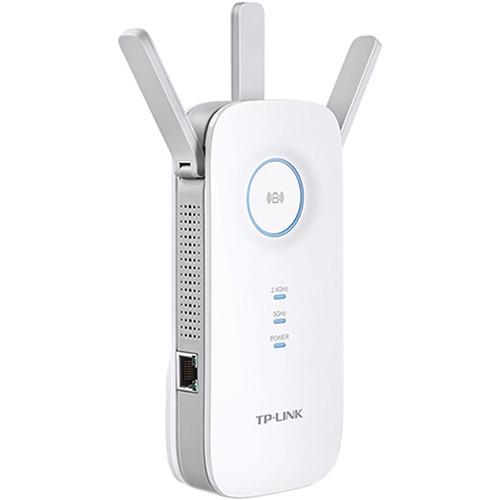

Expand the reach of your current Wi-Fi network by up to 10,000 square feet with the RE450 1750 Wi-Fi Range Extender from TP-Link. This range extender operates on both the 2.4 GHz and 5 GHz frequency and supports the 802.11ac networking standard offering a total bandwidth of up to 1750 Mbps. These enhanced data transfer rates make it easy to use this adapter to stream HD multimedia content, game online, download large files, and much more. The three adjustable antennas allow you to tailor your signal to ensure all areas are covered while the dedicated Gigabit Ethernet port provides a wired network connection for Ethernet enabled devices. When installing this range extender you can rest assured it will be placed in the proper location thanks to the intelligent signal light. - Boost Wi-Fi Coverage
- The TP-LINK AC1750 Wi-Fi Range Extender connects to your router wirelessly, strengthening and expanding its signal into areas it can't reach on its own. The device also reduces signal interference to ensure reliable Wi-Fi coverage throughout your home or office.
- Super-Fast Speed
- TP-LINK's RE450 comes with next generation 802.11AC Wi-Fi technology, it's 3 times faster than the standard 802.11n speeds. The RE450 delivers fast speeds of dual band Wi-Fi up to 1750 Mbps, providing reliable connections for bandwidth-intensive tasks like HD/4K streaming, lag free gaming, large file downloads.
- Gigabit Wired Speed
- A gigabit Ethernet port turns the extender into a wireless bridge, letting you connect a wired device like a Blu-ray player, gaming console, DVR, or smart TV to your Wi-Fi network.
- Easy Installation
- The extender RE450 works with any standard wireless router. Instantly connect the RE450 to a router by pressing the extender's RE button followed by the router's WPS button (if available). Once connected with an existing router, just take RE450 to an ideal place.
- Quick Positioning
- The Intelligent signal light can help to find the best location to place the extender.
- High Performance External Antennas
- Three external dual band antennas boost your wireless coverage and reliability, helping your devices stay connected virtually anywhere your network reaches.
- High Speed Mode
- High Speed mode maximizes overall performance by combining the bandwidth of both the 5 GHz and 2.4 GHz channels to create a lightning-fast connection with one band sending data and the other receiving it.

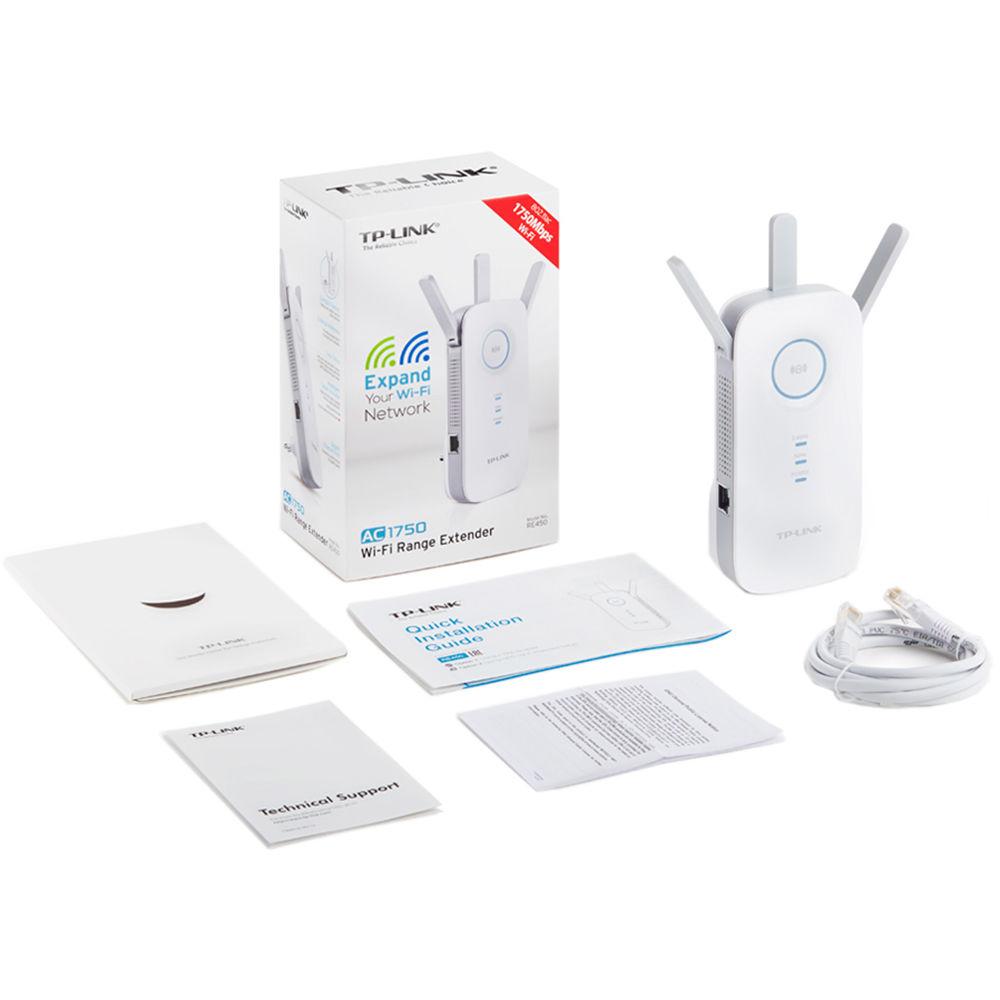

UPC: 845973092405 In the Box TP-Link RE450 1750 Wi-Fi Range Extender RJ-45 Ethernet Cable Limited 2-Year Manufacturer Warranty Manual PDF 1.6mb More info from TP-Link Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link RE450 1750 Wi-Fi Range Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link RE450 Specs | | | Plug Type | EU, UK, US | | Standards and Protocols | IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b | | Ethernet Port | 1 x Gigabit Ethernet Port | | Buttons | RE (Range Extender) button
Reset button
LED button
Power button | | Power Consumption | 9 W (max. power consumption) | | Antennas | 3 x external antennas | | | | Frequency | 2.4 GHz & 5 GHz (11ac) | | Signal Rate | 5 GHz: Up to 1300 Mbps
2.4 GHz: Up to 450 Mbps | | Reception Sensitivity | 5 GHz：
11a 6 Mbps: -93 dBm @ 10% PER
11a 54M bps: -76 dBm @ 10% PER
11ac HT20 mcs8: -68 dBm @ 10% PER
11ac HT40 mcs9: -64 dBm @ 10% PER
11ac HT80 mcs9: -61 dBm @ 10% PER
2.4 GHz：
11g 54M: -77 dBm @ 10% PER
11n HT20 mcs7: -73 dBm @ 10% PER
11n HT40 mcs7: -70 dBm @ 10% PER | | Wireless Modes | Range extender | | Wireless Functions | Wireless Statistic
Concurrent Mode boost both 2.4G / 5G Wi-Fi band
High Speed Mode for great speed for HD Gaming and video
Access Control
LED Control
Domain Login Function | | Wireless Security | 64/128-bit WEP
WPA-PSK / WPA2-PSK | | Transmission Power | <20 dbm (2.4 ghz)
<23 dBm (5 GHz) | | | | Certifications | CE, FCC, RoHS | | System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, Mac OS, NetWare, UNIX or Linux | | Temperature & Humidity | Operating Temperature: 32 to 86°F / 0 to 30°C
Storage Temperature: -40 to 158°F / -40 to 70°C
Operating Humidity: 10 to 90% non-condensing
Storage Humidity: 5 to 90% non-condensing | | | | Dimensions | 6.4 x 3.0 x 2.6" / 16.3 x 7.6 x 6.7 cm) | | Weight | Not specified by manufacturer | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 7.9 x 4.9 x 3.3" |
