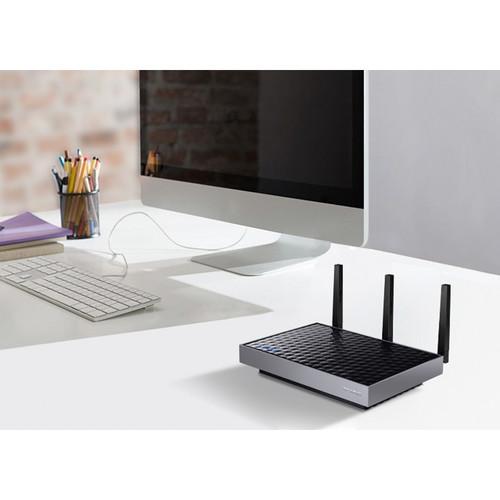

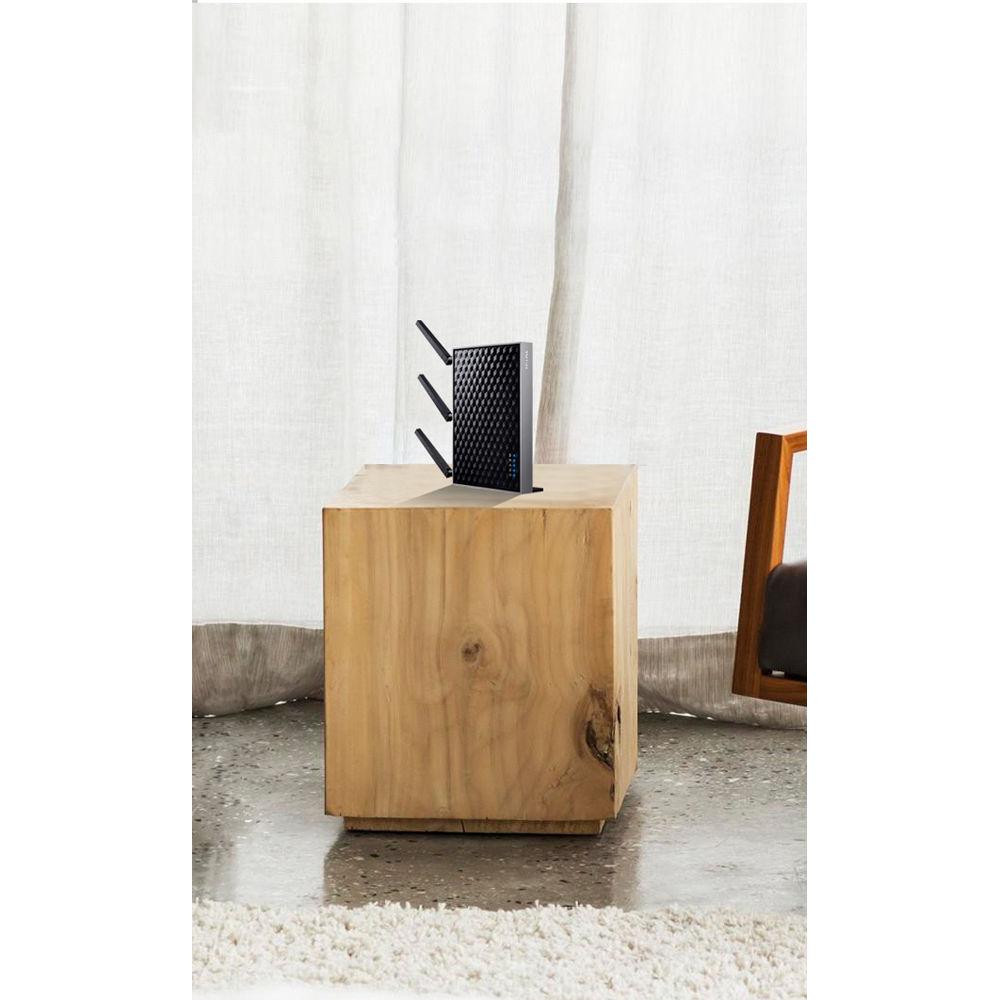

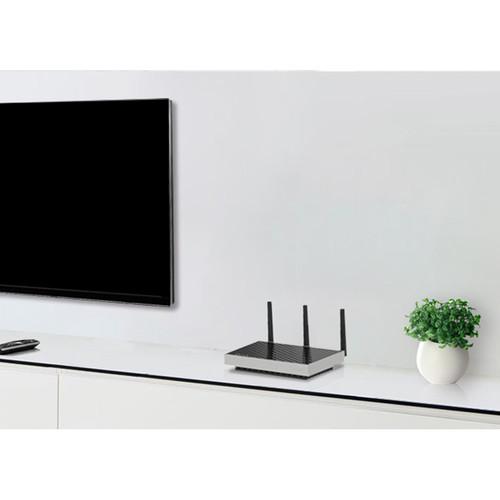

User Manual for TP-Link RE580D AC1900 Wi-Fi Range Extender Click to enlarge the picture
Contents of the user manual for the TP-Link RE580D AC1900 Wi-Fi Range Extender
- Product category: Wireless Range Extenders TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Wireless Range Extenders
 |
User manual for the TP-Link RE580D AC1900 Wi-Fi Range Extender contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|
Product description Greatly expand the reach of your current Wi-Fi network with the RE580D AC1900 Wi-Fi Range Extender from TP-Link. This range extender comes compatible with virtually any Wi-Fi router or range extender, making setup and configuration simple. Once configured, you can begin taking advantage of concurrent dual-band functionality and high-speed mode which allocates the transmitted data to one channel and the received data to a different channel. This simultaneous transfer of data allows for enhanced data transfer rates of up to 1.9 Gbps which is perfect for online gaming, streaming HD content, transferring large files, and more. In addition to enhanced dual-band functionality, you can connect nearly any Wi-Fi enabled device to this range extender as it supports the IEEE 802.11a/b/g/n/ac networking standards.

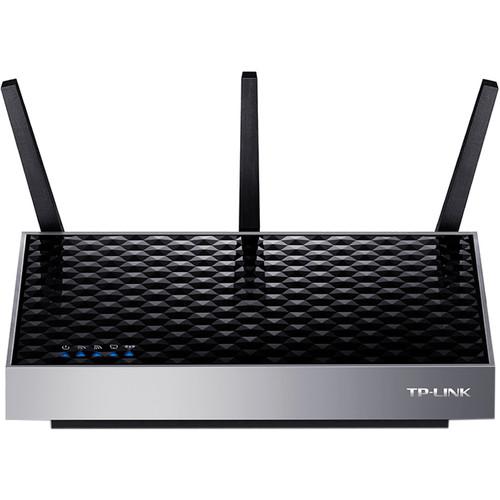

On the outside of the RE580D you will find three dual-band external antennas along with a total output power of 700 mW. The enhanced output power provides a stronger signal reaching distances up to 10,000 square feet. TP-Link has also included beamforming technology into this range extender for a more stable and reliable wireless connection. If a wired connection is what you want, the RE580D also comes equipped with five Gigabit Ethernet ports perfect for connecting computers, smart TVs, game consoles, and more directly to your network. - Expand Any Wi-Fi Network
- With three external dual-band antennas and 700 mW high-powered amplifiers, the RE580D can establish a stable wireless connection to any Wi-Fi router and augment the network's coverage by up to 10,000 square feet. The dual-core 1 GHz processor provides maximum Wi-Fi performance, and keeps your smartphones and tablets connected as you move around your home.
- Beamforming Technology for Accurately Focused Wi-Fi
- Beamforming technology focuses the Wi-Fi transmission in the direction of your connected devices, concentrating the signal where you need it the most. Superior Wi-Fi bandwidth utilization increases range and provides targeted, efficient Wi-Fi connections.
- Simultaneous Dual-Band Wi-Fi
- The RE580D utilizes the 802.11ac Wi-Fi standard to deliver dual band Wi-Fi connections with combined speeds of up to 1.9 Gbps (1.3 Gbps on the 5 GHz band and 600 Mbps on the 2.4 GHz band). This enhanced speed means the RE580D offers reliable connections for bandwidth-intensive tasks, such as HD/4K video streaming, online gaming, and large file downloads.
- High Speed Mode
- The RE580D can use both the 5 GHz and 2.4 GHz bands to create a single, fast connection by transmitting data on one channel and receiving data on the other. This is especially beneficial when performing bandwidth-intensive tasks, such as HD video streaming or online gaming.
In the Box TP-Link RE580D AC1900 Wi-Fi Range Extender RJ-45 Ethernet Cable 3 x Detachable Antennas Power Adapter Limited 1-Year Manufacturer Warranty Guides & Manuals cwcecrsbuvxaycxccttwacbsf More info from TP-Link cwcecrsbuvxaycxccttwacbsf Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link RE580D AC1900 Wi-Fi Range Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the TP-Link RE580D AC1900 Wi-Fi Range Extender can be downloaded in PDF format at the link stated below.

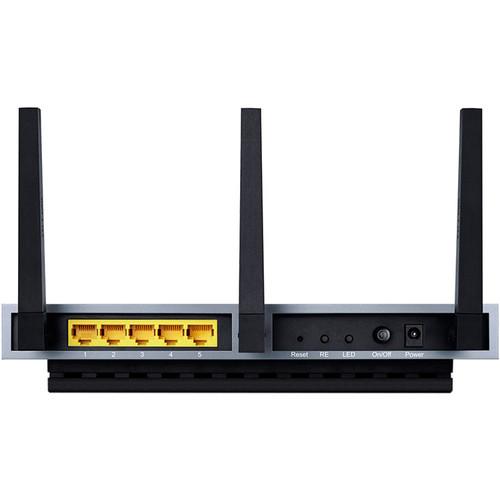

Technical parametersTP-Link AC1900 Specs | | | Interfaces | 5 x 10/100/1000 Mbps Ethernet Port (RJ-45) | | Buttons | RE (range extender) button
Reset button
LED button
Power button | | Antena | 3 x external dual-band antennas | | External Power Supply | 12 V / 2.5 A | | | | Wireless Standards | IEEE 802.11a/b/g/n/ac | | Frequency | 2.4 GHz & 5 GHz (11ac) | | Signal Rate | 5 GHz: Up to 1300 Mbps 2.4 GHz: Up to 600 Mpbs | | Reception Sensitivity | 5 GHz
11a 6 Mbps: -92 dBm
11a 54 Mbps: -74 dBm
11ac HT20 MCS8: -66 dBm
11ac HT40 MCS9: -62 dBm
11ac HT80 MCS9: -58.5 dBm
2.4GHz
11g 54 M: -76 dBm
11n HT20 MCS7: -73 dBm
11n HT40 MCS7: -70.5 dBm | | Transmit Power | CE
<20 dbm (2.4 ghz)
<23 dbm (5 ghz)
FCC
<30 dBm | | Wireless Modes | Range extender | | Wireless Functions | Wireless statistic
Concurrent mode boost both 2.4 G / 5 G Wi-Fi bands
high-speed mode for enhanced speed for HD gaming and video
Access control
LED control
Domain login function | | Wireless Security | 64/128-bit WEP
WPA-PSK/WPA2-PSK | | | | Certifications | CE, FCC, RoHS | | System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, Mac OS, NetWare, UNIX or Linux | | Temperature & Humidity | Operating Temperature: 32 to 86°F / 0 to 30°C
Storage Temperature: -40 to 158°F / -40 to 70°C
Operating Humidity: 10 to 90% non-condensing
Storage Humidity: 5 to 90% non-condensing | | Dimensions | 9.5 x 6.4 x 1.7" / 242 x 162 x 44 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 3.25 lb | | Box Dimensions (LxWxH) | 13.3 x 9.5 x 3.0" |
