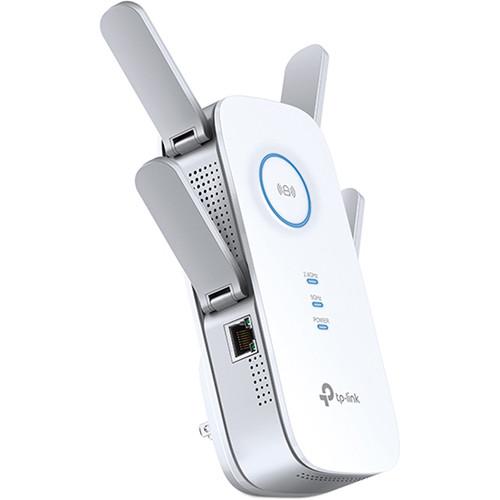

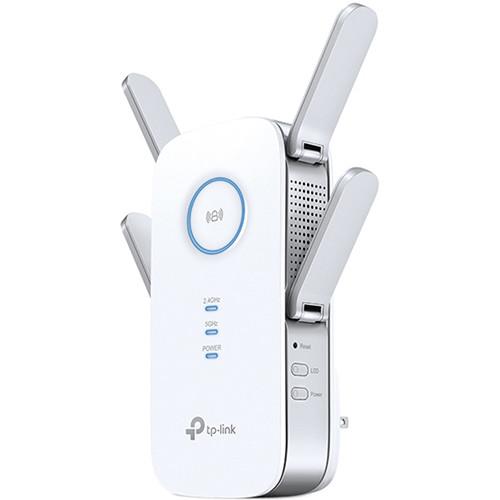

User Manual for TP-Link RE650 AC2600 Wi-Fi Range Extender Click to enlarge the picture
Contents of the user manual for the TP-Link RE650 AC2600 Wi-Fi Range Extender
- Product category: Wireless Range Extenders TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Wireless Range Extenders
 |
User manual for the TP-Link RE650 AC2600 Wi-Fi Range Extender contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|

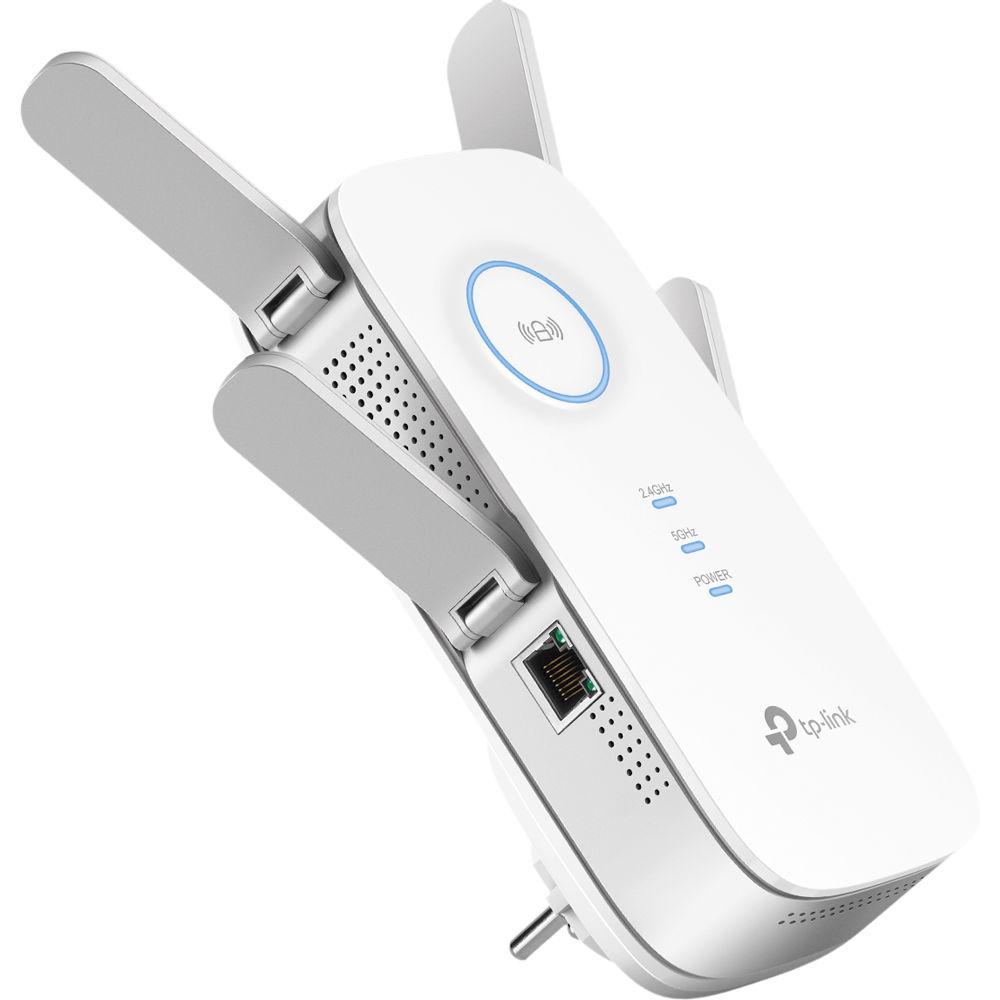

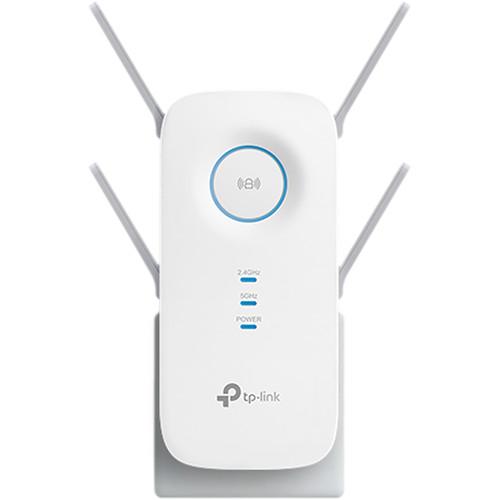

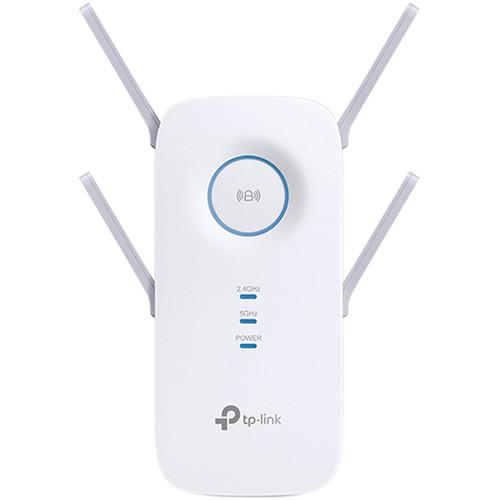

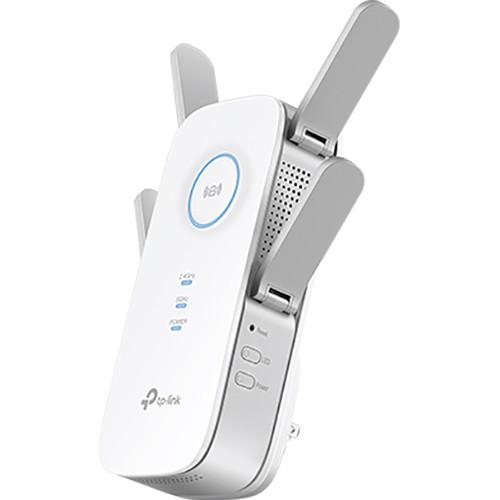

Product description Expand the reach of your current Wi-Fi network by up to 14,000 square feet with the RE650 AC2600 Wi-Fi Range Extender from TP-Link. This range extender operates on both the 2.4 GHz and 5 GHz frequencies and supports the 802.11ac networking standard offering a total bandwidth of up to 2600 Mbps. These enhanced data transfer rates make it easy to use this adapter to stream HD multimedia content, game online, download large files, and much more. The four adjustable antennas allow you to tailor your signal to ensure all areas are covered while the dedicated Gigabit Ethernet port provides a wired network connection for Ethernet-enabled devices. When installing this range extender, you can rest assured you will place it in the proper location thanks to the intelligent signal light. - Enhanced Wi-Fi Performance
- Powerful Quad-Antenna design with beamforming delivers highly targeted Wi-Fi connections to improve throughput and signal quality for stronger Wi-Fi across your home, while extending your router's coverage by up to 14,000 square feet. The Intelligent Processing Engine balances the demands of your devices to keep their connections fast and uninterrupted, sending Wi-Fi traffic to dedicated processors while the powerful dual-core CPU handles the rest.
- 4-Stream AC2600 Dual-Band Wi-Fi
- Using 4-Stream and TurboQAM technology to boost its Wi-Fi bandwidth, the RE650 reaches industry leading maximum speeds of up to 800 Mbps on 2.4 GHz and 1733 Mbps on 5 GHz. This provides the performance necessary to support your most demanding online applications, including 4K streaming and gaming.
- More Connections and Faster Speeds
- MU-MIMO technology allows the RE650 to serve up to four devices at once, reducing wait time and greatly increasing Wi-Fi throughput for every device. With MU-MIMO, the RE650 runs up to 4x faster than traditional AC range extenders.
- High-Speed Gigabit Wired Connection

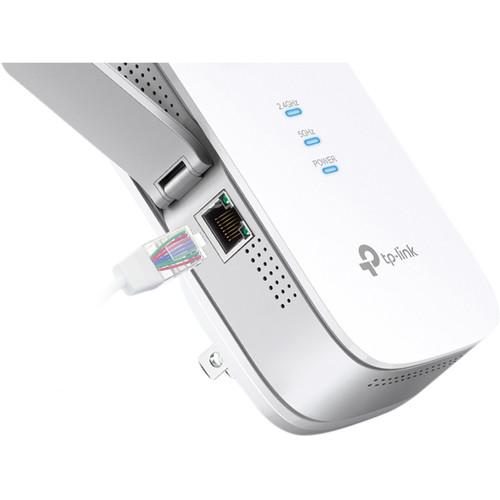

- The RE650's Gigabit Ethernet port lets you connect a wired device such as a game console or smart TV to create a fast, reliable wired connection.
- Find the Best Spot with Intelligent Signal Indicator
- The Intelligent Signal Light helps you quickly find the best location to install the RE650.
- Built-in Access Point Mode
- The RE650 is more than a wireless range extender. Simply plug an Ethernet cable into its Ethernet port, and easily turn your wired internet connection into a 4×4 MU-MIMO dual band wireless access point.
- Drop-Free and Seamless Dual-Band Connections
- If one of the main router's dual bands drops suddenly, or in case the main router can only deliver single band, the RE650 still provides stable dual-band connections for clients, allowing you to enjoy stable and drop-free experience on all your devices.
- Easy Monitoring and Control
- TP-Link Tether is an intuitive app that allows users to conveniently monitor the state of your range extender, controlling its functions and altering its settings from any compatible mobile device.
UPC: 845973095857 In the Box TP-Link RE650 AC2600 Wi-Fi Range Extender Limited 2-Year Manufacturer Warranty More info from TP-Link Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link RE650 AC2600 Wi-Fi Range Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the TP-Link RE650 AC2600 Wi-Fi Range Extender can be downloaded in PDF format at the link stated below.

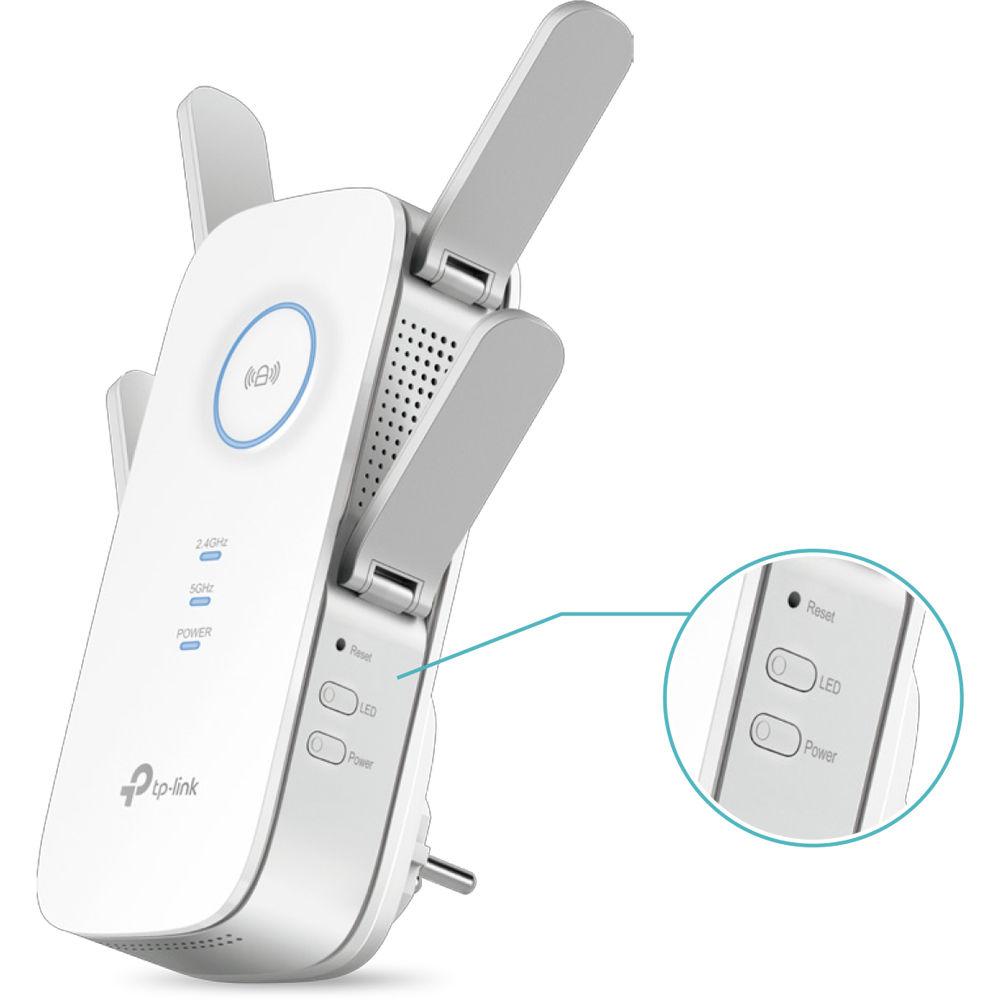

Technical parametersTP-Link RE650 Specs | | | Plug Type | US | | Standards and Protocols | IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a | | Ethernet Port | 1 x Gigabit Ethernet Port | | Buttons | WPS Button, Reset Button, LED Button, Power Button | | Power | Power Supply
100-240 V
Power Consumption
12 W (max. power consumption) | | Antennas | 4 x external antennas | | | | Frequency | 2.4 GHz & 5 GHz (11ac) | | Signal Rate | 5 GHz: Up to 1733 Mbps
2.4 GHz: Up to 800 Mbps | | Reception Sensitivity | 5 GHz
11a 6 Mbps: -96 dBm @ 10% PER
11a 54 Mbps: -78 dBm @ 10% PER
11ac HT20 mcs8: -69 dBm @ 10% PER
11ac HT40 mcs9: -66 dBm @ 10% PER
11ac HT80 mcs9: -63 dBm @ 10% PER
2.4 GHz
11g 54 M: -79 dBm @ 10% PER
11n HT20 mcs7: -77 dBm @ 10% PER
11n HT40 mcs7: -74 dBm @ 10% PER | | Wireless Modes | Range Extender / Access Point | | Wireless Functions | Wireless Statistic
Concurrent Mode boost both 2.4G / 5G Wi-Fi band
High Speed Mode for HD gaming and video
Access Control
LED Control
Domain Login Function | | Wireless Security | 64/128-bit WEP
WPA-PSK / WPA2-PSK | | Transmission Power | <20 dbm (2.4 ghz)
<23 dBm (5 GHz) | | | | Certifications | FCC, RoHS | | System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, Mac OS, NetWare, UNIX or Linux | | Temperature & Humidity | Operating Humidity: 10 to 90% non-condensing
Storage Humidity: 5 to 90% non-condensing | | | | Dimensions | 6.4 x 3.4 x 1.6" / 163 x 86 x 40 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 8.0 x 5.1 x 3.9" |
