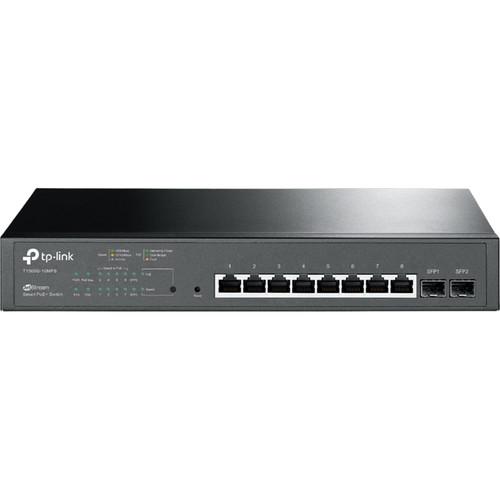

User Manual for TP-Link T1500G-10MPS 8-Port Gigabit PoE Managed Switch with 2 SFP Slots Click to enlarge the picture
Contents of the user manual for the TP-Link T1500G-10MPS 8-Port Gigabit PoE Managed
- Product category: Network Switches, Bridges & Hubs TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Network Switches, Bridges & Hubs
|
User manual for the TP-Link T1500G-10MPS 8-Port Gigabit PoE Managed contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|
Product description Supporting both the 802.3at and 802.3af PoE networking standards, the T1500G-10MPS 8-Port Gigabit PoE+ Managed Switch with 2 SFP Slots from TP-Link can power a variety of PoE compliant devices such as IP cameras, VoIP phones, and much more. With a 136-watt PoE power budget, even power-hungry network devices can draw enough power from the network to eliminate the need for standalone power sources and adapters. With time-based PoE settings, power can be allocated to individual devices on an as-needed basis, which in turn greatly reduces power consumption.
This 8-port switch features eight Gigabit Ethernet ports and two Gigabit SFP slots. Accompanying the various network ports are two fans to ensure the switch remains cool when operating at maximum capacity. A switching capacity of 20 Gbps ensures data moves about the switch quickly and efficiently while the 14.9 Mpps forwarding rate, 8k MAC address table, and 9 KB jumbo frame help to guide packets in the right direction to avoid network disruption.
Once configured, the T1500G-10MPS offers a variety of Layer 2 features such as IGMP Snooping V1/V2/V3, support for up to 512 VLANs, 802.3ad LACP support, and much more to give network administrators the tools needed to manage nearly every aspect of the network. TP-Link has also included various Quality of Service (QoS) functionality including four priority queues, 802.1P support, and more to simplify the process of bandwidth allocation to give data hungry devices and applications the bandwidth needed to function properly. Management and control of the network has also been simplified with support for both a web-based GUI as well as command line interface controls. - PoE
- Standard: 802.3at/af compliant with up to 30 W per port
PoE+ Ports: 8 ports
Power Supply: 116 W - Layer 2
- Link Aggregation Control Protocol (LACP)
Up to 512 VLANs simultaneously (out of 4K VLAN IDs)
STP/RSTP/MSTP
Loopback Detection
LLDP (LLDP-MED)
IGMP Snooping
802.3x Flow Control for Full Duplex mode and backpressure for Half Duplex mode - Quality of Service
- 802.1p CoS/DSCP priority
4 priority queues
Queue scheduling
Bandwidth Control
Voice VLAN - Security Strategies
- Access Control List (L2~L4 ACL)
IP-MAC-Port Binding
Port Security
Storm Control
SSL and SSH encryptions
802.1x and Radius Authentication
Dos Defend - Management
- Web-based GUI
Command Line Interface(CLI) through telnet
SNMPv1/v2c/v3
RMON (1,2,3,9 groups)
Dual Image - Enterprise Level Management
- The T1500G-10MPS supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface (GUI) or industry-standard Command Line Interface (CLI). SNMP (v1/2/3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events.
UPC: 845973098858 In the Box TP-Link T1500G-10MPS 8-Port Gigabit PoE+ Managed Switch with 2 SFP Slots Power Cord Resource CD Rackmount Kit Rubber Feet Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link T1500G-10MPS 8-Port Gigabit PoE Managed Switch with 2 SFP Slots in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link T1500G-10MPS Specs | | | Ports | 8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+ (Type 2)
2 x 10/100/1000 Mb/s Gigabit SFP | | | | Supported Protocols | Auto-MDIX/MDI
IGMP Snooping | | Queuing | Strict Priority, Weighted Round Robin (WRR) | | Jumbo Frames Support | 9,000 Bytes | | MAC Address Table Size | 8K | | VLAN Groups | 512 | | VLAN IDs | 4000 | | | | Security Features | DHCP Snooping
DoS Attack Prevention
RADIUS Authentication
Storm Control | | | | Supported IEEE Standards | 802.1d, 802.1p, 802.1q, 802.1s, 802.1w, 802.1x, 802.3ab, 802.3ad, 802.3af, 802.3at, 802.3i, 802.3u, 802.3x, 802.3z | | | | Forwarding Rate | 14.9 Mpps | | Switching Bandwidth | 20 Gb/s | | Priority Queues | 4 | | Packet Buffer | 512 Kb | | | | OS Compatibility | Windows XP or Later
macOS
Linux
UNIX | | | | Power Draw | 20.6 W (Active) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | PoE Power Budget | 136.6 W | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 90% | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Storage Humidity | 5 to 90% | | Certifications | RoHS, as per Manufacturer | | | | Cooling System | Fan | | Dimensions | 11.6 x 7.1 x 1.7" / 29.4 x 18 x 4.4 cm | | | | Package Weight | 5.2 lb | | Box Dimensions (LxWxH) | 15.8 x 9.9 x 3.2" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 92 owners. Add your rating and experience with the product.
