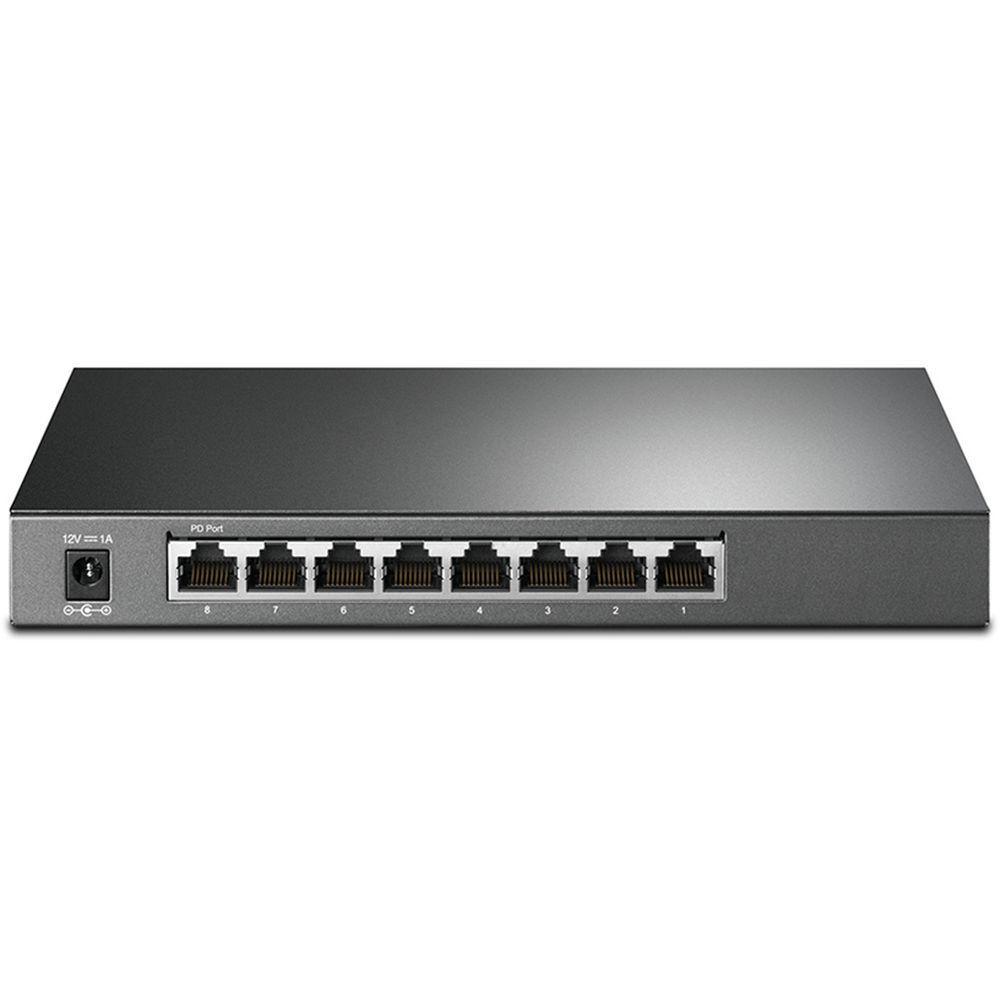

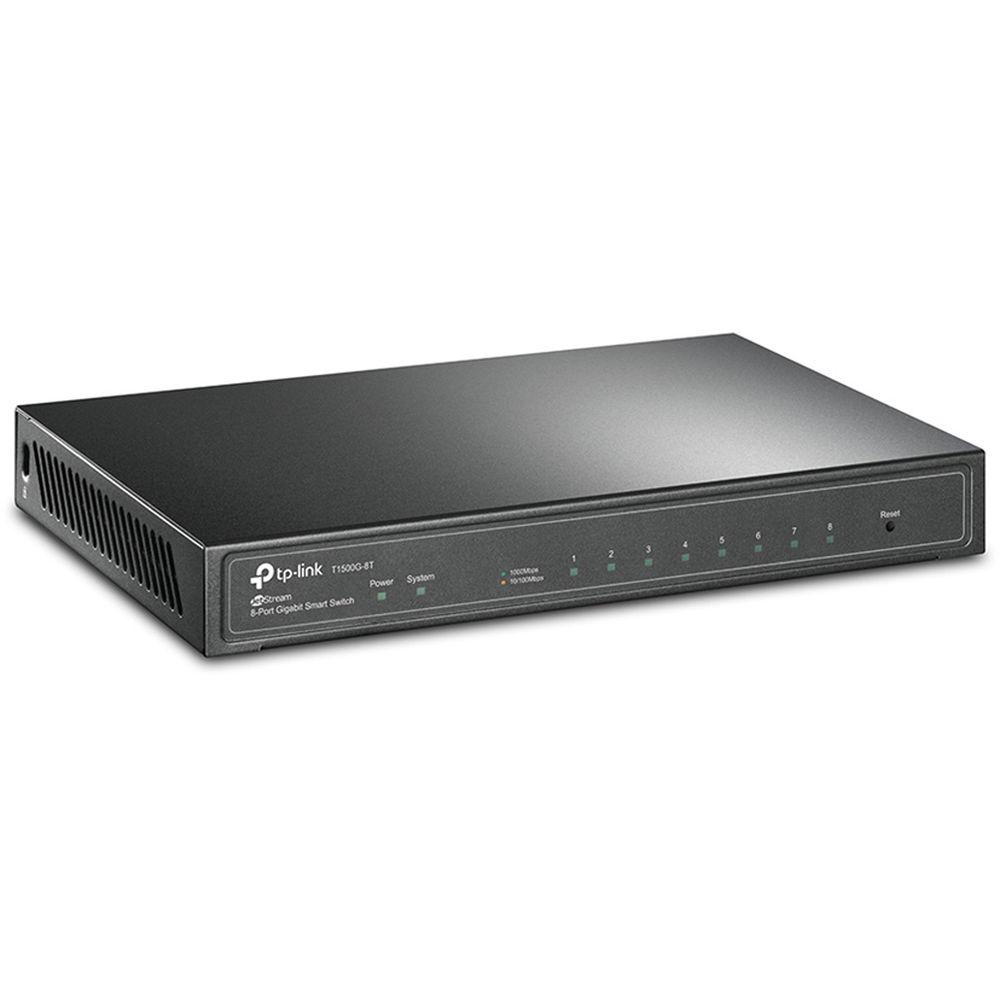

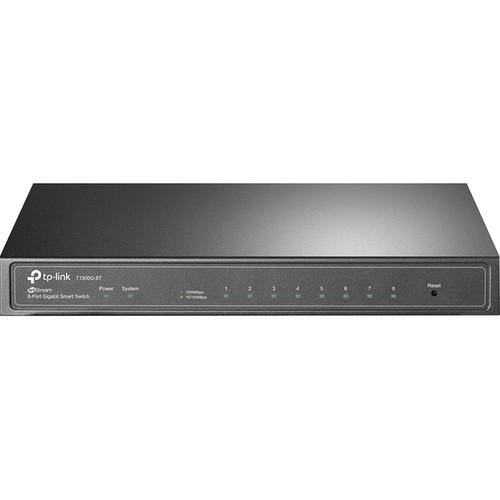

Product description With the ability to accept PoE power, the T1500G-8T 8-Port Gigabit Managed Switch from TP-Link can derive its power directly from a network offering PoE to connected devices. This 8-port switch features eight Gigabit Ethernet ports with the eighth port supporting an incoming PoE power source. A switching capacity of 16 Gb/s ensures data moves about the switch quickly and efficiently while the 11.9 Mpps forwarding rate, 8k MAC address table, and 9 KB jumbo frame help to guide packets in the right direction to avoid network disruption.
Once configured, the T1500G-8T offers a variety of Layer 2 features such as IGMP Snooping V1/V2/V3, support for up to 512 VLANs, 802.3ad LACP support, and much more to give network administrators the tools needed to manage nearly every aspect of the network. TP-Link has also included various Quality of Service (QoS) functionality including four priority queues, 802.1P support, and more to simplify the process of bandwidth allocation to give data-hungry devices and applications the bandwidth needed to function properly. Management and control of the network have also been simplified with support for both a web-based GUI as well as command line interface controls. - PoE Features
-
- Port 8 supports the IEEE 802.3af/at standard for Power over Ethernet and obtains its power from a PoE source
- Layer 2 Features
-
- Link Aggregation Control Protocol (LACP)
- Up to 512 VLANs simultaneously (out of 4K VLAN IDs)
- STP/RSTP/MSTP
- Loopback Detection
- LLDP (LLDP-MED)
- IGMP Snooping
- 802.3x Flow Control for Full Duplex mode and backpressure for Half Duplex mode
- Quality of Service
-
- 802.1p CoS/DSCP priority
- 4 priority queues
- Queue scheduling
- Bandwidth control
- Voice VLAN
- Security Strategies
-
- Access Control List (L2~L4 ACL)
- IP-MAC-Port Binding
- Port Security
- Storm Control
- SSL and SSH encryptions
- 802.1x and Radius Authentication
- Dos Defend
- Management
-
- Web-based GUI
- Command Line Interface (CLI) through Telnet
- SNMP v1/v2c/v3
- RMON (1,2,3,9 groups)
- Dual Image
- Enterprise Level Management Features
- The T1500G-8T is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface (GUI) or SNMP (v1/2/3), and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events.
UPC: 845973080242 In the Box TP-Link T1500G-8T 8-Port Gigabit Managed Switch Power Adapter Rubber Feet Limited 5-Year Warranty More info from TP-Link Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link T1500G-8T 8-Port Gigabit Managed Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link T1500G-8T Specs | Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p | | Interface | 8 x 10/100/1000 Mb/s RJ45 ports
Port 8 obtain power from PoE source
(Auto-Negotiation/Auto MDI/MDIX) | | Network Media | 10BASE-T: UTP category 3, 4, or 5 cable (maximum 328' / 100 m)
100BASE-TX/1000Base-T: UTP category 5, 5e, or above cable (maximum 328' / 100 m) | | Fan Quantity | Fanless | | Power Supply | 100~240 VAC, 50/60 Hz
External Power Adapter (Output: 12 VDC/1 A)
Obtain power from PoE source | | Power Consumption | Maximum: 5.75 W (220 V/50 Hz) | | PD Port | Port 8 IEEE 802.3af/at (RJ45) | | Performance | Bandwidth/Backplane
16 Gb/s
Packet Forwarding Rate
11.9 Mpps
MAC Address Table
8K
Jumbo Frame
9216 bytes | | Quality of Service (QoS) | 802.1p CoS/DSCP priority
4 priority queues
Queue Scheduling: SP, WRR, SP+WRR
Port/Flow-based Rate Limiting
Voice VLAN | | L2 Features | IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 6 aggregation groups, containing 4 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loop back detection
802.3x Flow Control
LLDP, LLDP-MED | | VLAN | Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs) | | Access Control List (ACL) | L2～L4 package filtering based on source and destination MAC address, IP address, and TCP/UDP ports | | Security | Port Security
DHCP Snooping
IP-MAC-Port Binding
ARP Inspection
802.1x and Radius Authentication
SSH v1/v2
SSL v3/TLSv1
Broadcast/Multicast/Unknown-Unicast Storm Control
Dos Defend | | Management | Web-based GUI
Command Line Interface(CLI) through Telnet
SNMP v1/v2c/v3, compatible with public MIBs and TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
CPU Monitoring
Port Mirroring
Time Setting: SNTP
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS
Dual Image | | Certifications | CE, FCC, RoHS | | System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8, MAC OS, NetWare, UNIX, or Linux | | Temperature & Humidity | Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-40 to 158°F / -40 to 70°C
Operating Humidity
10 to 90% non-condensing
Storage Humidity
5 to 95% non-condensing | | Dimensions | 8.2 x 5.0 x 1.0" / 20.9 x 12.6 x 2.6 cm | | Weight | Not specified by manufacturer | | | | Package Weight | 2.15 lb | | Box Dimensions (LxWxH) | 11.0 x 8.8 x 2.7" |
