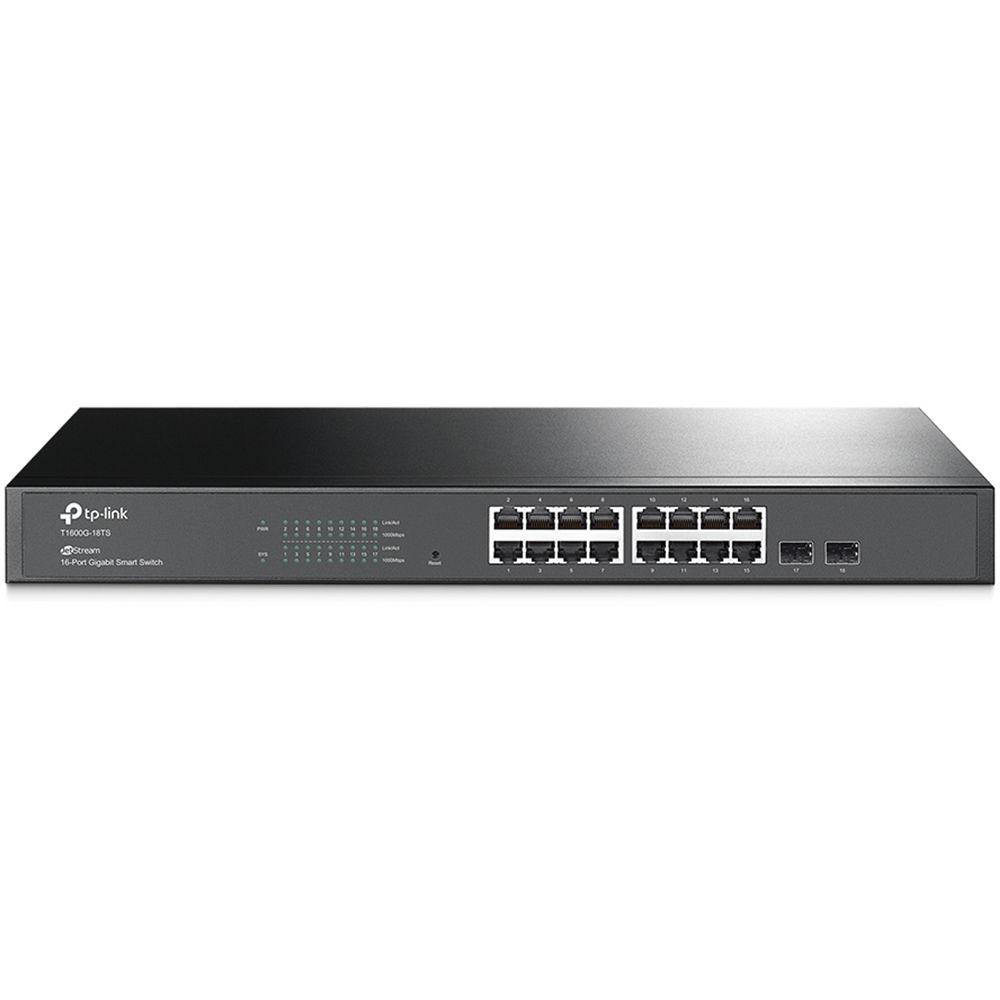

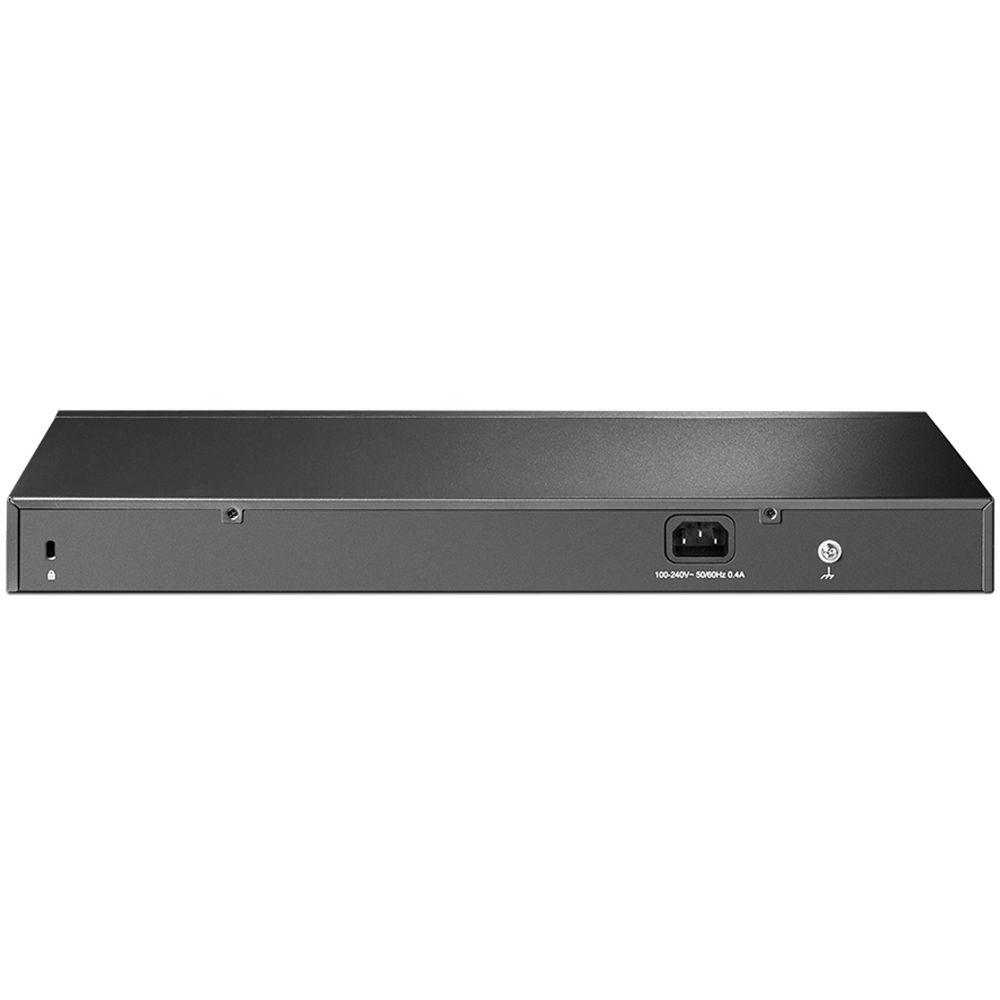

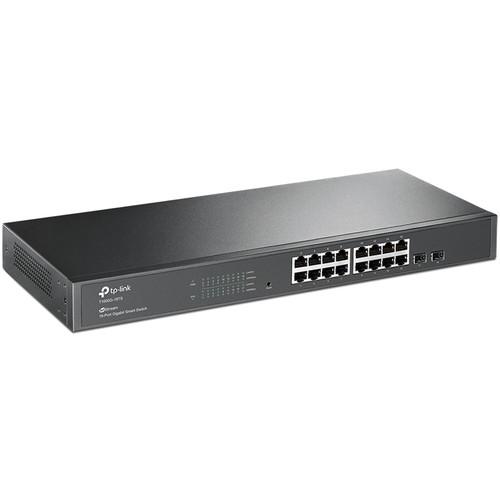

User Manual for TP-Link T1600-G-18TS JetStream 16-Port Gigabit Managed Smart Switch Click to enlarge the picture
Contents of the user manual for the TP-Link T1600-G-18TS JetStream 16-Port Gigabit Managed
- Product category: Network Switches, Bridges & Hubs TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Network Switches, Bridges & Hubs
 |
User manual for the TP-Link T1600-G-18TS JetStream 16-Port Gigabit Managed contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|
Product description Take advantage of full speed Gigabit connectivity across all ports found on the T1600-G-18TS JetStream 16-Port Gigabit Managed Smart Switch from TP-Link. In addition to 16 Gigabit Ethernet ports, this switch also features dual Gigabit SFP slots to connect additional high-speed network components directly to the switch. Once configured, the T1600-G-18TS network switch offers enhanced performance capabilities thanks to a bandwidth of 36 Gb/s, a 26.8 Mpps forwarding rate, and an 8K MAC address table. Software features include enhanced Quality of Service functionality, an extensive L2 and L2+ feature set, and improved security protocols to keep your network secure. - L2 and L2+ Features
-
- Static Routing
- Link Aggregation Control Protocol (LACP)
- 802.1Q tag VLAN
- STP/RSTP/MSTP
- IGMP Snooping
- Port Isolation
- Quality of Service
-
- Support IEEE 802.1P
- Eight priority queues
- DSCP QoS
- Rate limit feature
- Security Strategies
-
- Access Control List (L2~L4 ACL)
- Port Security
- Storm Control
- SSL and SSH encryptions
- 802.1x and Radius Authentication
- IP-MAC-Port Binding
- ARP Inspection
- Dos Defend
- IPv6 Support
-
- Dual IPv4/IPv6 Stack
- MLD Snooping
- PMTU Discovery
- IPv6 Neighbor Discovery
- Management
-
- Web-based GUI
- Command Line Interface(Telnet)
- SNMP v1/v2c/v3
- RMON (1,2,3,9 group)
- Dual Image
UPC: 845973083380 In the Box TP-Link T1600-G-18TS JetStream 16-Port Gigabit Managed Smart Switch Power Cord Rackmount Kit Rubber Feet Limited 3-Year Warranty More info from TP-Link Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link T1600-G-18TS JetStream 16-Port Gigabit Managed Smart Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link JetStream T1600G-18TS Specs | | | Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x | | Interface | 16 x 10/100/1000 Mb/s RJ45 ports (auto negotiation/auto MDI/MDIX)
2 x Gigabit SFP Slots | | Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 328' / 100 m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 328' / 100 m)
1000BASE-X: MMF, SMF | | Fan Quantity | Fanless | | Power Supply | 100~240 VAC, 50/60 Hz | | Power Consumption | 12.3 W | | | | Bandwidth | 36 Gb/s | | Packet Forwarding Rate | 26.8 Mpps | | MAC Address Table | 8K | | Jumbo Frame | 9 KB | | | | Quality of Service (QoS) | Support 802.1p CoS/DSCP priority
Support 8 priority queues
Queue Scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
IPv6 QoS
Voice VLAN | | L2 Features | L2 and L2+ Features
Static Routing
DHCP Relay
IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loopback detection
802.3x Flow Control
LLDP, LLDP-MED | | VLAN | Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
MAC/Protocol-based VLAN | | Access Control List | L2~L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports
IPv6 ACL | | Security | AAA
Port Security
DHCP Snooping
IP-MAC-Port Binding
ARP Inspection
802.1x and Radius Authentication
SSH v1/v2
SSL v3/TLSv1
Broadcast/Multicast/Unknown-unicast Storm Control
Dos Defend | | IPv6 | IPv6
Dual IPv4/IPv6 stack
Multicast Listener Discovery (MLD) Snooping
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 Applications
DHCPv6 Client
Ping6
Tracert6
Telnet (v6)
IPv6 SNMP
IPv6 SSH
IPv6 SSL
Http/Https
IPv6 TFTP | | Management | Web-based GUI and CLI management
SNMP v1/v2c/v3, compatible with public MIBs and TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
CPU Monitoring
Port Mirroring
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS
Dual Image | | | | Certifications | CE, FCC, RoHS | | System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8, MAC OS, NetWare, UNIX or Linux | | Temperature & Humidity | Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-40 to 158°F / -40 to 70°C
Operating Humidity
10 to 90% non-condensing
Storage Humidity
5 to 90% non-condensing | | Dimensions | 17.3 x 7.1 x 1.7" / 440 x 180 x 44 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 5.75 lb | | Box Dimensions (LxWxH) | 20.9 x 9.9 x 3.2" |
