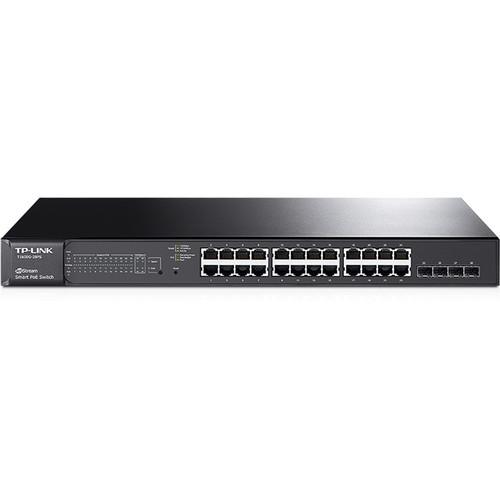

User Manual for TP-Link T1600G-28PS JetStream 24-Port Gigabit Smart PoE Switch with 4 SFP Slots Click to enlarge the picture
Contents of the user manual for the TP-Link T1600G-28PS JetStream 24-Port Gigabit Smart
- Product category: Network Switches, Bridges & Hubs TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Network Switches, Bridges & Hubs
|
User manual for the TP-Link T1600G-28PS JetStream 24-Port Gigabit Smart contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|
Product description With 24 802.3at/af PoE compliant Gigabit Ethernet ports and a power supply of 192 W, the T1600G-28PS JetStream 24-Port Gigabit Smart PoE+ Switch with 4 SFP Slots from TP-Link is designed to support a variety of devices from IP cameras, to access points, and more. In addition to the numerous PoE Gigabit Ethernet ports, this TP-Link switch also comes equipped with 4 Gigabit SFP slots supporting a variety of small form factor pluggable devices and fibre channel applications. This T1600G-28PS also contains 2 built-in fans to keep everything cool when pushing the switch to it's limits.
Once installed, this TP-Link switch offers a wealth of Layer 2 and Layer 2+ features, including static routing to help route internal traffic, 802.1Q VLAN tagging, port mirroring, link aggregation, 802.3x flow control, and more. For network maintainence TP-Link has included features such as loop back detection, cable diagnostics, and IGMP snooping. Securing the network has also been simplified thanks to IP-MAC-port binding, port security, storm control, and HDCP snooping, while 802.1X compliance offers an added level of authentication for users attempting to gain access to the network. - IEEE 802.3at/af-Compliant Power over Ethernet
- The T1600G-28PS provides 24 10/100/1000Mbps RJ45 Ports that support 802.3at/af-compliant PoE, with a total PoE power supply up to 192W to power any 802.3at/af compliant power device. Compact and flexible, the T1600G-28PS is ideal to flexibly use PoE to deploy wireless access points or IP-based network surveillance cameras for projects or small business networks.
- L2 and L2+ Features
- The T1600G-28PS supports rich L2 features, including 802.1Q tag VLAN, Port Isolation, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Group and 802.3x Flow Control function. Besides, the switch provides advanced features for network maintenance such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Moreover, T1600G-28PS supports L2+ feature-static routing, which is a simple way to provide segmentation of the network with internal routing through the switch and helps network traffic for more efficient use.
- Secure Networking
- The T1600G-28PS supports IP-MAC-Port Binding, Port Security, Storm control and DHCP Snooping which protect against broadcast storms, ARP attacks, etc. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, and even VLAN ID. Moreover, the switch supports 802.1X, which allows network clients to be authenticated through external Radius servers. Guest VLAN function supports to enable the non-802.1X clients to access the specific network resource.
- Advanced QoS Features
- To integrate voice, data, and video service on one network, the switch applies QoS policies. Administrators can designate the priority of the traffic based on a variety of means, including Port Priority, 802.1P Priority, and DSCP Priority, to ensure that voice and video are clear, smooth, and jitter free.
- Enterprise Level Management Features
- The T1600G-28PS supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface (GUI) or industry-standard Command Line Interface (CLI), SNMP (v1/2/3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events. And comprehensive IPv6 supporting management ensures a smooth migration to IPv6-based network. Besides, it also supports Dual Image, which provides reduced down-time for the switches, when the image is being upgraded / downgraded.
UPC: 845973093525 In the Box TP-Link T1600G-28PS JetStream 24-Port Gigabit Smart PoE+ Switch with 4 SFP Slots Power Cord Resource CD Rackmount Kit Rubber Feet Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link T1600G-28PS JetStream 24-Port Gigabit Smart PoE Switch with 4 SFP Slots in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link T1600G-28PS Specs | | | Ports | 24 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+ (Type 2)
4 x 10/100/1000 Mb/s Gigabit SFP | | | | Supported Protocols | Auto-MDIX/MDI
IGMP Snooping
IPv6
Link Aggregation | | Queuing | Strict Priority, Weighted Round Robin (WRR) | | Jumbo Frames Support | 9,000 Bytes | | MAC Address Table Size | 16K | | VLAN IDs | 4000 | | | | Security Features | DHCP Snooping
RADIUS Authentication
Storm Control | | | | Supported IEEE Standards | 802.1d, 802.1p, 802.1q, 802.1s, 802.1w, 802.1x, 802.3ab, 802.3ad, 802.3i, 802.3u, 802.3x, 802.3z | | | | Forwarding Rate | 41.7 Mpps | | Switching Bandwidth | 56 Gb/s | | Priority Queues | 8 | | | | OS Compatibility | Windows XP or Later
macOS
Linux
UNIX | | | | Power Draw | 28.2 W (Active) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | PoE Power Budget | 192 W | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 90% | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Storage Humidity | 5 to 90% | | Certifications | RoHS, as per Manufacturer | | | | Cooling System | Fan | | Dimensions | 17.3 x 8.7 x 1.7" / 44 x 22 x 4.4 cm | | | | Package Weight | 9.3 lb | | Box Dimensions (LxWxH) | 20.7 x 13.2 x 3.8" |
