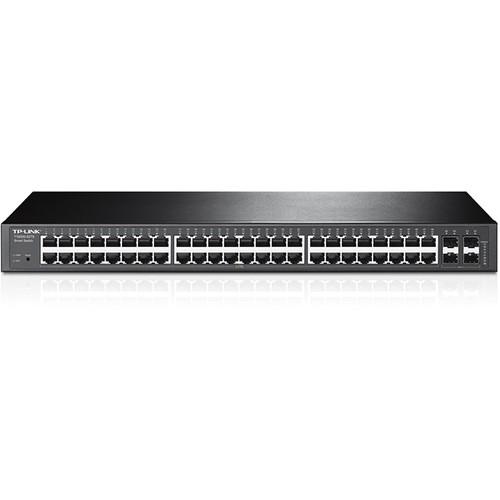

User Manual for TP-Link T1600G-52TS JetStream 48-Port Gigabit Smart Switch with 4 SFP Slots Click to enlarge the picture
Contents of the user manual for the TP-Link T1600G-52TS JetStream 48-Port Gigabit Smart
- Product category: Network Switches, Bridges & Hubs TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Network Switches, Bridges & Hubs
|
User manual for the TP-Link T1600G-52TS JetStream 48-Port Gigabit Smart contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|
Product description With 48 Gigabit Ethernet ports and 4 Gigabit SFP ports, the T1600G-52TS JetStream Gigabit Smart Switch from TP-Link is designed to handle a variety of bandwidth intensive tasks and applications. From voice to data, and even video, this switch comes equipped with enhanced Quality of Service (QoS) features such as Port Priority, 802.1P Priority, and DSCP Priority making it simple to prioritize applications throughout the network. In addition to the long list of QoS features, network administrators can also take advantage of an extensive L2 and L2+ feature set including static routing, Link Aggregation Control Protocol, Port Isolation, and much more. Once configured, the network can be maintained using a web-base GUI or a command line interface setup while security strategies such as port security, storm control, ARP inspection, and more can be used to provide security to all users on the network. - Advanced QoS Features
- To integrate voice, data and video service on one network, this switch applies rich QoS policies. Administrators can designate the priority of the traffic based on a variety of means including Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and jitter free.
- Abundant L2 and L2+ Features
- The T1600G-52TS supports a complete lineup of L2 features, including 802.1Q tag VLAN, Port Isolation, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Group and 802.3x Flow Control functionality. Additionally, the switch provides advanced features for network maintenance such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP snooping ensures the switch intelligently forwards the multicast stream to the appropriate subscribers while IGMP throttling and filtering restrict each subscriber at the port level to prevent unauthorized multicast access. Moreover, the T1600G-52TS supports L2+ feature-static routing, which is a simple way to provide segmentation of the network with internal routing through the switch and helps network traffic for more efficient use.
- IPv6 Support
- The T1600G-52TS supports various IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discovery.
- Enterprise Level Management Features
- The T1600G-52TS is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface(GUI) or industry-standard Command Line Interface(CLI), SNMP (v1/2/3) and RMON support that enables the switch to be polled for valuable status information and to send traps on abnormal events. And it also supports Dual Image, which provides reduced down-time for the switches when the image is being upgraded / downgraded.
UPC: 845973091996 In the Box TP-Link T1600G-52TS JetStream 48-Port Gigabit Smart Switch with 4 SFP Slots Power Cord Resource CD Rackmount Kit Rubber Feet Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link T1600G-52TS JetStream 48-Port Gigabit Smart Switch with 4 SFP Slots in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link T1600G-52TS Specs | | | Ports | 48 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
4 x 10/100/1000 Mb/s Gigabit SFP | | | | Supported Protocols | IGMP Snooping
IPv6
Link Aggregation | | Queuing | Strict Priority, Weighted Round Robin (WRR) | | Jumbo Frames Support | 9,216 Bytes | | MAC Address Table Size | 16K | | Multicast Groups | 256 | | VLAN Groups | 512 | | VLAN IDs | 4000 | | | | Security Features | DoS Attack Prevention
RADIUS Authentication
Storm Control | | Static Routes | 32 | | | | RFC | RFC 1213
RFC 2233
RFC 1643
RFC 1493
RFC 2674
RFC 2819
RFC 2021
RFC 2925 | | Supported IEEE Standards | 802.1d, 802.1p, 802.1q, 802.1s, 802.1w, 802.3ab, 802.3i, 802.3u, 802.3x, 802.3z | | | | Forwarding Rate | 77.4 Mpps | | Switching Bandwidth | 104 Gb/s | | Priority Queues | 4 | | Packet Buffer | 1.5 MB | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 90% | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Storage Humidity | 5 to 90% | | | | Cooling System | Passive | | Dimensions | 17.3 x 8.7 x 1.7" / 44 x 22 x 4.4 cm | | | | Package Weight | 10.05 lb | | Box Dimensions (LxWxH) | 20.75 x 13.25 x 4.0" |
