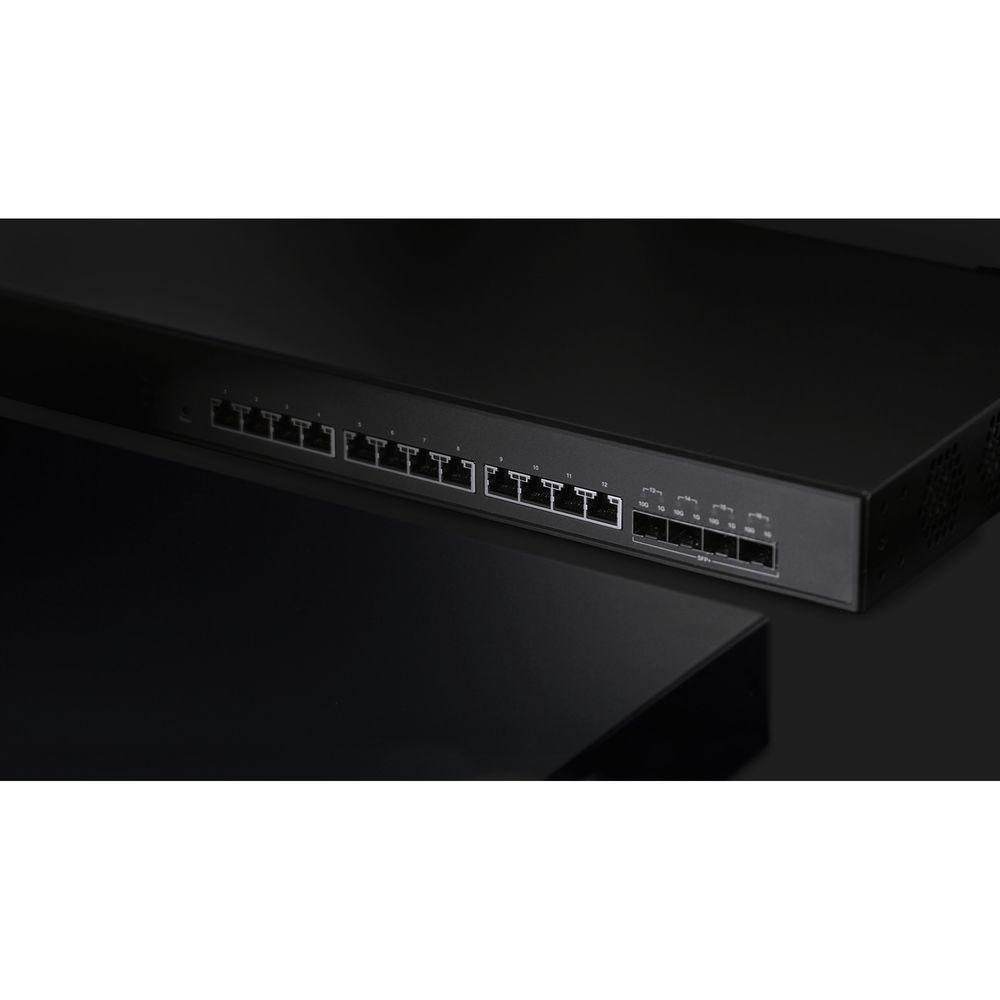

User Manual for TP-Link T1700X-16TS JetStream 12-Port Gigabit Stackable Smart Switch with 4 10G SFP Slots Click to enlarge the picture
Contents of the user manual for the TP-Link T1700X-16TS JetStream 12-Port Gigabit Stackable
- Product category: Network Switches, Bridges & Hubs TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Network Switches, Bridges & Hubs
 |
User manual for the TP-Link T1700X-16TS JetStream 12-Port Gigabit Stackable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|
Product description Designed for use in expanding enterprise environments, the T1700X-16TS JetStream 12-Port Gigabit Stackable Smart Switch with 4 10G SFP+ Slots from TP-Link this switch provides increased scalability, higher bandwidth, and enhanced performance. With 12 gigabit Ethernet ports and 4 10 gigabit SPF+ expansion slots network administrators can easily configure high-speed local-area storage networks complete with high-speed, uninterrupted data flows. Residing on Layer 2 of the network, this T1700 Series switch supports a variety of networking features including static routing, link aggregation, 802.1Q/MAC/protocol VLAN, IGMP snooping, and much more. Administrators can also regulate bandwidth using enhanced Quality of Service (QoS) support with 8 priority queues, 802.1P/DSCP QoS, rate limiting, and voice VLAN to ensure specific tasks receive the bandwidth needed to function properly. TP-Link has even provided dual-image firmware support within this switch to reduce downtime when downloading and configuring device updates. - 10-Gigabit Switching Solution
- This TP-Link T1700 Series 10G Smart Switch features a 10G uplink which provides high levels of performance, scalability, and cost-effectiveness that SMBs require from their 10G networking solutions.
- L2 + Static Routing
- Simple network segmentation, with internal routing through the switch, allows devices in different VLANs/subnets to communicate with each other and makes the flow of network traffic more efficient.
- Abundant L2 Features
- This T1700 Series device comes equipped with a full lineup of L2 features that meet your current and future needs for unified networking and mobility.
• 802.1Q/MAC/Protocol/Private VLAN
• Link Aggregation Group (LAG)
• IGMP & MLD Snooping
• Multicast VLAN - Security Strategies
- Support for numerous security strategies allow you to create a secure, unified network by preventing unauthorized access, external attacks, and malware infiltration.
• Access Control List (ACL)
• DHCP Snooping
• 802.1x Authentication
• IP-MAC-Port Binding - QoS Features
- Advanced controls provide optimized network performance and efficient delivery of time-sensitive traffic.
• Port-Based or 802.1p-Based Prioritization
• Layer 3-Based (DSCP) Prioritization
• Rate Limit
• Voice VLAN - IPv6 Support
- The T1700 Series offers comprehensive IPv6 features, including IPv6 management, Static Routing, ACL, and QoS2, which ease the transition to an IPv6-based network and protect the value of your investment.
- Dual-Image Firmware
- Dual-image firmware reduces downtime when the firmware is being updated. The backup image will also be activated in the event that any error occurs on the active image.
UPC: 845973094768 In the Box TP-Link T1700X-16TS JetStream 12-Port Gigabit Stackable Smart Switch with 4 10G SFP+ Slots Power Cord Rackmount Kit Rubber Feet Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link T1700X-16TS JetStream 12-Port Gigabit Stackable Smart Switch with 4 10G SFP Slots in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link T1700X-16TS Specs | | | Ports | 12 x 10Gb Ethernet (RJ45)
4 x 10Gb SFP | | | | Supported Protocols | Auto-MDIX/MDI
IGMP Snooping
IPv6 | | Queuing | Strict Priority, Weighted Round Robin (WRR) | | Jumbo Frames Support | 9,000 Bytes | | MAC Address Table Size | 16K | | VLAN IDs | 4000 | | | | Security Features | DHCP Snooping
RADIUS Authentication
Storm Control | | IP Interfaces | 16 | | Static Routes | 32 | | | | Supported IEEE Standards | 802.1d, 802.1p, 802.1q, 802.1s, 802.1w, 802.1x, 802.3ab, 802.3ad, 802.3ae, 802.3i, 802.3u, 802.3x, 802.3z | | | | Forwarding Rate | 238.1 Mpps | | Switching Bandwidth | 320 Gb/s | | Priority Queues | 8 | | Packet Buffer | 2 MB | | | | OS Compatibility | Windows XP or Later
macOS
Linux
UNIX | | | | Power Draw | 76.58 W (Active) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 90% | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Storage Humidity | 5 to 90% | | Certifications | RoHS, as per Manufacturer | | | | Cooling System | Fan | | Dimensions | 17.3 x 8.7 x 1.7" / 44 x 22 x 4.4 cm |
