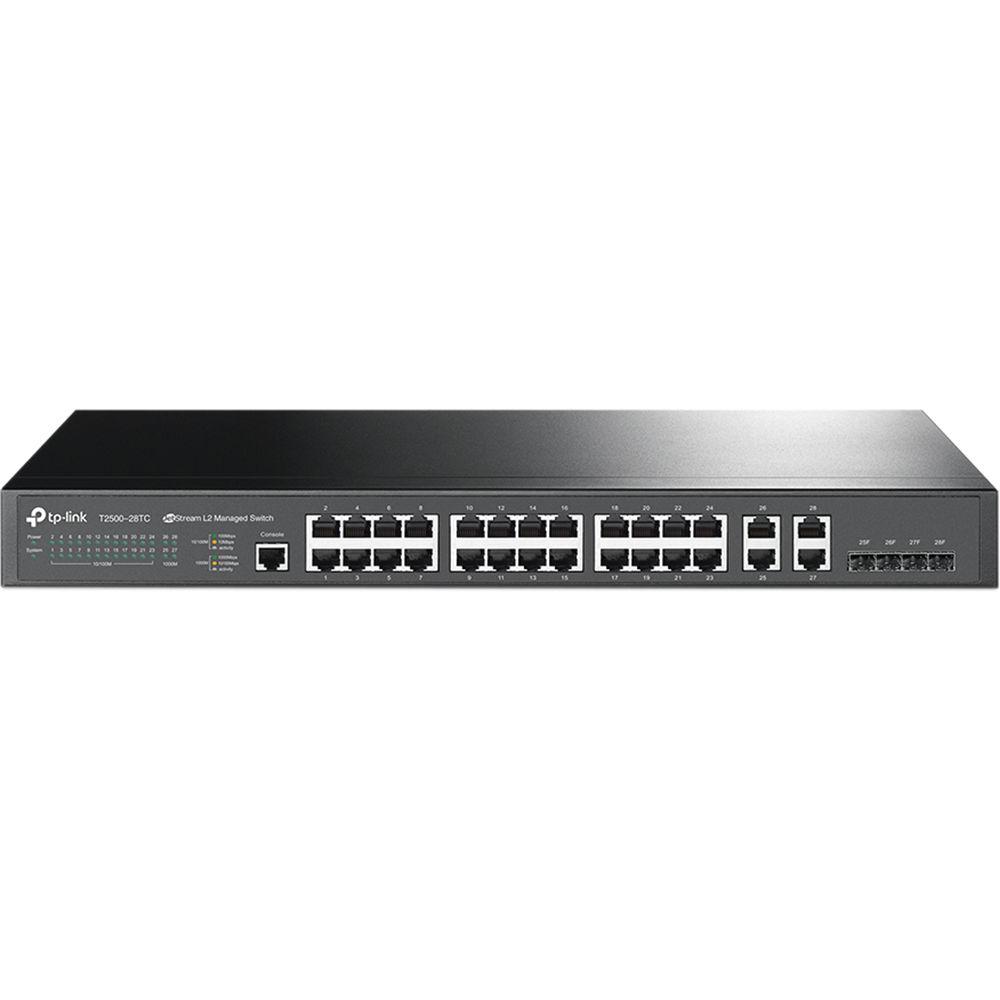

Product description With an extensive Layer 2 feature set, the T2500-28TC JetStream 24-Port Fast Ethernet Managed Switch from TP-Link is designed to handle business level application loads.
This JetStream switch comes equipped with 24 Fast Ethernet ports, 4 Gigabit Ethernet ports, and 4 combo Gigabit SFP slots giving network administrators the ability to connect a variety of devices to the switch. In addition to the expansive connectivity options, this switch also features a 12.8 Gb/s switching capacity, a 9.5 Mpps packet forwarding rate, an 8K MAC address table, and 2048-byte jumbo frames to ensure the switch operates smoothly even under demanding network conditions.
Once configured, the T2500-28TC supports a variety of Layer 2 features including IGMP snooping, 4K simultaneous VLANs, link aggregation and more. Quality of Service features include IEEE 802.1P support, 8 priority queues, DSCP QoS, and a rate-limiting feature allow for traffic prioritization to ensure bandwidth is allocated properly. All of this and more can be accessed through the web-based GUI or utilize the command line interface for easy switch management. - Layer 2 Features
- IGMP Snooping
4K Simultaneous VLANs out of 4K VIDs
QinQ
GARP VLAN Registration Protocol (GVRP)
STP/RSTP/MSTP
Link Aggregation Group (LAG) - Quality of Service
- Support IEEE 802.1P
8 priority queues
DSCP QoS
Rate limit feature - Security Strategies
- IP-MAC-Port Binding
Access Control List (L2~L4 ACL)
AAA
802.1x and RADIUS Authentication
Support DoS defend
Port Security
SSL and SSH encryptions - OAM
- 802.3ah Ethernet Link OAM
Device Link Detect Protocol (DLDP) - Management
- Web-based GUI
Command Line Interface
Telnet
DHCP Relay
LLDP, LLDP-MED
Digital Diagnostic Monitoring (DDM)
SNMP v1/v2c/v3
RMON (1,2,3,9 group) UPC: 845973098308 In the Box TP-Link T2500-28TC JetStream 24-Port Fast Ethernet Managed Switch Rackmount Kit Rubber Feet Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link T2500-28TC JetStream 24-Port Fast Ethernet Managed Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link JetStream T2500-28TC Specs | Standards and Protocols | IEEE 802.3i
IEEE 802.3u
IEEE 802.3ab
IEEE802.3z
IEEE 802.3ad
IEEE 802.3x
IEEE 802.1d
IEEE 802.1s
IEEE 802.1w
IEEE 802.1q
IEEE 802.1x
IEEE 802.1p | | Interface | 24 x 10/100 Mb/s RJ-45 ports
(Auto Negotiation/Auto MDI/MDIX)
4 x 10/100/1000 Mb/s RJ-45 ports
(Auto Negotiation/Auto MDI/MDIX)
4 x Combo Gigabit SFP ports
1 x Console port | | Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 328' 100 m)
EIA/TIA-568 100Ω STP (maximum 328' 100 m)
100BASE-TX/1000Base-T: UTP category 5, 5e cable (maximum 328' 100 m)
EIA/TIA-568 100Ω STP (maximum 328' 100 m)

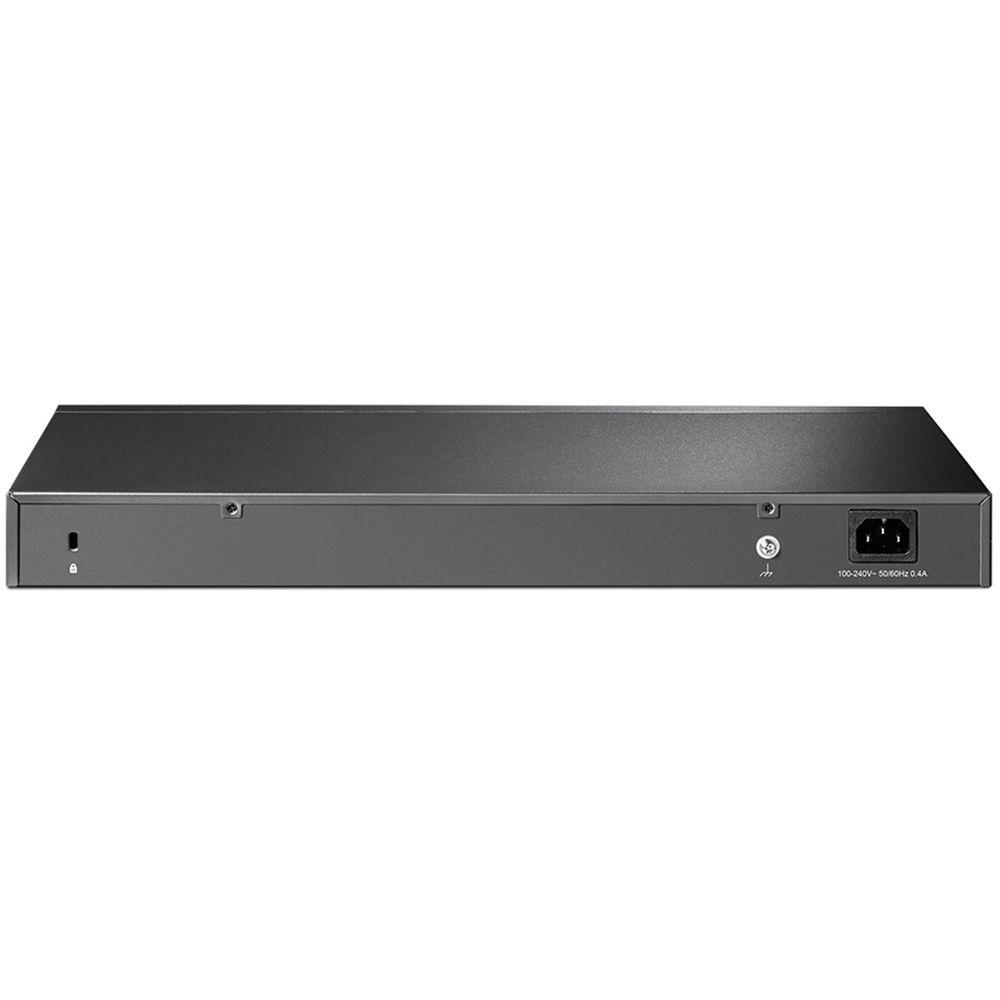

1000BASE-X: MMF, SMF | | Fan Quantity | Fanless | | Power Supply | 100-240 VAC, 50/60 Hz | | Power Consumption | Maximum: 15 W (220 V/50 Hz) | | Stacking | 32 Units virtual stacking | | Bandwidth | 12.8 Gb/s | | Packet Forwarding Rate | 9.5 Mpps | | MAC Address Table | 8 K | | Jumbo Frame | 2048 Bytes | | Quality of Service (QoS) | 4 Queues/Port 802.1p/IP DSCP based COS, TOS | | L2 Services | IGMP Snooping: V1/V2/V3
802.3ad with LACP
STP/RSTP/MSTP
BPDU Filtering/Guard
Port Mirroring
Flow Control | | VLAN | Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
Port/Tag-based/Private/Protocol-based VLAN/QinQ, GVRP | | Access Control List | Packet Flow Filter
Packet Flow Redirection
Time Range Based
Flow-based QoS | | Security | IP-MAC-Port-VID Binding
IEEE 802.1x (Radius):Port/MAC Based, VLAN assignment, Guest VLAN, QoS assignment, Supplicant Support
DoS Defend
Dynamic ARP inspection (DAI)
SSH: V1/V2
SSL: V1.5/V2
Port Security
Broadcast Storm Control
Guest VLAN
IP Source Guard | | IPv6 | IPv6
Dual IPv4/IPv6 stack
Multicast Listener Discovery (MLD) Snooping
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 Applications
DHCPv6 Client
Ping6
Tracert6
Telnet(v6)
IPv6 SNMP
IPv6 SSH
IPv6 SSL
Http/Https
IPv6 TFTP | | Management | System Diagnose: VCT
DDM
sFlow
SNMP: V1/V2/V3
RMON: Group 1, 2, 3, 9
Command Line Interface: Telnet/Console
Time Setting: SNTP
Firmware Upgrade: TFTP & Web
DGCO Client & BOOTP Client
SYSLOG & Public MIBS | | Certifications | CE, FCC, RoHS | | System Requirements | Microsoft Windows XP, Vista, 7, 8, 10, Mac OS, NetWare, UNIX, or Linux | | Temperature & Humidity | Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-40 to 158°F / -40 to 70°C
Operating Humidity
10 to 90% non-condensing
Storage Humidity
5 to 90% non-condensing | | Dimensions | 17.3 x 7.1 x 1.7" / 440 x 180 x 44 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 6.0 lb | | Box Dimensions (LxWxH) | 21.0 x 10.0 x 3.12" |
