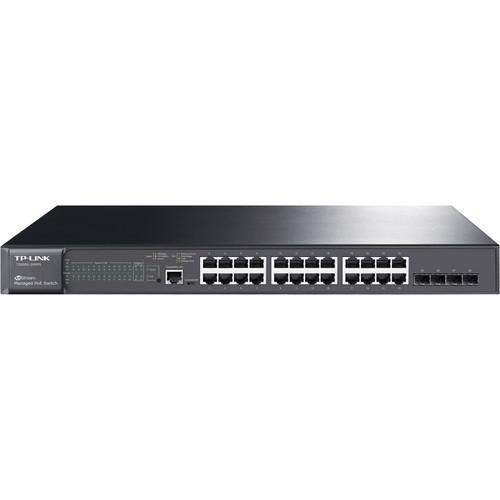

User Manual for TP-Link T2600G-28MPS JetStream 24-Port Gigabit L2 Managed Switch with 4 SFP Slots Click to enlarge the picture
Contents of the user manual for the TP-Link T2600G-28MPS JetStream 24-Port Gigabit L2
- Product category: Network Switches, Bridges & Hubs TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Network Switches, Bridges & Hubs
 |
User manual for the TP-Link T2600G-28MPS JetStream 24-Port Gigabit L2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|
Product description With 24 Gigabit Ethernet ports the T2600G-28MPS JetStream 24-Port Gigabit L2 Managed Switch with 4 SFP Slots from TP-Link makes it easy to increase the bandwidth and capacity of a network by connecting additional routers and access points. In addition to the numerous Gigabit Ethernet ports, this TP-Link switch also comes equipped with 4 Gigabit SFP slots supporting a variety of small form factor pluggable devices and fibre channel applications. This T2600G-28MPS also comes with dual built-in fans to keep everything cool regardless how hard you push the switch.
Once installed, this TP-Link switch offers a wealth of Layer 2 and Layer 2+ features including static routing to help route internal traffic, L2PT, link aggregation control protocol, STP/RSTP/MSTP, IGMP snooping, and loopback detection. Securing the network has also been simplified thanks to IP-MAC-port binding, ARP inspection, IP source guard, 802.1x and RADIUS/TACACS+ authentication, and support to defend against DoS attacks. - IEEE 802.3at/af - Compliant Power over Ethernet
- The T2600G-28MPS supports 24 ports of IEEE 802.3at/af-compliant PoE and has a total power supply of 384W to power any 802.3at or 802.3af compliant power device. It's an efficient and cost-effective choice to work with wireless access points, surveillance cameras, IP phones and other PoE supported devices, while getting rid of cables or power lines running around. Compact and flexible, the T2600G-28MPS is ideal to flexibly use PoE to deploy wireless access points or IP-based network surveillance cameras for projects or small business networks.
- Secure Networking
- The T2600G-28MPS provides IP-MAC-Port Binding, Port Security, Storm control and DHCP Snooping which protect against broadcast storms, ARP attacks, etc. It integrates some typical DoS attacks to select. You can protect these attacks more easily ever than before. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports and even VLAN ID. Moreover, the switch supports 802.1X authentication, which is used in conjunction with a RADIUS server to require some authentication information before access to the network is allowed. Guest VLAN function supports to enable the non-802.1X clients to access the specific network resource.
- L2 and L2+ Features
- The T2600G-28MPS supports a complete lineup of L2 features, including 802.1Q tag VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol and 802.3x Flow Control function. In addition, the switch provides advanced features for network maintenance, including LoopBack Detection and Cable Diagnostics. IGMP Snooping ensures intelligent forwarding of the multicast stream to only the appropriate subscribers, while IGMP throttling & filtering restricts each subscriber on a port level to prevent unauthorized multicast access. Moreover, the T2600G-28MPS supports L2+ feature, static routing, which is a simple way to provide segmentation of the network with internal routing through the switch and directs network traffic for more efficient use.
- IPv6 Support
- The T2600G-28MPS supports various IPv6 functions, such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discovery, which guarantees your network is ready for the Next Generation Network (NGN) without the need to upgrade your network equipment.
- Ethernet OAM
- The T2600G-28MPS provides 802.3ah OAM and Device Link Detection Protocol (DLDP) improves the monitoring and troubleshooting of Ethernet networks, while helping to facilitate network management.
- Enterprise Level Management Features
- The T2600G-28MPS is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface (GUI) or industry-standard Command Line Interface (CLI), either administration traffic can be protected through SSL or SSH encryptions. SNMP (v1/v2c/v3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events.

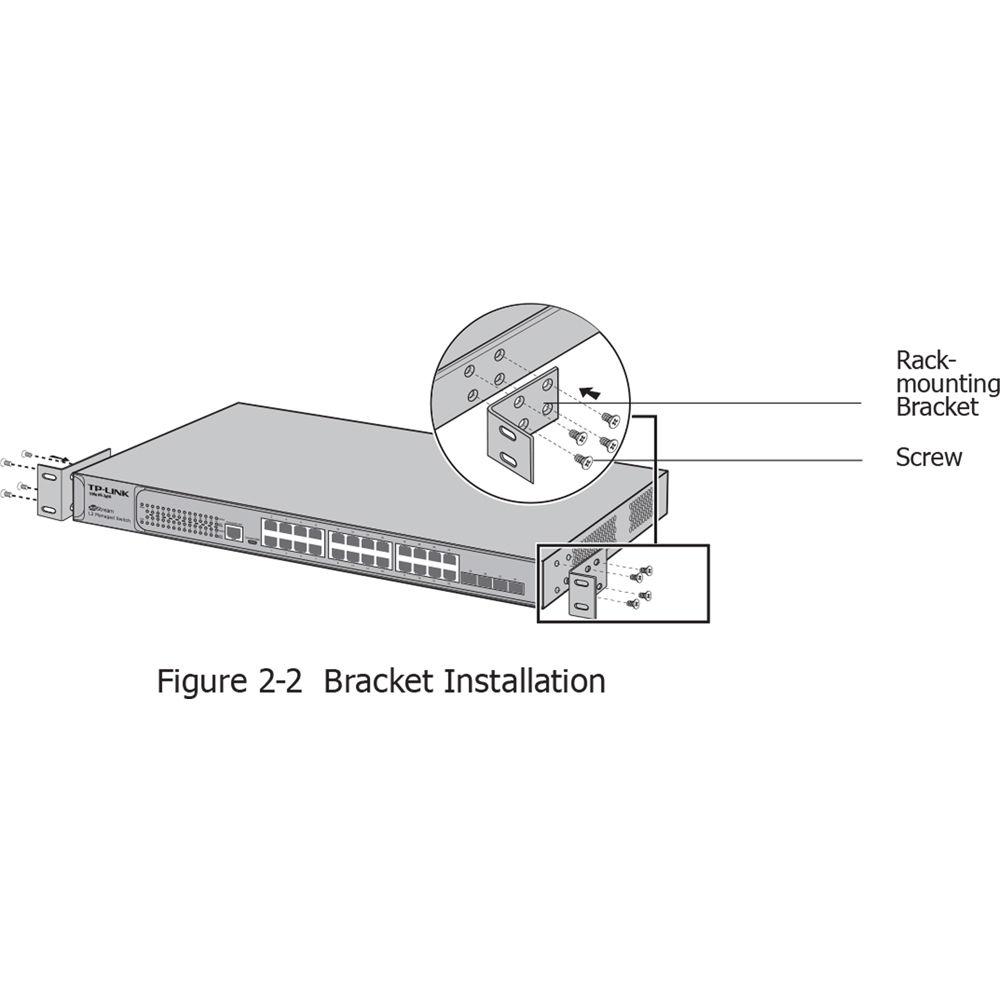

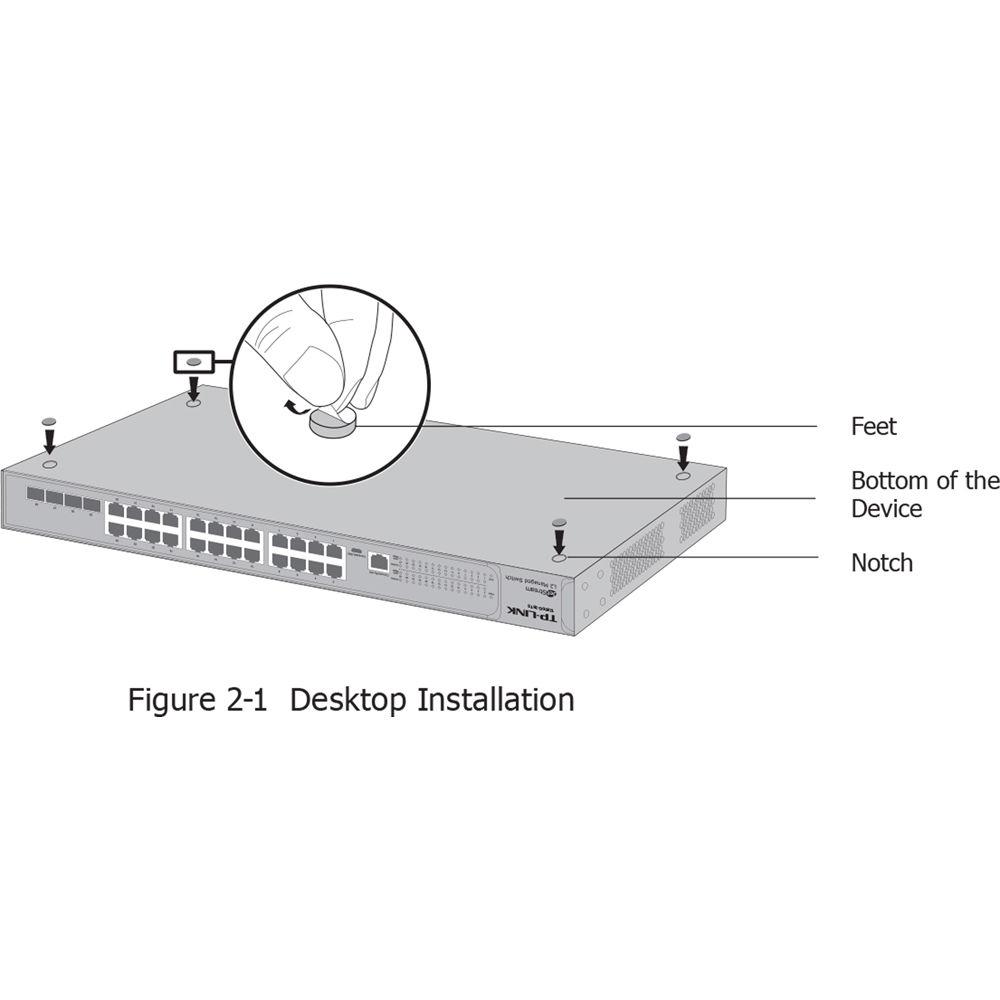

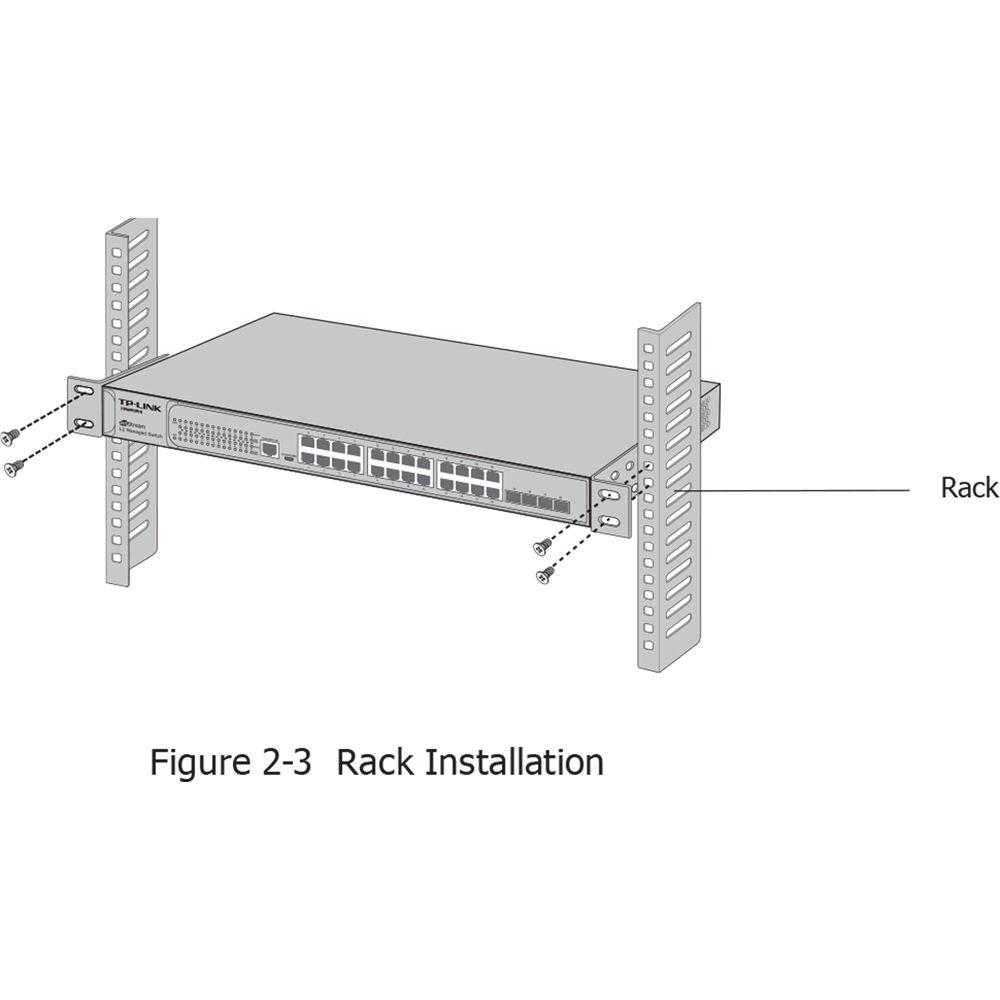

UPC: 845973097813 In the Box TP-Link T2600G-28MPS JetStream 24-Port Gigabit L2 Managed Switch with 4 SFP Slots Power Cord Rackmount Kit Rubber Feet Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link T2600G-28MPS JetStream 24-Port Gigabit L2 Managed Switch with 4 SFP Slots in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

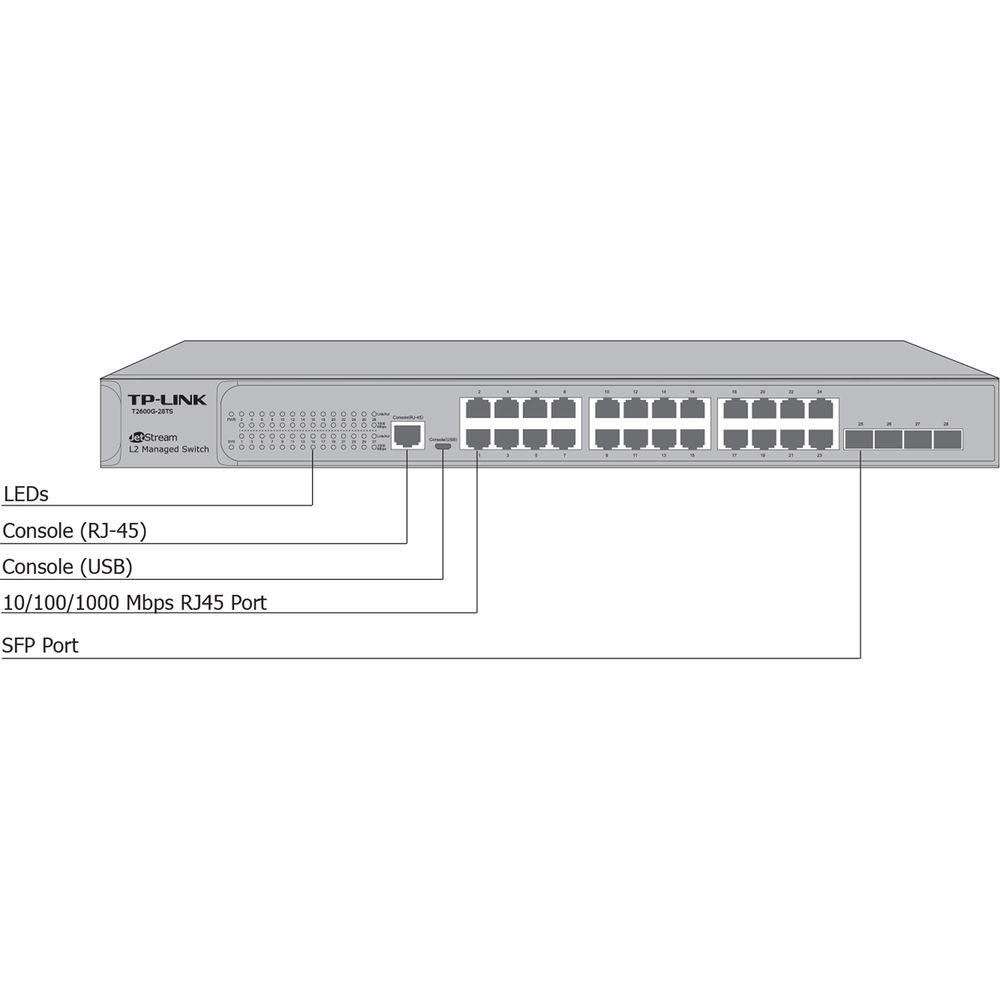

Technical parametersTP-Link T2600G-28MPS Specs | | | Ports | 24 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+ (Type 2)
4 x 10/100/1000 Mb/s Gigabit SFP
1 x Micro-USB | | | | Supported Protocols | Auto-MDIX/MDI
IGMP Snooping
IPv6 | | Queuing | Strict Priority, Weighted Round Robin (WRR) | | Jumbo Frames Support | 9,216 Bytes | | MAC Address Table Size | 16K | | VLAN IDs | 4000 | | | | Security Features | DoS Attack Prevention
RADIUS Authentication
Storm Control | | | | Supported IEEE Standards | 802.1d, 802.1p, 802.1q, 802.1s, 802.1w, 802.1x, 802.3ab, 802.3ad, 802.3i, 802.3u, 802.3x, 802.3z | | | | Forwarding Rate | 41.7 Mpps | | Switching Bandwidth | 56 Gb/s | | Priority Queues | 8 | | | | OS Compatibility | Windows XP or Later
macOS
Linux
UNIX | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | PoE Power Budget | 468.7 W | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 90% | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Storage Humidity | 5 to 90% | | Certifications | RoHS, as per Manufacturer | | | | Cooling System | Fan | | Dimensions | 17.3 x 13 x 1.7" / 44 x 33 x 4.4 cm |
