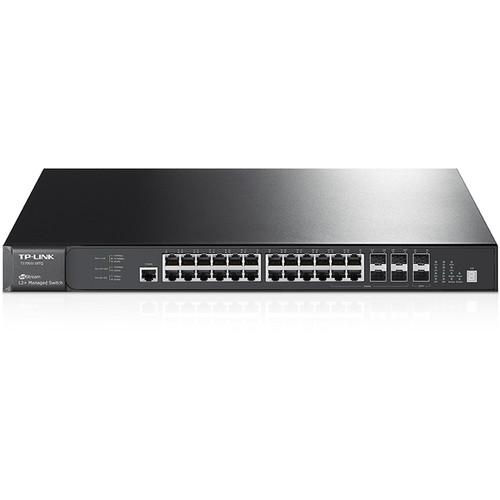

User Manual for TP-Link T2700G-28TQ JetStream 28-Port Gigabit Stackable L2 Managed Switch Click to enlarge the picture
Contents of the user manual for the TP-Link T2700G-28TQ JetStream 28-Port Gigabit Stackable
- Product category: Network Switches, Bridges & Hubs TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Network Switches, Bridges & Hubs
|
User manual for the TP-Link T2700G-28TQ JetStream 28-Port Gigabit Stackable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|
Product description With Layer 2 and Layer 3 functionality, the T2700G-28TQ JetStream 28-Port Gigabit Stackable L2+ Managed Switch from TP-Link can handle a variety of networking tasks. Layer 2 functionality includes Link Aggregation Protocol (LACP), 4K VLAN support, IGMP Snooping, LLDP, and much more while Layer 3 capabilities include Wire-speed IP forwarding, Static Routing, DHCP Server/Relay, and more. By handling both Layer 2 and 3 tasks, this switch can not only manage the data being transferred, but also determine where the data is going and how it is getting there. Throughout the data transmission process it becomes necessary to provide a Quality of Service (QoS), and TP-Link has included features such as 802.1p CoS/DSCP priority, 8 priority queues, Port/Flow-based rate limiting, and more to ensure bandwidth is allocated properly.
With 24 Gigabit Ethernet and 4 combo Gigabit SPF slots, this JetStream switch can handle a large number of users and connections. The four combo Gigabit SFP slots make it simple to connect to high-speed localized storage networks for super-fast transfers of large amounts of data. Inside the T2700G-28TQ you will find four built-in fans to keep everything cool even when this unit is stacked with an additional 7 switches. Once installed, users benefit from a 128 Gbps switching capacity, 320 Gbps bandwidth/backplane, and a 95.2 Mpps forwarding rate to handle data in a smooth efficient manner. - Basic L3 Routing and Service Features
- Wire-speed IP forwarding
Static Routing
RIP v1, v2
DHCP Server/Relay - Advanced L3 Routing and Service Features (License Required)
- OSPF v2
ECMP
PIM-SM/PIM-DM/IGMP
ARP Proxy
VRRP - Physical Stacking
- Up to 8 Units Physical Stacking
Up to 192 GbE, 32 Gigabit combo SFP, and 16 10G SFP+
Up to 320 Gbps Backplane bandwidth
Ring Stacking for Link Redundancy
Distributed Link Aggregation - Power Supply
- Hot-swappable power supply module: PSM150 (Maximum Output Power: 150 W)
Optional external redundant power supply: RPS150 (Maximum Output Power: 150 W) - Layer 2 Features
- Link Aggregation Control Protocol (LACP)
4K VLAN
IEEE 802.1q VLAN/MAC VLAN/Protocol VLAN/QinQ/Private VLAN/GVRP
STP/RSTP/MSTP
IGMP Snooping
LLDP - Quality of Service
- 8 priority queues
Supports IEEE 802.1P
DSCP QoS
Rate limit
Voice VLAN - Security Strategies
- IP-MAC-Port-VID Binding
Access Control List (L2~L4 ACL)
802.1x and RADIUS Authentication
Supports DoS defense
Port Security
SSL and SSH encryptions - Management
- Web-based GUI
Command Line Interface
SNMP v1/v2c/v3
RMON (1, 2, 3, 9 group)
IP Clustering
Dual Image In the Box TP-Link T2700G-28TQ JetStream 28-Port Gigabit Stackable L2+ Managed Switch Power Cord Resource CD Rackmount Kit Rubber Feet Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link T2700G-28TQ JetStream 28-Port Gigabit Stackable L2 Managed Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link T2700G-28TQ Specs | | | Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p | | Interfaces | 24 x 10/100/1000 Mbps RJ-45 ports (Auto Negotiation/Auto MDI/MDIX)
4 x Combo Gigabit SFP slots
Up to 4 10G SFP+ Slots (2 fixed and 2 optional 10G SFP+ slots)
1 x Console port | | Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 328 ft / 100 m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 328 ft / 100 m)
100BASE-FX: MMF, SMF
1000BASE-X: MMF, SMF
10GBASE-LR
10GBASE-SR | | Fan Quantity | 4 | | Power Consumption | 63 W (220 V / 50 Hz) max | | Power Supply | 100-240 VAC, 50/60 Hz | | Certifications | CE, FCC, RoHS | | Temperature & Humidity | Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -40 to 158°F / -40 to 70°C
Operating Humidity: 10 to 90% non-condensing
Storage Humidity: 5 to 90% non-condensing | | Physical Stacking | Installable SFP+ Transceivers and Direct Attach Copper (DAC) Cables
TXM431-SR
TXM431-LR
TXC432-CU1M
TXC432-CU3M
Max Number of Stacking Ports Installable
2 SFP+
Stacking Speed (Per Port)
20 Gbps (Full-Duplex)
Number of Units Per Stack
8 | | Switching Capacity | Up to 128 Gbps for a standalone switch | | Packet Forwarding Rate | Up to 95.2 Mpps for a standalone switch | | Backplane | Up to 320 Gbps when 8 units in the stack | | Packet Buffer | 2 MB | | MAC Address Table | 32 K | | Routes | Number of Routes
12 K
Number of Static Routes
256 | | Number of IP Interfaces (Port or VLAN) | 128 | | Jumbo Frame | 10240 Bytes | | | | Stackability | Physical Stacking
- Up to 320 Gbps of Backplane when 8 units in the stack
- Up to 8 units per Stack
Virtual Stacking
- Single IP Management(Cluster)
- Up to 32 units per Virtual Stack | | L3 Routing | L3 Routing
- Up to 12K entries (all route entries combined)
- Up to 12K dynamic route entries
- Up to 256 static route entries
- Up to 128 IP Interfaces
L3 Forwarding
- Up to 8K entries (all L3 Hardware Forwarding Entries Combined)
RIP v1, v2
DHCP Server/Relay
OSPF
- OSPF v2
- OSPF Passive Interface
- OSPF NSSA (Not So Stubby Area)
- OSPF Equal Cost Route
IGMP v1,v2,v3
Multicast Routing
- Static Multicast Route
- PIM-DM/SM
- PIM SSM
ARP Proxy
Gratuitous ARP
VRRP | | L2 Services | Link Aggregation
- Support static link aggregation
- Support 802.3ad LACP
- Up to 32 aggregation groups, containing 8 ports per group
Spanning Tree Protocol(STP)
- IEEE 802.1D Spanning Tree Protocol
- IEEE 802.1s Multiple Spanning Tree Protocol
- IEEE 802.1w Rapid Spanning Tree Protocol
- STP Security: Loop back detection, TC Protect, BPDU Filter/Protect, Root Protect
Multicast
- Support IGMP Snooping V1/V2/V3, up to 1K groups
- Support multicast VLANs, IGMP Immediate Leave, Unknown IGMP Throttling, IGMP Filtering, Static Multicast IP
VLAN
- Support IEEE802.1Q with 4K VLAN groups and 4K VIDs
- Support Port VLAN, Protocol VLAN, and Private VLAN
- Support GARP/GVRP feature
IEEE 802.3x ow control for Full Duplex mode and backpressure for Half Duplex mode
LLDP | | Quality of Service (QoS) | Support 802.1p CoS/DSCP priority
Support 8 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
Voice VLAN assure voice applications much Smoother performance | | Security | IP-MAC-Port-VID Binding
Static/Dynamic Port Security (MAC-based)
DoS defend feature
Dynamic ARP Inspection
802.1x authentication
- Support 802.1x port/MAC based authentication Support Radius authentication and accountability
- Guest VLAN
Access Control List (ACL)
- L2~L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID
- Time based ACL
Support Broadcast, Multicast and Unknown unicast Storm Control
Secure web management through HTTPS and SSLv2/v3/TLSv1
Secure remote command line interface(CLI) management with SSH v1/V2 | | Management | Support Web-based GUI management mode
Support Command Line Interface(CLI) through console port, telnet management mode
SNMP v1/v2c/v3
RMON (1, 2, 3, 9 groups)
DHCP/BOOTP Client
DHCP Snooping
DHCP Server/Relay
DHCP Option 82
CPU Monitoring
Port Mirroring (Many to One)
Cable Diagnostics feature
Ping/Tracert feature
SNTP
Integrated NDP/NTDP feature
System Log
Dual Image | | Ethernet Protocol | IEEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-TX/FX
IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-X
IEEE 802.3ae 10GBASE-SR/LR
IEEE 802.3av GVRP
IEEE 802.3ad Link Aggregation
IEEE 802.3x Flow control
IEEE 802.1p QoS
IEEE 802.1q VLANs / VLAN tagging
IEEE 802.1v Protocol VLAN
IEEE 802.1d Spanning Tree Protocol (STP)
IEEE 802.1s Multiple Spanning Tree (MSTP)
IEEE 802.1w Rapid Spanning Tree (RSTP)
IEEE 802.1x Network Login Security | | SNMP MIBs | MIB II (RFC1213)
Interface MIB (RFC2233)
Ethernet Interface MIB (RFC1643)
Bridge MIB (RFC1493)
P/Q-Bridge MIB (RFC2674)
RMON MIB (RFC2819)
RMON2 MIB (RFC2021)
Radius Accounting Client MIB (RFC2620)
Radius Authentication Client MIB (RFC2618)
Remote Ping, Traceroute MIB (RFC2925)
Support TP-LINK private MIBs | | | | Dimensions | 17.32 x 13.00 x 1.73" / 440 x 330 x 44 mm | | Weight | Not specified by manufacturer |
