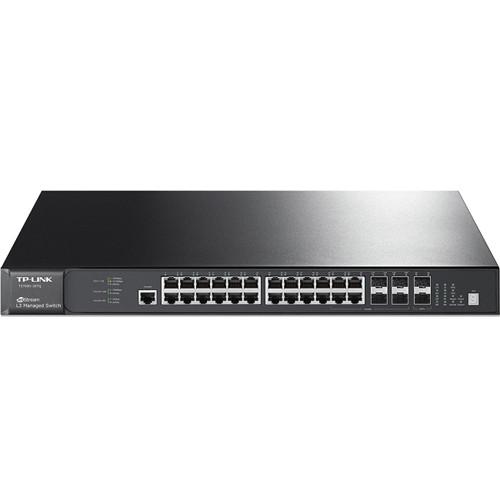

User Manual for TP-Link T3700G-28TQ JetStream 28-Port Gigabit L3 Managed Switch with 4 Combo SFP Slots Click to enlarge the picture
Contents of the user manual for the TP-Link T3700G-28TQ JetStream 28-Port Gigabit L3
- Product category: Network Switches, Bridges & Hubs TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Network Switches, Bridges & Hubs
|
User manual for the TP-Link T3700G-28TQ JetStream 28-Port Gigabit L3 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|
Product description The T3700G-28TQ JetStream 28-Port Gigabit L3 Managed Switch with 4 Combo SFP Slots from TP-Link is an L3 managed switch designed to build a highly accessible, scalable, and robust network. The switch is equipped with twenty-four gigabit RJ-45 ports, four combo gigabit SFP slots, and up to four 10 Gb/s SFP slots, giving the network administrator great network flexibility. The switch supports abundant Layer 3 routing protocols such as RIP and OSPF. With its physical stacking feature and optional redundant external power unit, the switch provides a robust network with efficient redundancy as well as a strong security system to help secure your enterprise network. - L3 Routing and Service Features
- • Wire-speed IP forwarding
• Static routing
• RIP v1, v2
• OSPF v2
• ECMP
• PIM-SM/PIM-DM/IGMP
• DHCP server/relay
• ARP Proxy
• VRRP - Physical Stacking
- • Up to 8 units physical stacking
• Up to 192 GE, 32 Gigabit combo SFP and 16 10G SFP+
• Up to 320Gbps backplane bandwidth
• Ring stacking for link redundancy
• Distributed link aggregation - Power Supply
- Hot-swappable power supply module: PSM150 (Maximum output power: 150 W)
Optional external redundant power supply: RPS150 (Maximum output power: 150 W) - Layer 2 Features
- Link aggregation control protocol (LACP)
4K VLAN
IEEE 802.1q VLAN/MAC VLAN/Protocol VLAN/QinQ/Private VLAN/GVRP
STP/RSTP/MSTP
IGMP Snooping
LLDP - Quality of Service
- 8 priority queues
Supports IEEE 802.1P
DSCP QoS
Rate limit
Voice VLAN - Security Strategies
- IP-MAC-Port-VID Binding
Access Control List (L2~L4 ACL)
802.1x and RADIUS authentication
Supports DoS defense
Port security
SSL and SSH encryptions - Management
- Web-based GUI
Command Line Interface
SNMP v1/v2c/v3
RMON (1, 2, 3, 9 group)
IP Clustering
Dual Image UPC: 845973021818 In the Box TP-Link T3700G-28TQ JetStream 28-Port Gigabit L3 Managed Switch with 4 Combo SFP Slots Power Cord Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link T3700G-28TQ JetStream 28-Port Gigabit L3 Managed Switch with 4 Combo SFP Slots in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link T3700G-28TQ Specs | | | Ports | 24 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
4 x 10/100/1000 Mb/s Gigabit Combo (Ethernet/SFP) | | | | Supported Protocols | Auto-MDIX/MDI
IGMP Snooping
Link Aggregation | | Queuing | Strict Priority, Weighted Round Robin (WRR) | | Jumbo Frames Support | 10,240 Bytes | | MAC Address Table Size | 32K | | VLAN Groups | 128 | | VLAN IDs | 4000 | | | | Security Features | RADIUS Authentication
Storm Control | | Static Routes | 256 | | | | Supported IEEE Standards | 802.1d, 802.1p, 802.1q, 802.1s, 802.1w, 802.1x, 802.3ab, 802.3ad, 802.3ae, 802.3i, 802.3u, 802.3x, 802.3z | | | | Forwarding Rate | 95.2 Mpps | | Switching Bandwidth | 128 Gb/s | | Priority Queues | 8 | | Packet Buffer | 16 Mb | | | | OS Compatibility | Windows XP or Later
macOS
Linux
UNIX | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 90% | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Storage Humidity | 5 to 90% | | Certifications | RoHS, as per Manufacturer | | | | Cooling System | Fan | | Dimensions | 17.3 x 13 x 1.7" / 44 x 33 x 4.4 cm | | | | Package Weight | 15.2 lb | | Box Dimensions (LxWxH) | 23.0 x 19.0 x 5.0" |
