TP-Link TC-7610 DOCSIS 3.0 Cable Modem

Search your instruction manual in PDF to download

User Manual for TP-Link TC-7610 DOCSIS 3.0 Cable Modem Retail Box

Click to enlarge the picture
TP-Link TC-7610 DOCSIS 3.0 Cable Modem Retail Box Contents of the user manual for the TP-Link TC-7610 DOCSIS 3.0 Cable Modem
  • Product category: Uncategorized TP-Link
  • Brand: TP-Link
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for TP-Link Uncategorized

TP-Link TC-7610 DOCSIS 3.0 Cable Modem Retail Box TP-Link TC-7610 DOCSIS 3.0 Cable Modem Retail Box TP-Link TC-7610 DOCSIS 3.0 Cable Modem Retail Box TP-Link TC-7610 DOCSIS 3.0 Cable Modem Retail Box TP-Link TC-7610 DOCSIS 3.0 Cable Modem Retail Box TP-Link TC-7610 DOCSIS 3.0 Cable Modem Retail Box
User manual for the TP-Link TC-7610 DOCSIS 3.0 Cable Modem contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any TP-Link product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!



Product description

Eliminate the monthly fees that are often associated with renting a modem from your cable company with the TC-7610 DOCSIS 3.0 Cable Modem from TP-Link. Once configured you can take advantage of enhanced downstream data speeds of up to 343 Mbps and upstream data speeds of up to 143 Mbps. These enhanced data rates ensure you can stream HD content, download large files quickly, play online games, and much more. Setup is simple, as this modem comes equipped with one Gigabit Ethernet port to connect to your computer or router and one F-connector to connect directly to your Internet service provider.
  • The TC-7610 comes compatible with the following cable providers including XFINITY from Comcast, Time Warner Cable, Cox, Charter, Cablevision, Bright House Networks, and more.
    Please see manufacturer website for list of additional ISP compatibility information
  • Eliminate monthly rental fees
  • The TC-7610 comes compatible with the following cable providers:
    • XFINITY from Comcast
    • Time Warner Cable
    • Cox
    • Charter
    • Bright House Networks
    • Cablevision
    Please see manufacturer website for list of additional ISP compatibility information
  • CableLabs Certified DOCSIS 3.0 backwards compatible with DOCSIS 1.0, 1.1 and 2.0 to provide users comprehensive network compatibility
  • Channel bonding of up to 8 downstream channels and 4 upstream channels provide data rates up to 343 Mbps for downstream, and 143 Mbps for upstream
  • Gigabit port ensures fast transfer speeds
  • IPv4 and IPv6 dual stack
  • DOCSIS 3.0 protections for enhanced network security
  • LEDs clearly display device and network status
In the Box TP-Link TC-7610 DOCSIS 3.0 Cable Modem Retail Box
  • Ethernet Cable
  • Power Adapter
  • Limited 1-Year Manufacturer Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the TP-Link TC-7610 DOCSIS 3.0 Cable Modem Retail Box in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Channel Bonding Up to 8
    Channel Width 48 MHz (8 channels) / 6 MHz (single channel)
    Frequency Range 108 to 1002 MHz (edge to edge)
    Maximum Data Rate Up to 343 Mbps
    Modulation 64 QAM / 256 QAM
    Symbol Rate 5.057 Msym/s (64 QAM) / 5.361 Msym/s (256 QAM)
    Channel Bonding Up to 4
    Channel Width 200 kHz / 400 kHz / 800 kHz / 1.6 MHz / 3.2 MHz / 6.4 MHz
    Frequency Range 5 to 42 MHz (edge to edge)
    Maximum Data Rate Up to 143 Mbps
    Modulation QPSK, 8/ 16/ 32/ 64/ 128 QAM
    Symbol Rate 160 / 320 / 640 / 1280 / 2560 / 5120 Ksym/s
    DHCP DHCP Client
    IP Stack Supports IPv4 and IPv6 dual stack
    Multicast Support IGMP v1/v2/v3
    VPN Passthrough PPTP, L2TP, IPSec
    Certifications FCC, UL, Cablelabs, RoHS
    Environment Operating Temperature: 32 to 104°F / 0 to 40°C
    Storage Temperature: -40 to 158°F / -40 to 70°C
    Operating Humidity: 10 to 90% non-condensing
    Storage Humidity: 5 to 90% non-condensing
    Operating System Windows 8/Windows 7/ Windows Vista, Service Pack 1 or later/ Windows XP, Service Pack 2 or later/ Mac 10.4 or later (Ethernet Connection Only) UNIX Linux
    Power Supply 12 VDC / 1 A
    Protocol Support Network: IP, ICMP, ARP
    Transport: TCP, UDP
    Application: SNMP (v1, 2c and 3), TFTP,DHCP, ToD

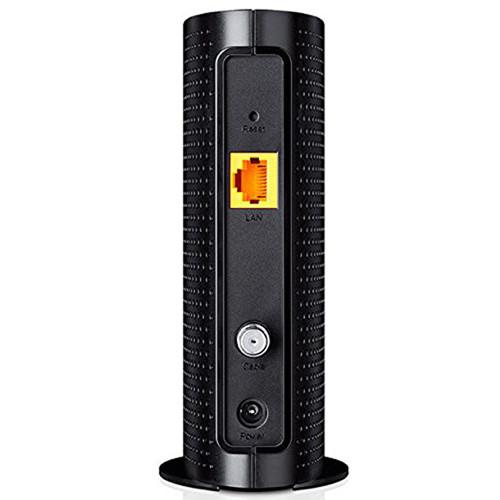

    Button 1 x reset button
    Interface 1 x F-Connector (female 75 Ohms)
    1 x 10/100/1000 Mbps Ethernet (RJ45)
    1 x Power jack
    Dimensions 5.6 x 4.5 x 2.3" / 141.5 x 115.5 x 57.9 mm
    Weight Not specified by manufacturer
    Package Weight 1.25 lb
