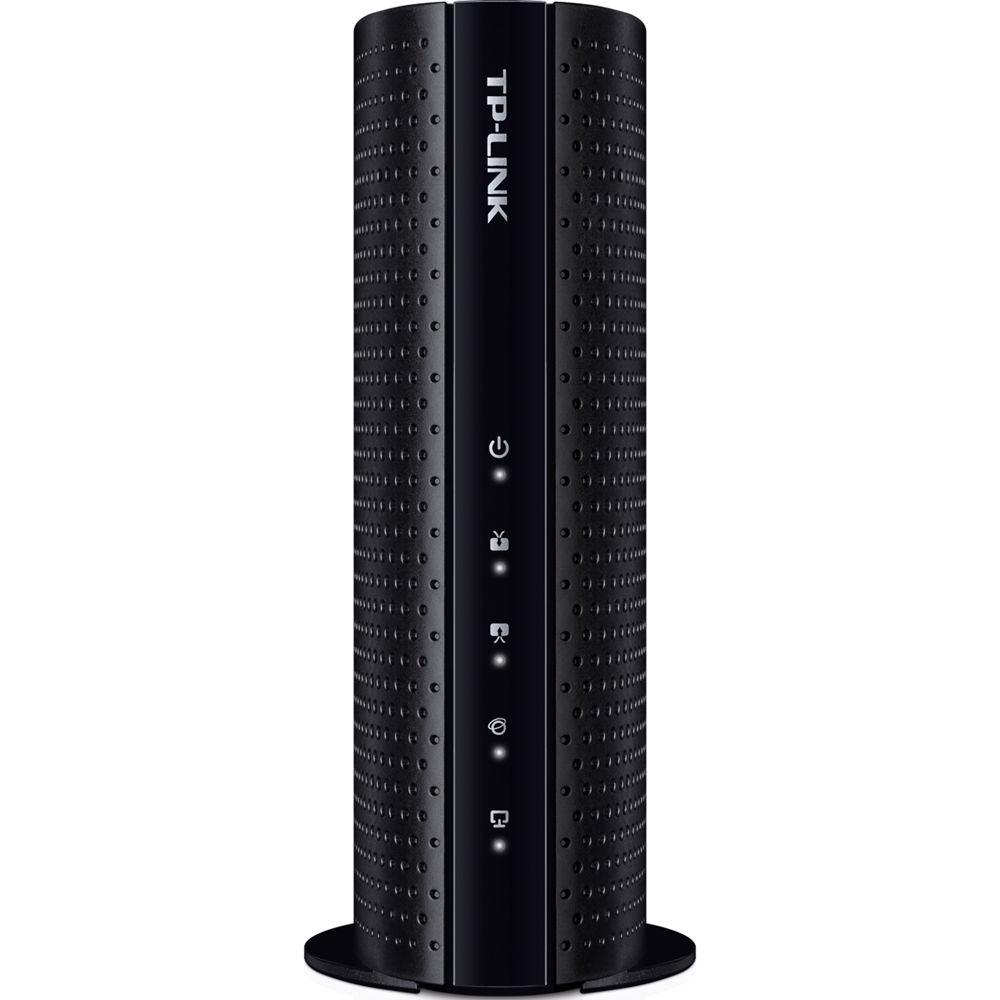

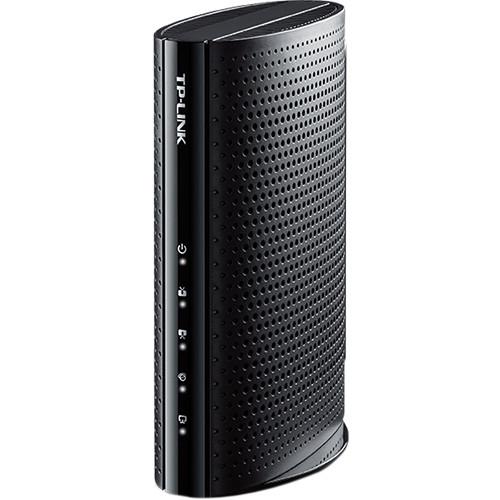

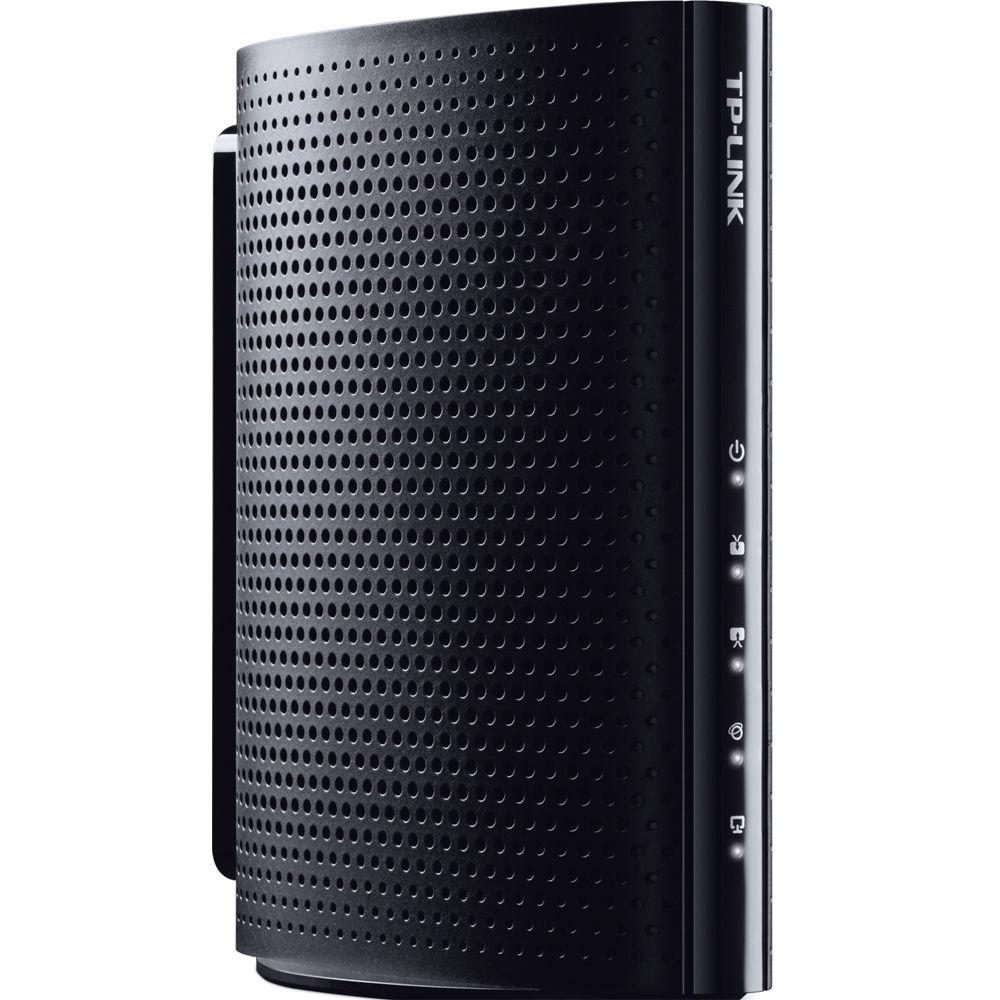

User Manual for TP-Link TC-7620 DOCSIS 3.0 Cable Modem Click to enlarge the picture
Contents of the user manual for the TP-Link TC-7620 DOCSIS 3.0 Cable Modem
- Product category: Modems TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Modems
 |
User manual for the TP-Link TC-7620 DOCSIS 3.0 Cable Modem contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|

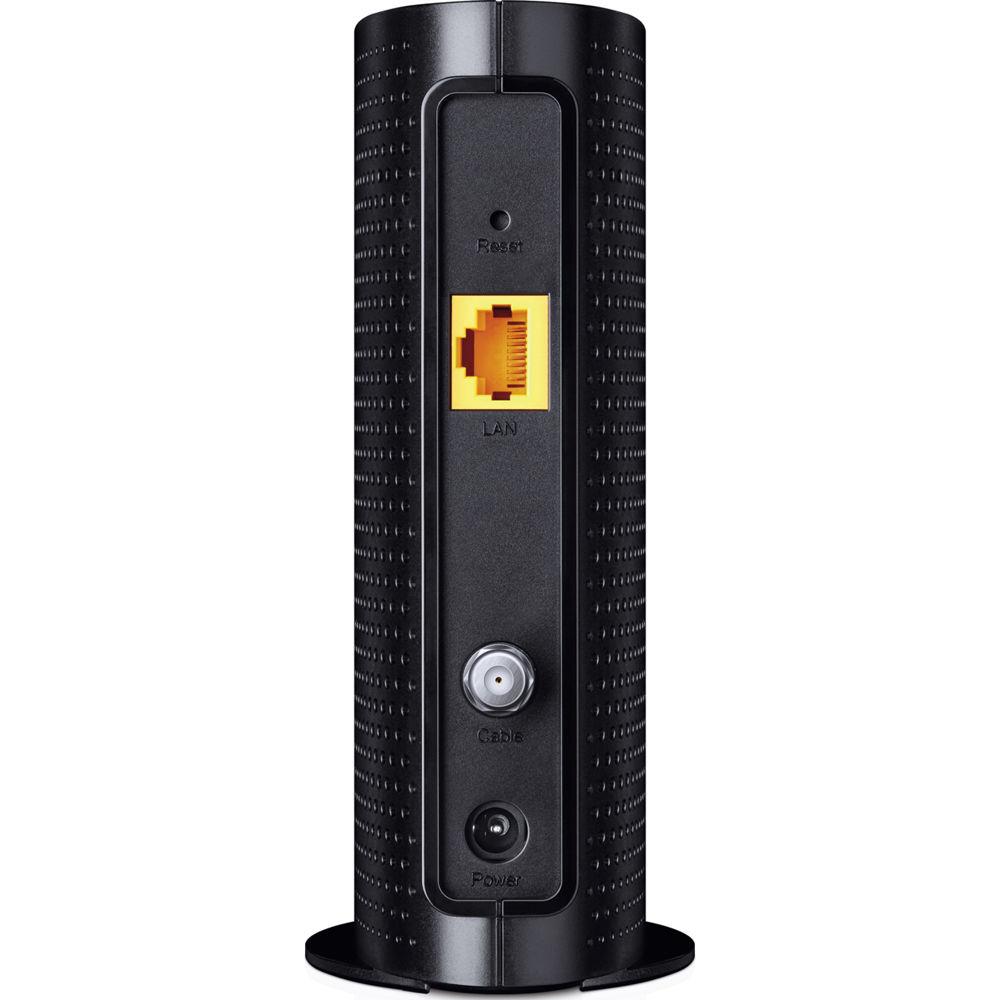

Product description Eliminate the monthly fees that are often associated with renting a modem from your cable company with the TC-7620 DOCSIS 3.0 Cable Modem from TP-Link. Once configured you can take advantage of enhanced downstream data speeds of up to 680 Mbps and upstream data speeds of up to 143 Mbps. These enhanced data rates ensure you can stream HD content, download large files quickly, play online games, and much more. Setup is simple, as this modem comes equipped with one Gigabit Ethernet port to connect to your computer or router and one F-connector to connect directly to your Internet service provider. - The TC-7620 comes compatible with the following cable providers including XFINITY from Comcast, Time Warner Cable, Cox, Charter, Cablevision, Bright House Networks, and more.
Please see manufacturer website for list of additional ISP compatibility information - Eliminate monthly rental fees
- The TC-7620 comes compatible with the following cable providers:
• XFINITY from Comcast
• Time Warner Cable
• Cox
• Charter
• Bright House Networks
• Cablevision
Please see manufacturer website for list of additional ISP compatibility information - CableLabs Certified DOCSIS 3.0 backwards compatible with DOCSIS 1.0, 1.1 and 2.0 to provide users comprehensive network compatibility
- Channel bonding of up to 16 downstream channels and 4 upstream channels provide data rates up to 680 Mbps for downstream, and 143 Mbps for upstream
- Gigabit port ensures fast transfer speeds
- DOCSIS 3.0 protections for enhanced network security
- LEDs clearly display device and network status
UPC: 845973094973 In the Box TP-Link TC-7620 DOCSIS 3.0 Cable Modem Ethernet Cable Power Adapter Limited 1-Year Manufacturer Warranty More info from TP-Link zqcwzxwrrycr Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link TC-7620 DOCSIS 3.0 Cable Modem in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link TC-7620 Specs | | | Channel Bonding | Up to 16 | | Channel Width | 96 MHz (16 channels) / 6 MHz (single channel) | | Frequency Range | 88 to 1002 MHz (edge to edge) | | Maximum Data Rate | Up to 680 Mbps | | Modulation | 64 QAM / 256 QAM | | Symbol Rate | 5.057 Msym/s (64 QAM) / 5.361 Msym/s (256 QAM) | | | | Channel Bonding | Up to 4 | | Channel Width | 200 kHz / 400 kHz / 800 kHz / 1.6 MHz / 3.2 MHz / 6.4 MHz | | Frequency Range | 5 to 42 MHz (edge to edge) | | Maximum Data Rate | Up to 143 Mbps | | Modulation | QPSK, 8/ 16/ 32/ 64/ 128 QAM | | Symbol Rate | 160 / 320 / 640 / 1280 / 2560 / 5120 Ksym/s | | | | DHCP | DHCP Client | | IP Stack | Supports IPv4 and IPv6 dual stack | | Multicast | Support IGMP v1/v2/v3 | | VPN Passthrough | PPTP, L2TP, IPSec | | | | Certifications | FCC, UL, Cablelabs, RoHS | | Environment | Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -40 to 158°F / -40 to 70°C
Operating Humidity: 5 to 95% non-condensing
Storage Humidity: 5 to 95% non-condensing | | Operating System | Windows 8/Windows 7/ Windows Vista, Service Pack 1 or later/ Windows XP, Service Pack 2 or later/ Mac 10.4 or later (Ethernet Connection Only) UNIX Linux | | Power Supply | 12 VDC / 1 A | | Protocol Support | Network: IP, ICMP, ARP
Transport: TCP, UDP
Application: SNMP (v1, 2c and 3), TFTP,DHCP, ToD | | Button | 1 x reset button | | Interface | 1 x F-Connector (female 75 Ohms)
1 x 10/100/1000 Mbps Ethernet (RJ45)
1 x Power jack | | | | Dimensions | 5.6 x 4.5 x 2.3" / 141.5 x 115.5 x 57.9 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 9.0 x 8.0 x 2.9" |
