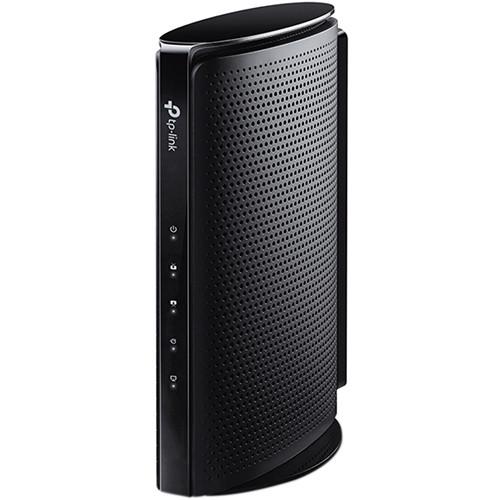

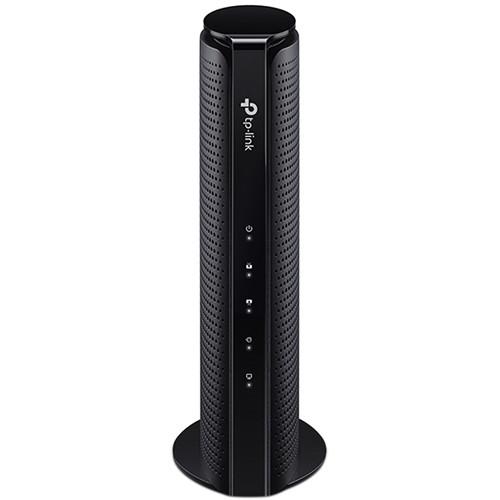

User Manual for TP-Link TC-7650 DOCSIS 3.0 Cable Modem Click to enlarge the picture
Contents of the user manual for the TP-Link TC-7650 DOCSIS 3.0 Cable Modem
- Product category: Modems TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Modems
 |
User manual for the TP-Link TC-7650 DOCSIS 3.0 Cable Modem contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|
Product description With support for download speeds of up to 1 Gbps, the TC-7650 DOCSIS 3.0 Cable Modem from TP-Link is suitable for a variety of network activities such as streaming 4K video, downloading large files, and much more. You can eliminate monthly rental fees with the TC-7650, which is compatible with most major cable service providers including XFINITY, Spectrum, and more. To set up the cable modem, just plug your coax cable into its RF connector and connect your router to the cable modem's Gigabit Ethernet port. The TC-7650 is powered by a 1.0 GHz dual-core CPU that can easily keep up with data-intensive tasks. Additionally, 24 downstream and 8 upstream bonded channels back up the enhanced data rates to virtually eliminate bottlenecks and hiccups within the modem. - Own Your Equipment and Eliminate Rental Fees
- Replace your cable ISP's rental modem with the TC-7650 to get high-speed internet access for gaming, 4K streaming and fast file downloads. Own your cable modem and eliminate networking equipment rental fees from your monthly internet bill.
- 24x8 Channel Bonding for Faster Internet
- The TC-7650 uses DOCSIS 3.0 and channel bonding to deliver throughput 24x faster than DOCSIS 2.0 and support download speeds up to 1 Gbps over coax cable. ISP rate limiting makes the TC-7650 ideal for DOCSIS 3.0 cable internet plans 500 Mbps and above. Actual cable internet uplink and downlink speeds will vary according to your cable provider, MSO provisioning, and the speed tier of your subscription
- 1.0 GHz Dual-Core CPU for Powerful Processing
- The powerful 1.0 GHz dual-core processor smooths out performance to keep connections fast and uninterrupted. Game online, stream movies, download files and share media while the powerful dual-core processor seamlessly manages modem translations, incoming and outgoing connections and the modem's hardware and software.
- Works with Major Internet Service Providers
- The TC-7650 works with major internet service providers like XFINITY from Comcast, Spectrum and more.
- Easy Setup and Hassle-Free Activation
- The cable modem sets up easily with hassle-free online activation or a quick phone call to your service provider. Firmly connect a coax cable to the TC-7650 and use an Ethernet cable to give Internet access to your laptop. Open a web browser to navigate to your ISP's self-activation page. If a self-activation page does not load, call your ISP support team to assist you with activating your internet service.
- Works with Your Router
- Connect the TC-7650 to your router and share high-speed internet with laptops, smart TVs, consoles and all of your other devices at home. For best results, pair the TC-7650 with any AC1900 router or above.
UPC: 845973097035 In the Box TP-Link TC-7650 DOCSIS 3.0 Cable Modem Network Cable Power Adapter Limited 2-Year Warranty More info from TP-Link Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link TC-7650 DOCSIS 3.0 Cable Modem in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

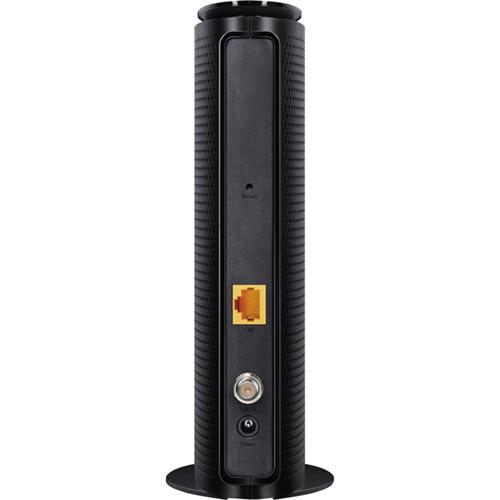

Technical parametersTP-Link TC-7650 Specs | DOCSIS Support | DOCSIS 3.0 | | Processor | Dual-core 1.0 GHz CPU | | Ports and Connectors | 1 x GbE
1 x Coax RF connector
1 x Power | | Buttons | Power
Reset | | LED Indicators | Power
Downstream
Upstream
Internet
LAN | | IPv4 and IPv6 DHCP | Yes | | Supported Protocols | IEEE 802.3
IEEE 802.3u
IEEE 802.3ab | | Operating Systems Supported | OS Agnostic | | Power Requirements | 100~240 VAC; 50/60 Hz
12 VDC / 1 A external power supply | | Temperature & Humidity | Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-40 to 158°F / -40 to 70°C
Operating Humidity
10 to 90% non-condensing
Storage Humidity
5 to 90% non-condensing | | Regulatory Certifications | FCC, RoHS, UL, CableLabs | | Dimensions | 2.87 x 5.86 x 8.18" / 73 x 149 x 208 mm | | Weight | 1.02 lb / 0.46 kg | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 10.3 x 9.7 x 3.6" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 13 owners. Add your rating and experience with the product.
