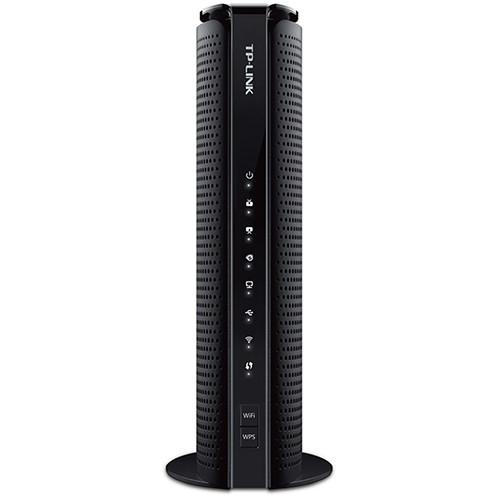

User Manual for TP-Link TC-W7960 Wireless-N300 2.4 GHz Gigabit Cable Modem Router Click to enlarge the picture
Contents of the user manual for the TP-Link TC-W7960 Wireless-N300 2.4 GHz Gigabit
- Product category: Modems TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Modems
 |
User manual for the TP-Link TC-W7960 Wireless-N300 2.4 GHz Gigabit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|
Product description Eliminate monthly cable modem rental fees with the TC-W7960 Wireless-N300 2.4 GHz Gigabit Cable Modem Router from TP-Link. This device combines a modem and a router to provide you with both wired and wireless Internet connectivity for your home or office. Setup is simple as it's equipped with one coaxial port and four Gigabit Ethernet ports for your wired devices. Wireless 802.11b/g/n devices will also be able to connect to this device on the 2.4 GHz band. Once configured you can take advantage of enhanced downstream data speeds of up to 343 Mbps and upstream data speeds of up to 143 Mbps. These enhanced data rates ensure you can stream HD content, download large files quickly, play online games, and much more. This cable modem router is compatible with most ISPs such as XFINITY, Time Warner Cable, Cablevision, and more. - The TC-W7960 comes compatible with the following cable providers including Comcast, Time Warner Cable, Cox Communications, Cablevision Systems, Suddenlink Communications, Mediacom Cable, WOW, General Communications Inc., Liberty Cablevision of Puerto Rico, Bright House Networks, and more.
Please see manufacturer website for list of additional ISP compatibility information - 300 Mbps wireless speeds provides a fast wireless experience for all your mobile devices
- Channel bonding of up to 8 downstream channels and 4 upstream channels provide data rates up to 343 Mbps for downstream, and 143 Mbps for upstream
- CableLabs Certified DOCSIS 3.0 technology delivers speeds 8x faster than DOCSIS 2.0
- Four Gigabit ports ensure fast transfer speeds for wired devices
- One USB 2.0 port lets you share a printer, access files and media from networked devices, or remotely via FTP server
- Guest network & Parental control
- Eliminate monthly rental fees
- Compatible with major cable ISPs: XFINITY, Time Warner Cable, and more
UPC: 845973093860 In the Box TP-Link TC-W7960 Wireless-N300 2.4 GHz Gigabit Cable Modem Router Power Adapter RJ-45 Ethernet Cable Limited 2-Year Warranty More info from TP-Link Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link TC-W7960 Wireless-N300 2.4 GHz Gigabit Cable Modem Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

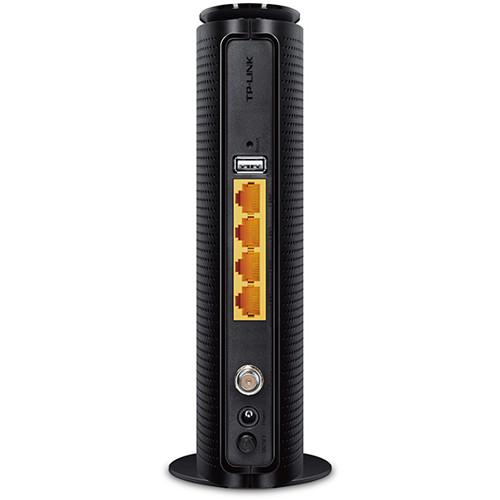

Technical parametersTP-Link TC-W7960 Specs | | | Memory | 16 MB Flash and 128 MB DDR3 SDRAM | | Interface | 4 x 10/100/1000 Mbps RJ45 LAN Ports
1 x Coax Port
1 x USB 2.0 Port | | Button | Power On/Off, WPS, Wi-Fi On/Off, Reset | | External Power Supply | 12 VDC / 1.5 A | | IEEE Standards | IEEE802.3, 802.3u, 802.3ab, 802.1q | | DOCSIS Support | DOCSIS 1.0, 1.1, 2.0, 3.0 | | Antenna Type | 2 x Internal Antennas | | | | Wireless Standards | IEEE 802.11n/g/b 2.4 GHz | | Wireless Speeds | Up to 300 Mbps | | Frequency | 2.4 GHz | | Transmit Power | < 30 dBm (EIRP) | | Wireless Functions | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless MAC Filtering | | Wireless Security | Support 64/128 bit WEP, WPA /WPA2, WPA-PSK/WPA2-PSK | | | | Security | NAT Firewall, Access Control | | IPv6 | IPv6 and IPv4 dual stack | | Enclosure Management | Web Based Configuration(HTTP), Remote management, SSL for TR-069, SNMP v1/v2/v3, Diagnostic Tools | | DHCP | Server, Client, DHCP Client List | | Dynamic DNS | DynDns, NO-IP | | VPN Pass-Through | PPTP, L2TP, IPSec Passthrough | | Advanced Functions | Parental Control, MAC/IP/URL Filtering; RIP v1/v2 (optional); DNS Relay, DDNS, IGMP V1/V2/V3 | | USB Sharing | Storage Sharing, FTP Server, Media Server, Print Server | | Guest Network | 1 x 2.4 GHz guest network | | NAT | Port Forwarding, Port Triggering, UPnP, DMZ, ALG | | | | Operating Temperature | 32 to 104℉ (0 to 40℃) | | Storage Temperature | -22 to 158℉ (-30 to 70℃) | | Operating Humidity | 5 to 95% non-condensing | | Storage Humidity | 5 to 95% non-condensing | | | | Certifications | FCC, RoHS, UL, CableLabs | | System Requirements | Windows 8/7/Vista SP1 or later/XP SP2 or later
Mac 10.4 or later (Ethernet connection only)
UNIX Linux | | Dimensions (W x D x H) | 8.17 x 5.48 x 2.87" (207.5 x 139.1 x 72.8 mm) | | | | Package Weight | 2.05 lb | | Box Dimensions (LxWxH) | 10.158 x 9.528 x 3.543" |
