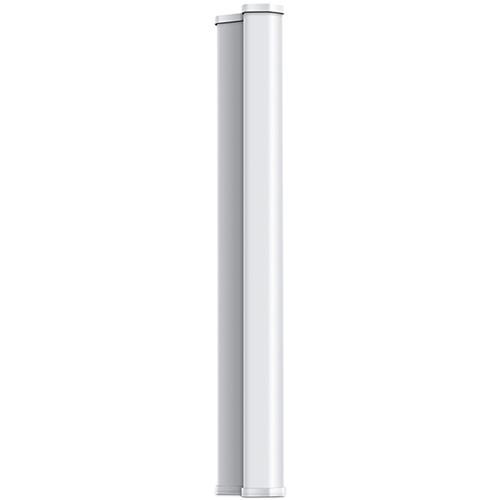

User Manual for TP-Link TL-ANT5819MS 5 GHz 19 dBi 2x2 MIMO Sector Antenna Click to enlarge the picture
Contents of the user manual for the TP-Link TL-ANT5819MS 5 GHz 19 dBi
- Product category: Antennas & Accessories TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Antennas & Accessories
|
User manual for the TP-Link TL-ANT5819MS 5 GHz 19 dBi contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|
Product description Designed for use with the Pharos Base Station, the TL-ANT5819MS 5 GHz 19 dBi 2x2 MIMO Sector Antenna from TP-Link provides wide area coverage and is suitable for use in point-to-multi-point configurations.
Installation of this sector antenna is simple and requires no tools. Once installed, the antenna supports 5.0 to 6.0 GHz frequencies with an impedance of 50 Ohms, a 19 dBi gain, an HPOL and VPOL beamwidth of 120°, and both vertical and horizontal polarization. For enhanced performance, this TP-Link sector antenna supports MIMO technology for enhanced throughput and comes with a weatherproof housing allowing it to stand up to the elements including wind speeds of up to 149 mph. - Common Deployment Goals
- When installed alongside a Pharos Base Station, the TL-ANT5819MS is capable of providing Point-to-Multi-Point data transmission coverage for a large area.
- Easy Installation
- This TP-LINK sector antenna features a built-in mounting apparatus and works seamlessly with Pharos Base Stations, meaning that no tools are required for installation.
UPC: 845973091897 In the Box TP-Link TL-ANT5819MS 5 GHz 19 dBi 2x2 MIMO Sector Antenna Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link TL-ANT5819MS 5 GHz 19 dBi 2x2 MIMO Sector Antenna in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link TL-ANT5819MS Specs | Frequency | 5.0 - 6.0 GHz | | Impedance | 50 Ohms | | Gain | 19 dBi | | VSWR | 1.8 (max.) | | Hpol Beamwidth | 120° (6 dB) & 90° (3 dB) | | Vpol Beamwidth | 120° (6 dB) & 90° (3 dB) | | Elevation Beamwidth | 4° | | Polarization | Vertical & horizontal | | Mounting | Pole mount | | Electrical Downtilt | 0° | | F/B Ratio | 28 dBm (min.) | | Survival Wind Speed | 149 mph / 241 km/h | | Standards | RoHS, WEEE | | Interfaces | RP-SMA female | | Dimensions | 27.6 x 5.2 x 2.2" / 700 x 133 x 57 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 7.85 lb | | Box Dimensions (LxWxH) | 40.5 x 7.25 x 5.5" |
