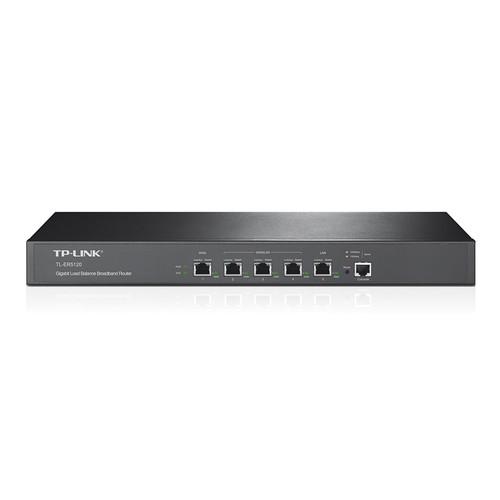

User Manual for TP-Link TL-ER5120 Gigabit Load Balance Broadband Router Click to enlarge the picture
Contents of the user manual for the TP-Link TL-ER5120 Gigabit Load Balance Broadband
- Product category: Network Routers TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Network Routers
|
User manual for the TP-Link TL-ER5120 Gigabit Load Balance Broadband contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|
Product description The TL-ER5120 Gigabit Load Balance Broadband Router from TP-Link covers all of your networking needs for small to medium sized enterprises. This load balancing router has the ability to distribute workloads across multiple computers or a computer cluster, network links, central processing units, disk drives, or other resources, to achieve optimal resource utilization helping to avoid overload. You can also take advantage of access controls, giving you complete control over virtually every aspect of the router.
The integrated DMZ port adds an additional layer of security to your local area network, ensuring an external attacker only has access to equipment in the DMZ, rather than any other part of the network. The TL-ER5120 also comes equipped with 3 free changeable WAN/LAN ports, providing more versatility than other routers as you can now configure the ports to your specific needs. The single WAN port gives you the necessary port to receive your data connection while the console port provides backdoor root access to the base level of the router.
The TL-ER5120 router benefits from a variety of security functions such as application controls, attack defense, the integrated DMZ port, and a variety of filtering options. Some of the integrated application controls include IM, P2P, Web IM, Web SNS, Web Media, Protocol, and Proxy Blocking. Attack defense features include TCP/UDP/ICMP flood defense, block TCP scan, and block ping from WAN. Filtering security features include MAC filtering, URL/Keywords filtering, and web content filtering. Each of these security features covers nearly every aspect of your router, ensuring you have complete control of nearly every function of the router. - Power Packed Router
- The TL-ER5120 Gigabit Load Balance Broadband Router possesses excellent data processing capabilities and multiple powerful functions including load balance, access control, IM/P2P blocking, DoS defense, bandwidth control, session limit and PPPoE server, which meet the needs of small and medium enterprises with large volumes of users demanding an efficient and easy-to-manage network with high security.
- Abundant Security Features
- The TL-ER5120 comes equipped with automatic protection to detect and block denial of service attacks such as TCP/UDP/ICMP flooding, TCP scanning, ping of death and other related threats. This router also offers a DMZ port allowing network administrators to setup public servers without exposing their internal network, helping to avoid attacks from external threats. For better management of the internal network, the TL-ER5120 allows administrators to set rules to block specific web sites and IMP/P@P applications with just one click, and restrict staff to use specific services such as FTP, HTTP, and SMTP.
- Efficient Access Management
- By setting a PPPoE Server to allocate PPPoE accounts to private network users, the router only allows users with legal accounts that have passed authentication to access the Internet. Cooperating with IP-based Bandwidth Control, it is capable of confining bandwidth usage of certain PPPoE accounts. Moreover, the E-Bulletin function is able to release a bulletin in the form of webpage to certain user groups periodically, which notifies the users about the expiration date of the PPPoE account. With the above features, the router will prioritize different users in surfer jurisdictions for more efficient management.
- Optimizing Bandwidth Usage
- The TL-ER5120 features three freely interchangeable ports that can be set to either LAN or WAN, allowing the router to support up to four WAN ports to satisfy various Internet access requirements through one device. The intelligent load balancing function can distribute data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband. With IP-based bandwidth control and session limit functions, network administrators can flexibly manage network bandwidth to optimize bandwidth usage.
- Safety Minded Enterprise Investments
- Professional lightning protection technology is designed to prevent electrical surges from penetrating the interior of the device, to be discharged harmlessly into the Earth. This router is designed to prevent lightning damage of up to 4Kv in the well-grounded connection conditions. This feature ensures that networking infrastructure investments remain as safe as possible from one of Mother Nature's more violent elements.
UPC: 845973041113 In the Box TP-Link TL-ER5120 Gigabit Load Balance Broadband Router Resource CD Power Cord Rack-Mount Kit Installation Guide Guides & Manuals More info from TP-Link Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link TL-ER5120 Gigabit Load Balance Broadband Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the TP-Link TL-ER5120 Gigabit Load Balance Broadband Router can be downloaded in PDF format at the link stated below.
Technical parametersTP-Link TL-ER5120 Specs | | | Standards | IEEE 802.3, 802.3u, 802.3ab | | Protocols | TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP | | Ports | 1 x Fixed 10/100/1000Mbps WAN Port
3 x Free Changeable 10/100/1000Mbps WAN/LAN Ports
1 x Fixed 10/100/1000Mbps LAN/DMZ Port
1 x Console Port (RJ-45 On RS232) | | Network Media | 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m) | | Flash | 8MB | | DRAM | DDRII 128MB | | LED | PWR, SYS, Link/Act, Speed, WAN, DMZ | | Button | Reset Button | | | | Concurrent Sessions | 120000 | | NAT Throughput | 350Mbps | | | | DHCP | DHCP Server/Client
DHCP Reservation | | Cloning | MAC Clone: Modify WAN/LAN/DMZ MAC Address | | Switching | Port Mirror
Rate Control
Port Config
Port VLAN | | WAN Connection Type | Dynamic IP, Static IP, PPPoE, PPTP, L2TP, Dual Access, BigPond | | Balance Control | Intelligent Load Balance
Policy Routing
Protocol Binding
Link Backup (Timing, Failover)
Online Detection | | NAT Advanced Features | One-to-One NAT
Multi-nets NAT
Virtual Server, DMZ Host, Port Triggering, UPnP
FTP/H.323/SIP/IPsec/PPTP ALG | | Routing | Static Routing
Dynamic Routing (RIP v1/v2) | | System Mode | NAT, Non-NAT, Classical Routing | | Management and Traffic Analysis | IP-based Bandwidth Control
Guarantee & Limited Bandwidth
Time-scheduled Policy
IP-based Session Limit | | | | Protocol Support | ARP Inspection:
•Sending GARP Packets
•ARP Scanning by WAN/LAN
•IP-MAC Binding | | Controls | Application Control: IM, P2P, Web IM, Web SNS, Web Media, Protocol, Proxy Blocking | | Attack | Attack Defense: TCP/UDP/ICMP Flood Defense, Block TCP Scan (Stealth FIN/Xmas/Null), Block Ping from WAN | | Port | DMZ Port: 1 Hardware DMZ Port | | Filtering | MAC Filtering
URL/Keywords Filtering
Web Content Filtering (Java, ActiveX, Cookies) | | | | Maintenance | Web/CLI/Telnet Management Interface
Remote Management
Export & Import Configuration
NTP Synchronize
Syslog Support | | Services | PPPoE Server
E-Bulletin
Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe) | | | | Certifications | CE, FCC, RoHS | | System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, Mac OS, NetWare, UNIX or Linux | | Environmental Requirements | Operating Temperature: 32-104°F / 0-40°C
Storage Temperature: -40-158°F / -40-70°C
Operating Humidity: 10-90% non-condensing
Storage Humidity: 5-90% non-condensing | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 20.9 x 13.3 x 4.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 08 owners. Add your rating and experience with the product.
