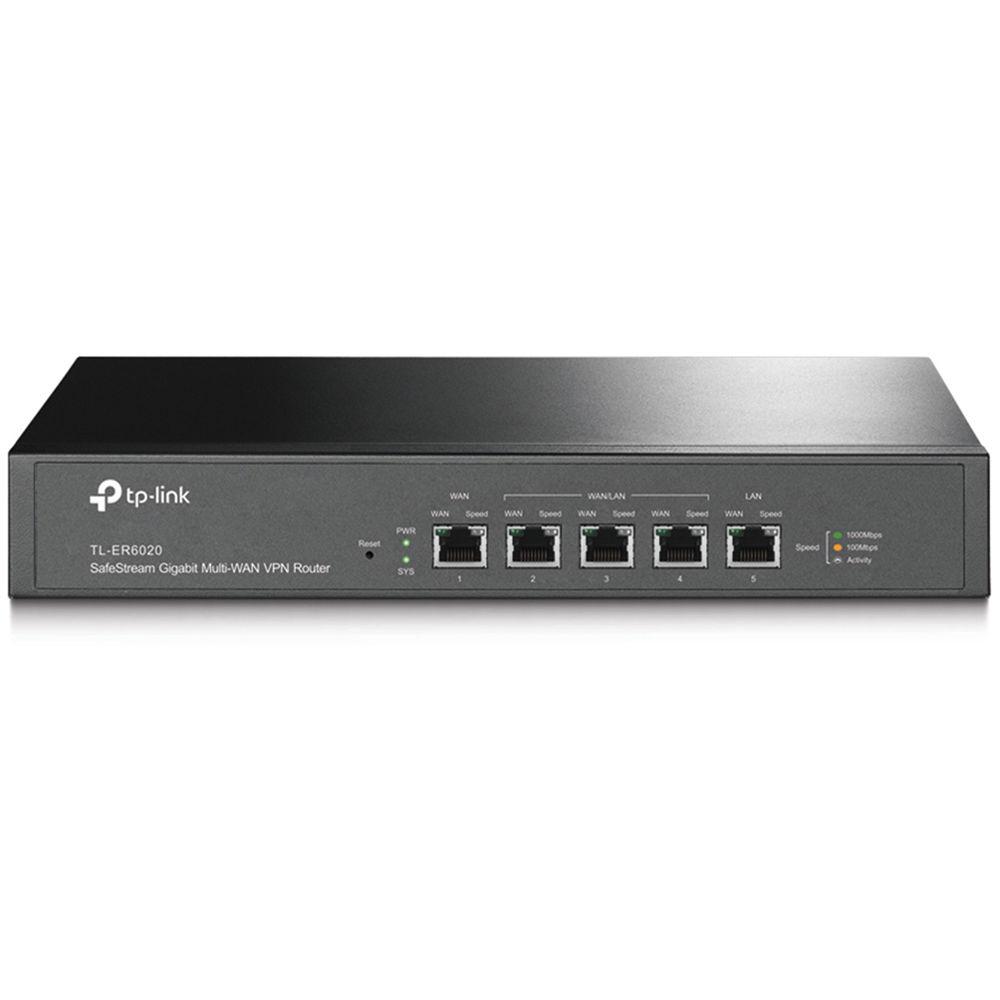

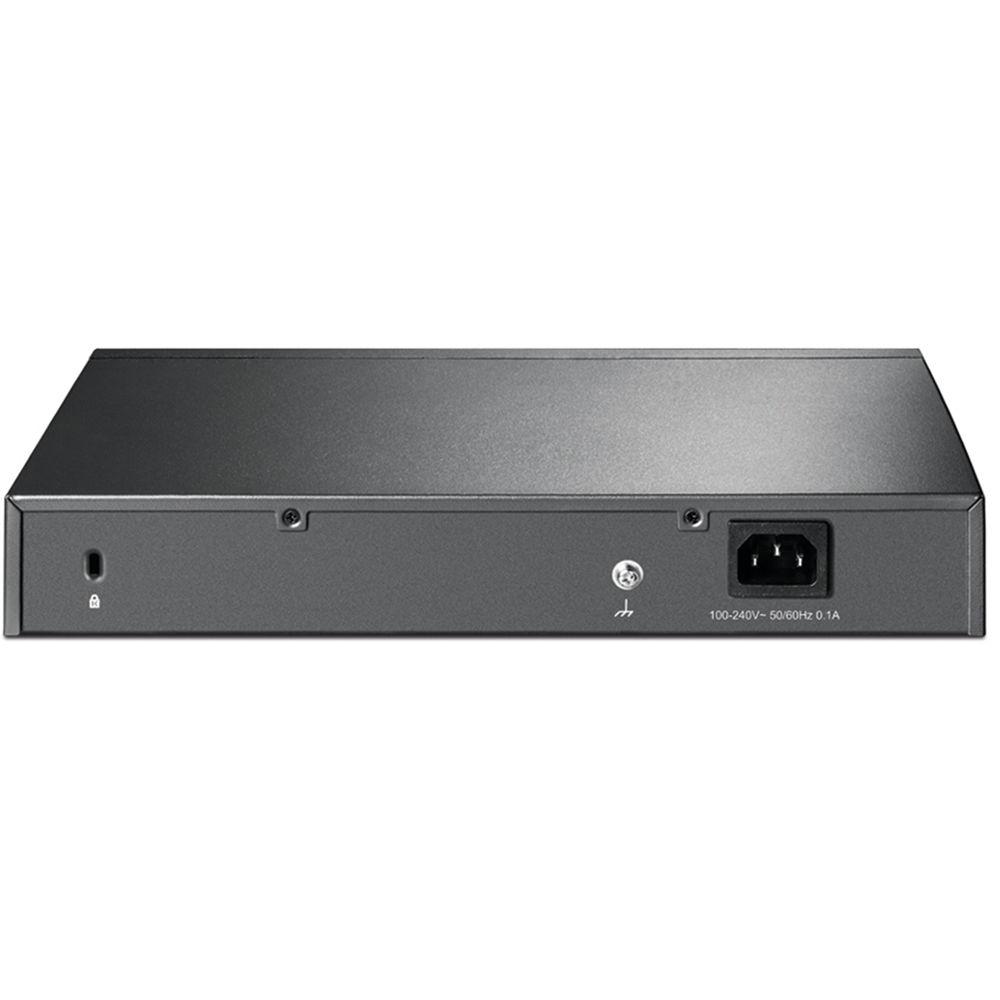

User Manual for TP-Link TL-ER6020 SafeStream Gigabit Dual-WAN VPN Router Click to enlarge the picture
Contents of the user manual for the TP-Link TL-ER6020 SafeStream Gigabit Dual-WAN VPN
- Product category: Network Routers TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Network Routers
 |
User manual for the TP-Link TL-ER6020 SafeStream Gigabit Dual-WAN VPN contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|
Product description Shore up your network security with the TL-ER6020 SafeStream Gigabit Dual-WAN VPN Router from TP-Link. Equipped with one Gigabit Ethernet WAN port, three Gigabit Ethernet WAN/LAN ports, and a Gigabit Ethernet LAN port, the TL-ER6020 SafeStream VPN router is capable of up to 940 Mb/s of NAT throughput and 99 Mb/s IPsec VPN throughput. Ideal for small and medium businesses, hotels, and other venues with a large number of wireless users, the TL-ER6020 can handle up to 64 IPsec VPN tunnels using a hardware-based VPN engine, and it boasts support for IPsec, PPTP, and L2TP VPN protocols. Features such as load balancing, bandwidth control, and access control help to optimize network security and performance, while a captive portal makes it easy to authorize guest users. - Enterprise-Standard VPN
- The TL-ER6020 supports passthrough traffic together with multiple VPN protocols, including IPsec, PPTP and L2TP in client/server mode. It also features a hardware VPN engine, allowing the router to support and manage up to 64 LAN-to-LAN/client-to-LAN IPsec VPN connections. Advanced VPN features include DES, 3DES, 128-bit AES, 192-bit AES, and 256-bit AES encryption, as well as MD5/SHA1 authentication and main/aggressive negotiation modes.
- Dual-Core CPU
- With a 64-bit dual-core network processor, the TL-ER6020 is designed to handle multiple tasks while maintaining optimal performance.
- Intelligent Bandwidth Allocation
- The TL-ER6020 features one WAN port and three WAN/LAN ports, allowing one device to meet multiple requirements. Intelligent load balancing distributes data streams according to the bandwidth proportion of each WAN port to make the most of multi-line broadband. IP-based bandwidth control and session limit functions give network administrators the power to flexibly manage how their bandwidth is used.
- Lightning Protection
- Designed to withstand 4kV of electricity when well grounded, the router features professional-standard lightning protection that helps prevent electrical surges from penetrating your network equipment.
UPC: 845973041182 In the Box TP-Link TL-ER6020 SafeStream Gigabit Dual-WAN VPN Router Power Cord Rackmount Kit Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link TL-ER6020 SafeStream Gigabit Dual-WAN VPN Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link TL-ER6020 Specs | | | Standards and Protocols | IEEE 802.3, 802.3u, 802.3ab
TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP | | Interface | 1 x 10/100/1000 Mb/s WAN Port
3 x 10/100/1000 Mb/s LAN/WAN Ports
1 x 10/100/1000 Mb/s LAN Port | | Network Media | 10BASE-T: UTP Category 3, 4, 5 Cable (Max 328' / 100 m)
EIA/TIA-568 100 Ohms STP (Max 328' / 100 m)
100BASE-TX: UTP Category 5, 5e Cable (Max 328' / 100 m)
EIA/TIA-568 100 Ohms STP (Max 328' / 100 m)
1000BASE-T: UTP Category 5, 5e, 6 Cable (Max 328' / 100 m) | | Button | Reset Button | | Internal Power Supply | 100-240 VAC, 50/60 Hz | | Flash Memory | 32 MB | | DRAM | DDRIII 256 MB | | LED | PWR, SYS, Link/Act, Speed | | | | Concurrent Sessions | 40000 | | NAT Throughput | 940 Mb/s | | IPsec VPN Throughput (3 DES) | 99 Mb/s | | | | WAN Connection Type | Static/Dynamic IP
PPPoE/Russian PPPoE
PPTP/Russian PPTP
L2TP/Russian L2TP
Bigpond Cable | | DHCP | DHCP Server/Client
DHCP Address Reservation | | MAC Clone | Modify WAN MAC Address | | IPTV | Bridge, Custom | | IPv6 | IPv6 Support | | VLAN | 802.1q VLAN, Port VLAN | | | | Load Balance | Intelligent Load Balance
Link Backup (Timing, Failover)
Online Detection | | NAT | One-to-One NAT, Multi-Nets NAT, Virtual Server, Port Triggering
FTP/H.323/SIP/IPsec/PPTP ALG, UPnP | | Routing | Static Routing
Policy Routing | | Session Management | IP-Based Session Limit | | Bandwidth Control | IP-Based Bandwidth Control | | | | IPsec VPN | 64 IPsec VPN Tunnels
LAN-to-LAN, Client-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
MD5, SHA1 Authentication Algorithm
IPsec NAT Traversal (NAT-T)
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS) | | PPTP VPN | 16 PPTP VPN Tunnels
PPTP VPN Server/Client
PPTP with MPPE Encryption | | L2TP VPN | 16 L2TP VPN Tunnels
L2TP VPN Server/Client
L2TP over IPsec | | VPN Passthrough | IPsec (ESP), PPTP, L2TP | | | | Attack Defense | TCP/UDP/ICMP Flood Defense
Block TCP Scan (Stealth FIN/Xmas/Null)
Block Ping from WAN | | Filtering | MAC Filtering
URL/Keywords Filtering | | ARP Inspection | Sending GARP Packets
ARP Scanning by WAN/LAN
IP-MAC Binding | | Access Control | Source/Destination IP-Based Access Control | | User Authentication | Local User Authentication
Radius Sever Authentication
Onekey Online | | | | Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe) | | Maintenance | Web Management Interface, Remote Management
Export & Import Configuration, SNMP
Diagnostics(Ping & Traceroute), NTP Synchronize
Syslog Support | | | | System Requirements | Microsoft Windows 7 or Later
Microsoft Windows 98SE or Later
macOS
NetWare
UNIX
Linus | | | | Certification | CE, FCC, RoHS | | Operating Temperature | 32-104°F / 0-40° C | | Storage Temperature | -40-158°F / -40-70°C | | Operating Humidity | 10-90% | | Storage Humidity | 5-90% | | Dimensions | 11.6 x 7.1 x 1.7" / 294 x 180 x 44 mm | | | | Package Weight | 3.865 lb | | Box Dimensions (LxWxH) | 15.9 x 10.0 x 3.2" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 40 owners. Add your rating and experience with the product.
