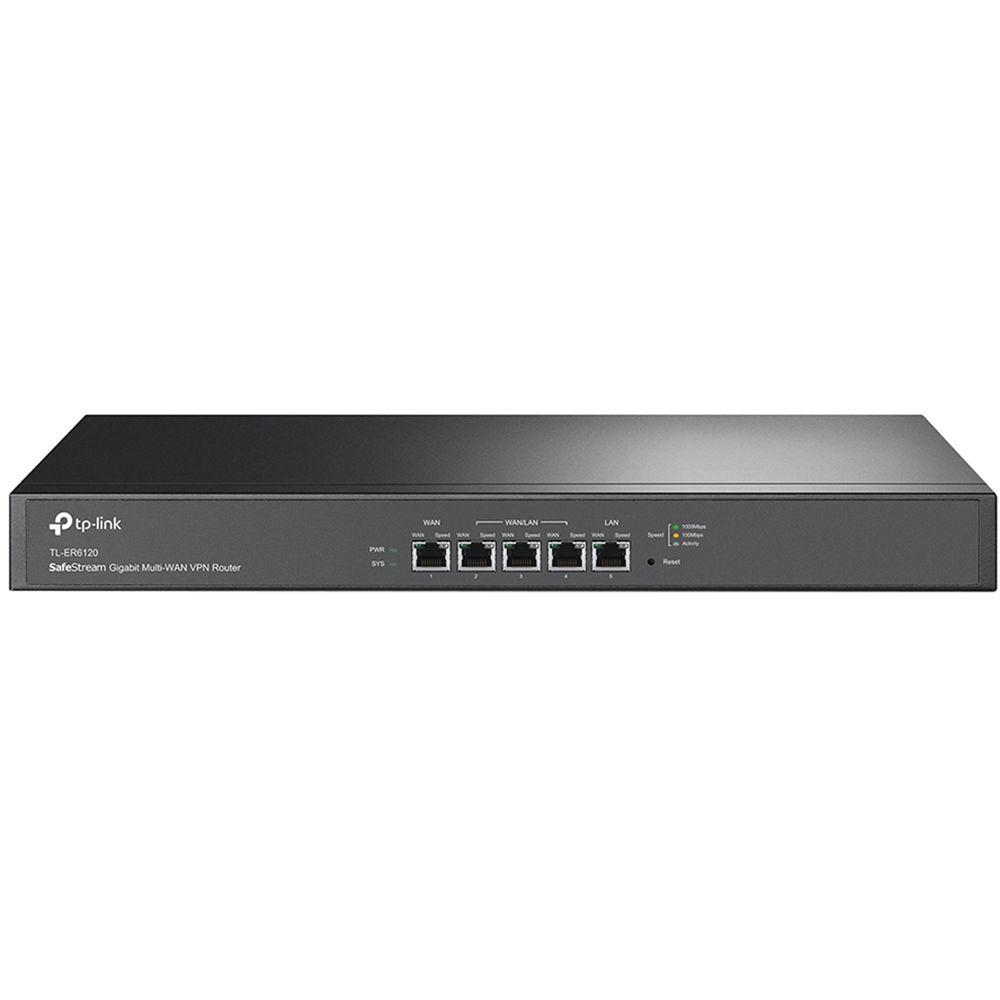

User Manual for TP-Link TL-ER6120 SafeStream Gigabit Multi-WAN Rack Mount VPN Router Click to enlarge the picture
Contents of the user manual for the TP-Link TL-ER6120 SafeStream Gigabit Multi-WAN Rack
- Product category: Network Routers TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Network Routers
 |
User manual for the TP-Link TL-ER6120 SafeStream Gigabit Multi-WAN Rack contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|
Product description Beef up your network security with the TL-ER6120 SafeStream Gigabit Multi-WAN Rack Mount VPN Router from TP-Link. Equipped with one Gigabit WAN port, three Gigabit WAN/LAN ports, and a Gigabit LAN port, the TL-ER6120 SafeStream VPN router supports up to 936 Mb/s NAT throughput and 373 Mb/s IPsec VPN throughput. Ideal for small and medium businesses as well as hospitality and educational facilities that demand a large number of stable, secure connections, the TL-ER6120 is capable of handling up to 100 IPsec VPN tunnels using a hardware-based VPN engine. The router boasts support for a variety of VPN protocols, including IPsec, PPTP, and L2TP. Other network defense features include ARP inspection, DoS defense, access control, and bandwidth control, while a captive portal helps to authenticate guest users. - Enterprise-Standard VPN
- Supports passthrough traffic together with multiple VPN protocols including IPsec, PPTP, and L2TP in both client and server mode. The TL-ER6120 also features a built-in VPN hardware engine, allowing the router to handle up to 100 network-to-network or client-to-network IPSec VPN connections. Advanced VPN security options include DES, 3DES, AES 128-bit, AES 192-bit, and AES 256-bit encryption, MD5 and SHA1 authentication, and main/aggressive negotiation modes.
- Intelligent Bandwidth Allocation
- The TL-ER6120 features one WAN port and three WAN/LAN ports, allowing one device to meet multiple requirements. Intelligent load balancing distributes data streams according to the bandwidth proportion of each WAN port to make the most of multi-line broadband. IP-based bandwidth control and session limit functions give network administrators the power to flexibly manage their bandwidth usage.
- Multitasking
- With a 64-bit dual-core network processor and 512MB of DDR3 memory, the TL-ER6120 is designed to handle multiple tasks without sacrificing packet-forwarding performance.
- Lightning Protection
- Professional-standard lightning protection helps to prevent electrical surges from penetrating your network equipment. The router is designed to withstand 4kV of electricity when properly grounded.
UPC: 845973081232 In the Box TP-Link TL-ER6120 SafeStream Gigabit Multi-WAN Rack Mount VPN Router Power Cord Rack-Mount Kit Limited Lifetime Warranty More info from TP-Link ewveqrrrwvax Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link TL-ER6120 SafeStream Gigabit Multi-WAN Rack Mount VPN Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link SafeStream Specs | | | Standards and Protocols | 802.3, 802.3u/ab
TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP | | Ports | 1 x 10/100/1000 Mb/s Ethernet WAN
1 x 10/100/1000 Mb/s Ethernet WAN/LAN
1 x 10/100/1000 Mb/s Ethernet LAN | | Network Media | 10BASE-T: UTP Cat 3, 4, 5 Cable (Max. 328' / 100 m)
EIA/TIA-568 100 Ohms STP (Max. 328' / 100 m)
100BASE-TX: UTP Cat 5, 5e Cable (Max. 328' / 100 m)
EIA/TIA-568 100 Ohms STP (Max. 328' / 100 m)
1000BASE-T: UTP Cat 5, 5e, 6 Cable (Max. 328' / 100 m) | | Button | Reset | | Power Supply | AC 100-240 V, 50/60 Hz | | Flash Memory | 32 MB | | DRAM | 512 MB DDR3 | | LEDs | Power
System
Link/Activity
Speed | | | | Concurrent Sessions | 150,000 | | NAT | IMIX: 936 Mb/s
DHCP: 878 Mb/s
PPPoE: 665 Mb/s | | IPsec VPN Throughput | 373 Mb/s (AES 256-Bit) | | | | WAN Connection Type | Static/Dynamic IP
PPPoE/Russian PPPoE
PPTP/Russian PPTP
L2TP/Russian L2TP
Bigpond Cable | | DHCP | DHCP Server/Client
DHCP Reservation | | MAC Clone | Modify WAN MAC Address | | IPTV | Bridge, Custom | | IPv6 Support | Yes | | VLAN | 802.1q VLAN
Port VLAN | | | | Load Balance | Intelligent Load Balance
Link Backup (Timing, Failover)
Online Detection | | NAT | One-to-One NAT
Multi-Nets NAT
Virtual Server, DMZ Host, Port Triggering, UPnP
FTP/H.323/SIP/IPsec/PPTP ALG | | Routing | Static Routing
Policy Routing | | Traffic Control | IP-Based Bandwidth Control
IP-Based Session Limit | | | | IPsec VPN | 100 IPsec VPN Tunnels
LAN-to-LAN, Client-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, AES 128-Bit, AES 192-Bit, AES 256-Bit Encryption Algorithm
MD5, SHA1 Authentication Algorithm
IPsec NAT Traversal (NAT-T)
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS) | | PPTP VPN | 50 PPTP VPN Tunnels
PPTP VPN Server/Client
PPTP with MPPE Encryption | | L2TP VPN | 50 L2TP VPN Tunnels
L2TP VPN Server/Client
L2TP over IPsec | | VPN Passthrough | IPsec (ESP), PPTP, L2TP | | | | Attack Defense | TCP/UDP/ICMP Flood Defense
Block TCP Scan (Stealth FIN/Xmas/Null)
Block Ping from WAN | | Filtering | MAC Filtering
URL/Keywords Filtering | | ARP Inspection | Sending GARP Packets
ARP Scanning by WAN/LAN
IP-MAC Binding | | Access Control | Source/Destination IP Based Access Control | | | | Service | Dynamic DNS (DynDNS and No-IP) | | Maintenance | Web Management Interface
Remote Management
Export & Import Configuration
SNMP
Diagnostics (Ping & Traceroute)
NTP Synchronize
Syslog Support | | Web Administration | Local User Authentication
Radius Sever Authentication
Onekey Online | | | | Certification | CE, FCC, RoHS | | Operating Temperature | 32-104°F / 0-40°C | | Storage Temperature | -40-158°F / -40-70°C | | Operating Humidity | 10-90% (Non-Condensing) | | Storage Humidity | 5-90% (Non-Condensing) | | Rack Mount | 19" Standard Rack-Mount Width
1U | | Dimensions | 17.3 x 8.7 x 1.7" / 440 x 220 x 44 mm | | | | Package Weight | 4.925 lb | | Box Dimensions (LxWxH) | 20.85 x 10.0 x 3.25" |
