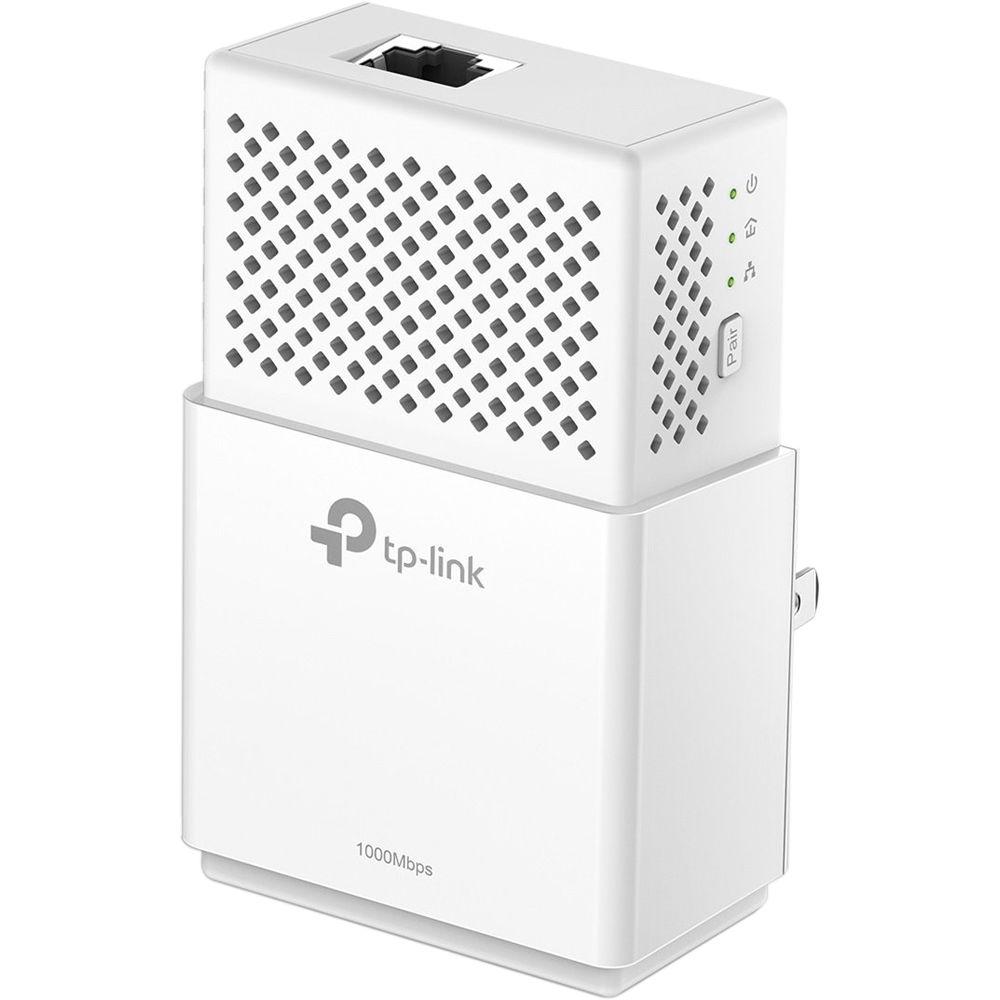

User Manual for TP-Link TL-PA7010 KIT AV1000 Gigabit Powerline Starter Kit Click to enlarge the picture
Contents of the user manual for the TP-Link TL-PA7010 KIT AV1000 Gigabit Powerline
- Product category: Powerline Networking TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Powerline Networking
 |
User manual for the TP-Link TL-PA7010 KIT AV1000 Gigabit Powerline contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|
Product description Extend the reach of your network through your home's electrical outlets with the TL-PA7010 KIT AV1000 Gigabit Powerline Starter Kit from TP-Link. Each adapter is compliant with the HomePlug AV2 networking standard offering data transfer rates of up to 1 Gbps making it easy to stream multimedia content, transfer large files, and more. Setup is simple, as these plug-and-play adapters require no drives or software installation. Just plug one adapter in near your router or modem, connect it to your existing network, and plug in the other adapter where you want to extend your connection to. Each adapter also comes equipped with a single Gigabit Ethernet port making them compatible with nearly any Ethernet-enabled device. - Ideal for Streaming and Downloading
- The TL-PA7010 KIT comes with advanced HomePlug AV2 technology providing users with high-speed data transfer rates of up to 1000 Mbps, which is ideal for bandwidth-intensive applications such as multiple HD/3D/4K video streaming, online gaming and large file transfers.
- Gigabit Port for Maximum Connectivity
- With one Gigabit Ethernet port, TL-PA7010 KIT allows users to connect a bandwidth-intensive device to the Internet at high speeds and ensures the smooth transmission of Ultra HD video streaming.
- Plug-and-Play Configuration
- Connect a powerline adapter to the router, plug another powerline adapter into a wall socket in another room, and connect it to your Internet-enabled device via Ethernet.
- Reduced Power Consumption
- The TL-PA7010 KIT features a Power-Saving Mode which activates automatically to reduce energy consumption by up to 85%.
UPC: 845973099244 In the Box TP-Link TL-PA7010 KIT AV1000 Gigabit Powerline Starter Kit Ethernet Cable Limited 2-Year Warranty More info from TP-Link wzwqeuuzaczywctuuawawrfxytaxfcfcyb Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link TL-PA7010 KIT AV1000 Gigabit Powerline Starter Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link TL-PA7010 KIT Specs | | | Plug Type | EU, UK, US | | Standards and Protocols | HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab | | Interface | Gigabit Ethernet port | | Button | Pair / reset button | | Power Consumption | Maximum: 2.7 W (220 V / 50 Hz)
Typical: 2.3 W (220 V / 50 Hz)
Standby: 0.5 W (220 V / 50 Hz) | | LED Indicator | PWR, PLC, ETH | | Range | 984' / 300 m over electrical circuit | | | | Modulation Technology | OFDM (PLC) | | Encryption | Powerline Security: 128-bit AES | | | | Certifications | CE, RoHS | | System Requirements | Windows 2000/XP/2003/Vista, Windows 7/8/8.1, Mac, Linux | | Temperature & Humidity | Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -40 to 158°F / -40 to 70°C
Operating Humidity: 10 to 90% non-condensing
Storage Humidity: 5 to 90% non-condensing | | | | Dimensions | 3.8 x 2.4 x 1.4" / 98 x 60 x 36 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 7.6 x 5.4 x 3.9" |
