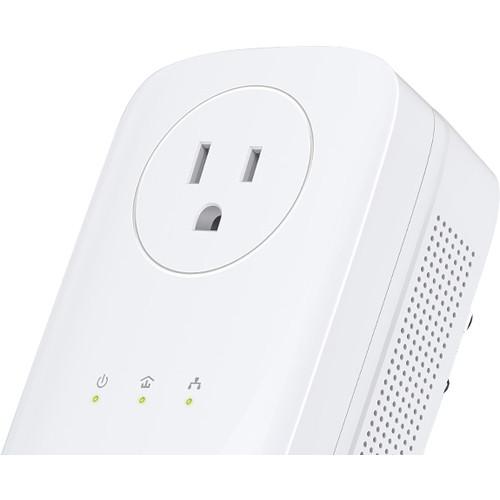

User Manual for TP-Link TL-PA8030P KIT HomePlug-AV1200 3-Port Gigabit Passthrough Powerline Starter Kit

Click to enlarge the picture
TP-Link TL-PA8030P KIT HomePlug-AV1200 3-Port Gigabit Passthrough Powerline Starter Kit Contents of the user manual for the TP-Link TL-PA8030P KIT HomePlug-AV1200 3-Port Gigabit
  • Product category: Powerline Networking TP-Link
  • Brand: TP-Link
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for TP-Link Powerline Networking

TP-Link TL-PA8030P KIT HomePlug-AV1200 3-Port Gigabit Passthrough Powerline Starter Kit TP-Link TL-PA8030P KIT HomePlug-AV1200 3-Port Gigabit Passthrough Powerline Starter Kit TP-Link TL-PA8030P KIT HomePlug-AV1200 3-Port Gigabit Passthrough Powerline Starter Kit TP-Link TL-PA8030P KIT HomePlug-AV1200 3-Port Gigabit Passthrough Powerline Starter Kit TP-Link TL-PA8030P KIT HomePlug-AV1200 3-Port Gigabit Passthrough Powerline Starter Kit TP-Link TL-PA8030P KIT HomePlug-AV1200 3-Port Gigabit Passthrough Powerline Starter Kit TP-Link TL-PA8030P KIT HomePlug-AV1200 3-Port Gigabit Passthrough Powerline Starter Kit TP-Link TL-PA8030P KIT HomePlug-AV1200 3-Port Gigabit Passthrough Powerline Starter Kit TP-Link TL-PA8030P KIT HomePlug-AV1200 3-Port Gigabit Passthrough Powerline Starter Kit
User manual for the TP-Link TL-PA8030P KIT HomePlug-AV1200 3-Port Gigabit contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any TP-Link product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!



Product description

With built-in MIMO technology, the TL-PA8030P KIT HomePlug-AV1200 3-Port Gigabit Passthrough Powerline Starter Kit from TP-Link is capable of supporting data transfer rates of up to 1200 Mb/s. With transfer rates this fast it is now possible to stream 4K UHD content, game online, transfer large files, and more all through your building's existing electrical outlets. Both MIMO (multiple input multiple output) and beamforming technology make the enhanced data speeds possible by creating multiple data streams and directing those streams to previously hard to reach outlets. With three Gigabit ports, users can connect multiple devices such as a computer, game console, and smart TV all to the same adapter eliminating the need for multiple adapters. Setup and configuration of this Powerline adapter kit is simple thanks to plug-and-play connectivity, simply plug the adapters into any available power outlet and begin expanding your network right away.
    Up to 1200 Mb/s Transfer Rates
  • The TL-PA8030P KIT utilizes MIMO technology and Powerline Beamforming to expand coverage throughout the home with powerful gigabit speed up to 1200 Mb/s. Ideal for bandwidth demanding activities like 4K Ultra-HD streaming, online gaming and large file transferring.
    2x2 MIMO with Beamforming
  • MIMO technology with Beamforming maximizes the performance on each independent stream to improve coverage throughout the home, particularly for previously hard to reach outlets.

    MIMO transmits two independent data streams on three wire pairs, live, neutral and ground increasing total throughput. Powerline Beamforming optimizes overall performance and reduces interference to maximize data transfer rates.
    3 Gigabit Ports for Maximum Connectivity
  • The TL-PA8030P KIT transmits data over gigabit Ethernet ports, creating secure wired networks for true gigabit-class broadband speeds. This makes the TL-PA8030P KIT well suited for audio and video streaming, online gaming, multi-room IPTV and other high-demand networking uses. It also provides five extra Gigabit ports so users simultaneously connect wired devices like smart TVs, media streaming devices, game consoles, external hard drives, or desktop computers to ensure maximum connectivity.
    Plug-and-Play
  • Users can get their powerline network up and running by plugging the Powerline adapters into any available power outlet, eliminating the need for time-consuming and expensive renovations previously required to establish a whole-home or office wired Ethernet network.
    Save Power Outlets for Other Uses
  • No longer will you need to sacrifice a power outlet for your Powerline devices. The TL-PA8030P KIT features an integrated power outlet with output of up to 16 A, so users can safely plug their high-power electrical appliances directly into the front of the Powerline unit. The built-in noise filter blocks out electrical signals and other noise, preventing any performance interference from external devices.
    Conserve Power by Up to 85%
  • Its sophisticated Power-Saving mode automatically switches from regular "Working" mode to "Power-Saving" mode when no data activity is being transferred on the Ethernet cable, greatly reducing energy consumption by up to 85%.

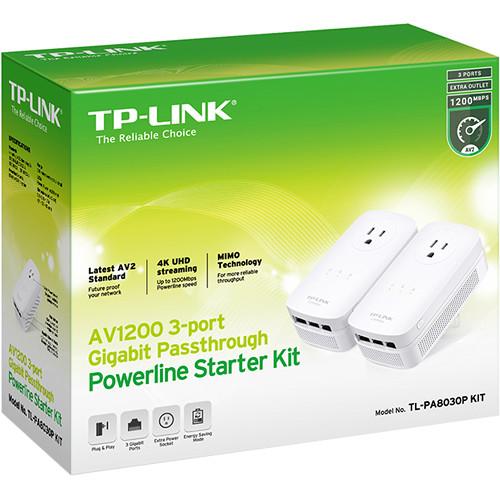

UPC: 845973092207 In the Box TP-Link TL-PA8030P KIT HomePlug-AV1200 3-Port Gigabit Passthrough Powerline Starter Kit
  • 6.5 ft / 2m Ethernet Cable
  • Resource CD
  • Limited 1-Year Warranty
  • Brochure PDF 1.7mb More info from TP-Link Table of Contents




    Upload User Manual

    Have you got an user manual for the TP-Link TL-PA8030P KIT HomePlug-AV1200 3-Port Gigabit Passthrough Powerline Starter Kit in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    TP-Link TL-PA8030P Specs

    Number of Ethernet Ports 3
    Ethernet Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 1901
    Ethernet Speed 10/100/1000 Mb/s
    Powerline Technology HomePlug AV, HomePlug AV2
    Modulation Technology OFDM
    Maximum Networking Distance 984' / 300 m
    Plug Type US (3-Pin)
    AC Pass-Through Yes
    Encryption 128-Bit AES
    Standby Power Consumption 0.5 W
    Current 16 A
    Operating System Support macOS/OS X, Linux, Windows
    Operating Temperature 32 to 104°F / 0 to 40°C
    Operating Humidity 10 to 90%
    Storage Temperature -40 to 158°F / -40 to 70°C
    Storage Humidity 5 to 90%
    Dimensions (W x H x D) 5.2 x 2.8 x 1.7" / 132.1 x 71.0 x 43.2 mm
    Package Weight 2.05 lb
    Box Dimensions (LxWxH) 9.1 x 7.6 x 4.0"
