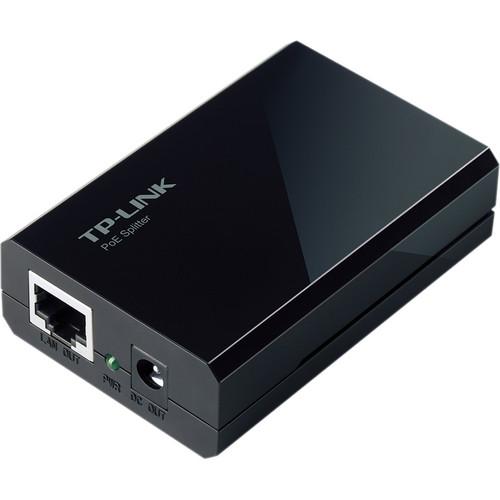

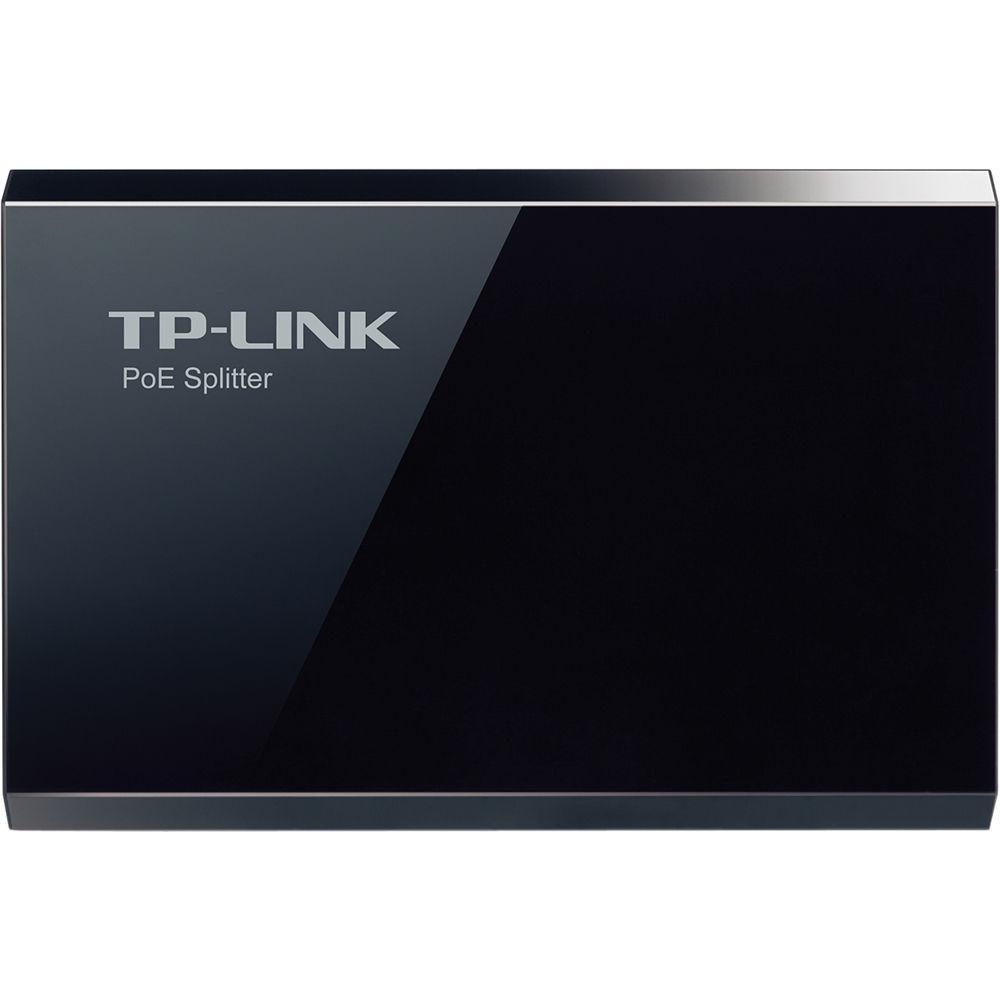

User Manual for TP-Link TL-POE10R PoE Splitter Click to enlarge the picture
Contents of the user manual for the TP-Link TL-POE10R PoE Splitter
- Product category: Power over Ethernet (PoE) TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Power over Ethernet (PoE)
 |
User manual for the TP-Link TL-POE10R PoE Splitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|
Product description The TL-POE10R PoE Splitter from TP-Link is a power over Ethernet compliant device designed to offer cabling to devices such as access points, IP cameras, VoIP equipment, and other PoE compliant devices. Once installed, the network admin has the ability to determine the amount of power offered via a dedicated switch located on the splitter for 12, 9, and 5 VDC. - Complies with IEEE 802.af standard
- Cost saving, no power cabling for Ethernet network device
- Advanced Auto-Sensing Algorithm enables taking power from 802.3af PSE (power sourcing equipment)

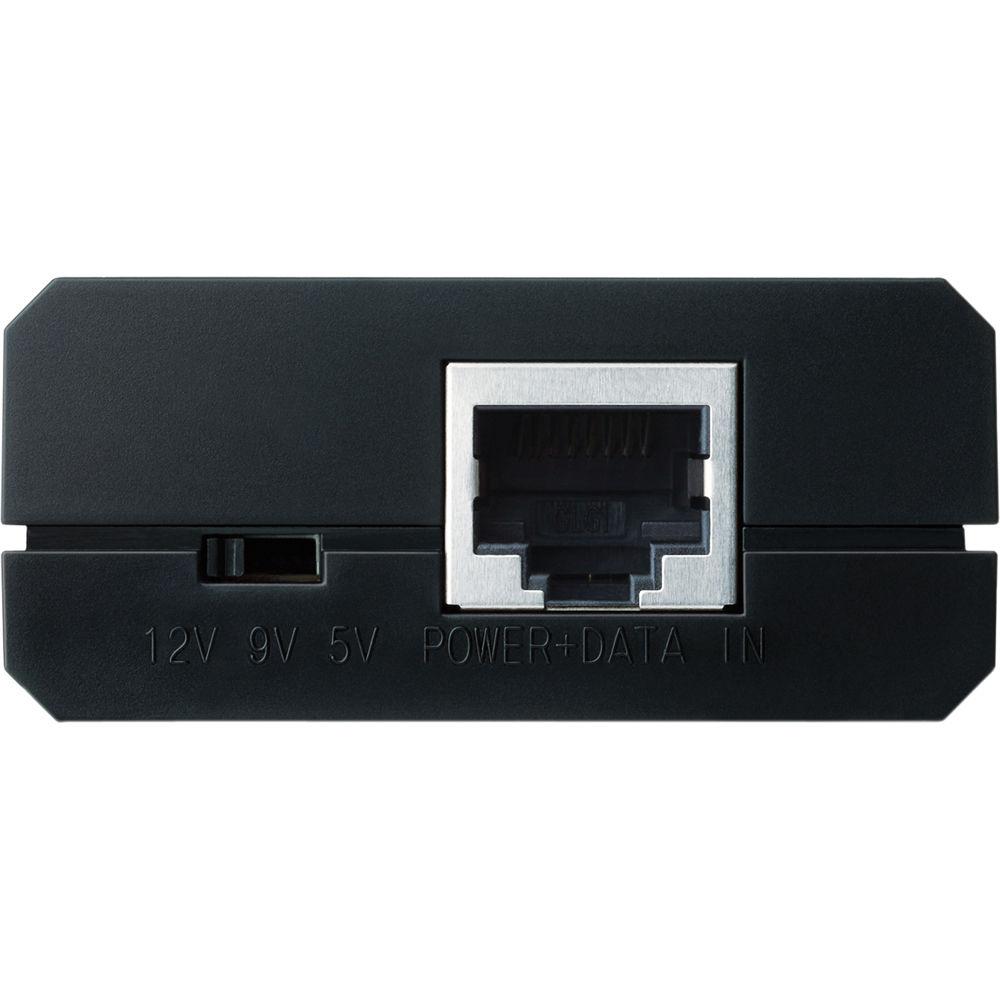

- Adjustable 5, 9, or 12 VDC output with slide switch
- Supplies up to 10W at 5 VDC, 9W at 9 VDC, or 12W at 12 VDC
- High safety with short circuit protection
- Supports power detection and classification
- Auto disconnection for over voltage, under voltage or over current
- Plug & play installation, requires no configuration
UPC: 845973030490 In the Box TP-Link TL-POE10R PoE Splitter Ethernet (CAT.5 UTP) Cable Power Cable User Guide Brochure PDF 872.1kbbvvwtycyeabtzsyxubxswvaztuscb More info from TP-Link Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link TL-POE10R PoE Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

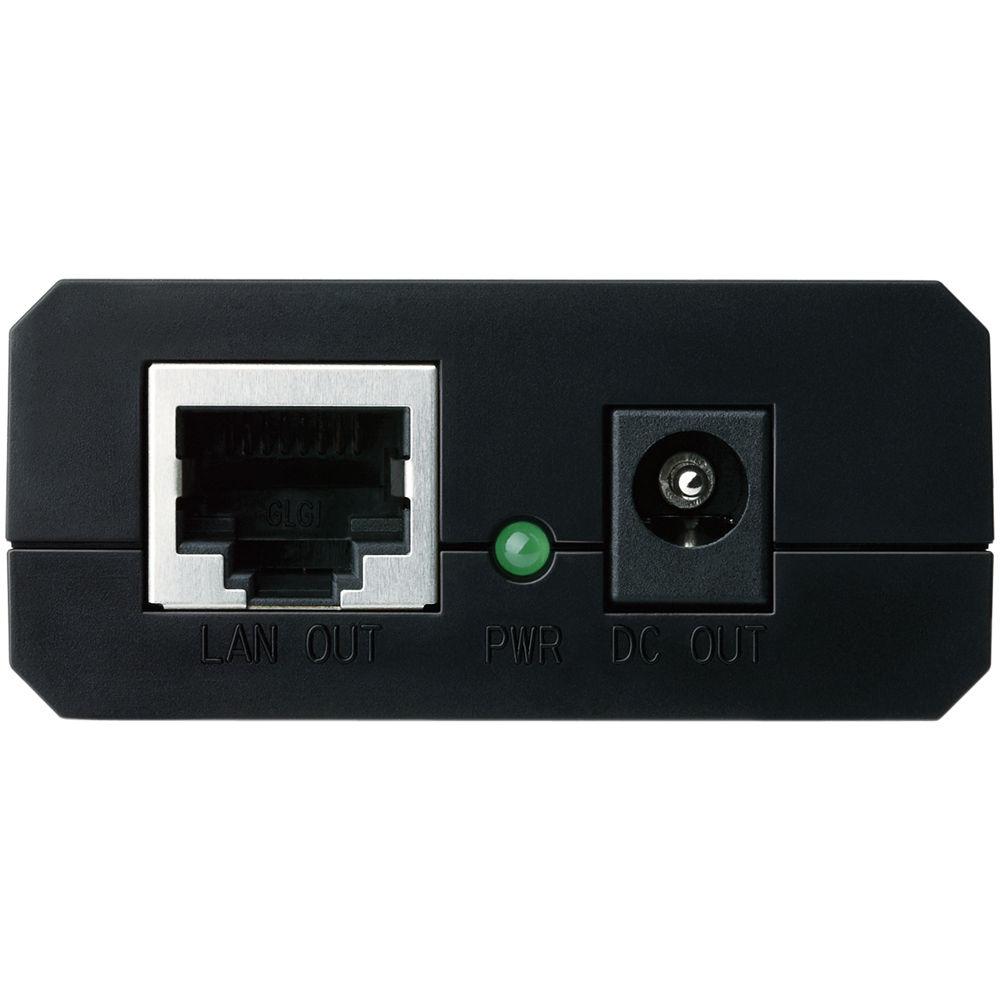

Technical parametersTP-Link TL-POE10R Specs | Ports | 1 x 10/100/1000M Auto-Negotiation RJ45 PoE port (POWER+DATA IN)
1 x 10/100/1000M Auto-Negotiation RJ45 LAN port (LAN OUT)
1 x power socket (DC OUT) | | Standards | IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3af Power over Ethernet | | Network Features | 10BASE-T: UTP category 3, 4, 5 cable (maximum 328.08' / 100m)
EIA/TIA-568 100 STP (maximum 328.08' / 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 328.08' / 100m)
EIA/TIA-568 100 STP (maximum 328.08' / 100m) | | Functionality | Auto-Sensing Algorithm enables taking power from 802.3af PSE
Adjustable 5VDC，9VDC or 12VDC power supply
Plug-and-Play | | LED Indicator | PWR (Green) | | Certifications | FCC, CE | | Power | Adjustable output 5VDC/2A，9VDC/1A or 12VDC/1A
Supplies up to 11.5W at 10W at 5VDC,9W at 9VDC or 12W at 12VDC
Power Consumption | | Environmental Requirements | Operating Temperature: 32-104°F / 0-40°C
Storage Temperature: -40-158°F / -40-70°C
Operating Humidity: 10-90% non-condensing
Storage Humidity: 5-90% non-condensing | | Dimensions (W x D x H) | 3.2 x 2.0 x 0.9" / 81 x 52 x 24 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 8.4 x 6.7 x 2.7" |
