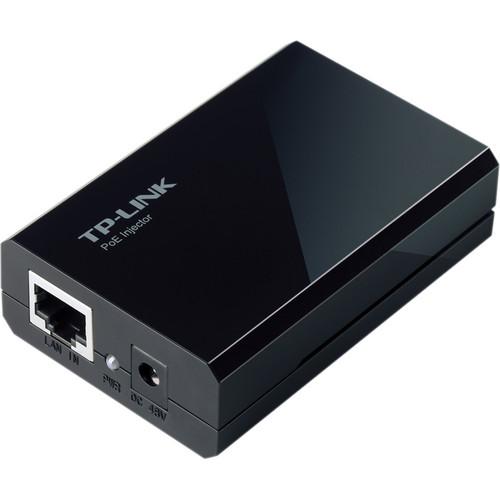

User Manual for TP-Link TL-POE150S Power Over Ethernet Injector Click to enlarge the picture
Contents of the user manual for the TP-Link TL-POE150S Power Over Ethernet Injector
- Product category: Power over Ethernet (PoE) TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Power over Ethernet (PoE)
 |
User manual for the TP-Link TL-POE150S Power Over Ethernet Injector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|

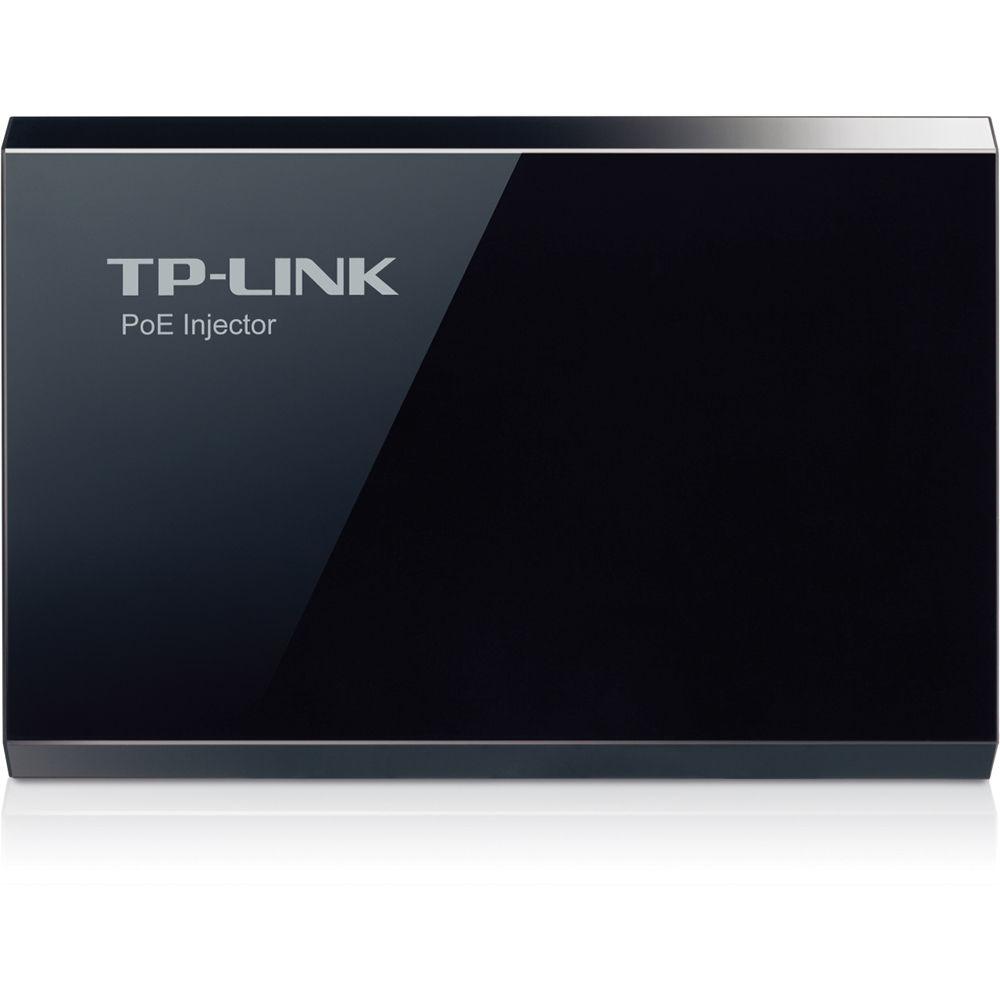

Product description The TL-POE150S Power Over Ethernet Injector from TP-Link allows you to expand your Internet connection to areas previously out of reach of existing networks. With the TL-POE150S you can easily plug in your existing non-PoE router or switch into the adapter. Once plugged in, you can then plug in your PoE compatible device directly into the adapter via an Ethernet cable to take advantage of not only the data connection, but the power the TL-POE150S provides.
The TL-POE150S not only provides power to compatible PoE devices, it supports power classification, it is incredibly safe with short circuit protection, and the advanced auto-sensing algorithm provides PoE through 802.3af compliance. With power classification support you the TL-POE150S can auto determine the necessary power requirements for the existing connection. The short circuit protection makes this one of the safest PoE injectors available. The integrated auto sensing algorithm makes this device compliant with 802.3af powered devices allowing for seamless integration into your existing network configuration. - Power Over Ethernet
- PoE or Power Over Ethernet describes a system to pass electrical power safely along with data, on Ethernet cabling. This power over Ethernet injector makes it possible to turn a standard switch or router into a PoE compatible device effectively providing a power source through existing Ethernet cabling.
- PoE Compatibility
- The TL-POE150S PoE Adapter can work with all IEEE 802.3af PoE compliant PDs (Powered Devices) to expand your network to where there are no power lines or outlets, where you wish to fix devices like Wireless Access Points, IP Cameras, or IP Phones, etc.
- Plug & Play Installation
- Configuration of the TL-POE150S is simple. Utilize the included power adapter to plug the device into an existing outlet. Once plugged in, utilize the LAN In port to plug in your non-PoE router or switch. Then plug your Wireless Access Point, IP Camera, or IP Phone, etc. into the TL-POE150S to take full advantage of PoE capabilities.
UPC: 845973030506 In the Box TP-Link TL-POE150S Power Over Ethernet Injector Ethernet (CAT.5 UTP) Cable Power Adapter Power Cable User Guide 1-Year Limited Warranty More info from TP-Link brbcvaut Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link TL-POE150S Power Over Ethernet Injector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

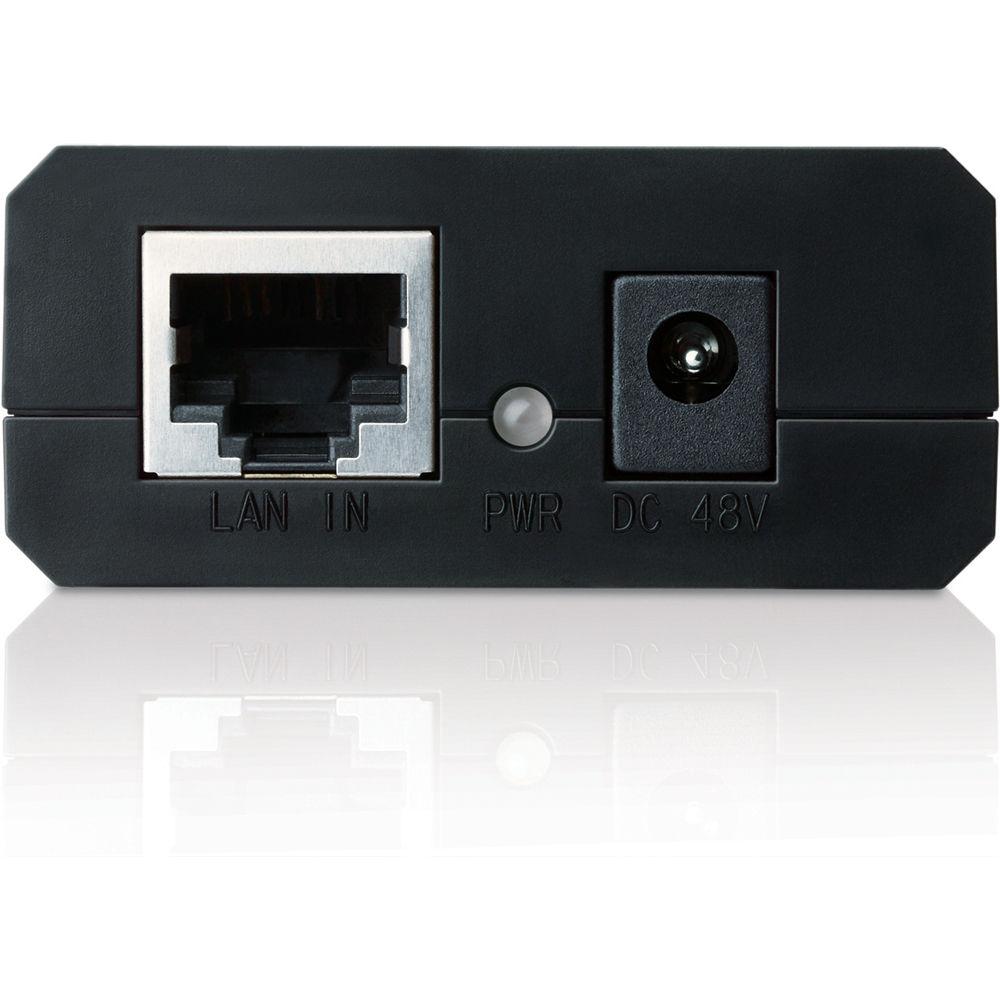

Technical parametersTP-Link TL-POE150S Specs | Ports | 1 x 10/100/1000M Auto-Negotiation RJ45 LAN Port (LAN IN)
1 x Power Socket (DC IN)

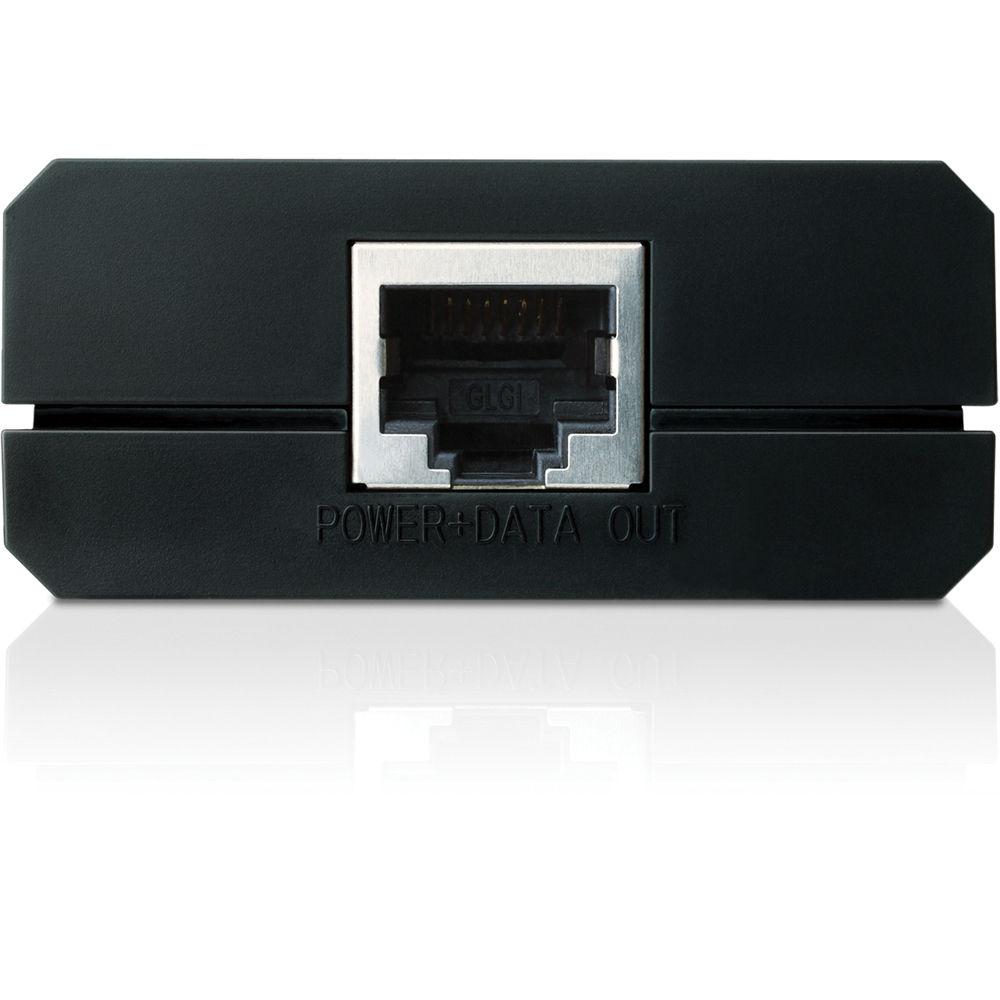

1 x 10/100/1000M Auto-Negotiation RJ45 PoE Port (POWER+DATA OUT) | | Standards | IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3af Power Over Ethernet | | Network Media | 10BASE-T: UTP Category 3,4,5 Cable (maximum 328.08' / 100m)
EIA/TIA-568 100ΩSTP (maximum 328.08' / 100m)
100BASE-TX: UTP Category 5, 5e Cable (maximum 328.08' / 100m)
EIA/TIA-568 100ΩSTP (maximum 328.08' / 100m) | | Functionality | Auto-Sensing Algorithm enables providing power with 802.3af PD
Delivers power and data over the same cable up to 100 meters
Auto-determine the necessary power requirements
Plug-and-Play | | Power | Input: External 48VDC power adapter
Output: Auto-determine the necessary power requirements (max. 15.4W) | | LED Indicator | PWR (Green) | | Certifications | FCC, CE | | System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, Mac OS, NetWare, UNIX or Linux | | Environmental Requirements | Operating Temperature: 32-104°F / 0-40°C
Storage Temperature: -40-158°F / -40-70°C
Operating Humidity: 10-90% non-condensing
Storage Humidity: 5-90% non-condensing | | Dimensions (W x D x H) | 3.2 x 2.0 x 0.9" / 82 x 52 x 24 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 8.3 x 6.7 x 2.7" |
