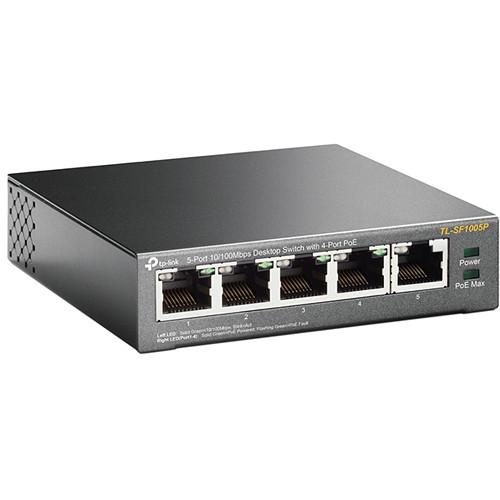

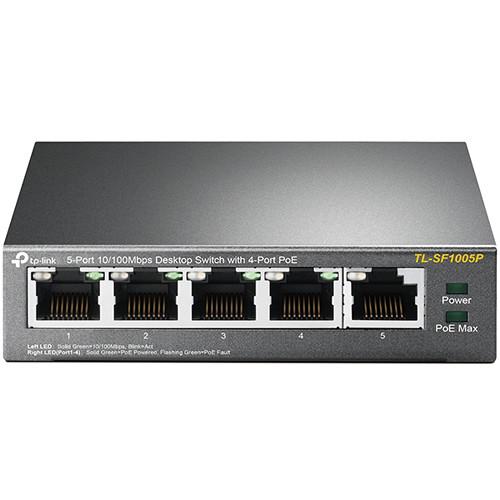

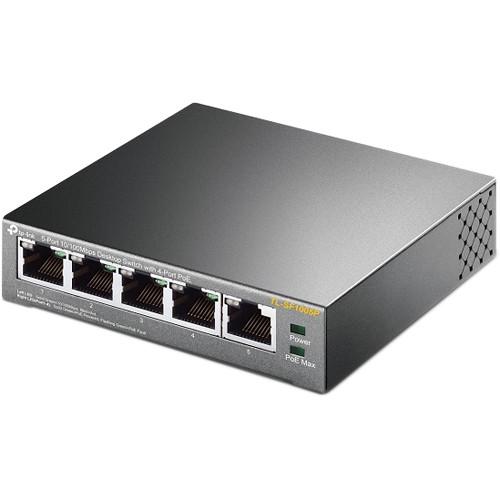

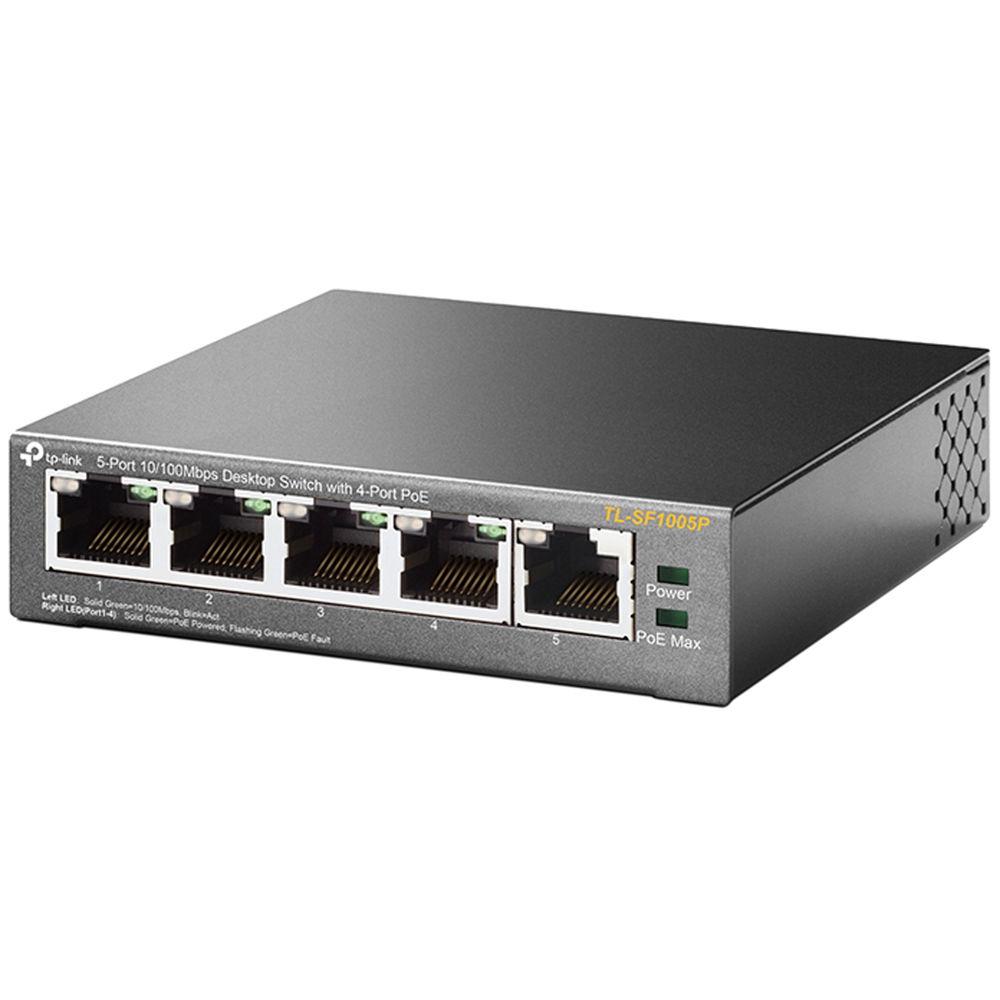

User Manual for TP-Link TL-SF1005P 5-Port Fast Ethernet PoE Unmanaged Switch Click to enlarge the picture
Contents of the user manual for the TP-Link TL-SF1005P 5-Port Fast Ethernet PoE
- Product category: Network Switches, Bridges & Hubs TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Network Switches, Bridges & Hubs
 |
User manual for the TP-Link TL-SF1005P 5-Port Fast Ethernet PoE contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|
Product description With no installation or configuration required, the TL-SF1005P 5-Port Fast Ethernet PoE Unmanaged Switch from TP-Link makes it easy to begin connecting additional Ethernet-enabled devices to your network.
This switch comes equipped with five Fast Ethernet ports, four of which are 802.3af PoE-compliant. This means you can power a variety of PoE-compliant devices such as access points and IP phones directly from the switch, and with a power budget of up to 58W there is enough power to go around. Should connected devices exceed that power budget, this switch is capable of shutting power off to network ports starting with port 4. Once installed, connected clients can take advantage of bandwidth up to 1 Gb/s and a 2K Mac Address table to ensure optimal network performance. - Power over Ethernet
- Four of the five Auto-Negotiation RJ-45 ports (Port 1 to Port 4) of the switch support the Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
- Overload Arrangement
- The TL-SF1005P has the priority function which will help protect the system when power is overloaded. If all PoE PDs power consumption exceeds 58W, a priority will be arranged among the PoE ports and the system will cut off power to the lowest-priority port.
- Port Priority Function
- This function means that power to Port 4 will be cut off when total PoE PDs power consumption exceeds 58W. For an example, if Ports 1, 2 and 4 are using 15.4W each, total system power is 46.2W. If an additional 12W PD is connected to Port 3, the system will cut off PoE power to Port 4 because the total would exceed 58W.
- Easy to Use
- The TL-SF1005P is easy to install and use. It requires no configuration and installation. With desktop design, enhanced performance, and quality, the TP-Link's TL-SF1005P 5-Port 10/100 Mb/s Desktop Switch with 4-Port PoE is an ideal choice for expanding your home or office network.
UPC: 845973083199 In the Box TP-Link TL-SF1005P 5-Port Fast Ethernet PoE Unmanaged Switch Power Adapter Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link TL-SF1005P 5-Port Fast Ethernet PoE Unmanaged Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link TL-SF1005P Specs | Interface | 5 x 10/100 Mb/s RJ-45 ports
Auto Negotiation/Auto MDI/MDIX | | Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 328' / 100 m)
EIA/TIA-568 100 Ω STP (maximum 328' / 100 m)
100BASE-TX: UTP category 5, 5e cable (maximum 328' / 100 m)
EIA/TIA-568 100 Ω STP (maximum 328' / 100 m) | | Fan Quantity | Fanless | | External Power Adapter | Output: 48 VDC / 1.25 A | | PoE Ports | Standard: 802.3 af compliant
PoE Ports: 1-4
Power Supply: 58 W | | MAC Address Table | 2 K | | Switching Capacity | 1 Gb/s | | Max Power Consumption | 63.51 W (max. with 58 W PD connected)
1.70 W (max. no PD connected) | | Software | Transmission Method
Store-And-Forward
Advanced Functions
Compatible with IEEE 802.3af-compliant PDs
Priority Function
Mac Address Auto-Learning and Auto-Aging
IEEE802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode | | Certifications | FCC, CE, RoHS | | Temperature & Humidity | Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-40 to 158°F / -40 to 70°C
Operating Humidity
10 to 90% non-condensing
Storage Humidity
5 to 90% non-condensing | | Dimensions | 3.9 x 3.9 x 1.0" / 99.8 x 99.8 x 25.0 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 7.4 x 4.9 x 4.0" |
