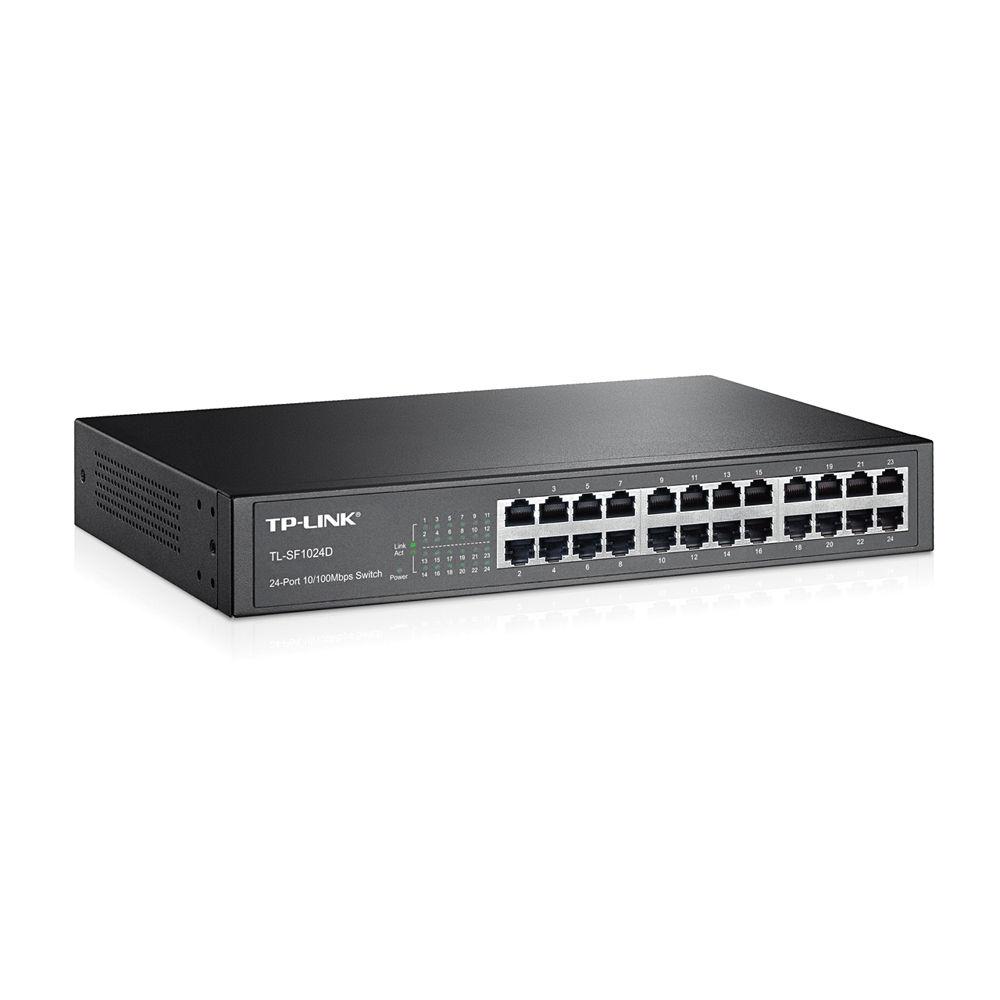

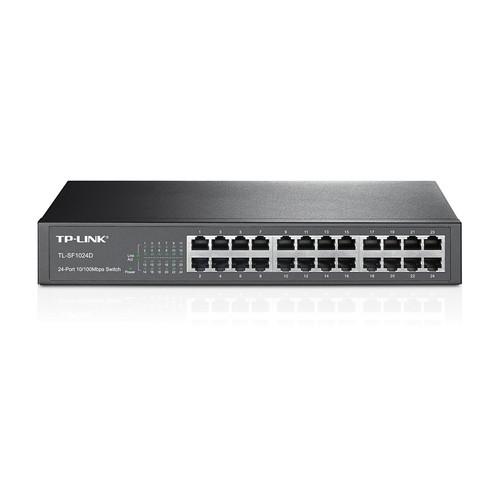

User Manual for TP-Link TL-SF1024D 24-Port 10 100Mbps Switch Click to enlarge the picture
Contents of the user manual for the TP-Link TL-SF1024D 24-Port 10 100Mbps Switch
- Product category: Network Switches, Bridges & Hubs TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Network Switches, Bridges & Hubs
 |
User manual for the TP-Link TL-SF1024D 24-Port 10 100Mbps Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|
Product description The TL-SF1024D 24-Port 10/100Mbps Switch from TP-Link allows for ease of use and high performance in an energy efficient configuration. With innovative energy-efficient technology you can save up to 70% off of your power consumption while streamlining your network. With IEEE 802.3x flow control you can utilize Full Duplex mode and Half Duplex mode to relieve backpressure throughout the network.
Receive full wire-speed for maximum throughput with non-blocking switching architecture and 4.8Gbps switching capacity to ensure fast efficient data transfer. The store and forward switching scheme allows the switch to store data in a specific node to verify the integrity of the message before forwarding it. This in turn allows for more efficient flow of data as each packet is inspected for its integrity.
Auto MDI/MDIX provides the means for parallel connections to eliminate the need for crossover cables to interconnect switches or connect PCs peer-to-peer. The integrated MAC address auto-learning and auto-aging feature allows for seamless integration of devices into the network as the switch can recognize the device by its MAC address. With auto negotiation ports and smart integration the switch can integrate devices between 10 and 100Mbps to ensure proper network speeds. - Ease of Use
- The TL-SF1024D provides a high-performance, low-cost, easy-to-use, seamless upgrade improving old networks to 100Mbps speeds. With 24 auto MDI/MDIX ports, there's no need to worry about the cable type. The plug and play compatibility of this switch allows for easy installation. Once installed you will begin saving up to 70% off of your power consumption.
- High Performance
- With a metal case design and safety certified internal power supply, the TL-SF1024D switch is not only robust, but cost-effective for a less than 24 user environment. The non-blocking switching architecture forwards and filters packets at full wire-speed for maximum throughput. IEEE 802.3x flow control allows for Full Duplex mode and back pressure for Half Duplex mode to alleviate the traffic congestion and make the TL-SF1024D work reliably.
- Go Green!
- The TL-SF1024D switch is part of a new generation of switches featuring the latest innovative energy-efficient technologies that can greatly expand your network capacity while using much less power. With the ability to automatically adjust power consumption according to the link status and cable length, you can easily limit your carbon footprint. The TL-SF1024D also complies with EU'S RoHS, prohibiting the use of certain hazardous materials.
- Simplicity
- With auto features, this fast Ethernet switch makes installation hassle-free with plug and play compatibility. No configuration is necessary while auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device and intelligently adjusts for compatibility and optimal performance.
UPC: 845973020828 In the Box TP-Link TL-SF1024D 24-Port 10/100Mbps Switch Power Cord User Guide Mounting Screws 2 x "L" Planks Brochure PDF 758.7kb More info from TP-Link Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link TL-SF1024D 24-Port 10 100Mbps Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link TL-SF1024D Specs | | | Ports | 24 x 10/100 Mb/s Ethernet (RJ45) | | | | Supported Protocols | Auto-MDIX/MDI | | Transmission Method | Store-and-Forward | | MAC Address Table Size | 8K | | | | Supported IEEE Standards | 802.3, 802.3u, 802.3x | | | | Switching Bandwidth | 4.8 Gb/s | | | | OS Compatibility | Windows XP or Later
macOS
Linux
UNIX | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 90% | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Storage Humidity | 5 to 90% | | | | Dimensions | 11.6 x 7.1 x 1.7" / 29.4 x 18 x 4.4 cm | | | | Package Weight | 4.65 lb | | Box Dimensions (LxWxH) | 16.0 x 9.9 x 3.1" |
