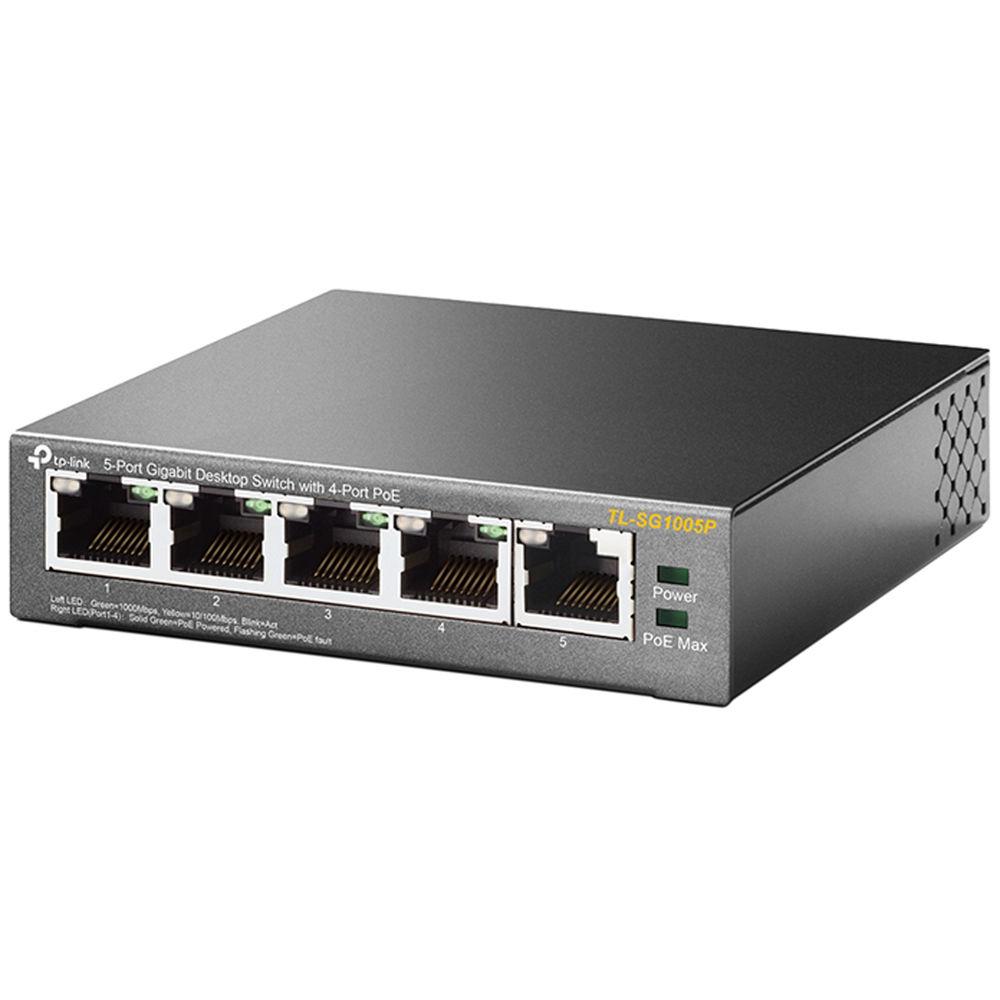

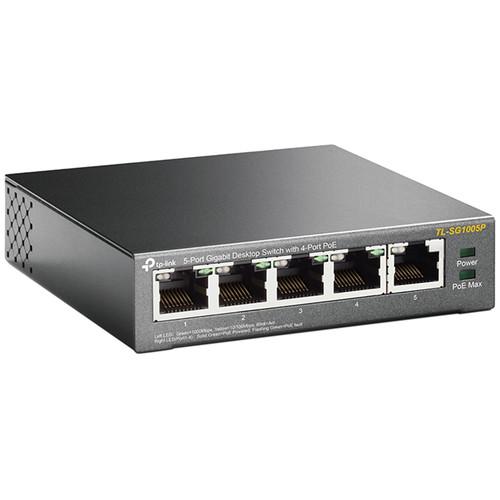

Product description With no installation or configuration required, the TL-SG1005P 5-Port Gigabit PoE Unmanaged Switch from TP-Link makes it easy to begin connecting additional Ethernet-enabled devices to your network.
This switch comes equipped with five Gigabit Ethernet ports, four of which are 802.3af PoE-compliant. This means you can power a variety of PoE-compliant devices such as access points and IP phones directly from the switch, and with a power budget of up to 56W there is enough power to go around. Should connected devices exceed that power budget, this switch is capable of shutting power off to network ports starting with port 4. Once installed, connected clients can take advantage of bandwidth up to 10 Gbps and a 2K Mac Address table to ensure optimal network performance. - Power Over Ethernet
- Four of the five auto-negotiation RJ-45 ports (port 1 to port 4) of the switch support the Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power to those IEEE 802.3af compliant Powered Devices (PDs).
- Overload Arrangement
- The TL-SG1005P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption exceeds 56W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
- Port Priority Function
- This function means that port 4 will be cut off when total PoE power consumption exceeds 56W. For an example, if Port 1, 2 and 4 are using 15.4W each, the system power is 46.2W total. If there is an additional 10W PD connected to Port 3, the system will cut off power to Port 4 while Ports 1 and 2 will still use 15.4W and Port 3 will use 10W.
- Easy to Use
- The TL-SG1005P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TP-Link's TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE is an ideal choice for expanding your home or office network.
UPC: 845973083212 In the Box TP-Link TL-SG1005P 5-Port Gigabit PoE Unmanaged Switch Power Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link TL-SG1005P 5-Port Gigabit PoE Unmanaged Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link TL-SG1005P Specs | Interface | 5 x 10/100/1000 Mbps RJ-45 ports
AUTO Negotiation/AUTO MDI/MDIX | | Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 328' / 100 m)
EIA/TIA-568 100Ω STP (maximum 328' / 100 m)
100BASE-TX: UTP category 5, 5e cable (maximum 328' / 100 m)
EIA/TIA-568 100Ω STP (maximum 328' / 100 m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 328' / 100 m)
EIA/TIA-568 100Ω STP (maximum 328' / 100 m) | | Fan Quantity | Fanless | | External Power Supply | External Power Adapter (Output: 48 VDC / 1.25 A) | | PoE Ports | Standard: 802.3 af compliant
PoE Ports: Port 1- Port 4
Power Supply: 56 W | | Bandwidth | Backbound Bandwidth
10 Gb/s | | MAC Address Table | 2 K | | Software | Advanced Features
Compatible with IEEE 802.3af compliant PDs
Priority function
Mac Address Auto-Learning and Auto-Aging
EEE802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping
Transfer Method
Store-and-Forward | | Certifications | FCC, CE, RoHS | | Power Consumption | 4.26 W (max. no PD connected)
63.31 W (max. with 56 W PD connected) | | Temperature & Humidity | Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-40 to 158°F / -40 to 70°C
Operating Humidity
10 to 90% RH non-condensing
Storage Humidity
5 to 90% RH non-condensing | | Dimensions | 3.9 x 3.9 x 1.0" / 99.8 x 98.0 x 25.0 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 7.4 x 5.0 x 4.1" |
