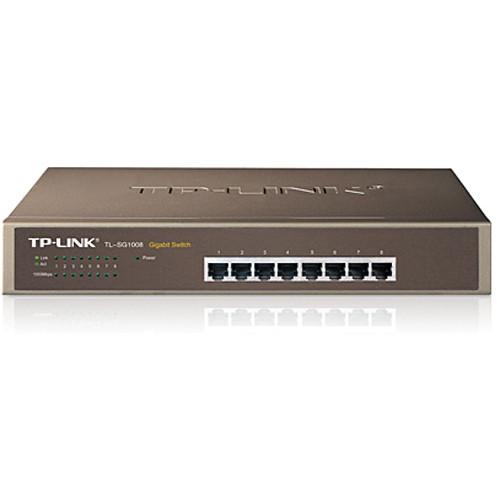

User Manual for TP-Link TL-SG1008 8 Port Gigabit Switch Click to enlarge the picture
Contents of the user manual for the TP-Link TL-SG1008 8 Port Gigabit Switch
- Product category: Network Switches, Bridges & Hubs TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Network Switches, Bridges & Hubs
|
User manual for the TP-Link TL-SG1008 8 Port Gigabit Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|
Product description The TL-SG1008 8 Port Gigabit Switch from TP-Link comes in an energy efficient configuration allowing you to save up to 60% over traditional network switches. With a variety of IEEE standards, this switch can be easily configured to meet a variety of needs. 802.3 compatibility is a general collection of IEEE standards used within a local area network when connecting hubs, switches, and routers. IEEE 802.3u, otherwise known as Fast Ethernet, is a standard that carries traffic at the normal rate of 100Mbps against the original Ethernet speed of 10Mbps. The IEEE 802.3x standard refers to a flow control standard allowing you to control traffic throughout the switch.
With 8 x 10/100/1000Mbps RJ45 Ports you can connect a number of devices to the Gigabit Switch to allow for multiple devices to connect to the Internet. The 16Gbps switching capacity provides for ultra fast data transfer speeds along with the 8K MAC address table giving you the necessary space to store a large number of MAC addresses. Auto MDI/MDIX eliminates the need for crossover cables allowing for a seamless connection. Once configured, the integrated LEDs show the power status, signal strength, and link activity. - Gigabit Switch
- The TL-SG1008 comes equipped with 8 x 10/100/1000Mbps RJ45 Ports greatly expanding your network capacity, enabling you to transfer large files fast. You can take advantage of increased bandwidth capacity for use at home, in the office, workgroup, or creative production environment, giving you the ability to move large files and stream HD quality video.
- Go Green With Your Ethernet
- Take advantage of the latest innovative energy-efficient technologies, enabling you to greatly expand your network capacity while using much less power. Power within the switch is automatically adjusted according to the link status and cable length to limit the carbon footprint of your network.
- Superior Performance
- With non-blocking wire-speed architecture, the TL-SG1008 comes with a switching capacity of 16Gbps for maximum data throughput. The 8K MAC address table provides scalability for even the largest networks. You can also take advantage of 802.3x Flow Control for full-duplex mode, and back pressure flow control for half-duplex mode to alleviate traffic congestion and ensure reliable data transmission.
- Ease of Use
- With plug and play compatibility, installation of the TL-SG1008 is hassle-free. MDI/MDI-X crossover on all ports can eliminate the need for crossover cables or uplink ports. Integrated auto-negotiation on each port senses the link speed of a network device and intelligently adjusts for compatibility and optimal performance. The compact size shell makes the TL-SG1008 ideal for desktops with limited space while it is also rackmountable, convenient and safe. The dynamic LED lights provide real-time work status display and basic fault diagnosis.
UPC: 845973020019 In the Box TP-Link TL-SG1008 8 Port Gigabit Switch Power Cord User Guide Brochure PDF 524.6kb More info from TP-Link Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link TL-SG1008 8 Port Gigabit Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link TL-SG1008 Specs | | | Ports | 8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) | | | | Supported Protocols | Auto-MDIX/MDI | | Transmission Method | Store-and-Forward | | Jumbo Frames Support | 10,000 Bytes | | MAC Address Table Size | 8K | | | | Supported IEEE Standards | 802.3, 802.3u, 802.3x | | | | Switching Bandwidth | 16 Gb/s | | | | OS Compatibility | Windows XP or Later
macOS
Linux
UNIX | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 90% | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Storage Humidity | 5 to 90% | | Certifications | RoHS, as per Manufacturer | | | | Cooling System | Passive | | Indicator Lights | Link/Activity, Power, Speed | | Dimensions | 11.6 x 7.1 x 1.7" / 29.4 x 18 x 4.4 cm | | | | Package Weight | 4.85 lb | | Box Dimensions (LxWxH) | 15.9 x 9.9 x 3.3" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 12 owners. Add your rating and experience with the product.
