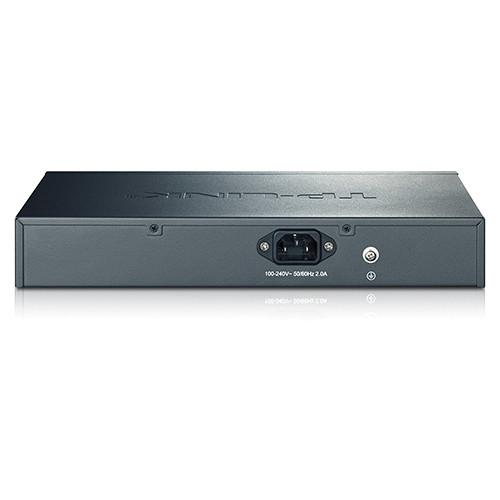

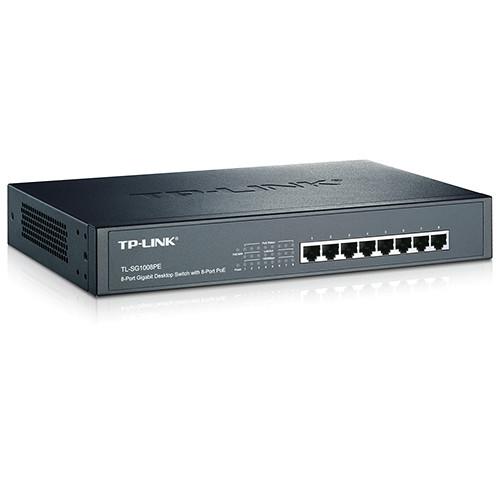

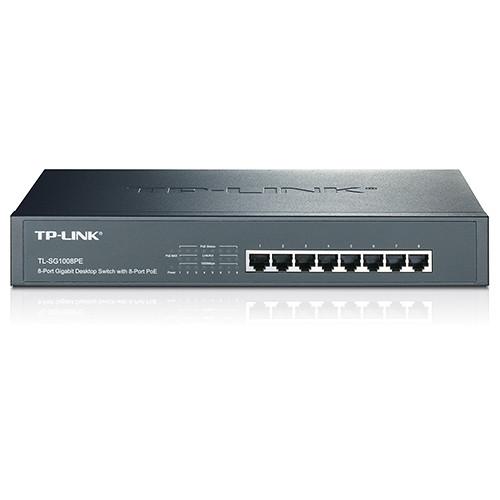

User Manual for TP-Link TL-SG1008PE 8-Port Gigabit Unmanaged Desktop Switch with 8-Port PoE Click to enlarge the picture
Contents of the user manual for the TP-Link TL-SG1008PE 8-Port Gigabit Unmanaged Desktop
- Product category: Network Switches, Bridges & Hubs TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Network Switches, Bridges & Hubs
 |
User manual for the TP-Link TL-SG1008PE 8-Port Gigabit Unmanaged Desktop contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|
Product description The TP-Link TL-SG1008PE Gigabit Desktop Switch is an eight 10/100/1000 Mb/s port unmanaged switch that requires no configuration and provides 8 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant PDs (Powered Devices). In this situation, the electrical power is transmitted along with data in one single cable, allowing you to expand your network to where there are no power lines or outlets, where you wish to connect devices such as APs, IP cameras, IP phones, and more. - Power Over Ethernet
- All of the 8 auto-negotiation RJ-45 ports of the switch support PoE (Power over Ethernet) function. These PoE ports can automatically detect and supply power with the IEEE 802.3af/at compliant PDs (Powered Devices). Supports PoE power up to 30W for each PoE port, a total of up to 124W for all PoE ports, and supports priority function to protect the system when the system power is overloaded.
- Overload Arrangement
- Features priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is 124W a priority will be arranged among the PoE ports, and then the system will cut of the power of the lowest-priority port.
- Port Priority Function
- Priority (port 1 > port 2 > port 3 > port 4 > port 5 > port 6 > port 7 > port 8): This function will help protect the system if the system power becomes overloaded. For example, 1, 2, 4 and 7 are using 30w (maximum power per port is 30W), the system power is 120w in total (PoE+ max LED is red ). If there is an additional PD inserted to Port 3 with 25w then the system will cut o Port 7 to protect the system, this means Port 1, 2 and 4 will use 30w, and Port3 will use 25w, and no power will be supplied to Port 7.
- High Performance
- Features Auto-MDI/MDIX, auto-negotiation, store and forward, IEEE 802.3x flow control for Full-duplex Mode, back pressure for half-duplex mode, and 8K MAC address auto-learning and auto-aging.
- Easy To Use
- It requires no configuration and installation. With desktop design, outstanding performance, and quality, this switch is a great selection for expanding your home or office network. It has a plug-and-play design.
- Additional Features
- Supports flow control, back pressure, and has 1 fan.
UPC: 845973021351 In the Box TP-Link TL-SG1008PE 8-Port Gigabit Unmanaged Desktop Switch with 8-Port PoE Limited 2-Year Warranty More info from TP-Link Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link TL-SG1008PE 8-Port Gigabit Unmanaged Desktop Switch with 8-Port PoE in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link TL-SG1008PE Specs | | | Ports | 8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE (Type 1) | | | | Transmission Method | Store-and-Forward | | MAC Address Table Size | 8K | | | | Supported IEEE Standards | 802.3, 802.3ab, 802.3af, 802.3at, 802.3u, 802.3x | | | | Switching Bandwidth | 16 Gb/s | | | | OS Compatibility | Windows XP or Later
Linux
macOS | | | | Power Draw | 140.1 W (Active) | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 90% | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Storage Humidity | 5 to 90% | | | | Indicator Lights | Link/Activity, PoE, Power, Speed | | Dimensions | 11.6 x 7.1 x 1.7" / 29.4 x 18 x 4.4 cm | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 15.748 x 9.842 x 3.15" |
