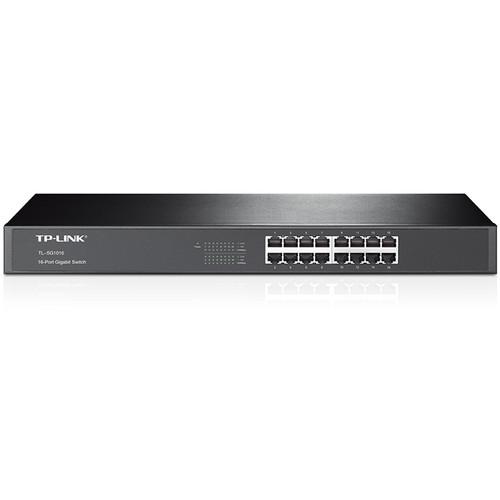

User Manual for TP-Link TL-SG1016 16-Port Unmanaged Gigabit Switch Click to enlarge the picture
Contents of the user manual for the TP-Link TL-SG1016 16-Port Unmanaged Gigabit Switch
- Product category: Network Switches, Bridges & Hubs TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Network Switches, Bridges & Hubs
|
User manual for the TP-Link TL-SG1016 16-Port Unmanaged Gigabit Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|
Product description The TL-SG1016 16-Port Gigabit Switch from TP-Link comes in an energy efficient configuration allowing you to save up to 15% over traditional network switches. With a variety of IEEE standards, including 802.3i, 802.3u, 802.3ab, and 802,3x, this switch can be easily configured to meet a variety of needs. 802.3 compatibility is a general collection of IEEE standards used within a local area network when connecting hubs, switches, and routers. IEEE 802.3u, otherwise known as Fast Ethernet, is a standard that carries traffic at the normal rate of 100 Mbps against the original Ethernet speed of 10 Mbps. The IEEE 802.3x standard refers to a flow control standard allowing you to control traffic throughout the switch.
With 16 x 10/100/1000 Mbps RJ-45 ports, you can connect a number of devices to the Gigabit Switch to allow for multiple devices to connect to the Internet. The 32 Gbps switching capacity provides for ultra fast data transfer speeds along with the 8K MAC address table giving you the necessary space to store a large number of MAC addresses. Auto MDI/MDIX eliminates the need for crossover cables allowing for a seamless connection.
The TL-SG1016 16-Port Gigabit Switch operates using 100-240 VAC at 50/60 Hz and consumes a maximum of 13.3W. It has a packet forwarding rate of 23.8 Mbps and includes a power cord, rackmount kits, and rubber feet. It is protected by a limited 5-year warranty. - TP-LINK Green Technology
- The TL-SG1016 Gigabit Switch features innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled
- High Performance
- All 16 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10 Mbps and 100 Mbps Ethernet devices. Featuring non-blocking switching architecture, the TL-SG1016 forwards and filters packets at full wire-speed for high throughput. With 10KB Jumbo frame, the performance of large files transfers is improved as well. Additionally, IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode help to alleviate the traffic congestion and make The TL-SG1016 work reliably. It's a well-suited choice to update your network to Gigabit while protecting your previous investment properly
- Ease to Use
- The auto features of this Gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance
- Energy-efficient technology saves power up to 15%
- 100% Data filtering rate eliminates all error packets
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
- Non-blocking switching architecture forwards and filters packets at full wire-speed for maximum throughput
- 32 Gbps Switching Capacity
- Auto-MDI/MDIX eliminates the need for crossover cables
- Supports MAC address auto-learning and auto-aging
- Support the port N-Way Auto-Negotiation, Store, and Forward
- Compact size design for desktops, also rack-mountable
- The plug and play design helps to simplify installation
UPC: 845973020095 In the Box TP-Link TL-SG1016 16-Port Unmanaged Gigabit Switch Power Cord Rackmount Kits Rubber Feet Limited 5-Year Warranty Brochure PDF 980.5kb More info from TP-Link Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link TL-SG1016 16-Port Unmanaged Gigabit Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link TL-SG1016 Specs | | | Ports | 16 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) | | | | Supported Protocols | Auto-MDIX/MDI | | Transmission Method | Store-and-Forward | | Jumbo Frames Support | 10,000 Bytes | | MAC Address Table Size | 8K | | | | Supported IEEE Standards | 802.3ab, 802.3i, 802.3u, 802.3x | | | | Forwarding Rate | 23.8 Mpps | | Switching Bandwidth | 32 Gb/s | | | | OS Compatibility | Windows XP or Later
macOS
Linux
UNIX | | | | Power Draw | 13.3 W (Active) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 90% | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Storage Humidity | 5 to 90% | | Certifications | RoHS, as per Manufacturer | | | | Cooling System | Passive | | Dimensions | 17.3 x 7.1 x 1.7" / 44 x 18 x 4.4 cm | | | | Package Weight | 5.5 lb | | Box Dimensions (LxWxH) | 20.7 x 9.9 x 3.2" |
