User Manual for TP-Link TL-SG1016PE 16-Port Gigabit PoE Managed Switch Click to enlarge the picture
Contents of the user manual for the TP-Link TL-SG1016PE 16-Port Gigabit PoE Managed
- Product category: Network Switches, Bridges & Hubs TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Network Switches, Bridges & Hubs
 |
User manual for the TP-Link TL-SG1016PE 16-Port Gigabit PoE Managed contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|

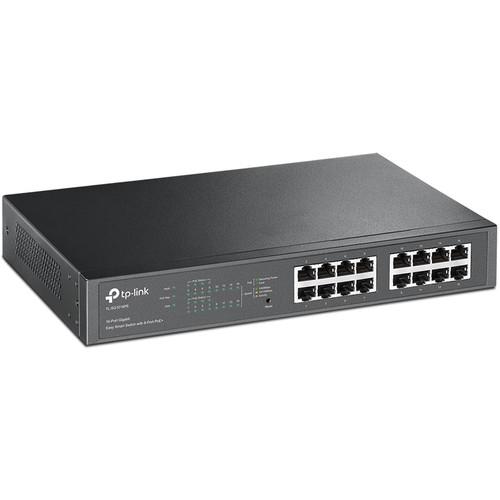

Product description With support for the 802.3af/at PoE networking standard, the TL-SG1016PE 16-Port Gigabit PoE+ Managed Switch from TP-Link is designed to power a variety of PoE-compatible devices such as IP cameras, IP phones, access points, and more.
Simply plug in your PoE-compliant device into any of the eight Gigabit Ethernet PoE-compliant ports and you can begin powering that device directly through the network connection. Along with the PoE ports, you will find eight additional Gigabit Ethernet ports to connect a total of sixteen Ethernet-enabled devices to the switch. The TL-SG1016PE switch features a 32 Gb/s switching capacity, a 23.8 Mb/s forwarding rate, an 8K MAC address table, and a 9KB jumbo frame to ensure the switch operates smoothly even under demanding network conditions. -

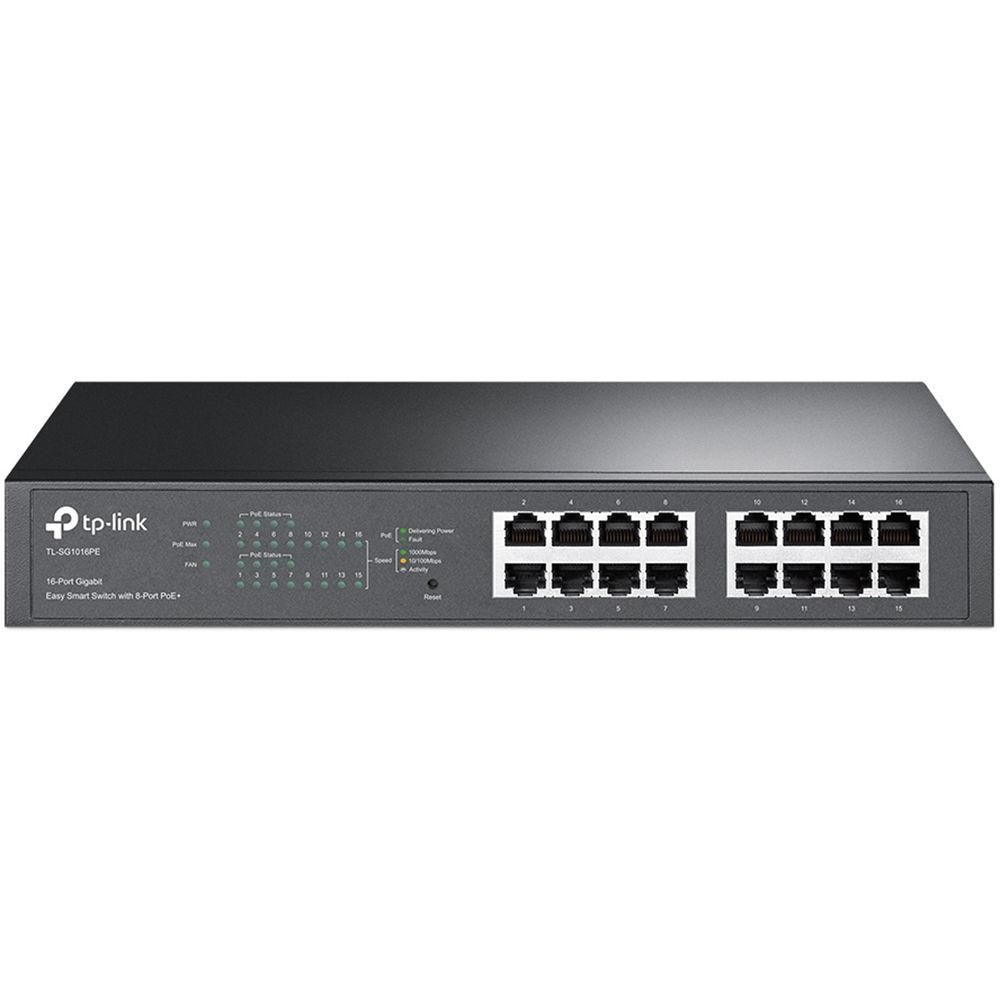

- 16 x 10/100/1000 Mb/s RJ45 ports
- Equipped with 8 PoE+ supported ports to transfer data and power over a single cable
- Works with IEEE 802.3af/at compliant devices, expanding home and office networks
- Simple network setup on top of plug-and-play connectivity
- Web-based user interface and management utility simplify configuration
UPC: 845973098865 In the Box TP-Link TL-SG1016PE 16-Port Gigabit PoE+ Managed Switch Power Cord Rackmount Kit Rubber Feet Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link TL-SG1016PE 16-Port Gigabit PoE Managed Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link TL-SG1016PE Specs | | | Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p | | Interface | 16 x 10/100/1000 Mb/s RJ-45 ports
AUTO Negotiation/AUTO MDI/MDIX | | Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 328' / 100 m)
EIA/TIA-568 100Ω STP (maximum 328' / 100 m)
100BASE-TX: UTP category 5, 5e cable (maximum 328' / 100 m)
EIA/TIA-568 100Ω STP (maximum 328' / 100 m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 328' / 100 m)

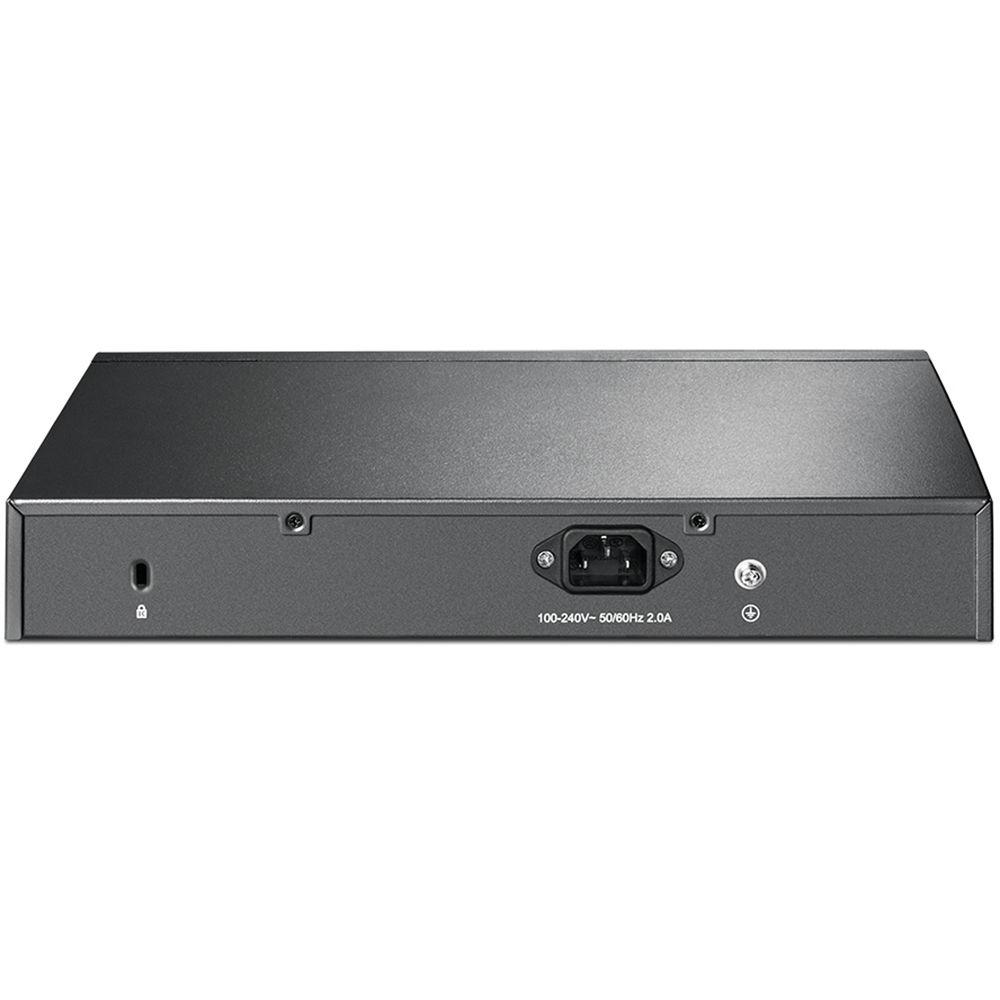

EIA/TIA-568 100Ω STP (maximum 328' / 100 m) | | Fan Quantity | 1 | | Power Supply | 100-240 VAC, 50/60 Hz | | Power Consumption | Maximum: 124.4 W (220 V/50 Hz) | | PoE Ports | Standard: 802.3at compliant
PoE Ports: Port 1- port 8
PoE Power Budget: 110 W | | | | Switching Capacity | 32 Gb/s | | Packet Forwarding Rate | 23.8 Mb/s | | MAC Address Table | 8 K | | Packet Memory Buffer | 4.1 Mbit | | Jumbo Frame | 9 KB | | | | Quality of Service (QoS) | Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control | | L2 Services | IGMP Snooping V1/V2/V3
Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention | | VLAN | Supports up to 128 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN | | Management | Web-based GUI
Easy Smart Configuration Utility | | Transmission Method | Store-And-Forward | | | | Certifications | FCC, CE, RoHS | | System Requirements | Microsoft Windows for running Utility | | Temperature & Humidity | Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-40 to 158°F / -40 to 70°C
Operating Humidity
10 to 90% non-condensing
Storage Humidity
5 to 90% non-condensing | | Dimensions | 11.6 x 7.1 x 1.7" / 294 x 180 x 44 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 5.45 lb | | Box Dimensions (LxWxH) | 15.8 x 9.8 x 3.2" |
