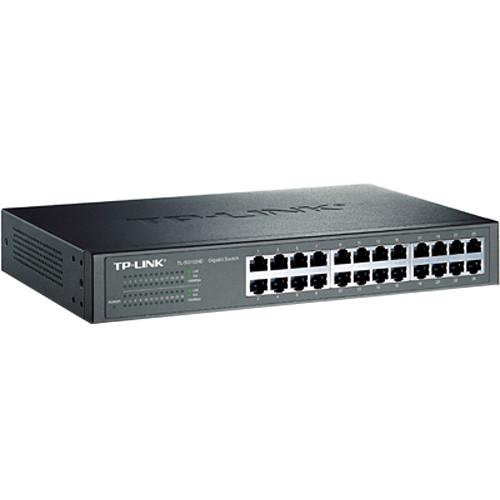

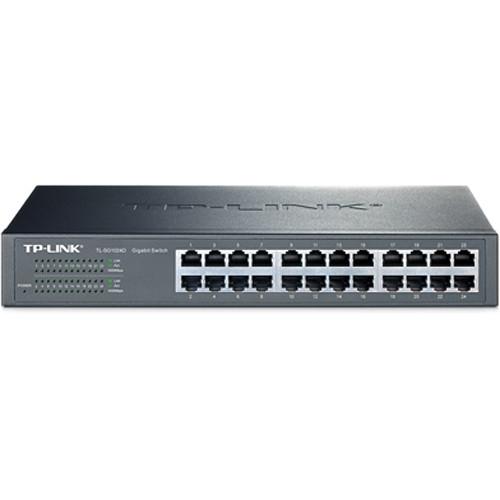

User Manual for TP-Link TL-SG1024D 24-Port Unmanaged Gigabit Ethernet Switch Click to enlarge the picture
Contents of the user manual for the TP-Link TL-SG1024D 24-Port Unmanaged Gigabit Ethernet
- Product category: Network Switches, Bridges & Hubs TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Network Switches, Bridges & Hubs
 |
User manual for the TP-Link TL-SG1024D 24-Port Unmanaged Gigabit Ethernet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|
Product description The TP-Link TL-SG1024D 24-Port Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless, and standard upgrade to boost network performance to 1000 Mb/s. All 24 ports support auto MDI/MDIX, so you just plug and play without having to worry about the cable type. Its energy-efficient technology allows the TL-SG1024D to use up to 40% less power, and 80% of its packaging material can be recycled, making it an eco-friendly solution for your business network.This Gigabit Switch features energy-efficient TP-LINK Green Technology that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials.All 24 ports are Gigabit RJ-45 ports, which can provide large file transferring and also be compatible with 10 and 100 Mb/s Ethernet devices. Featuring non-blocking switching architecture, the TL-SG1024D forwards and filters packets at full wire-speed for maximum throughput. With a 10kB Jumbo frame, the performance of large file transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and back pressure for Half Duplex mode alleviate the traffic congestion and make the TL-SG1024D work reliably. It’s a good choice to update your network to Gigabit while protecting your previous investment properly.The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mb/s) and intelligently adjusts for compatibility and optimal performance. - Green Technology
-
- Saves 40% power
- Recyclable packaging material
- High Performance
-
- IEEE 802.3x flow control
- Non-blocking switching architecture
- 48 Gb/s switching capacity; store and forward
- Auto-MDI/MDIX
- Auto-negotiation
- MAC address auto-learning and auto-aging
- 10kB jumbo frame
- Easy to Use
-
- Plug and Play design
- Quiet/fanless operation
- Flow Control
- Fanless design
UPC: 845973020620 In the Box TP-Link TL-SG1024D 24-Port Unmanaged Gigabit Ethernet Switch Power Cord Rackmount Kits Rubber Feet Limited 5-Year Warranty More info from TP-Link cfexefuu Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link TL-SG1024D 24-Port Unmanaged Gigabit Ethernet Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link TL-SG1024D Specs | | | Ports | 24 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) | | | | Supported Protocols | Auto-MDIX/MDI | | Transmission Method | Store-and-Forward | | Jumbo Frames Support | 10,000 Bytes | | MAC Address Table Size | 8K | | | | Supported IEEE Standards | 802.3ab, 802.3i, 802.3u, 802.3x | | | | Forwarding Rate | 35.7 Mpps | | Switching Bandwidth | 48 Gb/s | | | | OS Compatibility | Windows XP or Later
macOS
Linux
UNIX | | | | Power Draw | 14.6 W (Active) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 90% | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Storage Humidity | 5 to 90% | | Certifications | RoHS, as per Manufacturer | | | | Cooling System | Passive | | Dimensions | 11.6 x 7.1 x 1.7" / 29.5 x 18 x 4.3 cm | | | | Package Weight | 5.3 lb | | Box Dimensions (LxWxH) | 15.9 x 9.8 x 3.2" |
