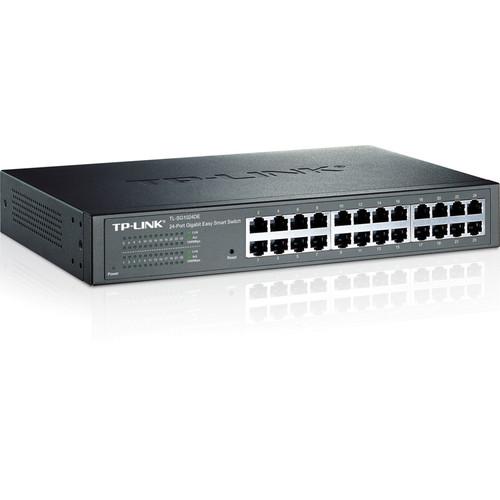

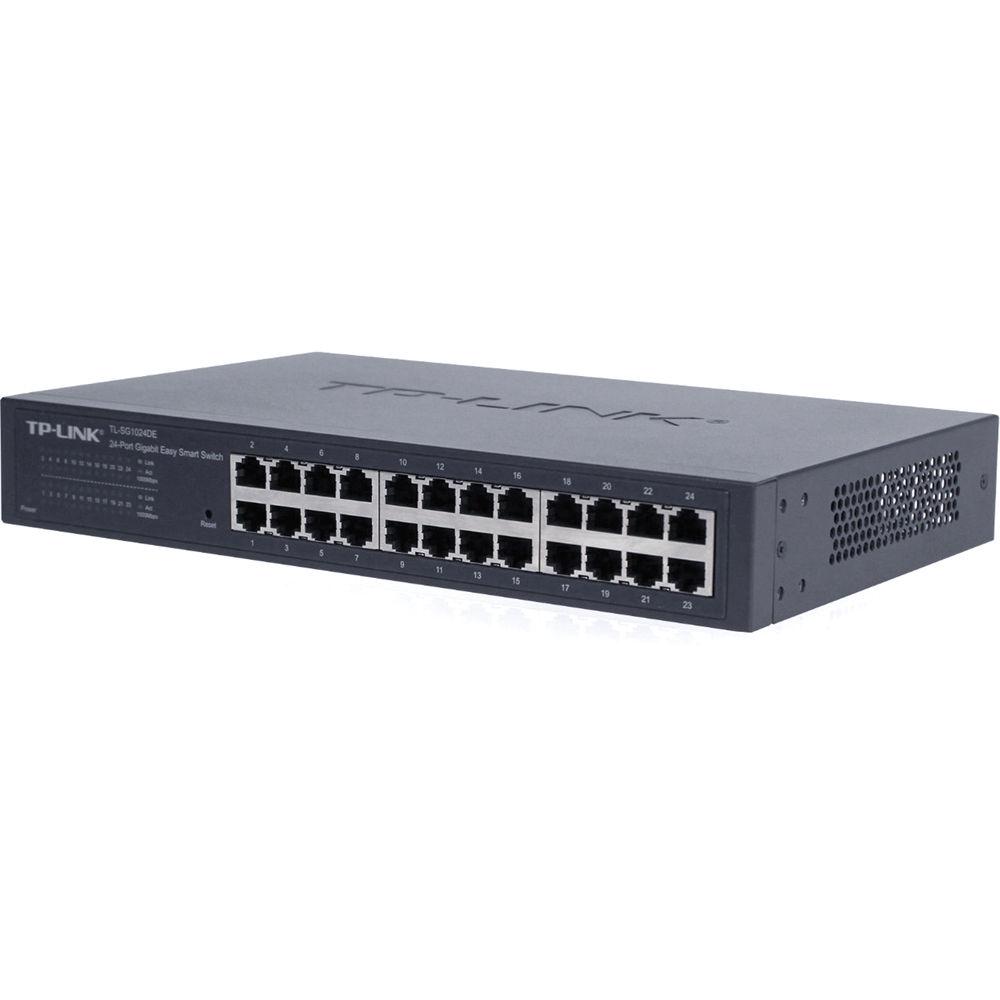

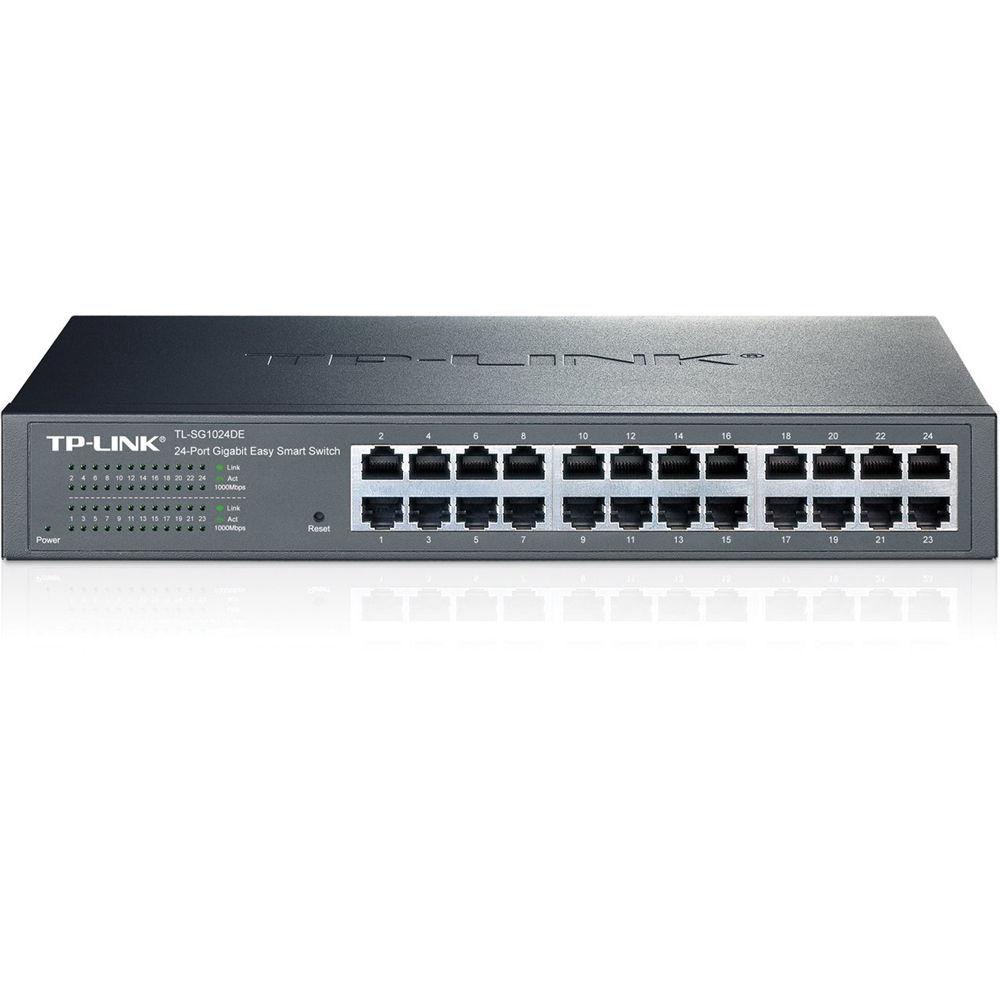

User Manual for TP-Link TL-SG1024DE 24-Port Gigabit Easy Smart Switch Click to enlarge the picture
Contents of the user manual for the TP-Link TL-SG1024DE 24-Port Gigabit Easy Smart
- Product category: Network Switches, Bridges & Hubs TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Network Switches, Bridges & Hubs
 |
User manual for the TP-Link TL-SG1024DE 24-Port Gigabit Easy Smart contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|
Product description The TL-SG1024DE 24-Port Gigabit Easy Smart Switch from TP-Link is designed for small and medium business networks that require simple network management. To optimize traffic on your business network, Easy Smart switch offers both port- and tag-based QoS to keep latency-sensitive traffic moving smoothly and jitter-free. With its innovative energy-efficient technology, the Gigabit switch can save up to 40% of power consumption, making it an eco-friendly solution for your business network. This Gigabit Easy Smart switch offers network monitoring for users to observe traffic behavior. With Port Mirroring, Loop Prevention, and Cable Diagnostics features, this switch can identify and even locate connection problems on your business network. Administrators can designate the priority of the traffic, based on Port Priority and 802.1P Priority, to ensure that voice and video are always clear, smooth, and lag-free. Furthermore, to improve security and network performance, the switch supports MTU VLAN, port-based VLAN, and 802.1Q-based VLAN functions. The Easy Smart switch is an upgrade from the plug and play Unmanaged Switch, delivering value while empowering your network. The TL-SG1024DE features an energy-efficient technology that can expand your network's capacity with less power. The Gigabit switch automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The Gigabit switch can automatically detect the link status of each port and reduce the power consumption of ports that are idle. This switch analyzes the length of the Ethernet cable connected and adjusts the power usage accordingly, rather than keeping the power consumption in a conventional solution. This Gigabit switch is easy to use and manage. Auto MDI/MDI-X crossover on all ports eliminates the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mb/s), and intelligently adjusts for compatibility and optimal performance. Its compact size makes it suitable for desktops with limited space as it is rack-mountable, convenient, and safe. It also features LED lights that provide real-time work status display and basic fault diagnosis. - Twenty Four 10/100/1000 Mb/s ports provide instant large file transfers
- Energy-efficient technology reduces power consumption up to 40%
- IEEE 802.3x flow control provides reliable data transfers
- 10K Jumbo frame improves performance of large data transfers
- Effective network monitoring via Port Mirroring, Loop Prevention and Cable Diagnostics
- Port and tag-based QoS enable smooth latency-sensitive traffic
- Abundant VLAN features improve network security via traffic segmentation
- IGMP Snooping optimizes multicast applications
- Centrally manage all Easy Smart Switches with Easy Smart Configuration Utility
- Recyclable packaging material
UPC: 845973021245 In the Box TP-Link TL-SG1024DE 24-Port Gigabit Easy Smart Switch Power Cord Resource CD Rubber Feet Rackmount Kit Limited 5-Year Warranty More info from TP-Link Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link TL-SG1024DE 24-Port Gigabit Easy Smart Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link TL-SG1024DE Specs | | | Ports | 24 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) | | | | Supported Protocols | Auto-MDIX/MDI
IGMP Snooping
Link Aggregation
Port Mirroring | | Transmission Method | Store-and-Forward | | Jumbo Frames Support | 10,240 Bytes | | MAC Address Table Size | 8K | | VLAN Groups | 32 | | VLAN IDs | 4000 | | | | Security Features | Storm Control | | | | Supported IEEE Standards | 802.1p, 802.1q, 802.3, 802.3ab, 802.3u, 802.3x | | | | Forwarding Rate | 35.7 Mpps | | Switching Bandwidth | 48 Gb/s | | Priority Queues | 4 | | Packet Buffer | 512 Kb | | | | OS Compatibility | Windows XP or Later
macOS
Linux
UNIX | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 90% | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Storage Humidity | 5 to 90% | | Certifications | RoHS, as per Manufacturer | | | | Dimensions | 11.6 x 7.1 x 1.7" / 29.4 x 18 x 4.4 cm | | | | Package Weight | 5.45 lb | | Box Dimensions (LxWxH) | 15.7 x 9.8 x 3.2" |
Rating40% users recommend this product to others. And what about you?
This product has already been rated by 83 owners. Add your rating and experience with the product.
