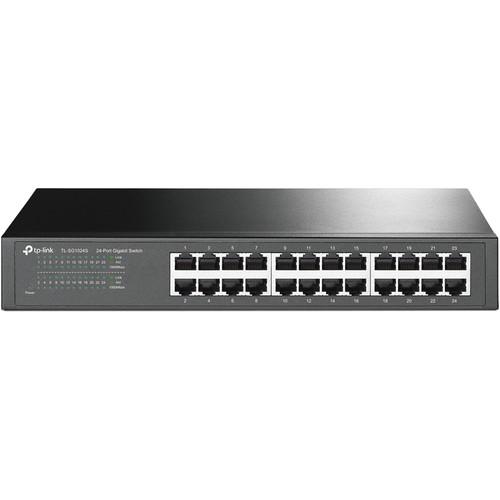

User Manual for TP-Link TL-SG1024S 24-Port Gigabit Unmanaged Switch Click to enlarge the picture
Contents of the user manual for the TP-Link TL-SG1024S 24-Port Gigabit Unmanaged Switch
- Product category: Network Switches, Bridges & Hubs TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Network Switches, Bridges & Hubs
|
User manual for the TP-Link TL-SG1024S 24-Port Gigabit Unmanaged Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|
Product description Add the TL-SG1024S 24-Port Gigabit Unmanaged Switch from TP-Link to your network and take advantage of energy-efficient technology designed to reduce power consumption. This switch comes equipped with 24 Gigabit Ethernet ports with support for 802.3x flow control for full-duplex mode and backpressure for half-duplex mode. Additional functions include a non-blocking switching architecture, auto-MDI/MDIX support, MAC address auto-learning and auto-aging, and much more. Once installed, the TL-SG1024S network switch features a 48 Gb/s switching capacity and a 35.7 Mpps forwarding rate to ensure the switch operates smoothly even under demanding network conditions. -
- Innovative energy-efficient technology saves power consumption
- Supports IEEE 802.3x flow control for full-duplex mode and backpressure for half-duplex mode
- Non-blocking switching architecture forwards and filters packets at full wire-speed for maximum throughput
- 48 Gb/s switching capacity
- Auto-MDI/MDIX eliminates the need for crossover cables
- Supports MAC address auto-learning and auto-aging
- Support the port n-way auto-negotiation, store-and-forward
- Compact size design for desktops, rack-mountable
- Plug-and-play design simplifies installation
UPC: 845973083540 In the Box TP-Link TL-SG1024S 24-Port Gigabit Unmanaged Switch Power Cord Rackmount Kits Rubber Feet Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link TL-SG1024S 24-Port Gigabit Unmanaged Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link TL-SG1024S Specs | | | Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x | | Interface | 10/100/1000 Mb/s RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) | | Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 328' / 100 m)
100BASE-TX/1000BASE-T: UTP category 5, 5e, or above cable (maximum 328' / 100 m) | | Fan Quantity | Fanless | | Power Supply | 100-240; 50/60 Hz | | Power Consumption | Maximum: 13.1 W (220 V / 50 Hz) | | | | Switching Capacity | 48 Gb/s | | Packet Forwarding Rate | 35.7 Mpps | | MAC Address Table | 8 K | | Jumbo Frame | 10 KB | | QoS (Quality of Service) | 802.1p / DSCP QoS
Only for V11 and later version | | Green Technology | Yes | | Transfer Method | Store-and-forward | | | | Certifications | FCC, CE, RoHS | | Temperature & Humidity | Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-40 to 158°F / -40 to 70°C
Operating Humidity
10 to 90% non-condensing
Storage Humidity
5 to 90% non-condensing | | Dimensions | 17.3 x 7.1 x 1.7" / 440 x 180 x 44 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 5.15 lb | | Box Dimensions (LxWxH) | 15.7 x 9.8 x 3.2" |
