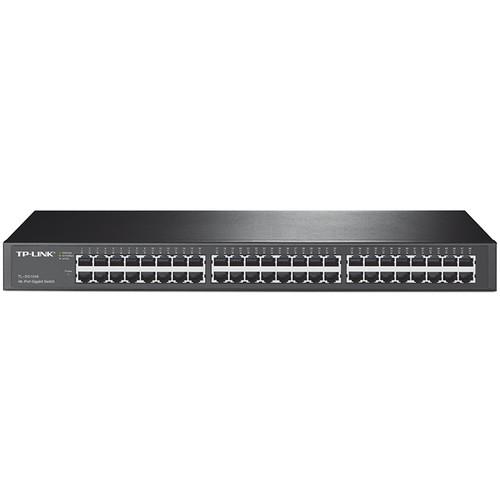

User Manual for TP-Link TL-SG1048 48-Port Gigabit Switch Click to enlarge the picture
Contents of the user manual for the TP-Link TL-SG1048 48-Port Gigabit Switch
- Product category: Network Switches, Bridges & Hubs TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Network Switches, Bridges & Hubs
|
User manual for the TP-Link TL-SG1048 48-Port Gigabit Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|
Product description Consuming less power than comparable switches, the TL-SG1048 48-Port Gigabit Switch from TP-Link is designed to reduce the power constraints placed on your network. In addition to enhanced energy saving capabilities, this 48-port switch is designed to handle data intensive tasks while keeping multiple users connected all at the same time. With plug-and-play installation, connected clients can connect to the network quickly, and with a 96 Gbps switching capacity, the TL-SG1048 is capable of providing enough bandwidth to handle streaming multimedia content, transferring large files, and much more. This TP-Link switch also comes equipped with auto-negotiation on each port allowing the switch to tailor the bandwidth to suit the needs of each connected device. - TP-Link Green Technology
- The TL-SG1048 48-Port Gigabit Rackmount Switch features innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU's RoHS, prohibiting the use of certain hazardous materials. Additionally, 80% of the packaging material can be recycled.
- High Performance
- All 48 ports support Gigabit Ethernet connectivity making it simple to transfer even large files. With a non-blocking switching architecture, the TL-SG1048 forwards and filters packets at full wire speed for maximum throughput while the 10K Jumbo frame significantly improves performance when transferring large files. Built-in IEEE 802.3x flow control for Full Duplex mode and back pressure for Half Duplex mode help to alleviate the traffic congestion to increase network reliability.
- Easy to Use
- The TL-SG1048 supports plug-and-play connectivity making installation simple. With auto MDI/MDIX there is no more need for crossover cables and with auto-negotiation on each port the switch senses the speed of connected devices and adjusts the bandwidth accordingly.
UPC: 845973020637 In the Box TP-Link TL-SG1048 48-Port Gigabit Switch Limited 1-Year Warranty Brochure PDF 32kb More info from TP-Link Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link TL-SG1048 48-Port Gigabit Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link TL-SG1048 Specs | | | Ports | 48 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) | | | | Supported Protocols | Auto-MDIX/MDI | | Transmission Method | Store-and-Forward | | Jumbo Frames Support | 10,000 Bytes | | MAC Address Table Size | 8K | | | | Supported IEEE Standards | 802.3, 802.3ab, 802.3u, 802.3x | | | | Switching Bandwidth | 96 Gb/s | | | | OS Compatibility | Windows XP or Later
macOS
Linux | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 90% | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Storage Humidity | 5 to 90% | | | | Indicator Lights | Link/Activity, Power, Speed | | Dimensions | 17.3 x 8.7 x 1.7" / 44 x 22 x 4.4 cm | | | | Package Weight | 9.0 lb | | Box Dimensions (LxWxH) | 21.0 x 13.25 x 4.0" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 61 owners. Add your rating and experience with the product.
