User Manual for TP-Link TL-SG105E 5-Port Gigabit Easy Smart Switch Click to enlarge the picture
Contents of the user manual for the TP-Link TL-SG105E 5-Port Gigabit Easy Smart
- Product category: Network Switches, Bridges & Hubs TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Network Switches, Bridges & Hubs
 |
User manual for the TP-Link TL-SG105E 5-Port Gigabit Easy Smart contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|

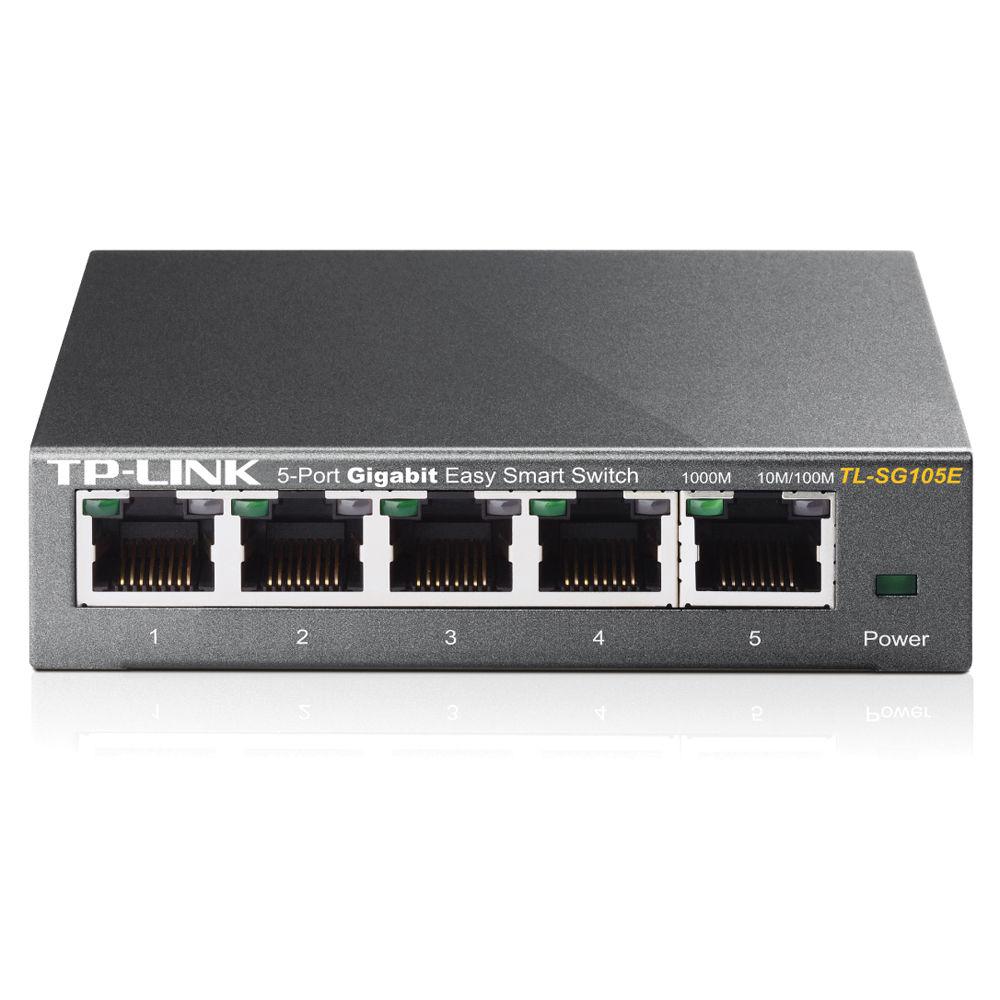

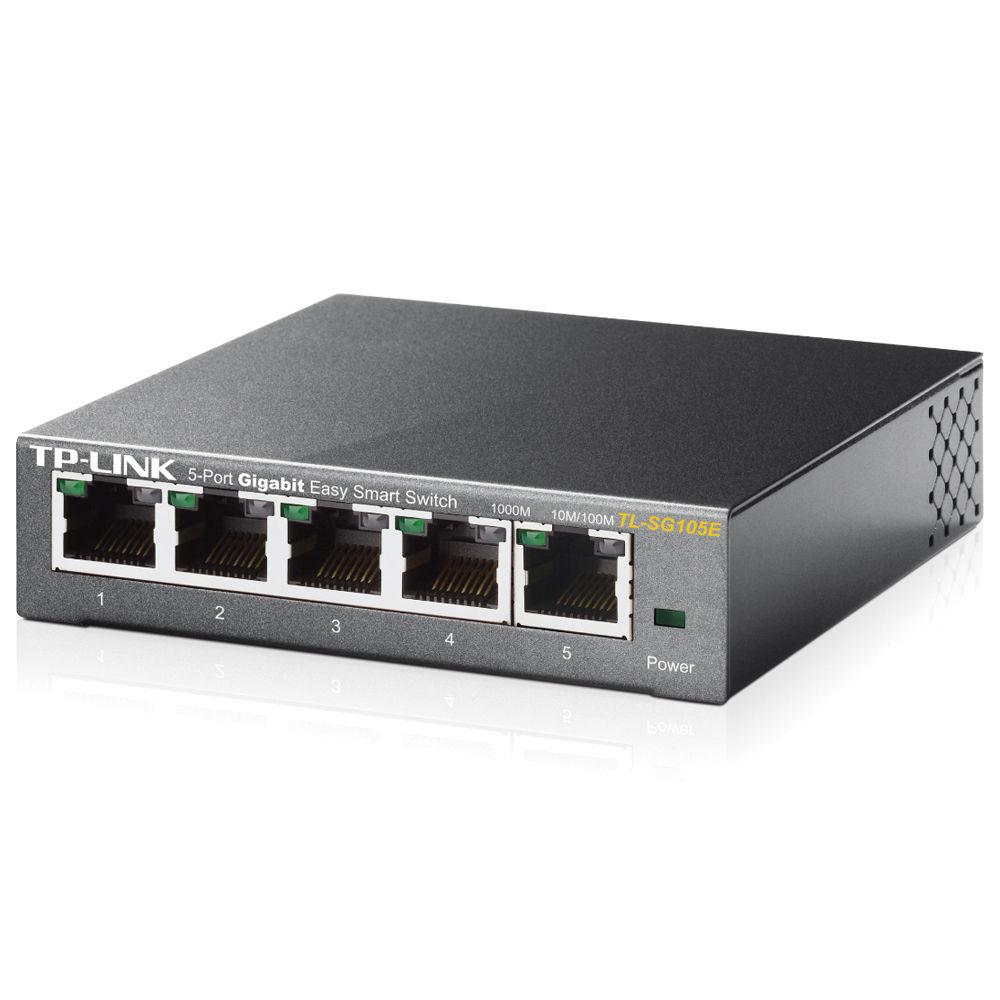

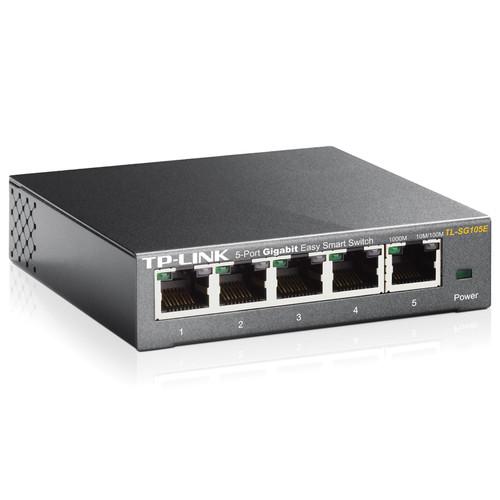

Product description The TL-SG105E 5-Port Gigabit Easy Smart Switch from TP-Link is an upgrade from an unmanaged switch, designed for small and medium business networks that require simple network management. Five 10/100/1000 Mb/s ports provide instant large file transfers. IEEE 802.3x flow control provides reliable data transfers. Network administrators can effectively monitor traffic via Port Mirroring, Loop Prevention, and Cable Diagnostics features. To optimize traffic on your business network, the switch offers both port and tag based QoS to keep latency-sensitive traffic moving smoothly and jitter-free. Furthermore, port-based, tag-based, and MTU VLAN can improve security and meet more network segmentation requirements. Moreover, with its energy-efficient technology, the TL-SG105E can save up to 75% of power consumption, making it an eco-friendly solution for your business network. This switch offers network monitoring for you to observe traffic behavior. With Port Mirroring, Loop Prevention, and Cable Diagnostics features, TL-SG105E can identify and even locate connection problems on your business network. Moreover, administrators can designate the priority of the traffic based on Port Priority and 802.1P Priority, to ensure that voice and video are always clear, smooth and lag-free. Additionally, to improve security and network performance, the switch supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions. The switch is an upgrade from the plug-and-play Unmanaged Switch, delivering optimal value while empowering your network and similarly delivering great value to the end user. - Eco-Friendly
- This Smart Switch features an energy-efficient technology that can expand your network's capacity with much less power. This energy-efficient technology reduces power consumption by up to 75%. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
- Power Down Idle Ports
- When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. This switch can automatically detect the link status of each port and reduce the power consumption of ports that are idle.
- Power Budget According to Cable Length
- Ideally, shorter cables would use less power with less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of whether it is 10 or 50m in length. The TL-SG105E analyzes the length of the Ethernet cable connected and adjusts the power usage accordingly, rather than keeping the power consumption in a conventional solution.
- Ease of Use
- This Smart Switch is easy to use and manage. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mb/s) and adjusts for compatibility and optimal performance. Its compact size makes it suitable for desktops with limited space while also being rack-mountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis.
- All-in-One Features
- 16K Jumbo frame improves performance of large data transfers
Port and tag-based QoS enable smooth latency-sensitive traffic
Abundant VLAN features improve network security via traffic segmentation
IGMP Snooping optimizes multicast applications
Centrally manage all Easy Smart Switches with Easy Smart Configuration Utility UPC: 845973022037 In the Box TP-Link TL-SG105E 5-Port Gigabit Easy Smart Switch Power Cord Resource CD Rubber Feet Limited 1-Year Warranty More info from TP-Link wztxzdxu Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link TL-SG105E 5-Port Gigabit Easy Smart Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link TL-SG105E Specs | | | Ports | 5 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) | | | | Supported Protocols | Auto-MDIX/MDI
Link Aggregation
Port Mirroring | | Transmission Method | Store-and-Forward | | Jumbo Frames Support | 16,000 Bytes | | MAC Address Table Size | 8K | | VLAN Groups | 32 | | VLAN IDs | 4000 | | | | Security Features | Storm Control | | | | Supported IEEE Standards | 802.1p, 802.1q, 802.3, 802.3ab, 802.3u, 802.3x | | | | Forwarding Rate | 7.4 Mpps | | Priority Queues | 4 | | Packet Buffer | 2 MB | | | | OS Compatibility | Windows XP or Later
macOS
Linux
UNIX | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 90% | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Storage Humidity | 5 to 90% | | Certifications | RoHS, as per Manufacturer | | | | Dimensions | 3.9 x 3.9 x 1" / 9.9 x 9.9 x 2.5 cm | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 6.6 x 4.4 x 4.0" |
