User Manual for TP-Link TL-SG108PE 8-Port Gigabit Easy Smart Switch with 4-Port PoE Click to enlarge the picture
Contents of the user manual for the TP-Link TL-SG108PE 8-Port Gigabit Easy Smart
- Product category: Network Switches, Bridges & Hubs TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Network Switches, Bridges & Hubs
 |
User manual for the TP-Link TL-SG108PE 8-Port Gigabit Easy Smart contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|

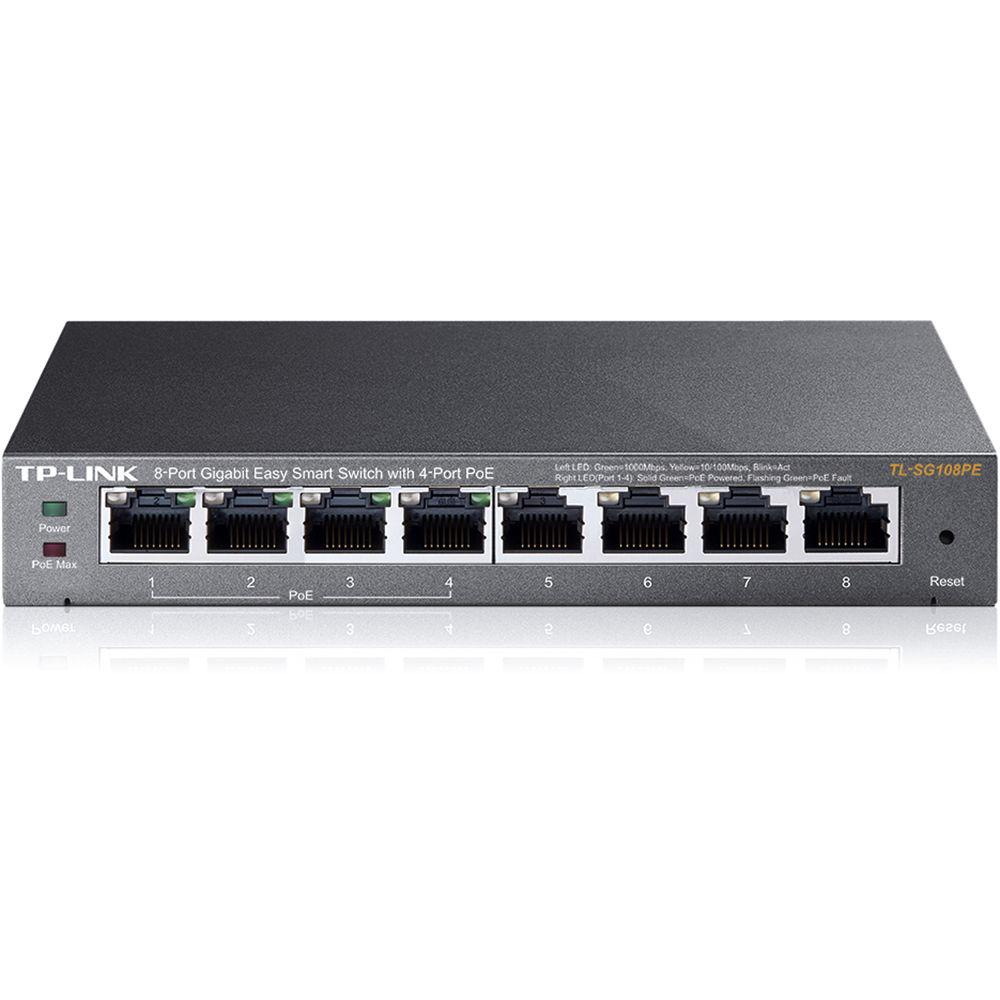

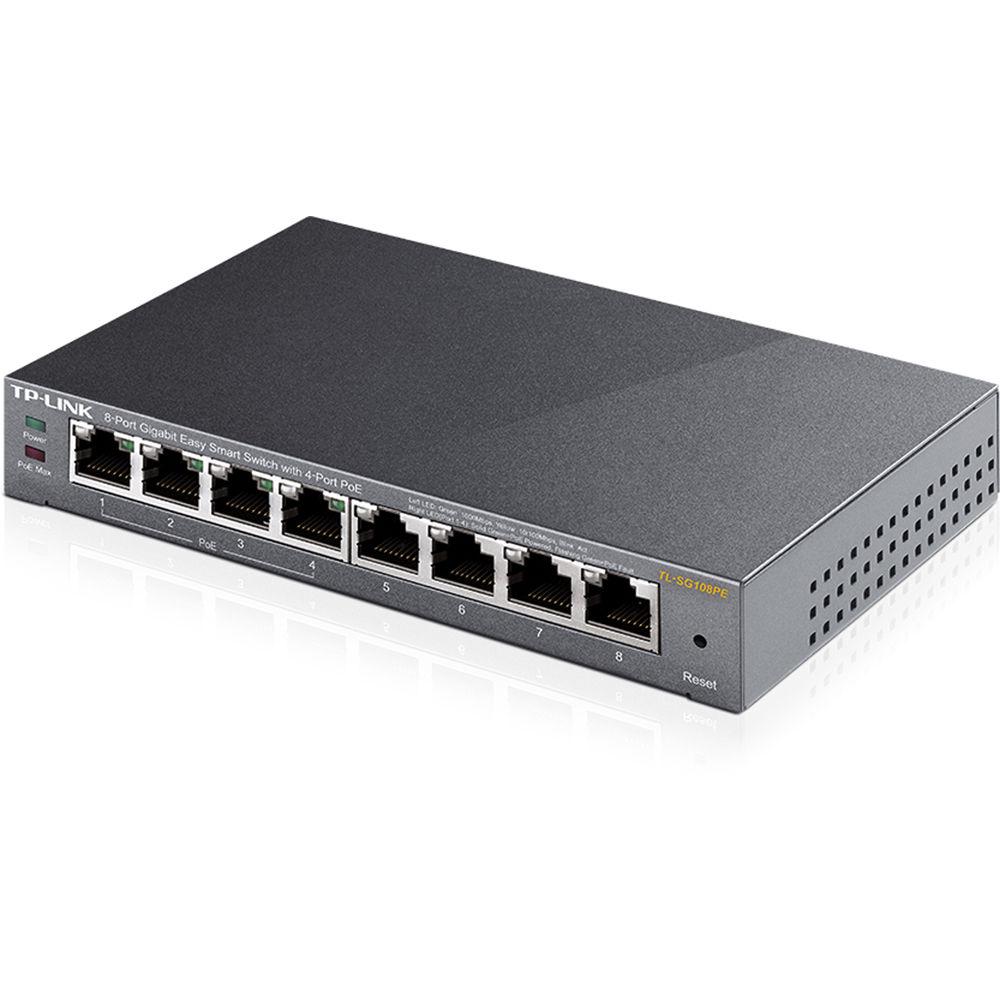

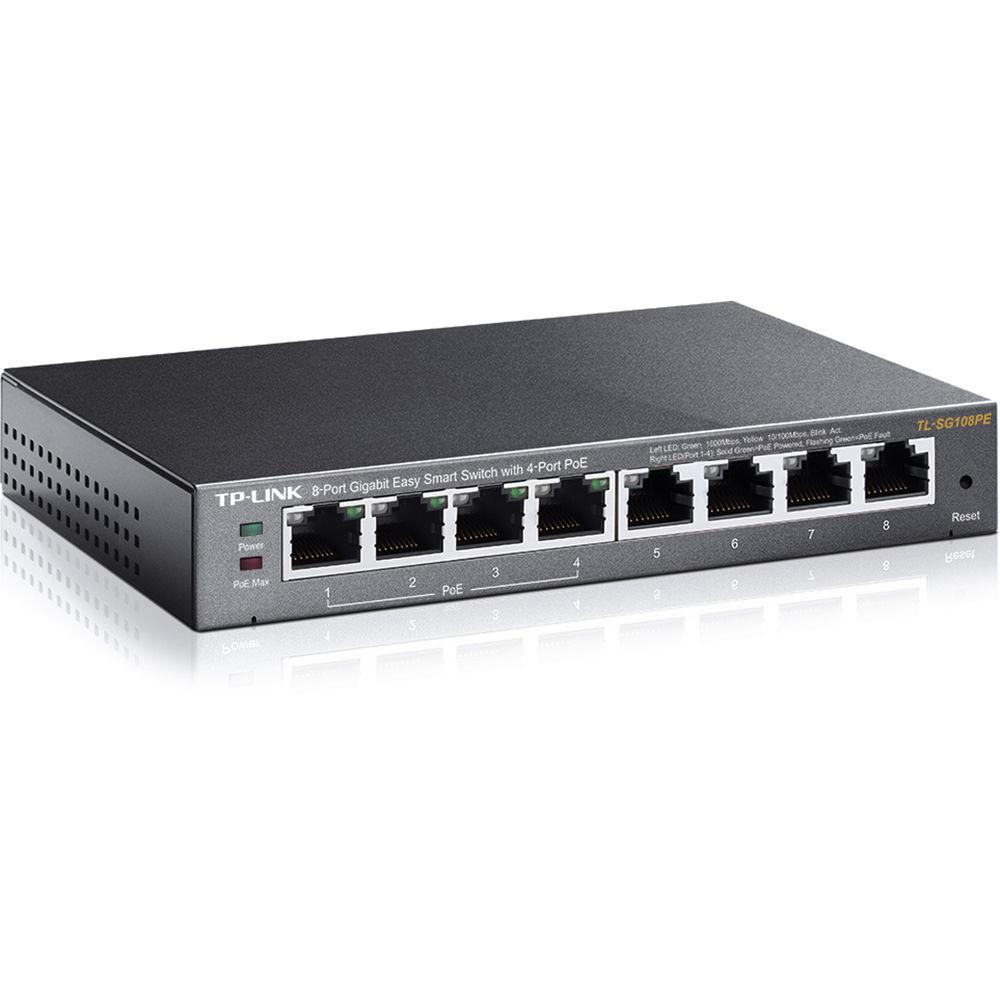

Product description With eight Gigabit Ethernet ports, the TL-SG108PE 8-Port Gigabit Easy Smart Switch with 4-Port PoE from TP-Link is capable of handling large file transfers with ease. In addition to just networking, this switch comes equipped with four Gigabit PoE ports with a power budget of up to 15.4 watts per port. These 802.3af PoE compliant ports allow network administrators to easily integrated PoE compatible devices such as VoIP phones, IP cameras, and more into the network without the hassle of separate power supplies for each piece of equipment. Setup of this switch is simple with plug-and-play support while the web-based interface and Easy Smart Configuration Utility guide users through the entire configuration process while allowing administrators to make changes to nearly any aspect of the network. - Power Over Ethernet
- 4 of the 8 Auto-Negotiation RJ45 ports (port 1 to port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
- Effective Management
- The TL-SG108PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS. With Port Mirroring, Loop Prevention and Cable Diagnostics features, TL-SG108PE can identify and even locate connection problems on your business network. Moreover, administrators can designate the priority of the traffic based on Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and lag-free. Additionally, to improve security and network performance, TL-SG108PE supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions. TL-SG108PE is an upgrade from the plug-and-play Unmanaged Switch, delivering great value while empowering your network and similarly delivering great value to the end user.
- Easy to Use
- The TL-SG108PE is easy to use and manage. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Its compact size makes it ideal for desktops with limited space while also being Rack-mountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis.
Additional Features - 8 x 10/100/1000 Mbps ports provide instant large file transfers
- Equipped with 4 802.3af PoE ports with up to 15.4 W for each port
- Supports PoE power up to 55 W for all PoE ports
- IEEE 802.3x flow control provides reliable data transfers
- 15 KB Jumbo frame improves performance of large data transfers
- Effective network monitoring via Port Mirroring, Loop Prevention and Cable Diagnostics
- Port/802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Abundant VLAN features improve network security via traffic segmentation
- IGMP Snooping optimizes multicast applications
- Web-based user interface and Easy Smart Configuration Utility simplify configuration
UPC: 845973094744 In the Box TP-Link TL-SG108PE 8-Port Gigabit Easy Smart Switch with 4-Port PoE Power Adapter Rubber Feet Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link TL-SG108PE 8-Port Gigabit Easy Smart Switch with 4-Port PoE in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link TL-SG108PE Specs | | | Ports | 4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE (Type 1) | | | | Supported Protocols | Auto-MDIX/MDI
Link Aggregation
Port Mirroring | | Transmission Method | Store-and-Forward | | Jumbo Frames Support | 15,000 Bytes | | MAC Address Table Size | 4K | | VLAN Groups | 32 | | VLAN IDs | 4000 | | | | Security Features | Storm Control | | | | Supported IEEE Standards | 802.1p, 802.1q, 802.3ab, 802.3af, 802.3i, 802.3u, 802.3x | | | | Forwarding Rate | 11.9 Mpps | | Priority Queues | 4 | | Packet Buffer | 1.5 Mb | | | | OS Compatibility | Windows XP or Later | | | | Power Draw | 5.2 W (Active) | | DC Input Power | 48 VDC at 1.25 A | | PoE Power Budget | 55 W | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 90% | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Storage Humidity | 5 to 95% | | Certifications | RoHS, as per Manufacturer | | | | Package Weight | 2.3 lb | | Box Dimensions (LxWxH) | 7.4 x 4.9 x 4.1" |
