User Manual for TP-Link TL-SG116 16-Port 10 100 1000 Mb s Desktop Switch Click to enlarge the picture
Contents of the user manual for the TP-Link TL-SG116 16-Port 10 100 1000
- Product category: Network Switches, Bridges & Hubs TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Network Switches, Bridges & Hubs
 |
User manual for the TP-Link TL-SG116 16-Port 10 100 1000 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|

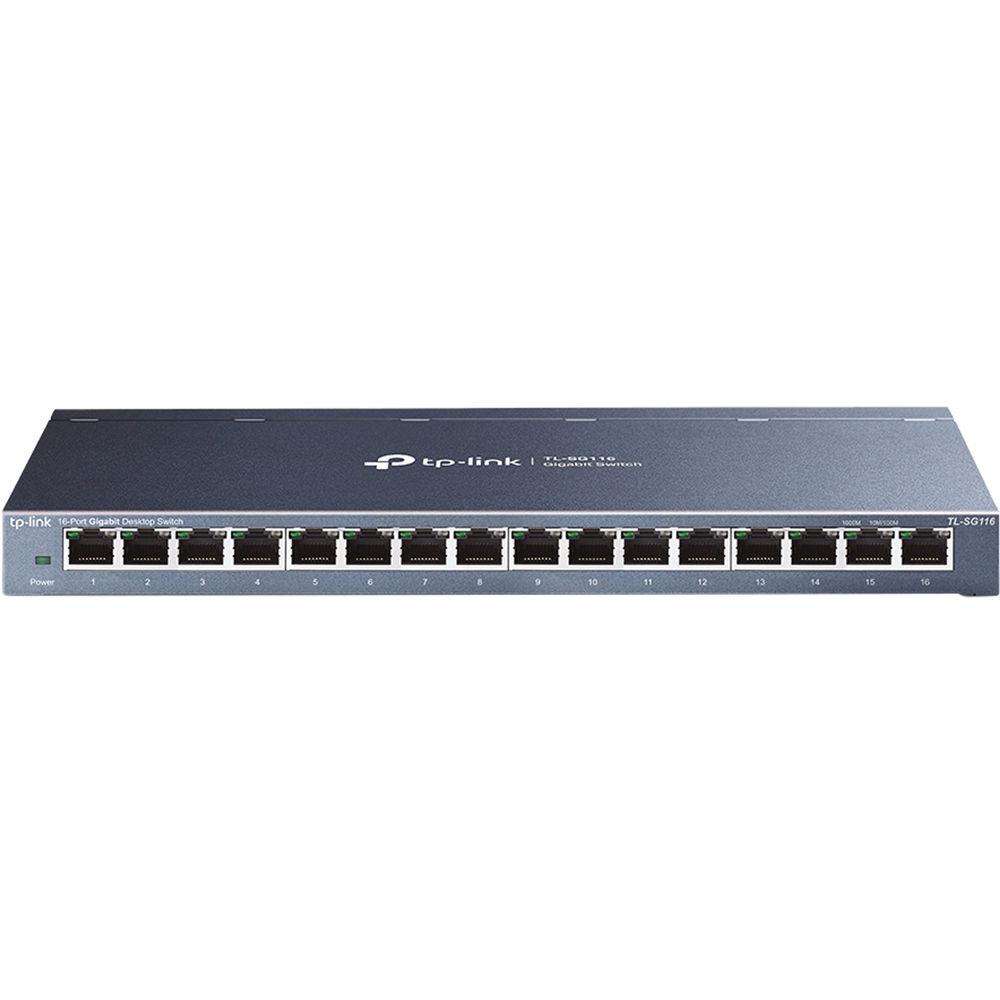

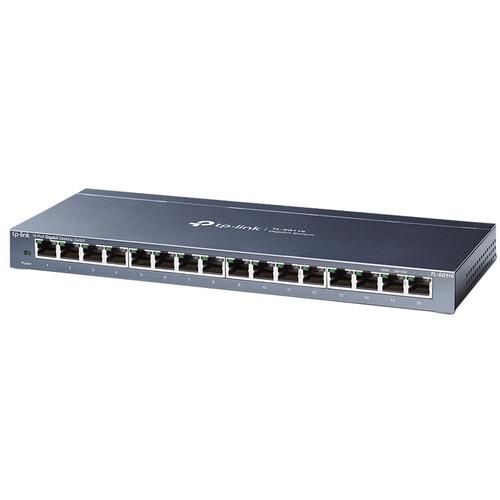

Product description Connect a variety of Ethernet enabled devices to your existing wired network with the TL-SG116 16-Port 10/100/1000 Mb/s Desktop Switch from TP-Link. Equipped with 16 Gigabit Ethernet ports, this unmanaged switch is compatible with IEEE 802.3ab, 802.3x, 802.3u, and 802.3i networking standards. Support for 802.1p helps to prioritize latency-sensitive traffic such as voice, video, and gaming, while IGMP snooping helps optimize multicast traffic. The TL-SG116 comes with an array of power-savings features that are designed to cut energy consumption based the number of ports in use and cable length, while the unit's fanless design helps to ensure quiet operation. The steel-housed switch can be placed on a desktop or mounted on a wall. - Simple Setup
- The TL-SG116 boasts a plug-and-play design, with no configuration required, while auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device and adjusts for compatibility and optimal performance.
- Power-Saving Features
- The TL-SG116 is designed to conserve power by automatically detecting the link status of each port and reducing the power consumption of ports that are idle, resulting in a reduction of power use. The switch also adjusts its power budget depending on the length of the cables you're using.
- Traffic Optimization
- 802.1p and DSCP QoS helps smooth the flow of latency-sensitive traffic such as voice and video, while IGMP snooping optimizes the multicast data stream.
UPC: 845973084325 In the Box TP-Link TL-SG116 16-Port 10/100/1000 Mb/s Desktop Switch Power Adapter Rubber Feet Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link TL-SG116 16-Port 10 100 1000 Mb s Desktop Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link TL-SG116 Specs | | | Ports | 16 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) | | | | Supported Protocols | Auto-MDIX/MDI
IGMP Snooping | | Transmission Method | Store-and-Forward | | Jumbo Frames Support | 10,000 Bytes | | MAC Address Table Size | 8K | | | | Supported IEEE Standards | 802.1p, 802.3ab, 802.3i, 802.3u, 802.3x | | | | Forwarding Rate | 23.8 Mpps | | Switching Bandwidth | 32 Gb/s | | Packet Buffer | 4.1 Mb | | | | Power Draw | 10.00 W | | DC Input Power | 12 VDC at 1 A | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 90% | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Storage Humidity | 5 to 90% | | Certifications | CE, FCC, RoHS, as per Manufacturer | | | | Cooling System | Passive | | Material of Construction | Steel | | Indicator Lights | Link/Activity, Power | | Dimensions | 11.3 x 4.4 x 1" / 287.02 x 111.76 x 25.4 mm | | | | Package Weight | 2.905 lb | | Box Dimensions (LxWxH) | 21.05 x 10.05 x 2.85" |
