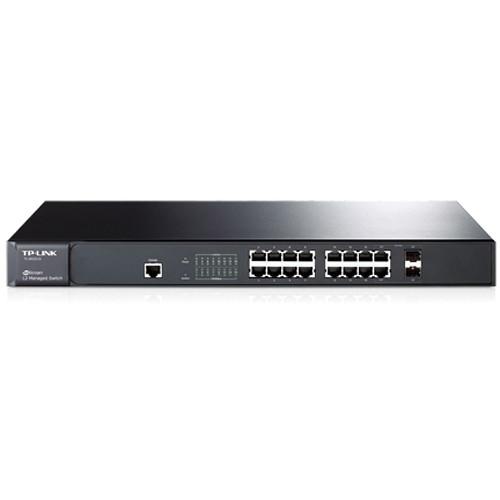

User Manual for TP-Link TL-SG3216 JetStream 16-Port Gigabit L2 Managed Switch with 2 Combo SFP Slots Click to enlarge the picture
Contents of the user manual for the TP-Link TL-SG3216 JetStream 16-Port Gigabit L2
- Product category: Network Switches, Bridges & Hubs TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Network Switches, Bridges & Hubs
|
User manual for the TP-Link TL-SG3216 JetStream 16-Port Gigabit L2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|
Product description The TL-SG3216 JetStream 16-Port Gigabit L2 Managed Switch with 2 Combo SFP Slots from TP-Link provides secure networking, advanced QoS, abundant layer 2, and enterprise level management features. Along with these important features you can also take advantage of a variety of management features such as a web-based GUI, command line interface, SNMP v1/v2c/v3, and RMON (1,2,3,9 group).
The layer 2 functionality of the TL-SG3216 coincides with the open systems interconnection model or OSI model. The second layer of this model, the data link layer, is where the basic connections occur in a network. This layer provides the functional and procedural means to transfer data between network entities as well as detection and possible correction of errors that may occur in the previous layer, the physical layer. Some of the layer two features include 802.1Q tag VLAN, port mirroring, link aggregation control protocol, and 802.3x flow control functionality.
802.1Q tag VLAN support provides the backbone for the VLANs as it defines the system of VLAN tagging for Ethernet frames. Port mirroring is used on a network switch to send a copy of network packets seen on one switch port to a network monitoring connection on another switch port. Link aggregation control protocol allows for streamlining of network communications by combining multiple network connections in parallel. 802.3x flow control functionality helps the administrator control the flow of packets through each port on the switch.
Managing your network via the TL-SG3216 switch is simple with web-based GUI and CLI management. With web based GUI, you can take full control of your network with easy to manipulate controls; CLI management, on the other hand, gives you more in depth complete control over virtually every aspect of the switch. Security features include IP-MAC-PORT-VID binding, IEEE 802.1X port/MAC based authentication, radius, guest VLAN, DoS defence, dynamic ARP inspection, SSH v1/v2, SSL v2/v3/TLSv1, port security, and broadcast/multicast/unknown-unicast storm control. Each of these security features gives you complete control over virtually every security facet of your network ensuring your data remains secure. - Secure Networking
- Take advantage of IP-MAC-PORT-VID Binding, Port Security, Storm control and DHCP Snooping to protect against broadcast storms, ARP attacks, etc. Utilize Access Control Lists to restrict access to sensitive network resources by denying packets based on source and destination MAC addresses, IP addresses, TCP/UDP ports and even VLAN IDs. The TL-SG3216 switch also supports 802.1X authentication, which is used in conjunction with RADIUS servers to require some authentication information before access to the network is allowed. With guest VLAN functionality you can enable non-802.1X clients to access the specific network resource.
- Advanced QoS Features
- Designate the priority of the traffic based on a variety of means including IP or MAC addresses, TCP or UDP port numbers, etc to ensure voice and video are always clear, smooth and jitter free. This integration of voice and data is accomplished through enhanced QoS policies. In conjunction with the Voice VLAN, the switch will support voice applications to provide much smoother performance.
- Abundant Layer 2 Features
- Take full advantage of a variety of Layer 2 Features including 802.1Q tag VLAN, port mirroring, STP/RSTP/MSTP, link aggregation control protocols, and 802.3x flow control functionality. Along with the Layer 2 Features, you can also take advantage of maintenance features including loop back detection, cable diagnostics, and IGMP snooping. With IGMP snooping, the switch can intelligently forward the multicast stream only to the appropriate subscribers, while IGMP throttling and filtering restrict each subscriber on a port level to prevent unauthorized multicast access.
- Enterprise Level Management Features
- The TP-Link switch is easy to use and manage. Utilize various user-friendly standard management features, such as intuitive web-based graphical user interface or industry-standard command line interface. Administration traffic can be protected through SSL or SSH encryptions. SNMP and RMON support enable the switch to be polled for valuable status information and send traps on abnormal events.
UPC: 845973020941 In the Box TP-Link TL-SG3216 JetStream 16-Port Gigabit L2 Managed Switch with 2 Combo SFP Slots Power Cord Quick Installation Guide Resource CD Rackmount Kit Rubber Feet More info from TP-Link Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link TL-SG3216 JetStream 16-Port Gigabit L2 Managed Switch with 2 Combo SFP Slots in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link TL-SG3216 Specs | | | Ports | 16 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
2 x 10/100/1000 Mb/s Gigabit SFP | | | | Supported Protocols | Auto-MDIX/MDI
IGMP Snooping
Link Aggregation | | Queuing | Strict Priority, Weighted Round Robin (WRR) | | Jumbo Frames Support | 10,240 Bytes | | MAC Address Table Size | 8K | | VLAN Groups | 4000 | | VLAN IDs | 4000 | | | | Security Features | DoS Attack Prevention
Storm Control | | | | Supported IEEE Standards | 802.1d, 802.1p, 802.1q, 802.1s, 802.1w, 802.1x, 802.3ab, 802.3ad, 802.3i, 802.3u, 802.3x, 802.3z | | | | Forwarding Rate | 23.8 Mpps | | Switching Bandwidth | 32 Gb/s | | Priority Queues | 4 | | Packet Buffer | 512 Kb | | | | OS Compatibility | Windows XP or Later
macOS
Linux
UNIX | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 90% | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Storage Humidity | 5 to 90% | | | | Dimensions | 17.3 x 8.7 x 1.7" / 44 x 22 x 4.4 cm | | | | Package Weight | 8.5 lb | | Box Dimensions (LxWxH) | 20.9 x 13.3 x 3.9" |
