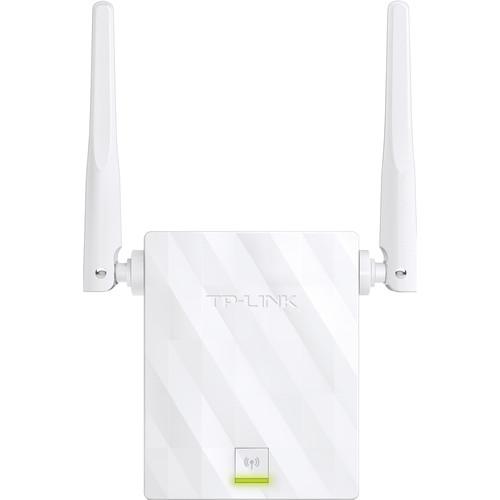

User Manual for TP-Link TL-WA855RE Wireless-N300 Range Extender Click to enlarge the picture
Contents of the user manual for the TP-Link TL-WA855RE Wireless-N300 Range Extender
- Product category: Wireless Range Extenders TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Wireless Range Extenders
|
User manual for the TP-Link TL-WA855RE Wireless-N300 Range Extender contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|
Product description Boost your existing Wi-Fi coverage with the TL-WA855RE Wireless-N300 Range Extender from TP-Link. This small Wi-Fi range extender operates on the 2.4 GHz frequency and can provide speeds of up to 300 Mbps. It has two external antennas as well as one 10/100 Mbps Ethernet port, which extends your wireless coverage to deliver fast and reliable wired connectivity. Once plugged in, you can easily expand your coverage with a push of a button. Furthermore, you can schedule the power saving mode to run during periods of low use or traffic. This network extender works with any Wi-Fi router and can be paired with the Tether App, available for download on smartphones, for easy remote access and management. -
- Simple setup. Press the WPS button on your router, and then press the button on the range extender.
- LED indicators let you know your connection status. Green indicates a good connection, while orange indicates that it's too far from the router.
- Wi-Fi Coverage Control - Adjust settings that affect your wireless coverage area
- Access Control - Secure your network by controlling who uses it
- Power Schedule - Create a timetable to turn the network on/off as you desire
UPC: 845973093853 In the Box TP-Link TL-WA855RE Wireless-N300 Range Extender RJ45 Ethernet Cable Limited 1-Year Warranty Guides & Manuals More info from TP-Link Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link TL-WA855RE Wireless-N300 Range Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the TP-Link TL-WA855RE Wireless-N300 Range Extender can be downloaded in PDF format at the link stated below.
Technical parametersTP-Link TL-WA855RE Specs | Plug Type | EU, UK, US | | Interface | 1 x 10/100 Mbps Ethernet Port (RJ45) | | Buttons | RE (Range Extender) Button, Reset Button | | Power Consumption | ~ 3 W | | Antenna | 2 x External | | Wireless Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b | | Frequency | 2.4~2.4835 GHz | | Signal Rate | 11n: Up to 300 Mbps (dynamic)
11g: Up to 54 Mbps (dynamic)
11b: Up to 11 Mbps (dynamic) | | Reception Sensitivity | 270M: <-68 dbm @ 10% per
130M: <-68 dbm @ 10% per
108M: <-68 dbm @ 10% per
54M: <-68 dbm @ 10% per
11M: <-68 dbm @ 8% per
6M: <-68 dbm @ 10% per
1M: <-68 dBm @ 8% PER | | Transmit Power | < 20 dBm (EIRP) | | Wireless Modes | Range Extender, AP Mode | | Wireless Functions | Wireless MAC Address Filtering
Domain Login Function
Transmit Power Control | | Wireless Security | 64/128/152-bit WEP
WPA-PSK / WPA2-PSK | | System Requirements | Windows 98SE, NT, 2000, XP, Vista, or Windows 7, 8, 8.1, 10
Mac OS, NetWare, UNIX or Linux. | | | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -40 to 158°F (-40 to 70°C) | | Operating Humidity | 10 to 90% non-condensing | | Storage Humidity | 5 to 90% non-condensing | | | | Certification | CE, RoHS | | Dimensions (W x D x H) | 2 x 1.3 x 2.6" (52 x 34 x 65 mm) | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 6.2 x 4.1 x 3.1" |
