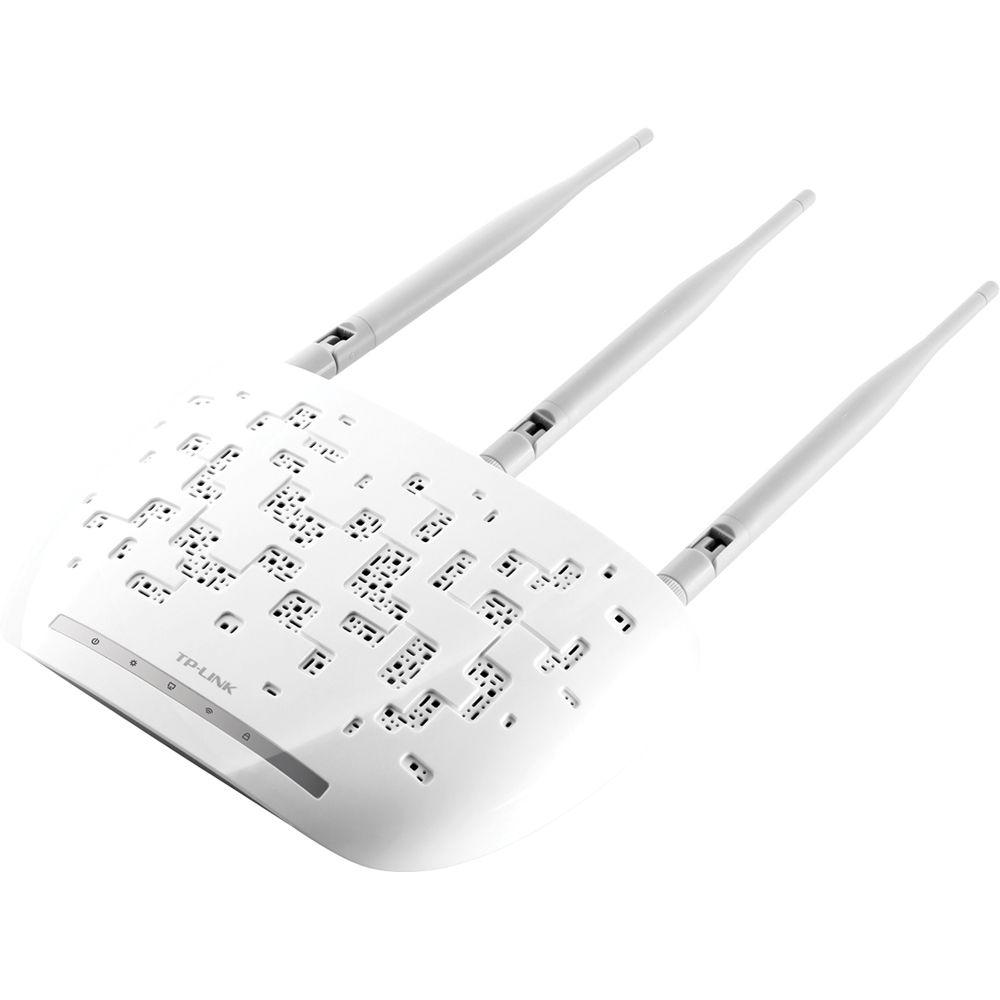

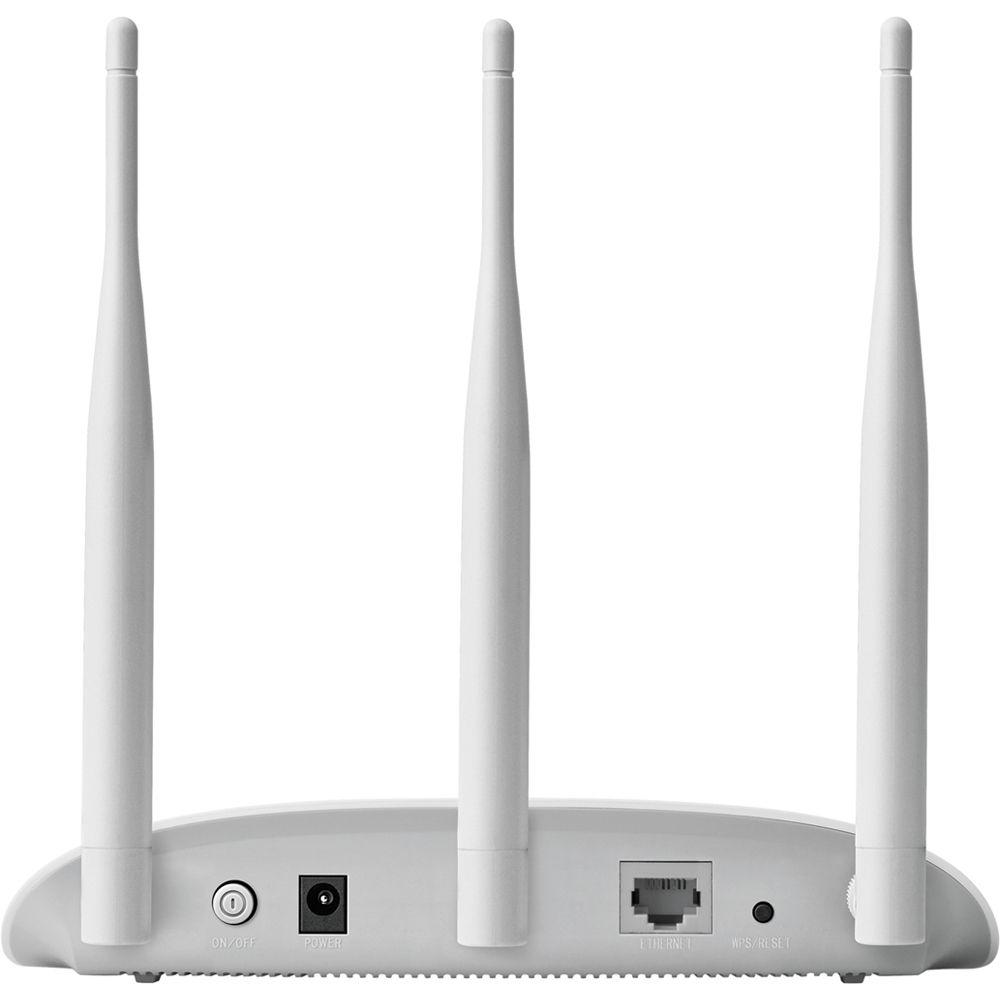

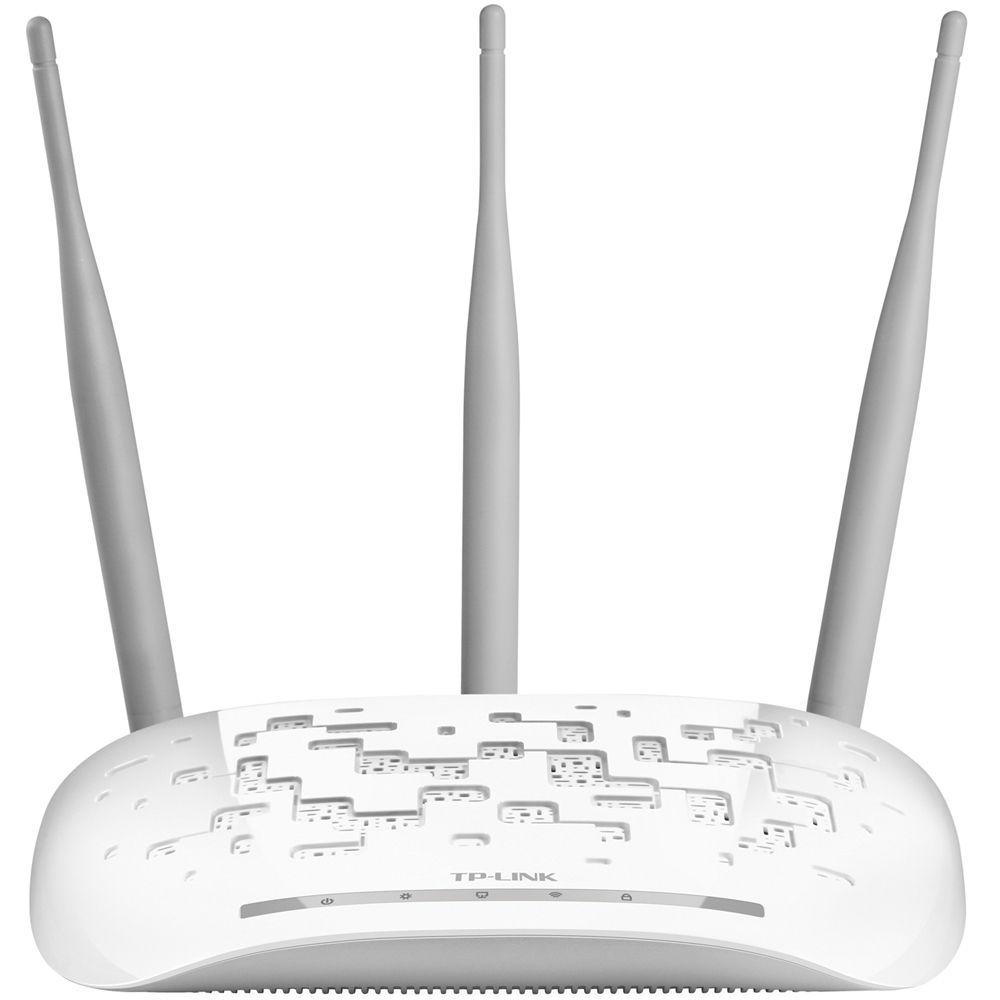

User Manual for TP-Link TL-WA901ND Wireless-N450 Access Point Click to enlarge the picture
Contents of the user manual for the TP-Link TL-WA901ND Wireless-N450 Access Point
- Product category: Wireless Access Points TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Wireless Access Points
 |
User manual for the TP-Link TL-WA901ND Wireless-N450 Access Point contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|
Product description The TP-Link TL-WA901ND 450 Mbps Wireless Wireless-N450 Access Point is engineered to establish or expand a scalable high-speed wireless N network. It can also be used to connect multiple Ethernet enabled devices, such as game consoles, digital media adapters, printers or network attached storage devices to a wireless network. The APs provide support for a variety of different functions that make your wireless networking experience more versatile than ever. Now, you have the ability to enjoy a better Internet experience for downloading, gaming, video streaming or any other application you wish.
Employing IEEE 802.11n advanced MIMO (Multi Input Multi Output) technology, the access point works simultaneously through 3 antennas to Tx and Rx, in order to overcome interference and signal degradation over long distances or through physical barriers in a small office or a large apartment. This results in an amazing improvement in the wireless performance, even in a steel-and-concrete building. Most importantly, you can easily pick up the wireless network during long-distance connection where legacy 11g products may not be able to do so.
The device supports AP Client, Bridge, Universal / WDS Repeater and AP operation modes to allow for various wireless applications, providing you with a more dynamic and comprehensive experience while using your AP. Multiple operating modes assist you in the building of a wireless network for tough-to-wire locations or in getting rid of wireless dead zones.
Compatible with WI-FI Protected Setup (WPS), TL-WA901ND features a Quick Security Setup that enables you to almost instantaneously set up your security--just by pressing the "QSS" button! This automatically establishes a WPA2 secure connection, which is known to be more secure than WEP encryptions. Not only is this faster than normal security setups, it's more convenient in that there's no need to remember a password! The device supports both Personal and Enterprise encryptions.
The TL-WA901ND is capable of being powered by an Ethernet cable to simultaneously send data and electricity to wherever your AP is located--even up to 100' (30.5 m) away. This feature multiplies your options, enabling you to place the AP in the position that is most conducive to receiving the best signal, such as on the wall or ceiling of your office. - Wireless N speeds up to 450 Mbps make it perfect for bandwidth-hungry or interruption-sensitive applications, such as video streaming, online gaming and voice over Internet
- MIMO technology gives you robust high-bandwidth wireless Tx / Rx capability at extended range
- Clear Channel Assessment (CCA) improves wireless performance while automatically avoiding channel conflict
- Provides support for multiple operating modes: Access Point, Client, Universal / WDS Repeater, Point to Point, Point to Multi-point
- Easily set up a WPA encrypted secure connection at the push of a QSS button
- Support for Wi-Fi Multimedia (WMM) ensures high-quality VoIP and multimedia streaming
- Support for up to 100' (30.5 m) of Power over Ethernet capability for versatile performance
- Up to 4 SSIDs and VLAN support, enabling network administrators to separate different services or applications among various designated users
- WPA / WPA2 encryptions give your network active protection against security threats
- Backwards compatible with 802.11b / g products
- 3 external detachable antennas enable better alignment and stronger antenna upgrades
- Wall mounted or horizontal table / desk placement options
UPC: 845973051426 In the Box TP-Link TL-WA901ND Wireless-N450 Access Point 3 x Detachable Omni Directional Antennas Power Supply Unit PoE Power Injector Quick Installation Guide Limited 2-Year Warranty Guides & Manuals dctztutsstdcwwvxwtvqyyqwufwbcbyqsyat More info from TP-Link dctztutsstdcwwvxwtvqyyqwufwbcbyqsyat Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link TL-WA901ND Wireless-N450 Access Point in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the TP-Link TL-WA901ND Wireless-N450 Access Point can be downloaded in PDF format at the link stated below.
Technical parametersTP-Link TL-WA901ND Specs | | | Wireless Frequency Bands | 2.4 GHz | | Number of Antennas | 3 | | WLAN Mode | 802.11n | | Sensitivity | -68 to -90 dBm | | Transmit Power | 20 dBm | | Supported Protocols | WMM | | | | Ports | 1 x 10/100 Mb/s Ethernet (RJ45) PoE
3 x SMA Antenna | | | | Wireless Security | WEP, WPA | | | | Operation Modes | Access Point, Bridge, Client, Repeater | | Throughput | 2.4 GHz: 450 Mb/s | | | | Supported IEEE Standards | 802.11i | | | | DC Input Power | 12 VDC at 1 A | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Operating Humidity | 10 to 90% | | Storage Humidity | 5 to 90% | | | | Certifications | RoHS, as per Manufacturer | | Dimensions | 6.9 x 1.1 x 4.7" / 17.5 x 2.8 x 11.9 cm | | | | Package Weight | 1.44 lb | | Box Dimensions (LxWxH) | 11.4 x 9.0 x 2.8" |
