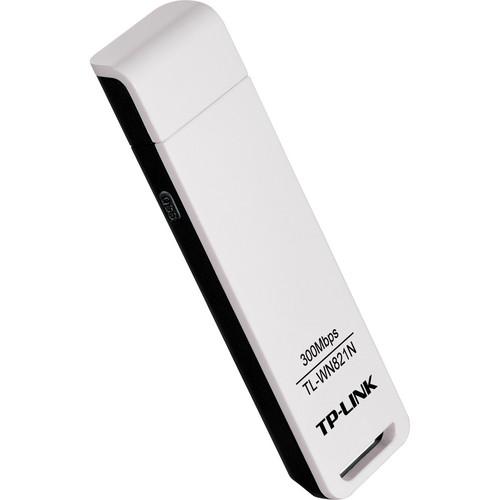

User Manual for TP-Link TL-WN821N Wireless-N300 USB Adapter Click to enlarge the picture
Contents of the user manual for the TP-Link TL-WN821N Wireless-N300 USB Adapter
- Product category: Wireless Adapters & Cards TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Wireless Adapters & Cards
|
User manual for the TP-Link TL-WN821N Wireless-N300 USB Adapter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|
Product description The TP Link 300 Mbps Wireless N USB Adapter allows you to connect a desktop or notebook computer to a wireless network and access a high-speed Internet connection. Compliant with IEEE 802.11n, it provides wireless speeds up to 300 Mbps, which is great for online gaming or video streaming. Featuring MIMO / Multiple Input, Multiple Output antennas, this adapter demonstrates an excellent ability to curb data loss over long distances and through obstacles in a small office or a large apartment--even in a steel-and-concrete building! You can easily pick up the wireless network during long-distance connection, where legacy 11g wireless products may not be able to do so.
Clear Channel Assessment (CCA) technology automatically avoids channel conflicts using its clear channel selection feature, and fully realizes the advantages of channel binding, greatly enhancing wireless performance. As for security, the adapter provides WPA/WPA2 encryptions that are created by the WI-FI Alliance industry group, promoting interpretability and security for WLAN, more effectively and efficiently protecting the wireless network than a WEP encryption.
Compatible with WI-FI Protected Setup (WPS), this adapter features Quick Security Setup that allows you to almost instantly setup your security. Just press the "QSS" button and you will automatically establish a WPA2 secure connection. This is not only faster than normal security setups, but also more convenient in that you don't need to remember a password. An included CD with utility helps you complete the software installation and wireless network setup. - Wireless N speeds up to 300 Mbps makes the adapter ideal for video streaming, online gaming and internet calls
- MIMO technology provides stronger signal penetration strength, wider wireless coverage, and better performance and stability
- Can simultaneously operate bandwidth-intensive applications using a lot of bandwidths which are sensitive to interruption - most sensitive applications can be given priority over the others in order to be allocated more bandwidth to assure quality
- Supports 64/128/152-bit WPA/WPA2/WPA-PSK/WPA2-PSK(TKIP/AES) and WEP encryptions
- Easily set up a highly secured wireless link at a push of QSS button
- Supports Infrastructure and Ad-Hoc modes
- Supports Roaming technology
- Fully compatible with all IEEE 802.11b/g/n products
- Bundled CD provides easy and hassle-free installation and configuration
- Supports Windows 2000, Windows XP 32/64-bit, Vista 32/64-bit, Windows 7 32/64-bit
- Supports Sony PSP X-link for online gaming for Windows XP
UPC: 845973050368 In the Box TP-Link TL-WN821N Wireless-N300 USB Adapter USB Extension Cable Quick Installation Guide Resource CD: Client Utility and Drivers, User Guide 1 Year Parts and Labor Warranty Brochure PDF 740.6kb More info from TP-Link Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link TL-WN821N Wireless-N300 USB Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link TL-WN821N Specs | | | Interface | USB 2.0 | | Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, CSMA/CA with ACK | | Frequency Range | 2.400 - 2.4835 GHz | | Data Rate | 11n: Up to 300 Mbps (dynamic)
11g: Up to 54 Mbps (dynamic)
11b: Up to 11 Mbps (dynamic) | | Security | Quick Security Setup - pressing "QSS" button automatically establishes WPA2 secure connection
Supports 64/128/152-bit WEP, WPA-PSK/WPA2-PSK encryptions, Wireless MAC Filtering | | Antenna | On-Board, Omni Directional, internal
MIMO technology provides stronger signal penetration strength, wider wireless coverage, and better performance and stability | | Transmission Power | <20 dBm (EIRP) | | Receiver Sensitivity | 270 M: -68 dBm @10% PER
130 M: -68 dBm @ 10% PER
108 M: -68 dBm @ 10% PER
54 M: -68 dBm @ 10% PER
11 M: -85 dBm @ 8% PER
6 M: -88 dBm @ 10% PER
1 M: -90 dBm @ 8% PER | | Modulation | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM | | Certifications | CE, FCC, RoHS | | | | System Requirements | Windows 7(32/64-bit), Vista (32/64-bit), XP(32/64-bit), 2000 | | Power Requirements | Not Specified by Manufacturer | | Power Consumption | Not Specified by Manufacturer | | Environmental Requirements | Operating Temperature: 32-104° F (0-40° C)
Storage Temperature: -40 - 158° F (-40 - 70° C)
Operating Humidity: 10-90% non-condensing
Storage Humidity: 5-90% non-condensing | | Dimensions (WxDxH) | 3.4 x 1.0 x 0.5" (8.6 x 2.6 x 1.2 cm) | | Weight | Not Specified by Manufacturer | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 8.2 x 5.8 x 1.5" |
