User Manual for TP-Link TL-WN822N Wireless-N300 High Gain USB Adapter Click to enlarge the picture
Contents of the user manual for the TP-Link TL-WN822N Wireless-N300 High Gain USB
- Product category: Wireless Adapters & Cards TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Wireless Adapters & Cards
 |
User manual for the TP-Link TL-WN822N Wireless-N300 High Gain USB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|
Product description The TL-WN822N Wireless-N300 High Gain USB Adapter from TP-Link is an easy, exceptional way to provide Wi-Fi -N connectivity to your Windows computer. This adapter connects to your Windows notebook or desktop via USB and utilizes dual antennas to receive Wi-Fi -b, -g, and -n signals. It can transfer data a speed of up to 300Mbps and is excellent for streaming HD video, playing online games, making VoIP calls, and more. For establishing security, the adapter supports WPA/WPA2 encryption and supports Wi-Fi Protected Setup with the "QSS" button. If you want wireless connectivity for your computer via USB, this adapter is sure to help. - The TL-WN822N High Gain USB Adapter allows users to connect a desktop or notebook computer to a wireless network and access a high-speed Internet connection. It is fully interoperable with IEEE 802.11 b/g/n wireless devices, offering a maximum data transfer rate of 300Mbps. With that speeds, you will have a reliable signal suited for lag-free online gaming, Internet calls, or even HD video streaming

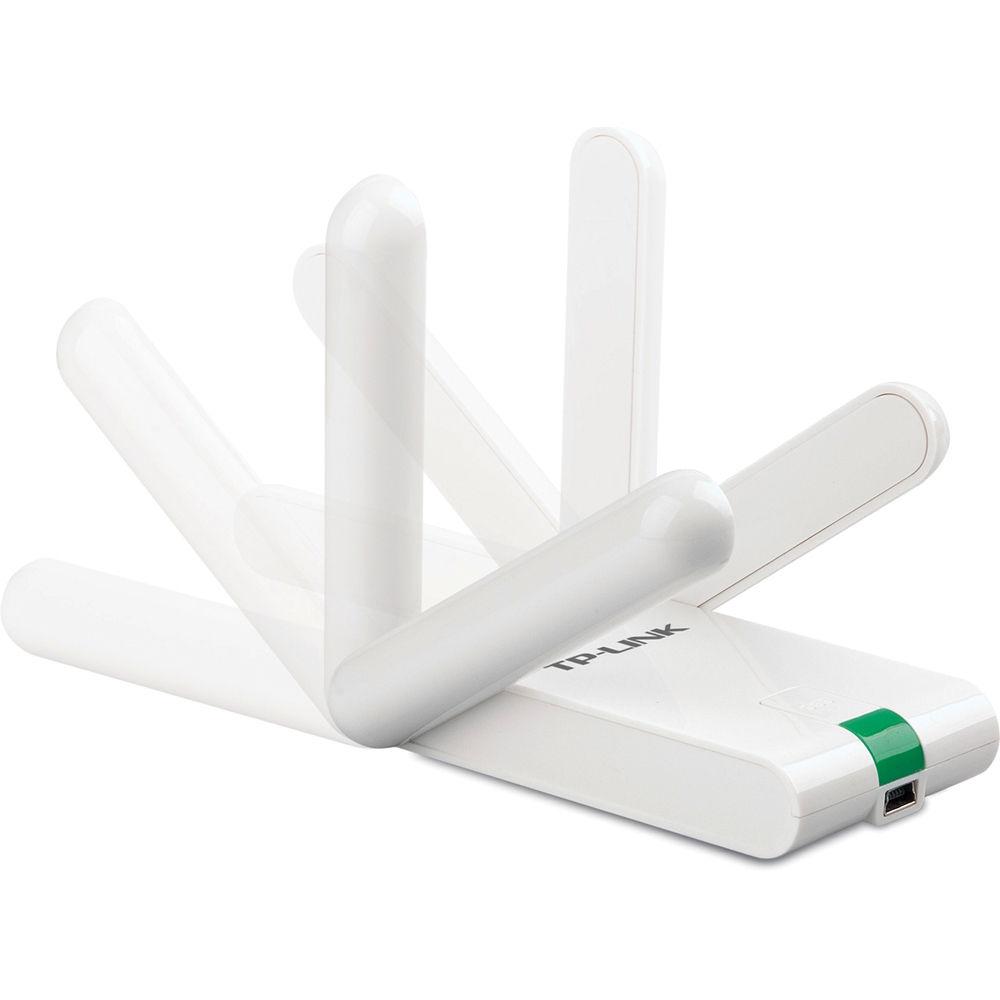

- The dual 3dBi external antennas can be rotated and adjusted in different directions to fit various environments to achieve the best signal possible, significantly better than adapters with internal antennas
- Compatible with Wi-Fi Protected Setup™ (WPS), TL-WN822N supports Quick Security Setup that allows users to simply press the "QSS" button on the device's exterior, instantly establishing a highly secured connection. Not only is it faster than normal security setups but more convenient in that users don't need to remember a password
- The TL-WN822N comes with a CD with utility that helps users easily complete the software installation and wireless network settings, including security configurations and wireless connection, and is simple enough even for novice users

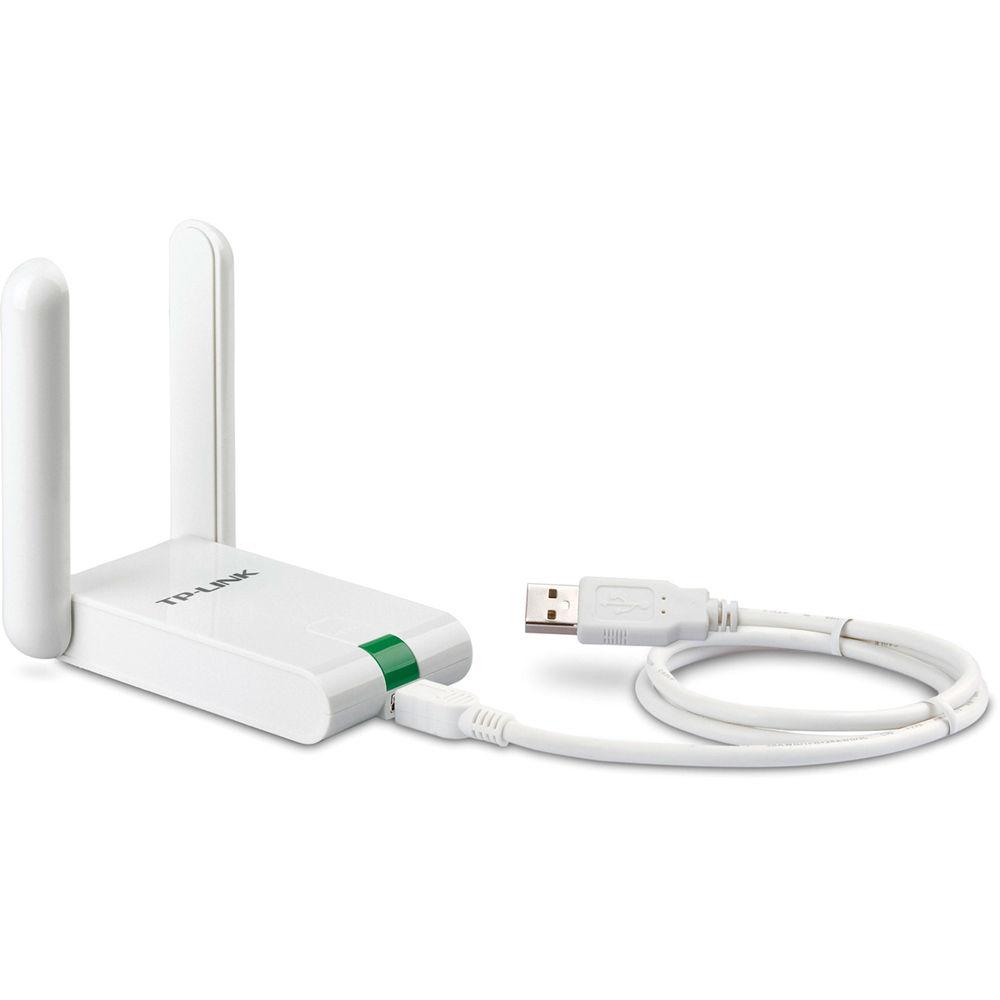

- The TL-WN822N also provides a 1.5 meter USB extension cable, convenient for installation and flexible deployment
- Supports Infrastructure and Ad-Hoc modes
- Supports Windows 2000/XP/Vista/7
- Supports Sony PSP X-link for online gaming for Windows XP
UPC: 845973050542 In the Box TP-Link TL-WN822N Wireless-N300 High Gain USB Adapter Resource CD USB Cable Quick Installation Guide 4.92' (1.5 m) USB Extension Cable 1-Year Limited Warranty Guides & Manuals tarazawcevutcxdzbbq More info from TP-Link Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link TL-WN822N Wireless-N300 High Gain USB Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the TP-Link TL-WN822N Wireless-N300 High Gain USB Adapter can be downloaded in PDF format at the link stated below.
Technical parametersTP-Link TL-WN822N Specs | | | Interface | 1x Mini USB 2.0 | | Button | QSS Push Button/Software | | Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b | | Frequency Range | 2.400 to 2.4835GHz | | Data Rate | 11n: Up to 300Mbps (dynamic)
11g: Up to 54Mbps (dynamic)
11b: Up to 11Mbps (dynamic) | | EIRP | Transmit Power: <20dBm | | Sensitivity | 270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER | | Security | Support 64/128 bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK | | Mode | Ad-Hoc / Infrastructure Mode | | Antenna | Dual Omni Directional
Gain: 3dBi | | Modulation | DBPSK, DQPSK, OFDM, CCK, 16-QAM, 64-QA | | Advanced Features | WMM | | Operation Distance | Not specified by the manufacturer | | | | System Requirements | Supports Windows XP 32/64bit, Vista 32/64bit, Windows 7 32/64bit | | Environmental | Operating
Temperature: 32° to 104°F (0° to 40°C)
Humidity: 10% to 90% non-condensing
Storage
Temperature: -40° to 158°F (-40° to 70°C)
Humidity: 5% to 90% non-condensing | | Power Requirements | Bus-powered | | Power Consumption | Not specified by the manufacturer | | Dimensions | 3.5 x 2.7 x 0.7" (9.0 x 6.8 x 1.68cm) | | Weight | Not specified by the manufacturer | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 8.1 x 5.9 x 1.4" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 43 owners. Add your rating and experience with the product.
