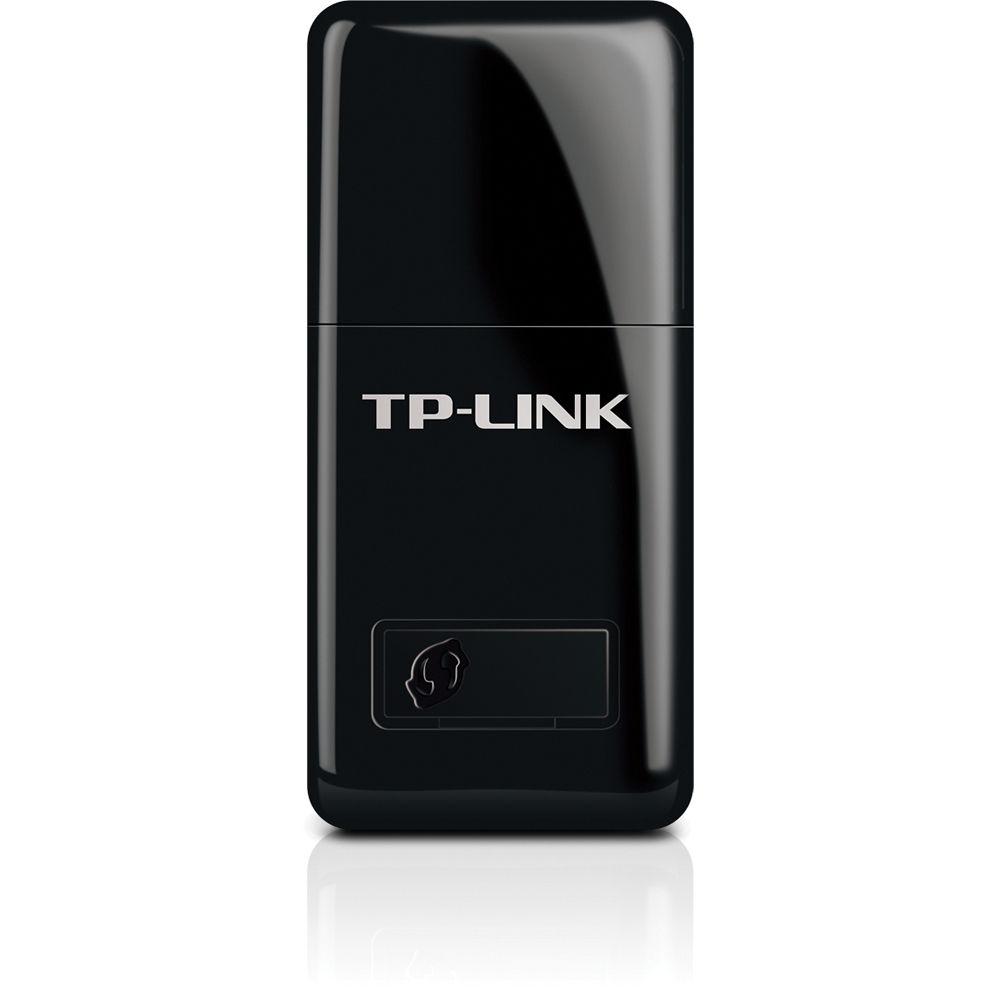

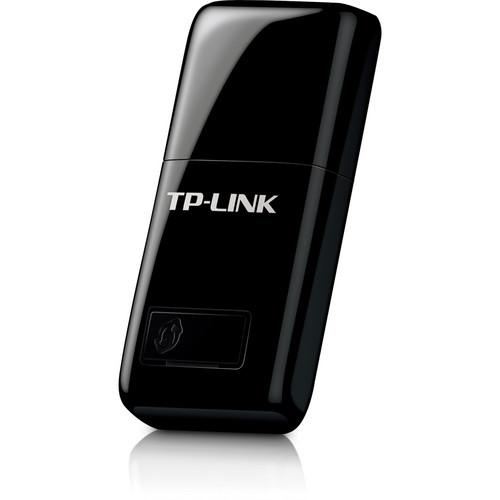

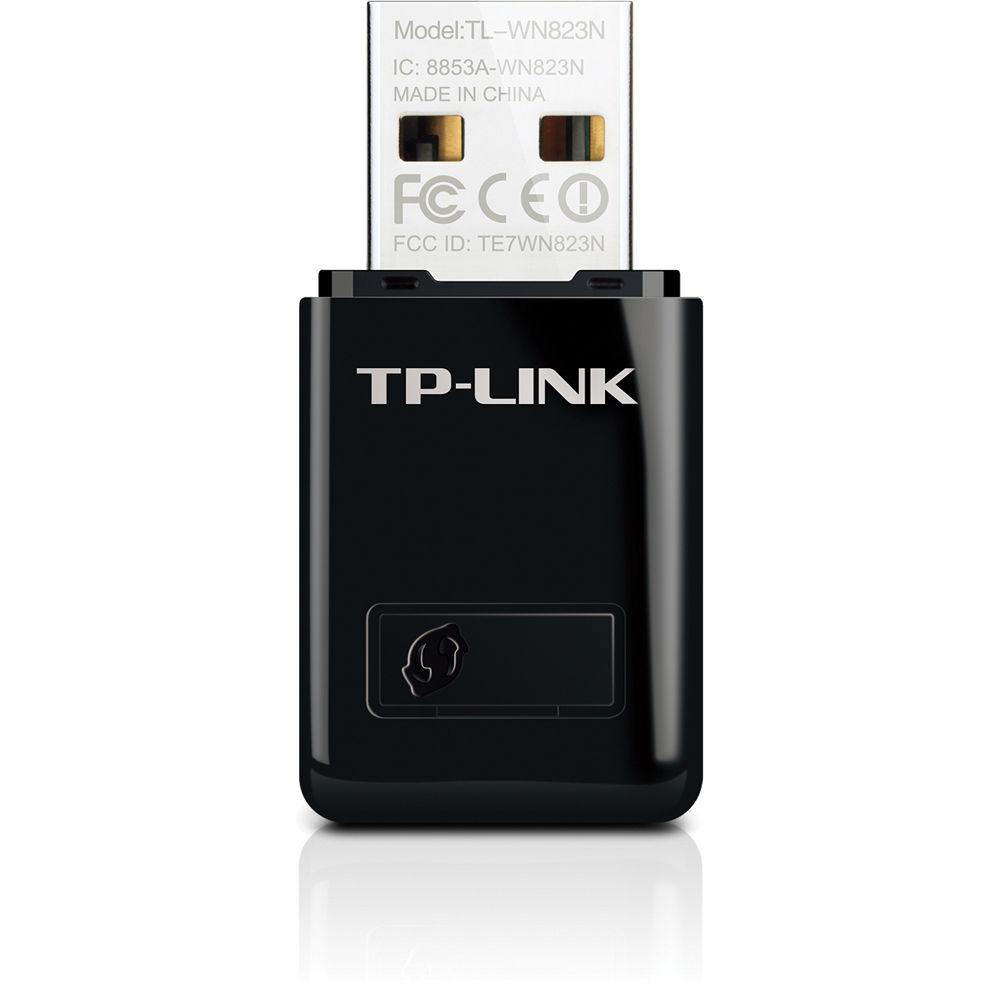

User Manual for TP-Link TL-WN823N Wireless-N300 Mini USB Adapter Click to enlarge the picture
Contents of the user manual for the TP-Link TL-WN823N Wireless-N300 Mini USB Adapter
- Product category: Wireless Adapters & Cards TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Wireless Adapters & Cards
 |
User manual for the TP-Link TL-WN823N Wireless-N300 Mini USB Adapter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|
Product description The TL-WN823N Wireless-N300 Mini USB Adapter from TP-Link is small yet extremely capable, enabling you to easily configure your Wi-Fi connection. The efficient TL-WN823N Wi-Fi adapter provides speeds of up to 300Mbps, making it ideal for HD video streaming, VoIP calls, and even online gaming.
The TL-WN823N not only allows you to connect to local Wi-Fi networks, it also comes equipped with SoftAP mode, making it easy to share your current wired Internet connection. Simply enable SoftAP mode when connected to your existing wired connection, and share it with other Wi-Fi enabled devices effectively eliminating the need for a wireless router.
Setup is a breeze for the TL-WN823 as it comes outfitted with a WPS (Wi-Fi protected setup) button and quick security setup, allowing you to instantly setup your wireless security with the press of a button. The WPS button creates a WPA2 secure connection, giving you piece of mind that your connection will remain secure when compared to the older WEP encryption standards. - Portable Powerhouse
- This mini-sized USB Wi-Fi adapter packs a punch with wireless n speeds of up to 300Mbps, making it an ideal adapter for HD video streaming, online gaming and even VoIP calls.
- Advanced MIMO Technology
- MIMO or multiple-input / multiple-output, is the use of multiple antennas at both the transmitter and receiver to improve communication performance. This technology involves the use of inputs and outputs with regards to the channel carrying the signal, not the device itself having multiple antennas. The implementation of MIMO technology within the WN823N Wi-Fi adapter allows for a more efficient, faster connection than that of adapters lacking this technology.
- Share Your Connection
- The WN823N Wi-Fi adapter comes equipped with SoftAP Mode, enabling you to use the adapter as a virtual wireless Access Point. Once applied, this mode allows you to easily turn your existing wired laptop or PC connection into a wireless signal to share with other Wi-Fi enabled devices such as laptops, smartphones, or tablets.
- Easy Setup
- Quickly secure your connection utilizing the WPS (Wi-Fi Protected Setup) button along with the Quick Security Setup to automatically establish a WPA2 secure connection. This WPA2 secure connection is more advanced than the older WEP encryption standards as well as more convenient as it doesn't require you remember a password.
UPC: 845973050696 In the Box TP-Link TL-WN823N Wireless-N300 Mini USB Adapter Resource CD Quick Installation Guide More info from TP-Link Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link TL-WN823N Wireless-N300 Mini USB Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTP-Link TL-WN823N Specs | | | Interface | USB 2.0 | | Button | Wi-Fi Protected Setup (WPS) Button | | Antenna Type | Internal | | | | Standards | IEEE 802.11b/g/n | | Frequency | 2.400-2.4835GHz | | Signal Rate | 11b: Up to 11Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11n: Up to 300Mbps(dynamic) | | EIRP | <20dBm | | Wireless Sensitivity | 300M: -65dBm@10% PER
270M: -65dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -72dBm@10% PER
11M: -85dBm@8% PER
6M: -87dBm@10% PER
1M:-93dBm@8% PER | | Wireless Modes | Soft AP Mode
Client Mode (support Ad-hoc/Infrastructure network) | | Wireless Security | 64/128-bit WEP
WPA-PSK / WPA2-PSK
WPA / WPA2 | | Modulation | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM | | | | Certifications | CE, FCC, IC, RoHS | | System Requirements | Windows 7(32/64bits)
Windows Vista(32/64bits)
Windows XP(32/64bits) | | Environmental Requirements | Operating Temperature: 32-104°F / 0-40°C
Storage Temperature: -40-158°F / -40-70°C
Operating Humidity: 10-90% non-condensing
Storage Humidity: 5-90% non-condensing | | Dimensions (W x D x H) | 1.54 x 0.72 x 0.31" / 39 x 18.35 x 7.87 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 5.4 x 3.9 x 1.2" |
