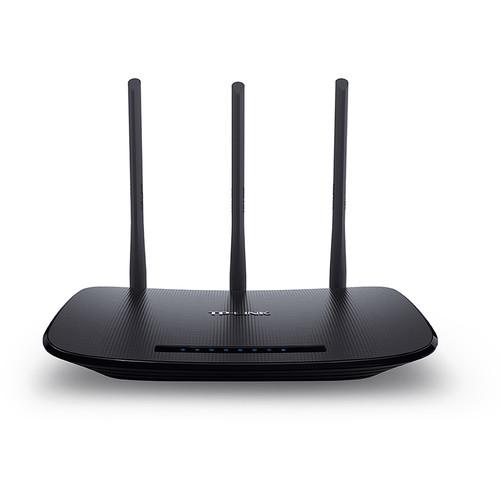

User Manual for TP-Link TL-WR940N Wireless N-300 Router Click to enlarge the picture
Contents of the user manual for the TP-Link TL-WR940N Wireless N-300 Router
- Product category: Wireless Routers TP-Link
- Brand: TP-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TP-Link Wireless Routers
 |
User manual for the TP-Link TL-WR940N Wireless N-300 Router contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TP-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TP-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TP-Link product will considerably shorten its lifespan!
|
Product description The TL-WR940N Wireless N-300 Router is a combined wired / wireless network connection device engineered for small business and home office networking needs. It features MIMO Technology and 3 antennas to enhance wireless robustness and stability. The router boasts data transfer rates of up to 300 Mbps. It produces exceptional, advanced wireless performance, making it great for HD video streaming, VoIP and online gaming. Additionally, the Quick Setup Security (QSS) button on the sleek exterior ensures WPA2 encryptions, safeguarding the network against outside intrusions. It also makes life easy, since you don't have to remember a password. IP QoS based bandwidth control enables network administrators to determine what quantity of bandwidth is allotted to each computer, helping to reduce congestion and prevent bandwidth abuse.
Complying with the IEEE 802.11n standard, TL-WR940N is able to establish a wireless network and achieve up to 15x the speed and 5x the range of traditional 11g products! It also demonstrates a better ability to mitigate data loss over long distances and through obstacles in a small office or a large apartment, even in a steel-and-concrete building. Easily pick up your wireless network with a long-distance connection of which legacy 11g products may not be capable.
This router possesses the speed to work smoothly with virtually any bandwidth-intensive application, including VoIP, HD streaming or online gaming, without lag time. Utilizing its powerful N technologies, the router can also transform your home and even your yard into a large hot-spot.
Clear Channel Assessment (CCA) automatically avoids channel conflicts via the clear channel selection feature, and completely realizes the benefits of channel binding for substantially improved wireless performance.
Feel more secure knowing that TL-WR940N offers WPA / WPA2 encryptions (both Personal and Enterprise) produced by the WI-FI Alliance industry group, promoting interpretability and security for WLAN.
The router includes a CD with an Easy Setup Assistant to lead you through the setup process step-by-step, and even assists you with wireless network settings and security configurations. Even novice users won't have an issue! - Wireless N speeds up to 300 Mbps make the router perfect for bandwidth-hungry or interruption-sensitive applications, such as HD video streaming, online gaming and VoIP
- 3T3R MIMO technology produces greater throughput at range compared to conventional 2T2R
- Easily setup a WPA encrypted secure connection at the push of a QSS button
- WDS wireless bridge offers seamless bridging to expand your wireless network
- SST drastically expands link robustness and improves stability
- CCA enables better wireless performance while automatically avoiding channel conflicts
- QoS function ensures high quality of VoIP and multimedia streaming
- Parental control function manages Internet access of children or an employee's computer
- Provides support for virtual server, special application and DMZ host - perfect for creating a website within your LAN
- Auto-mail function for system log - convenient for managing router
- Backwards compatible with 802.11b / g products
- Easy Setup Assistant enables fast and hassle-free installation
- External fixed antennas enable improved alignment and stronger antenna upgrades
- Sleek exterior enables mounting on a wall or horizontal placement on a table or desk
UPC: 845973051464 In the Box TP-Link TL-WR940N Wireless N-300 Router Power Supply Unit Resource CD Quick Installation Guide Limited 2-Year Warranty User Manual PDF 1.7mb More info from TP-Link Table of Contents
|
Upload User Manual
Have you got an user manual for the TP-Link TL-WR940N Wireless N-300 Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

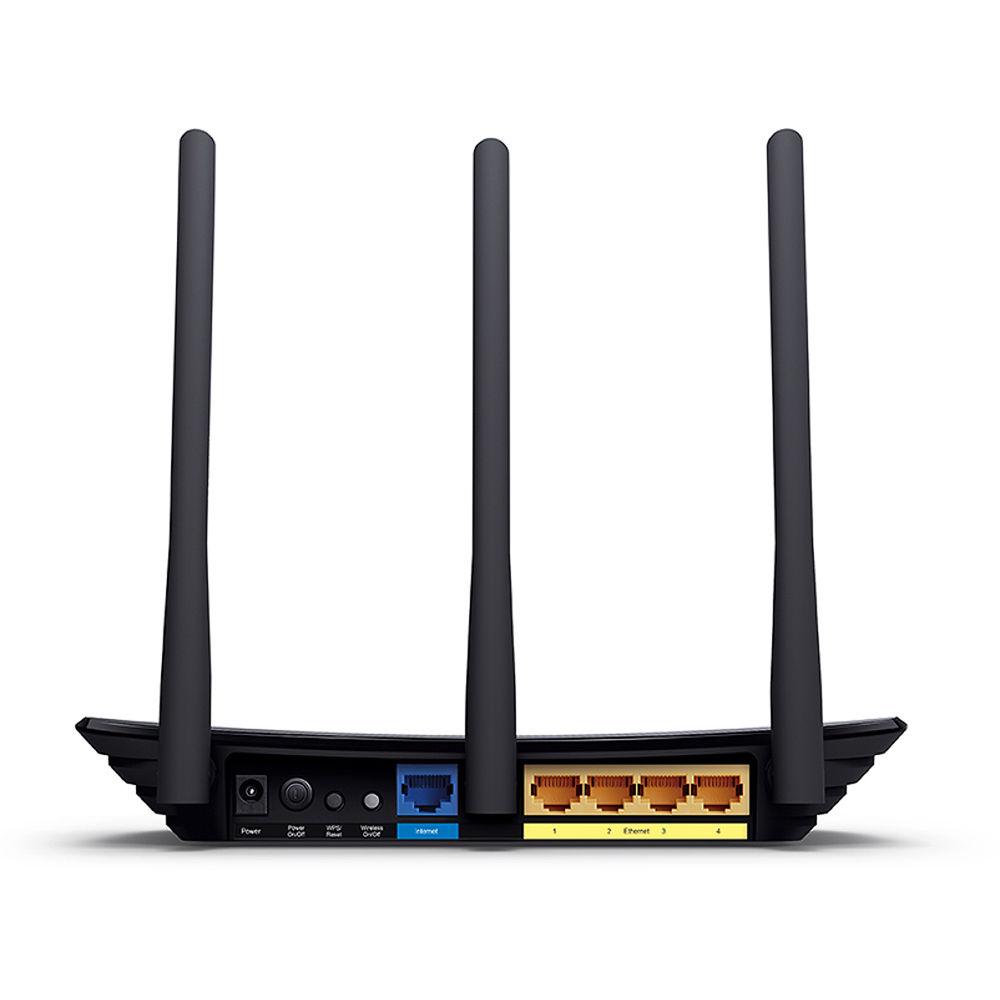

Technical parametersTP-Link TL-WR940N Specs | | | Wireless Frequency Bands | 2.4 GHz | | Number of Antennas | 3 | | WLAN Mode | 802.11n | | Sensitivity | -68 to -90 dBm | | Antenna Gain | 3 dBi | | Supported Protocols | MAC Filtering | | | | Ports | 1 x Ethernet (RJ45) (Uplink)
4 x Ethernet (RJ45)
1 x 10/100 Mb/s Ethernet (RJ45) | | | | Throughput | 2.4 GHz: 300 Mb/s | | | | Wireless Security | WPA, WPA2 | | | | Supported IEEE Standards | 802.1x | | | | DC Input Power | 9 VDC at 0.85 A | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Operating Humidity | 10 to 90% | | Storage Humidity | 5 to 90% | | | | Certifications | RoHS, as per Manufacturer | | Dimensions | 7.9 x 1.2 x 5.5" / 20.1 x 3 x 14 cm | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 11.4 x 9.1 x 2.8" |
