User Manual for trackmateGPS DASH II Real Time GPS Vehicle Tracker Click to enlarge the picture
Contents of the user manual for the trackmateGPS DASH II Real Time GPS
- Product category: GPS Tracking trackmateGPS
- Brand: trackmateGPS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for trackmateGPS GPS Tracking
 |
User manual for the trackmateGPS DASH II Real Time GPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any trackmateGPS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official trackmateGPS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a trackmateGPS product will considerably shorten its lifespan!
|

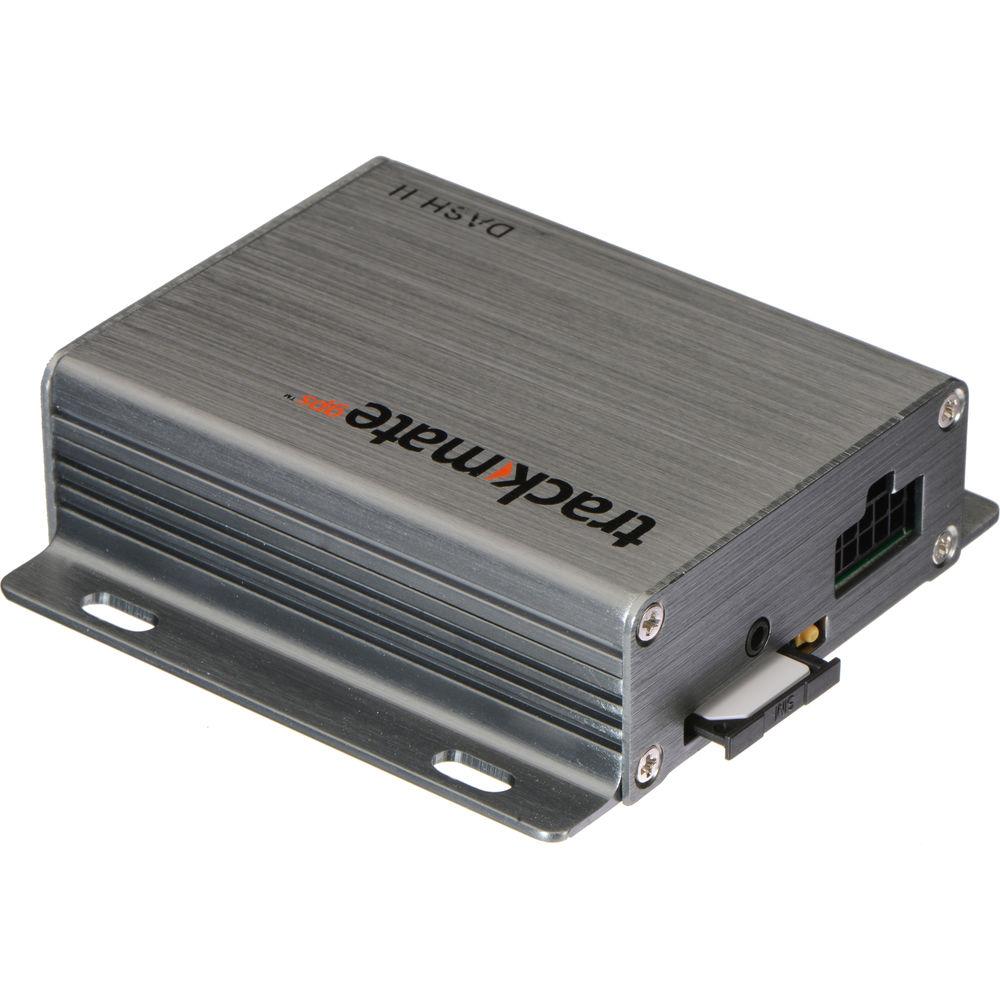

Product description Monitor and track your vehicle at all times with the DASH II Real Time GPS Vehicle Tracker from trackmateGPS. When using the tracker you will receive customized reports and real-time information about your vehicle or vehicles, including GPS location, average speed, total mileage traveled, and idling duration. The DASH II also enables you to set customized alerts that will notify you when your vehicle exceeds a predetermined speed, leaves a designated area, or loses power. Shock sensors will detect if your vehicle has been moved or towed, and a relay switch will allow you to remotely cut off power to your car so that it cannot be turned on.
This compact GPS tracker can be installed in several convenient locations inside your car, including under the dashboard, inside the grille, beneath the radio, or inside the bumper. The tracker operates on the AT&T and T-Mobile networks and is designed to detect the strongest signal for fast, reliable data transmissions. The DASH II will indicate the number of satellites it is connected to, enabling you to determine the accuracy of the tracker's data. It comes ready to be used inside the United States but can also work outside the U.S. when used with the correct, separately available, SIM card.

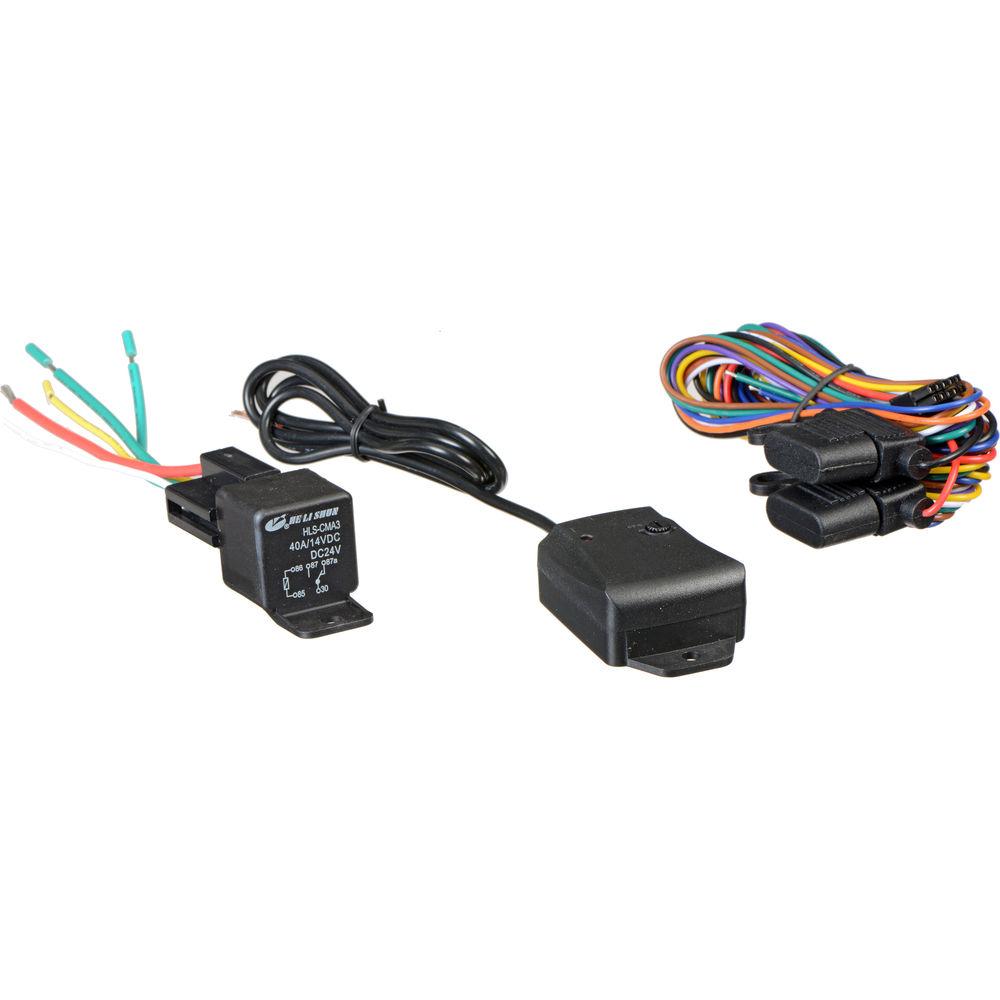

To activate the device, you will need to create an account and register your DASH II on the trackmateGPS website. The DASH II is powered by your car's battery but also comes equipped with an internal back-up battery that provides up to 6 hours of tracking. With the exception of the necessary tools, everything you need to set up your DASH II comes with the device, including the GSM and GPS antenna, wiring harness, and U.S.-compatible SIM card. - Choice of Three Monthly Plans
-
- Basic Plan: 60 second updates while moving and every 30 minutes when stationary
- Premium Plan: 30 second updates while moving and every 30 minutes when stationary
- Platinum Plan: 3 second updates while moving and every 30 minutes when stationary
- Features
-
- Real-time tracking
- Internal back-up battery
- Geo-fencing alerts
- Speed alerts
- Inactivity alerts
- Geo-elapsed time alert
- Power supply failure alert
- Shock sensors
- Remote cut-off using relay switch
- Saves up to 6 months of data
- Multiple users with sub accounts
- Engine On indicator
- Shows number of connected satellites
UPC: 758524260775 In the Box trackmateGPS DASH II Real Time GPS Vehicle Tracker GPS Antenna GSM Antenna Power Line SIM Card Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the trackmateGPS DASH II Real Time GPS Vehicle Tracker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameterstrackmateGPS DASH 2.1 Specs | Network | GSM / GPRS / GPS | | Band | 900 / 1800 / 1900 MHz
850 / 900 / 1800 / 1900 MHz | | GPS Chip | SiRF III chip | | GSM/GPRS Module | SIM 800C | | GPS Sensitivity | -159 dBm | | GPS Accuracy | 16.4' / 5.0 m | | Time to First Fix | Reacquisition: 0.1 s
Cold Status: 45 s
Warm Status: 35 s
Hot Status: 1 s | | Work Voltage | 9 to 30 VDC | | Battery | Lithium-ion rechargeable
3.7 V / 500 mAh / 1.85 W | | Standby Current | < 30 mA | | Storage Temperature | -40 to 185°F / -40 to 85°C | | Operational Temperature | -4 to 158°F / -20 to 70°C | | Humidity | 5 to 95% non-condensing | | Dimensions | 3.4 x 2.5 x 1.0" / 87.0 x 64.0 x 26.0 mm | | Weight | 17.5 oz / 495.0 g | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 7.8 x 5.7 x 2.2" |
