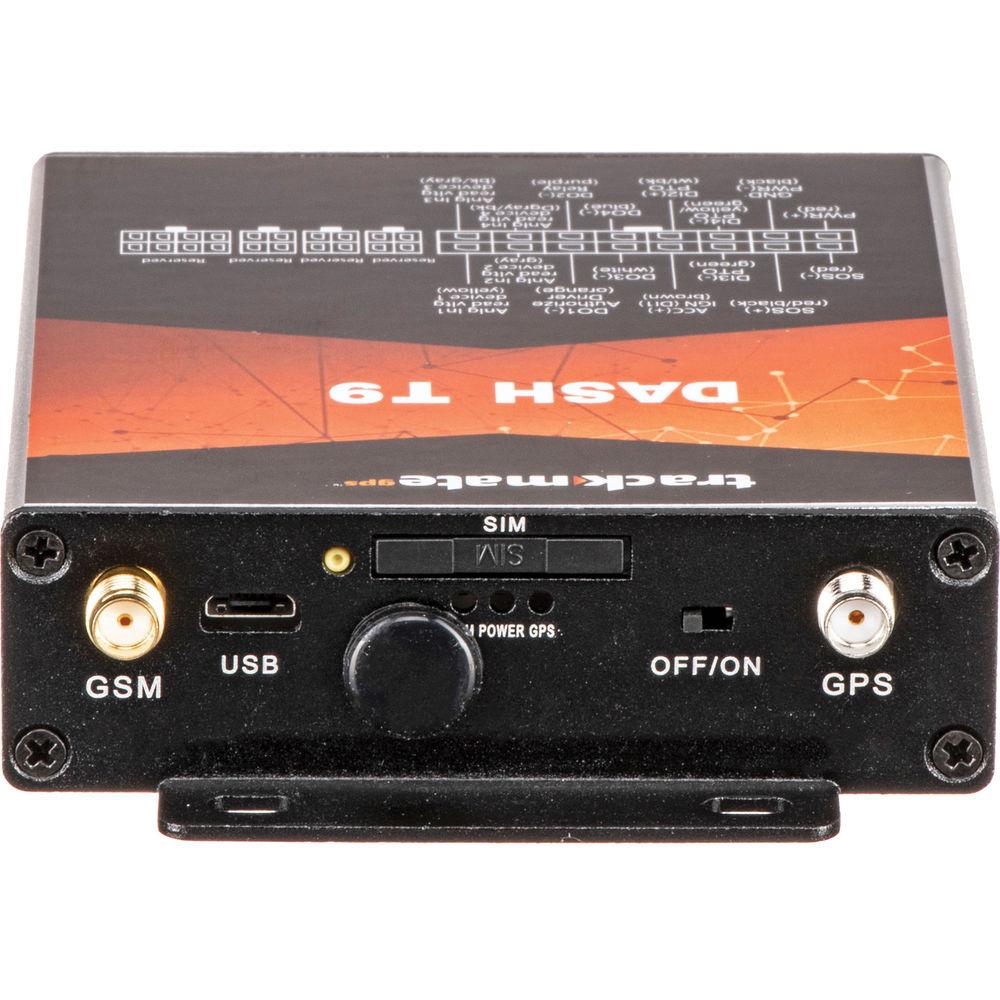

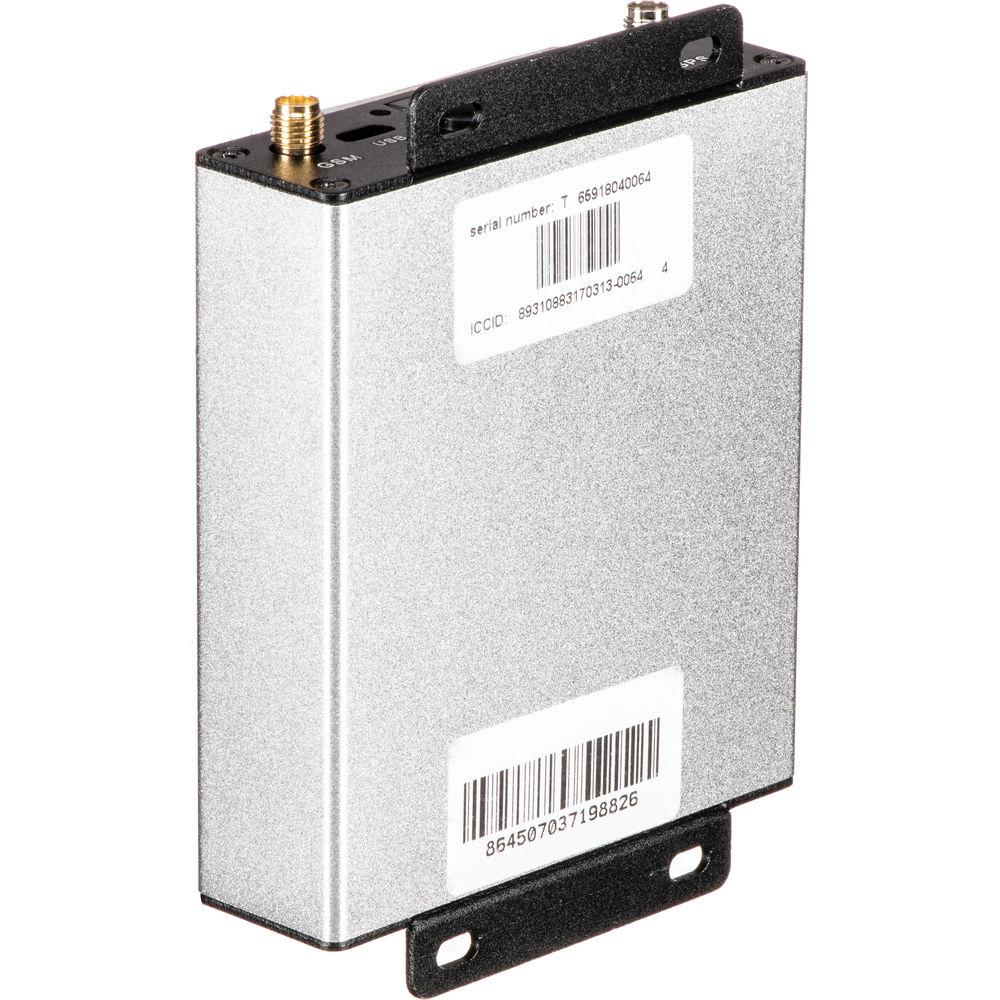

Product description The DASH T9 from trackmateGPS provides real-time tracking and location updates of your vehicle. This compact GPS tracker operates on AT&T and T-Mobile 3G networks and can work internationally with the correct SIM card (US SIM card preinstalled). This device will alert you if a predetermined speed limit has been exceeded, or if the tracker has left a designated geofence.

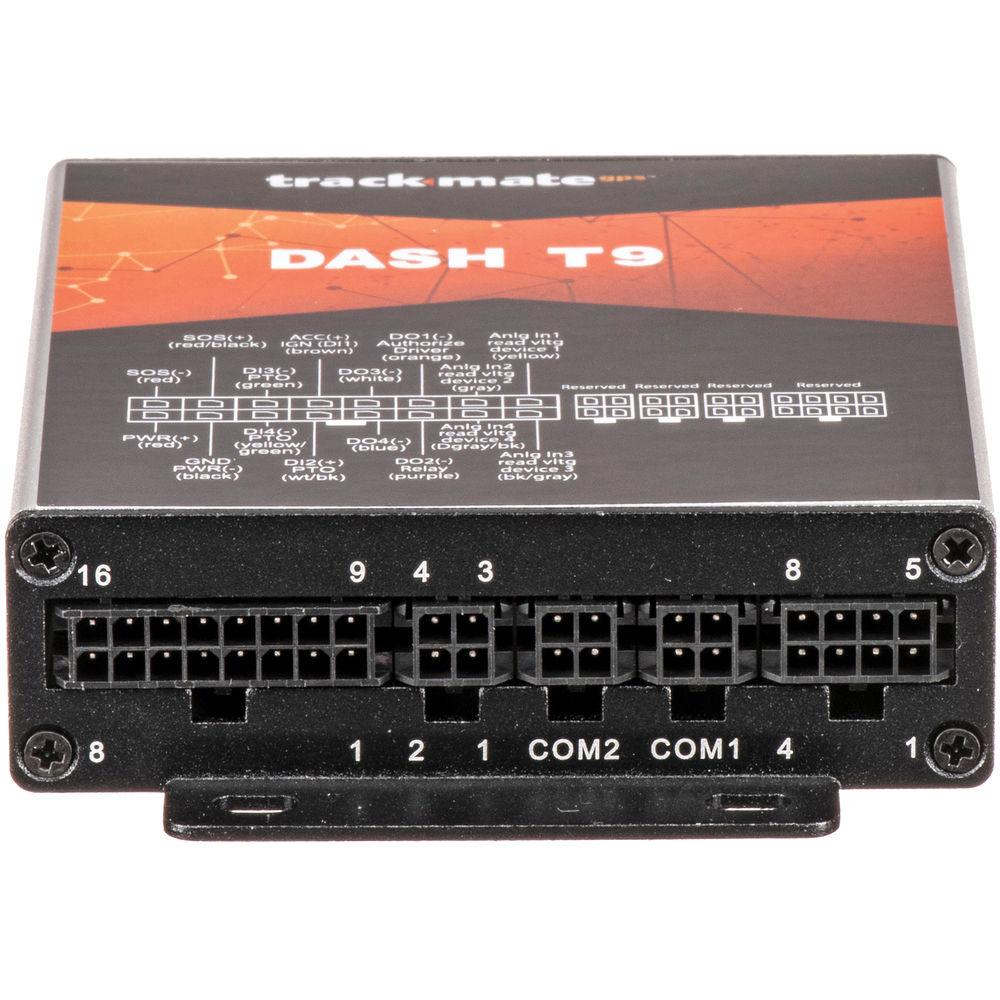

This tracker is powered by your vehicle's battery, and comes equipped with a rechargeable backup battery. Online registration to create an account with the manufacturer is required to use this device. A 7-day free trial period comes with the tracker, after which a service plan is required for continued use. Professional installation of this tracker is highly recommended. - Interface includes 1 x switch input, 4 x digital inputs, 4 x digital outputs, 4 x analog inputs, 2 x RS-232 ports, 1 x RS-485 port, and 2 x 1-Wire for temperature sensors
- ≥3 years of standby battery life
- LED indicators for GPS, GSM, and power status
- Compact at only 5.3 ounces
- Detailed reports with service plans
- Choice of Four Monthly Service Plans
-
- Saver Plan: Updates every 5 minutes while moving and every 30 minutes while stationary
- Basic Plan: Updates every 60 seconds while moving and every 30 minutes when stationary
- Premium Plan: Updates every 30 seconds while moving and every 30 minutes when stationary
- Platinum Plan: Updates every 3 seconds while moving and every 30 minutes when stationary

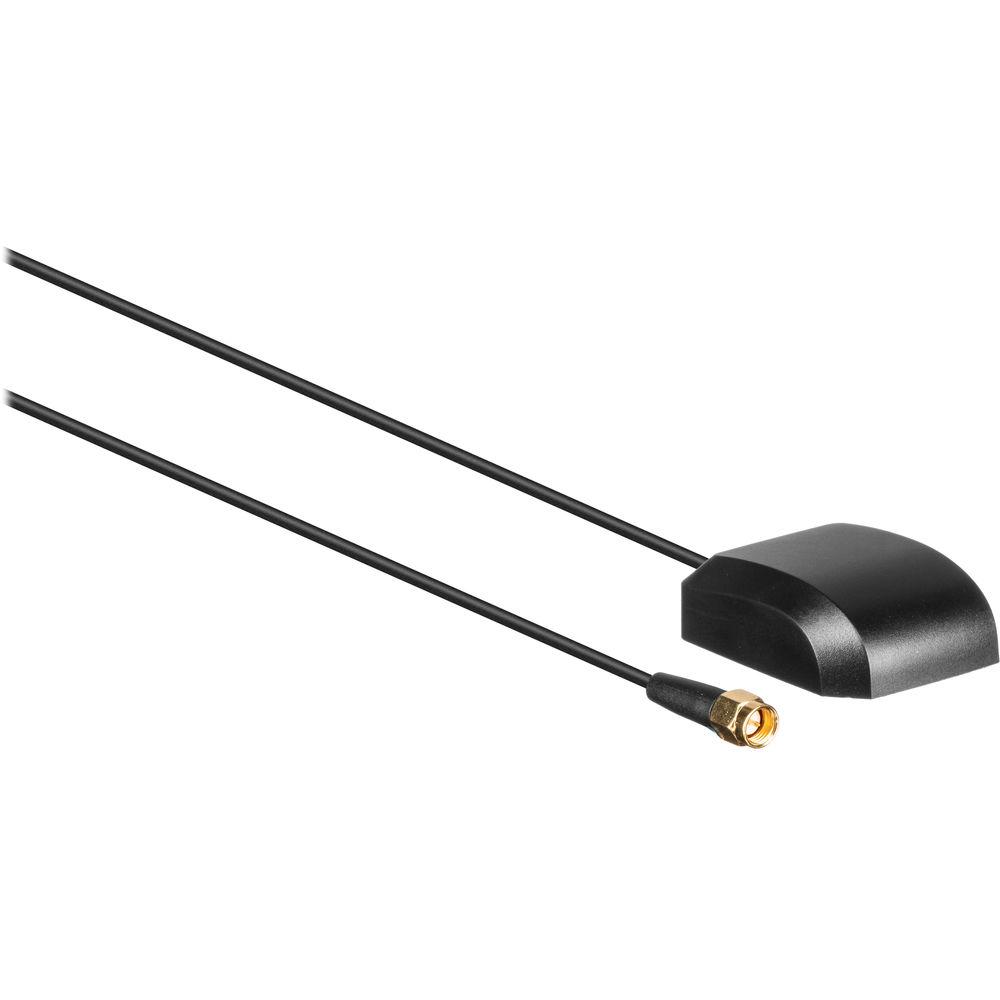

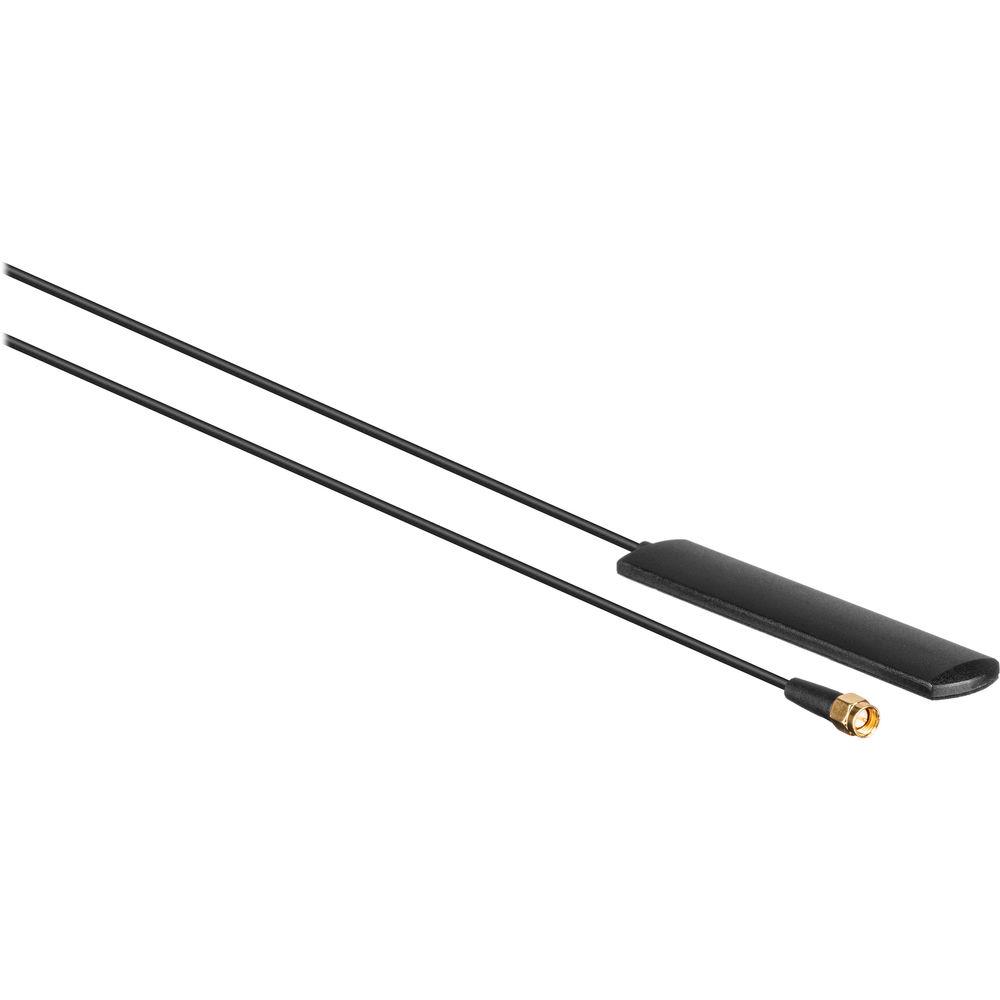

In the Box trackmateGPS DASH T9 Real-Time GPS Vehicle Tracker GPS Antenna Cellular Antenna with 3M Sticker SIM Card Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the trackmateGPS DASH T9 Real-Time GPS Vehicle Tracker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameterstrackmateGPS DASH T9 Specs | | | Cellular Technology | 3G (Data): 850, 900, 1800, 1900, 2100 MHz | | Cellular Network Provider | Carrier Unlocked | | Antenna | External | | Transmitter Power | 1 to 10 dBm | | | | GPS Antenna | External | | Location Accuracy | Approximately 8.20' / 2.5 m | | Location Augmentation | SBAS | | Time to First Fix | Reacquisition: 0.1 Second
1 Second (Hot Start)
1 Second (Warm Start)
27 Seconds (Cold Start) | | Sensitivity | Tracking: -162 dBm | | | | Digital Inputs | 4 | | SIM Card Slot | Yes | | | | Battery Type | 1 x Built-In | | Capacity (mAh) | 800 mAh | | DC Input Power | 12 to 60 VDC at 1.5 A | | | | Tracking Type | Real-Time Tracking | | Region of Use | International | | Operating Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 5 to 95% | | Dimensions | 3.1 x 1.0 x 4.4" / 80.0 x 25.0 x 112.0 mm | | Weight | 5.3 oz / 150 g | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 8.0 x 5.75 x 2.15" |
