User Manual for trackmateGPS MINI H 3G Real-Time GPS Vehicle Tracker Click to enlarge the picture
Contents of the user manual for the trackmateGPS MINI H 3G Real-Time GPS
- Product category: GPS Tracking trackmateGPS
- Brand: trackmateGPS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for trackmateGPS GPS Tracking
 |
User manual for the trackmateGPS MINI H 3G Real-Time GPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any trackmateGPS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official trackmateGPS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a trackmateGPS product will considerably shorten its lifespan!
|

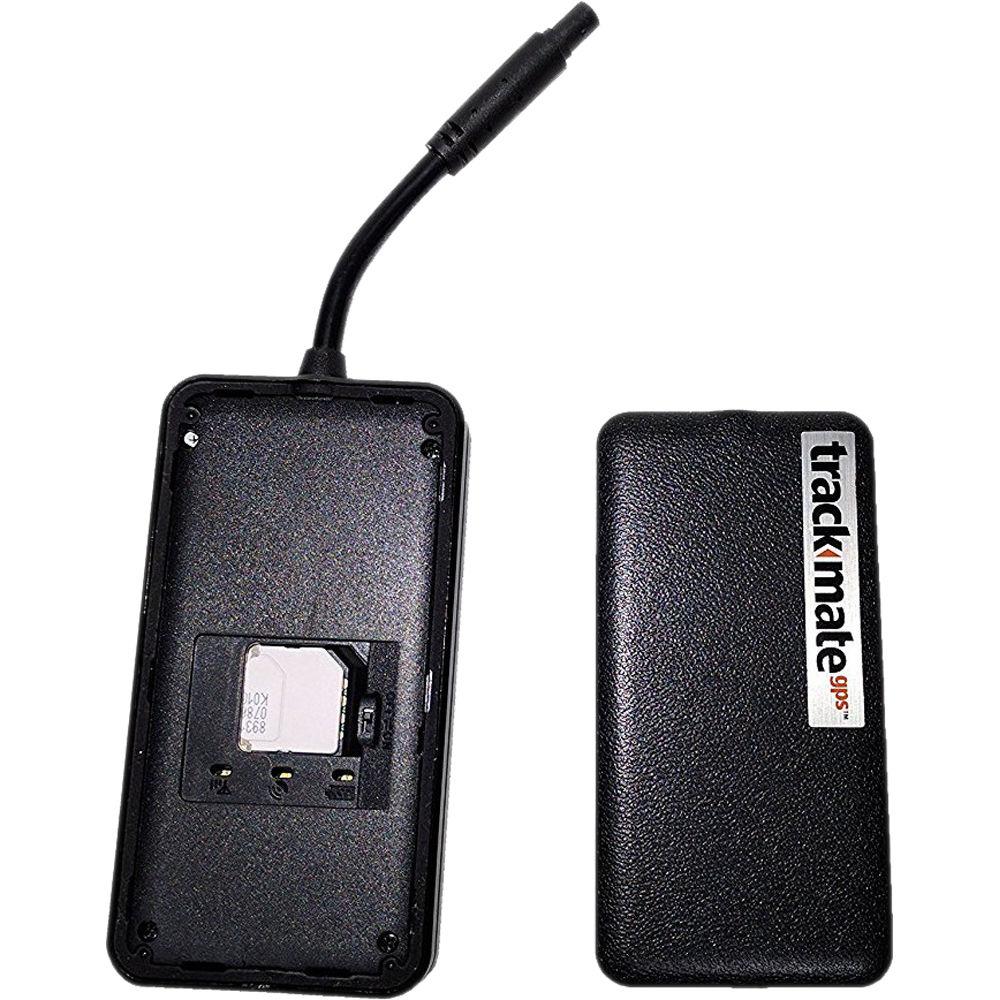

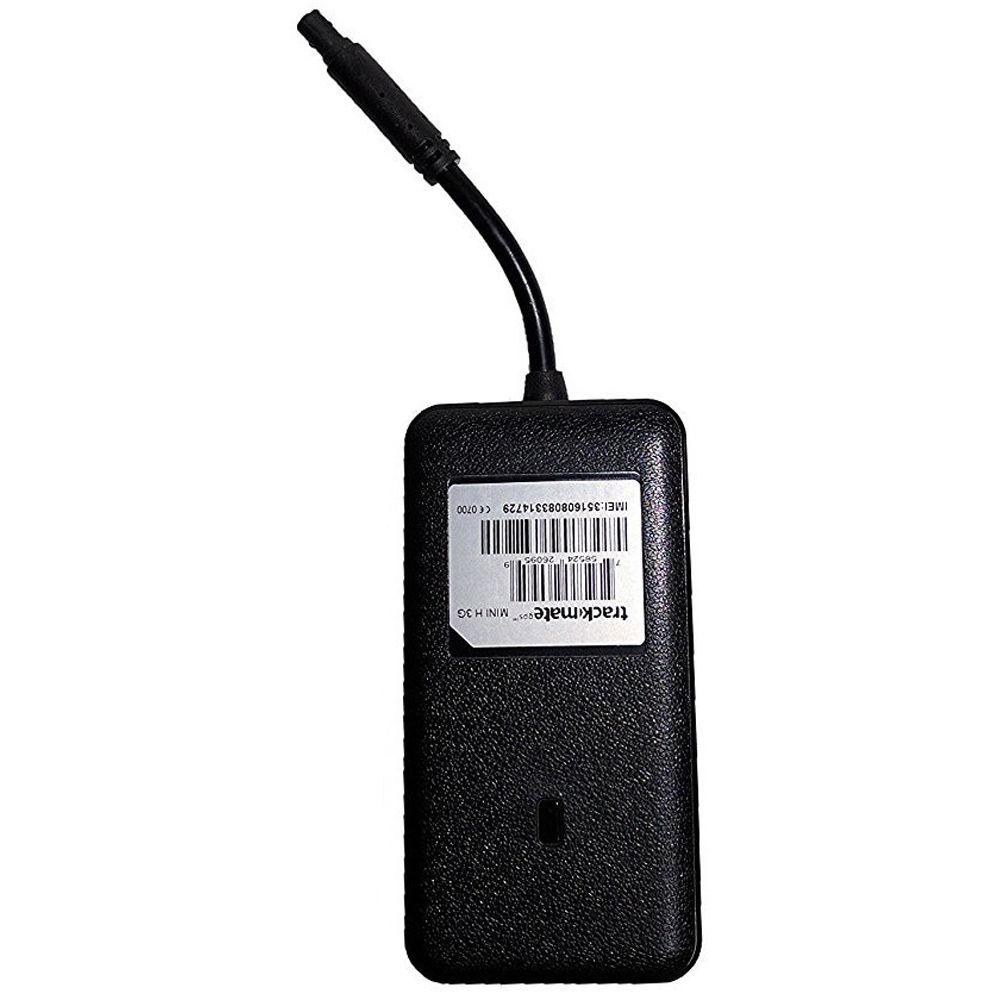

Product description trackmateGPS Gets a Product Refresh Read More xbesdcqxcbrexxvysf Monitor and track your vehicle at all times with the MINI H 3G Real-Time GPS Vehicle Tracker from trackmateGPS. This compact GPS tracker operates on the AT&T and T-Mobile 3G networks and is designed to detect the strongest signal for fast, reliable data transmission. The MINI H 3G comes ready to be used domestically, and can also function in a number of other countries depending on service plan. It is powered by your car's battery, but also comes equipped with a rechargeable lithium-ion backup battery and an adhesive sticker to make installation quick and easy.
To activate the MINI H 3G, you must first register your device and set up an account with trackmateGPS. Through trackmateGPS, you can receive customized reports and real-time information about your vehicle, including GPS location, average speed, total mileage traveled, idling duration, and more. The MINI H 3G also enables you to set customized alerts that will notify you when your vehicle exceeds a predetermined speed, leaves a designated area, or loses power, as well as other helpful alerts that will help you monitor and protect your vehicle.
Note: An active service plan is required for full functionality and use. The MINI H 3G works internationally, with additional fees and requirements. See manufacturer's site for full details. - Hard-wired for consistent power and tracking
- Monitors location, trips, speed, and more
- Geofencing alerts, inactivity alerts, power supply alerts, and more
- Choice of Four Monthly Plans
-
- Saver Plan: Updates every 5 minutes while moving and every 30 minutes while stationary
- Basic Plan: Updates every 60 seconds while moving and every 30 minutes when stationary
- Premium Plan: Updates every 30 seconds while moving and every 30 minutes when stationary
- Platinum Plan: Updates every 3 seconds while moving and every 30 minutes when stationary

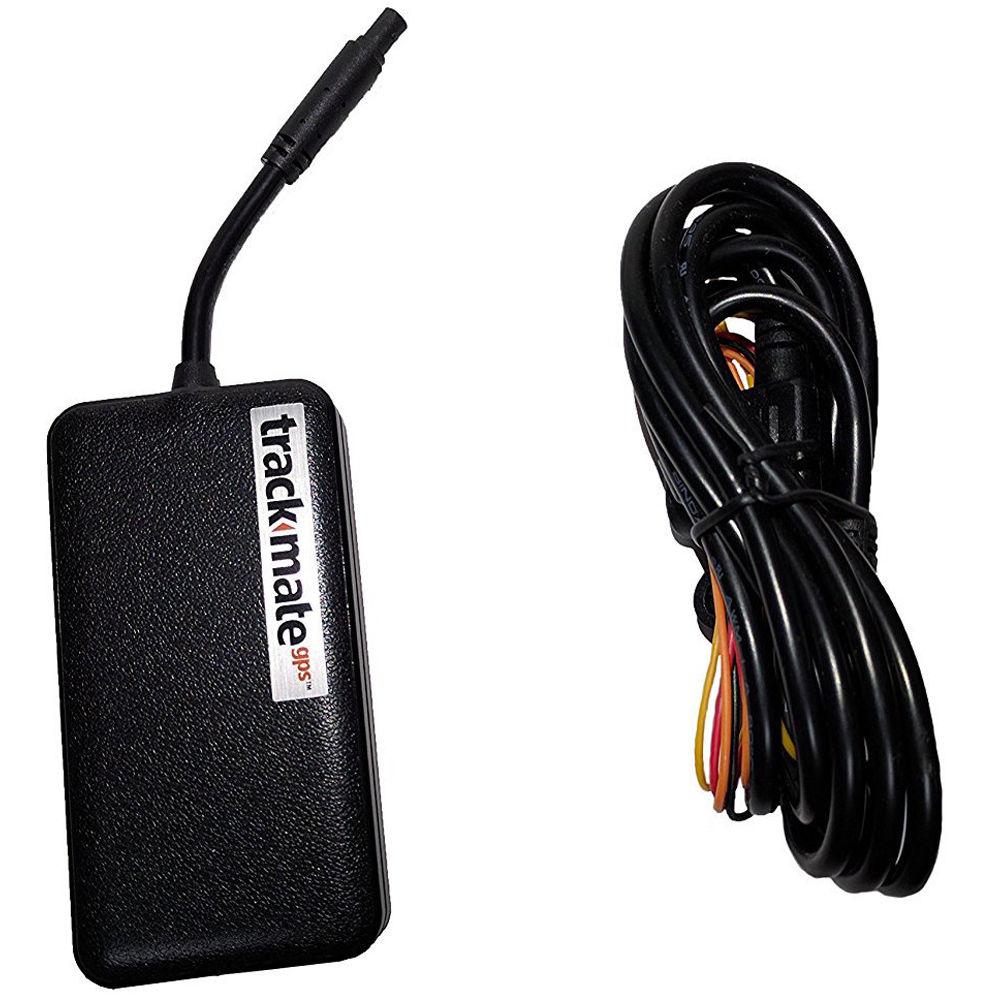

UPC: 758524260959 In the Box trackmateGPS MINI H 3G Real-Time GPS Vehicle Tracker 3' 4-Wire Wiring Harness Adhesive Sticker Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the trackmateGPS MINI H 3G Real-Time GPS Vehicle Tracker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameterstrackmateGPS MINI H 3G Specs | Communication | WCDMA, GSM, 3G, GPS | | Frequency Bands | WCDMA: 850/900/1900/2100 MHz
GSM: 850/900/1800/1900 MHz | | GSM/GPRS Module | Class 12, TCP/IP | | Memory | 32+32 MB | | Phase | Error: RMSPE<5, PPE<20 | | Maximum Output | GSM 850, 900: 33 ±3 dBm
GSM 1800, 1900: 30 ±3 dBm | | Maximum Frequency | Error: ±0.1 ppm | | GPS Chip | BDS+AT6558 | | GPS | Frequency: L1, 1575.42 MHz C/A code
Channel: 66
Tracking Sensitivity: -162 dBm
Acquisition Sensitivity: -148 dBm | | GPS Accuracy | <30' / <10 m | | Time to First Fix | Cold Start: <32 sec
Hot Start: <1 sec | | LED Indicator | Red: Power
Blue: GPS
Green: GSM | | Work Voltage | 9-36 VDC, 31 mA (12 VDC), 19 mA (24 VDC) | | Standby Current | 5 mA, 12 VDC | | Battery | 400 mAh, 3.7 V | | Operating Temperature | -4 to 158°F / -20 to 70°C | | Dimensions | 3.4 x 1.75 x 0.5" / 88 x 45 x 13 mm | | Weight | 2 oz / 60 g | | | | Package Weight | 0.415 lb | | Box Dimensions (LxWxH) | 5.6 x 5.55 x 1.45" |
