User Manual for Tram TR50 - Omnidirectional Lavalier Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Tram TR50 - Omnidirectional Lavalier Condenser
- Product category: Microphones for Wireless Tram
- Brand: Tram
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tram Microphones for Wireless
|
User manual for the Tram TR50 - Omnidirectional Lavalier Condenser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tram product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tram user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tram product will considerably shorten its lifespan!
|
Product description The Tram TR50 is a professional omnidirectional electret condenser lavalier microphone with a low-profile design resulting in low visibility. The TR50 features a frequency response that enhances the character and frequencies associated with speech.The polar pattern provides a generous pick up response at the direct and off-axis sections of the microphone capsule. This enhances sensitivity and minimizes noise associated with movement, wind and clothing contact. The TR50 features minimum sound coloration and is available in a variety of connectors for direct integration with wireless transmitters. This version features a TA4 connection for use with Vega wireless transmitters.
The TR50 is powered by your Vega transmitter, but can also be hard-wired with the assistance of the TR79 power supply, not included. The TR79 accepts external Phantom power or uses internal battery power. - Minimum sound coloration for universal use
- Easily combined with boom microphones
- TA4 connector for use with Vega transmitters

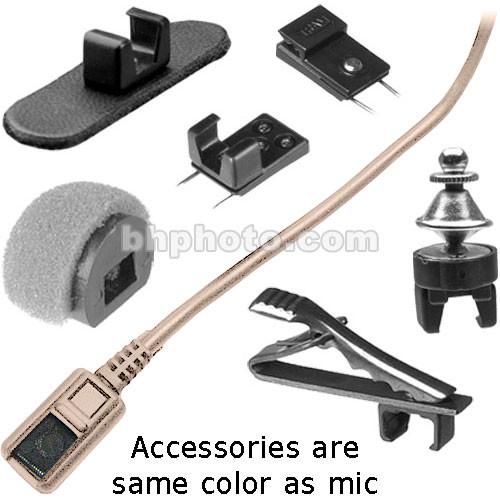

In the Box Tram TR50 - Omnidirectional Lavalier Condenser Microphone (Tan) (CH) Cable Holder (COH) Clip On Holder (TB) Tie Bar (WS) Windscreen (CC) Carrying Case (TD) Tape Down (TT) Tie Tack 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tram TR50 - Omnidirectional Lavalier Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTram TR50 Specs | Transducer | Electret Condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 40Hz - 16kHz | | Dynamic Range (Typical) | 108dB | | Signal-to-Noise Ratio | 110dB | | Maximum Input Sound Level | 134dB | | Power Requirements | Powered by Vega wireless transmitter with TA4 connector
Hard-wired use: Phantom or battery powered (Requires TR79 power supply, not included) | | Output Impedance | 3.5k Ohms | | Output Connectors | TA4 Connection for Vega Transmitters | | Pad | None | | Low Frequency Roll-Off | None | | Dimensions | Microphone: 0.300 x 0.540 x 0.196" (7.62 x 13.716 x 4.978mm) WxHxD
Cable: 4.5' (1.37m) L | | Weight | 0.27 oz (7.7g) |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 13 owners. Add your rating and experience with the product.
